Key Features
- Rugged Metal Housing
- Pre-Wired and Ready to Use
- 3-Pin XLRF to 3-Pin XLRM
- Extension Adapter
Description

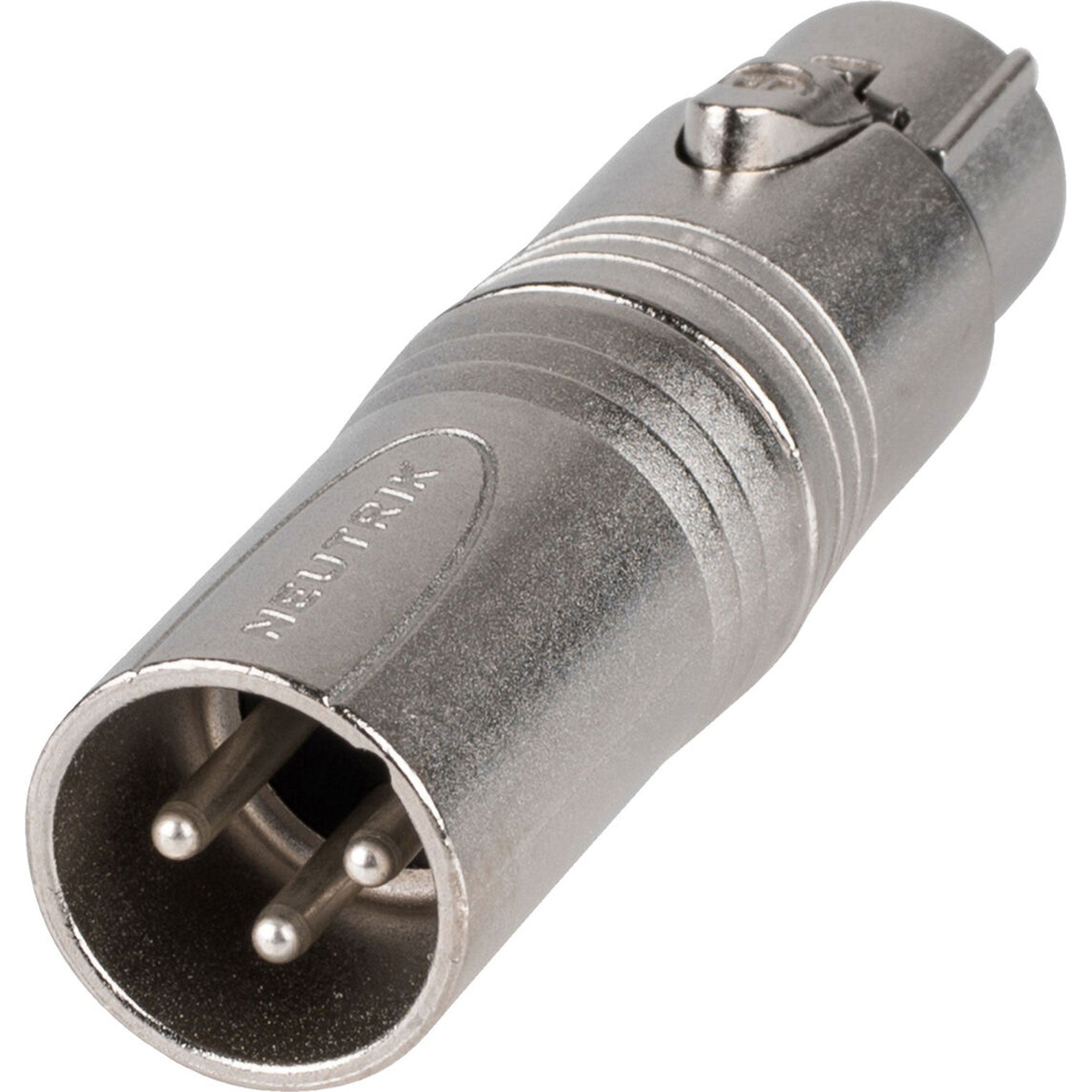

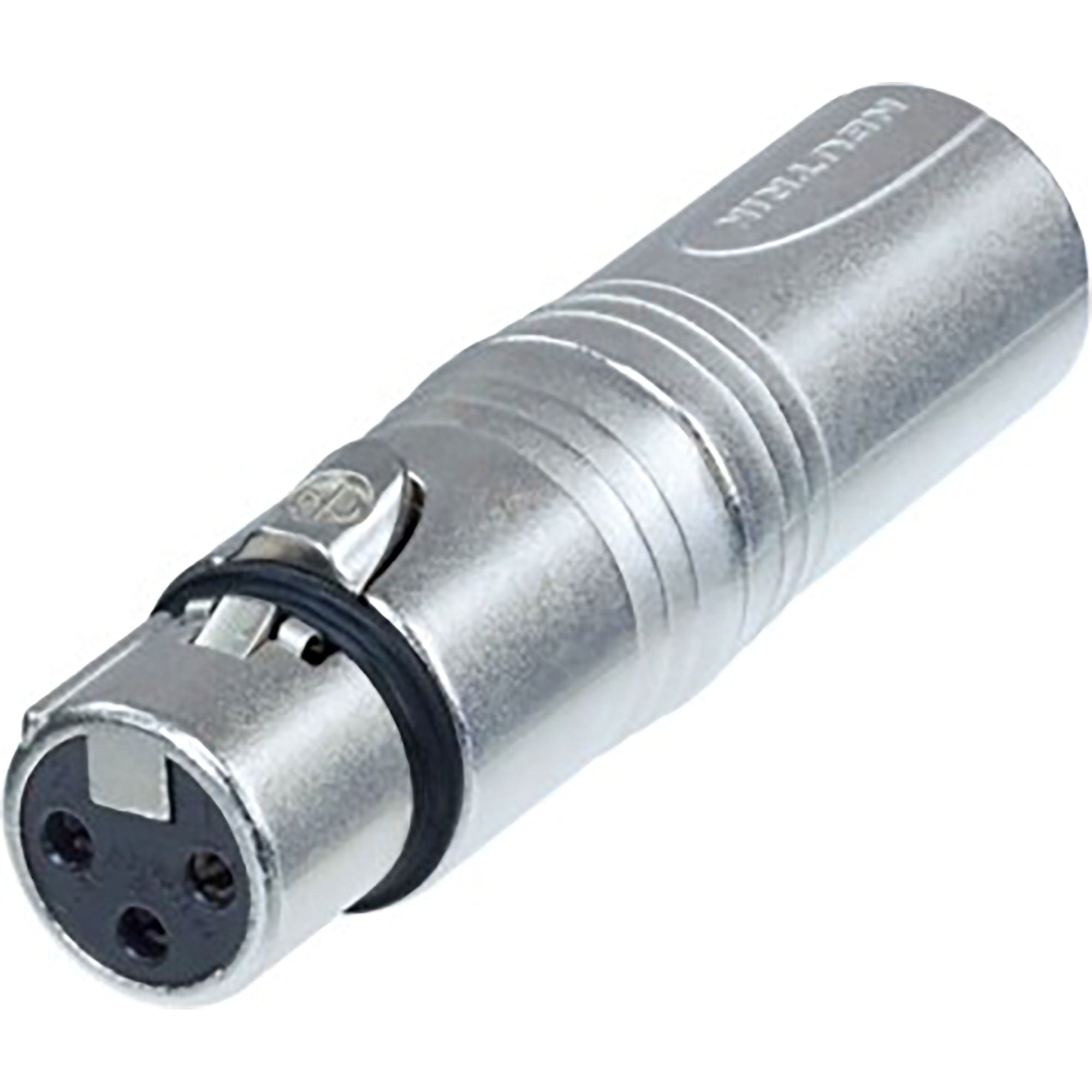

Female 3-Pin XLR to Male 3-Pin XLR Adapter
Neutrik's 3-Pole XLR Female to 3-Pole XLR Male Extension Adapter is a versatile, pre-wired, ready-to-use adapter that reliably interlocks various connector systems.
Features:
- Versatile, pre-wired and ready to use adapters to reliably interlock various connector systems
- Professional look and compact space saving design, based on the XX Series
- Rugged diecast shell for best reliability.
Specifications:
- Product
- Title: NA3FM
- Connection Type: Adapter
- Electrical
- Contact resistance: <= 3 mΩ
- Dielectric strength: 1,5 kVdc
- Insulation resistance: > 2 GΩ
- Mechanical
- Locking device: Latch lock
- Material
- Contact plating: 2 m Ag
- Contacts: Brass (CuZn39Pb3) (male)
- Contacts: Bronze (CuSn6) (female)
- Insert: Polyamide (PA 6.6 30 % GR)
- Shell: Zinc diecast (ZnAl4Cu1)
- Shell plating: gal Cu/Ni
- Environmental
- Temperature range: -20 °C to +65 °C
