Key Features
- Fully Welded Construction
- Sides with Top & Bottom Venting
- Convenient Lacing Points
- Slotted Rail Brackets
- Adjustable 10-32 Rackrail
- Rackrail Has Numbered Spaces
Description

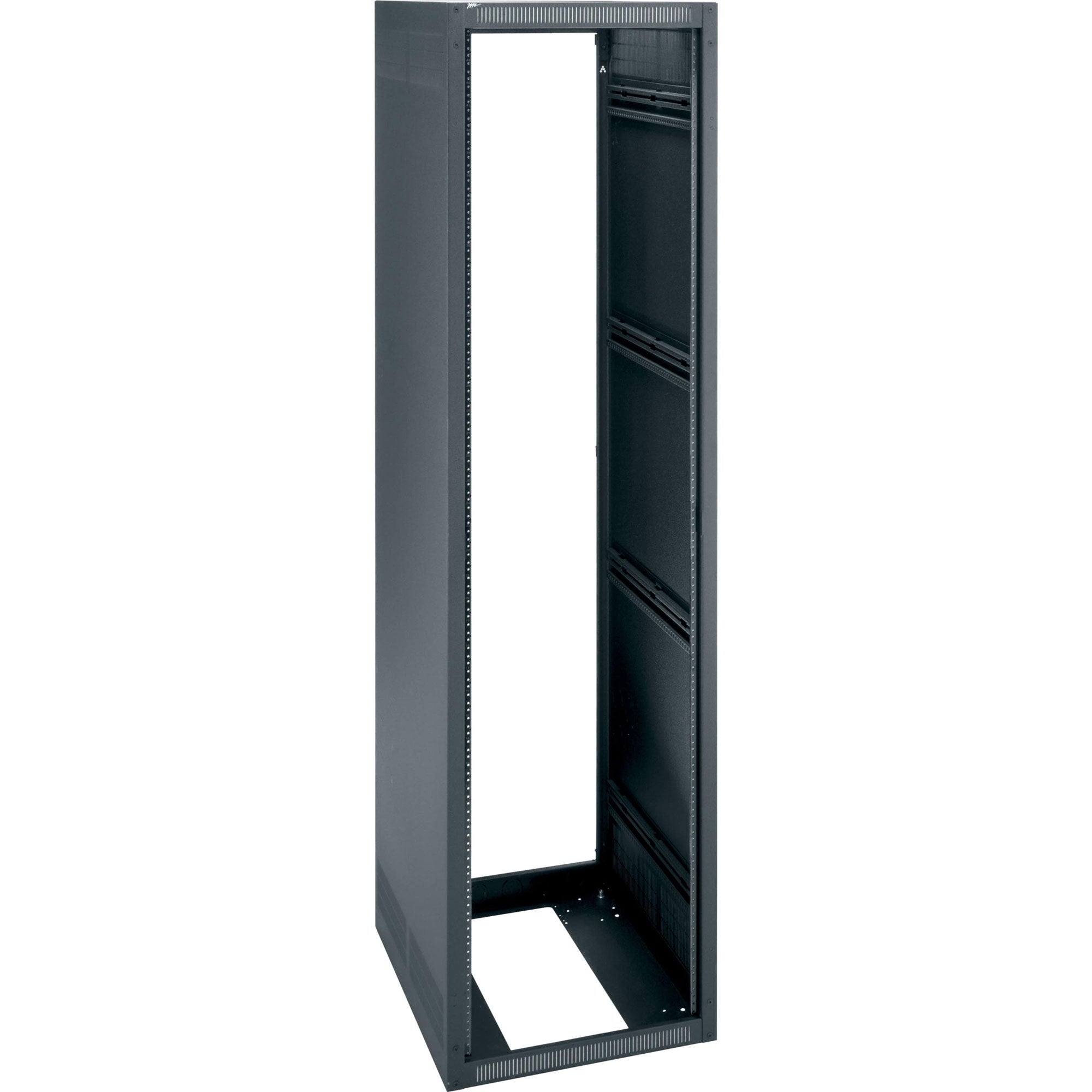

35 Space (61-1/4"), 28" Deep Stand Alone Rack without Rear Door, Black Finish
An economical standalone rack with solid sides, the ERK series can also be ganged to create partitioned multi-bay installations for thermal management control, future growth or other purposes. Seismic certified to protect your components.
Features:
- Fully welded construction for strength

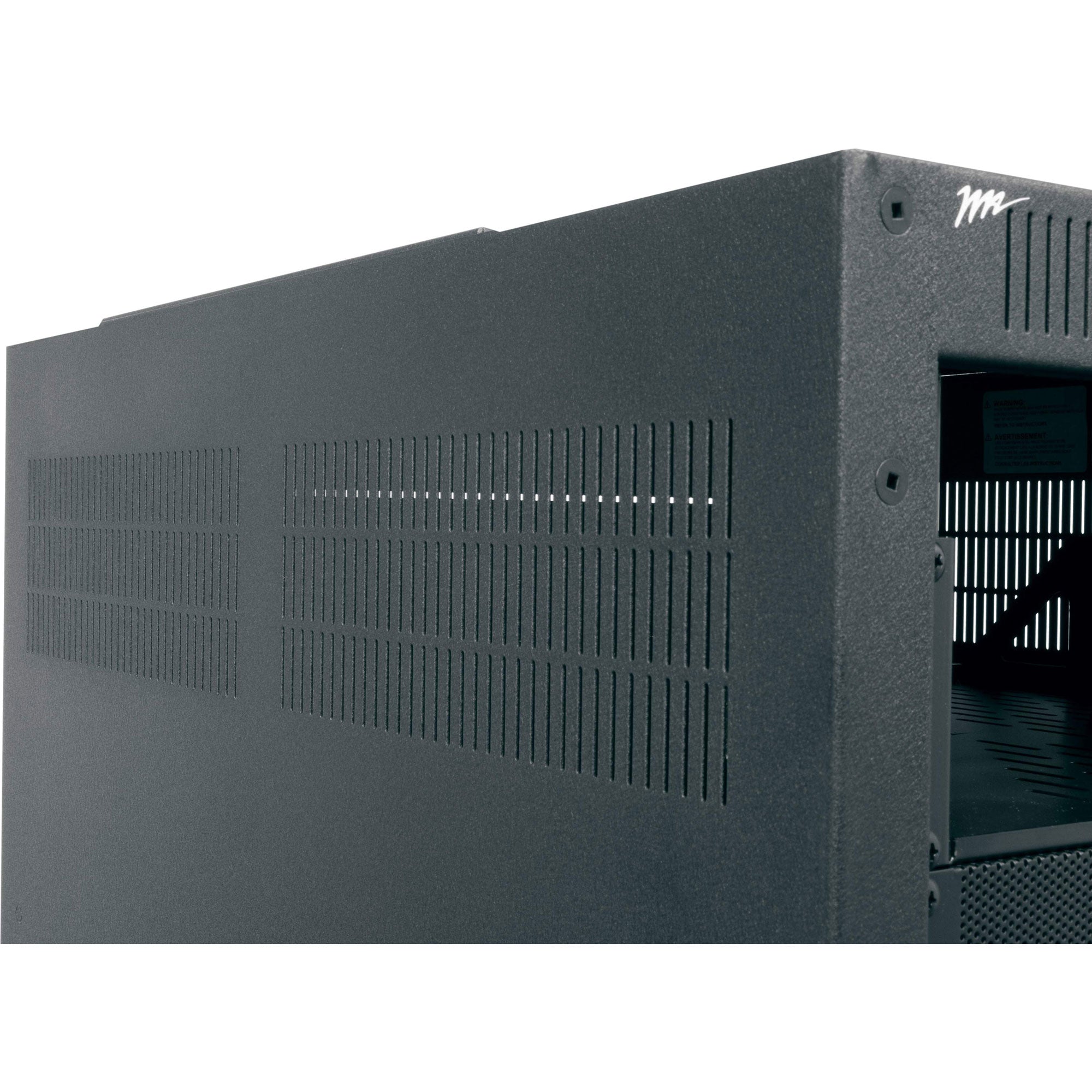

- Enclosure sides include top and bottom venting
- Convenient lacing points and slotted rail brackets for cable management
- Standard front adjustable 10-32 threaded rackrail with numbered spaces
Specifications:
- General Info
- UL Standards Tested: UL2416
- Listing Agencies/Third Party Information
- ASC E: 7-10
- RoHS: Yes
- Greenguard: Yes
- UL Listing No: E173107
- Seismic Rating: Yes
- Dimensions
- Usable Depth: 26.47
- Usable Height: 61.375
- Depth U S: 28
- Height U S: 65.375
- Width U S: 22
- Rack Units: 35
- Technical Information
- Rackrail Type: 10-32
- U L Load Capacity: 2500
- Material: Steel
- Mounting: Horizontal
