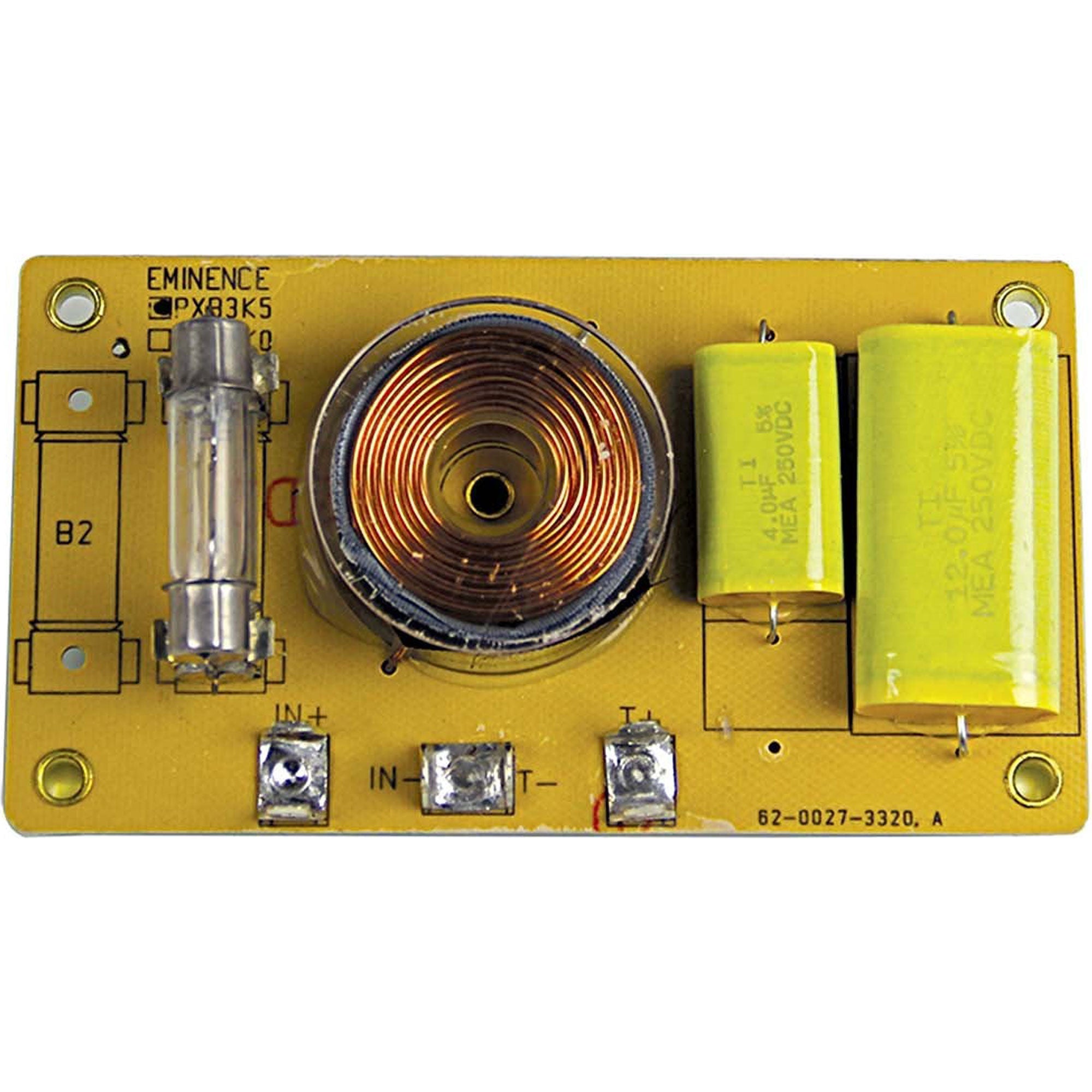

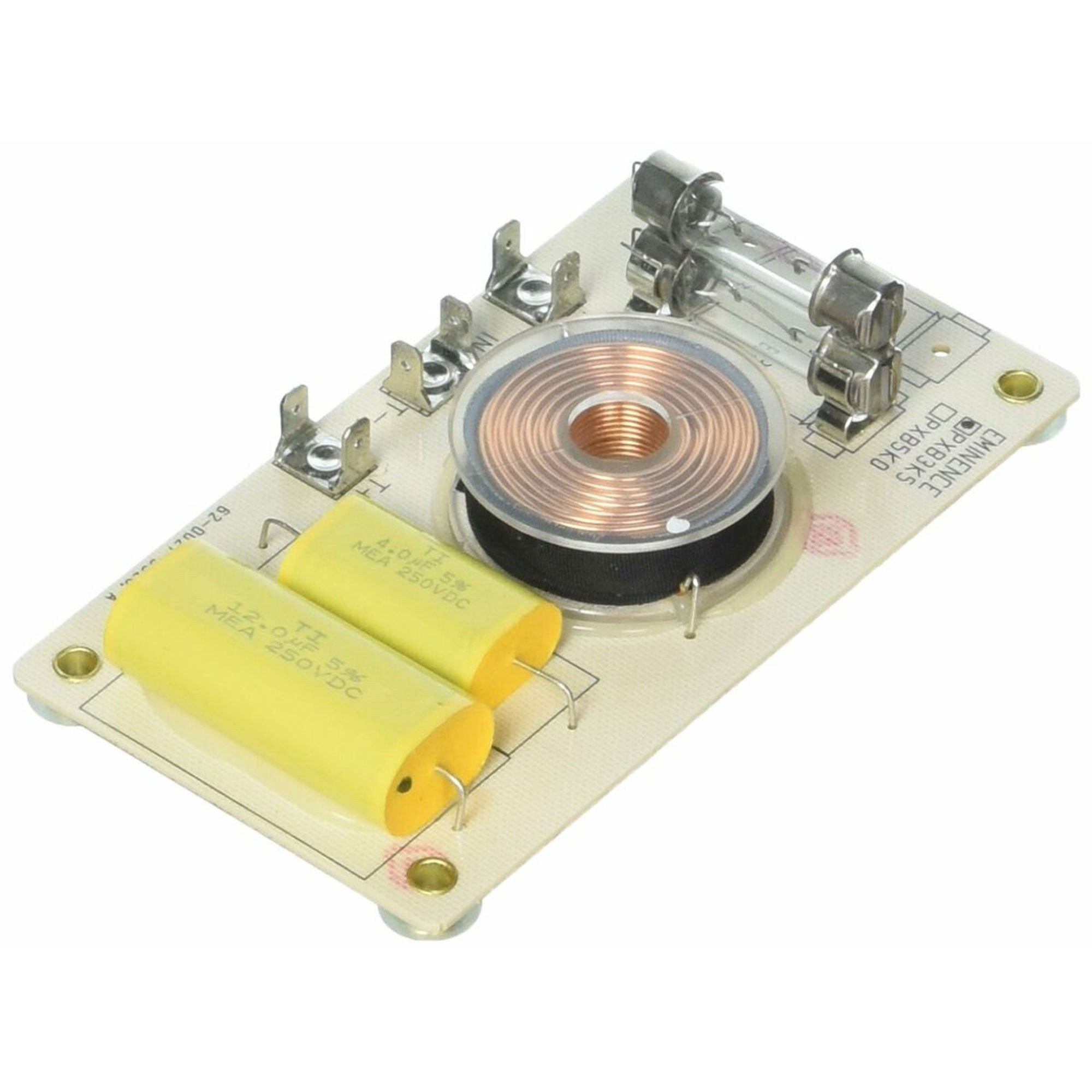

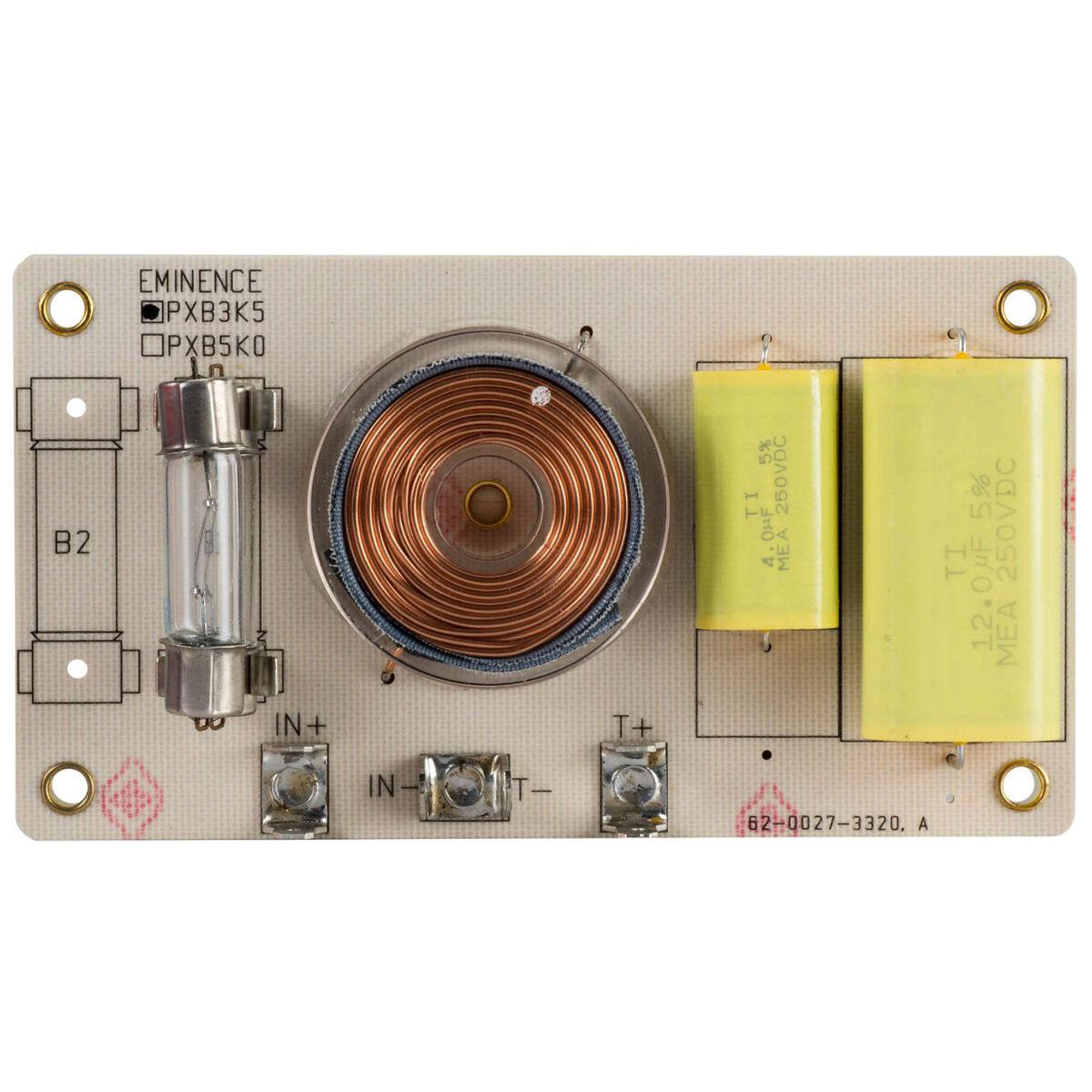

High Pass Speaker Crossover Board, 3.5 kHz, 8 Ohm, 400 Watt
Eminence pxb board-only crossovers are a lower cost alternative to the "cabinet ready" models and are targeted specifically for custom cabinet projects as they do not include the terminal cup, input connectors or L-pad found on the "cabinet ready" models. They feature advanced circuit design to both preserve the crossover and your drivers. A benefit of the design is to form a voltage divider across the high frequency driver. The high-pass protection uses custom-built aerospace lamps. The tungsten filaments effectively track the program material, dynamically maintaining a safe maximum current level to the high frequency driver without introducing distortion. This circuitry provides smooth 3:1 analog compression during input overload conditions over 250 watts RMS. At full drive level approaching clipping, the electrical attenuation to the protected high frequency driver is -4.5 dB. In every way, Eminence pxb crossovers are a technically superior product. For use with 8 ohm drivers.
Features:
- Crossover type: High pass, board only
- High pass frequency: 3,500 Hz, 18 dB/octave
- Power handling: 400 watts RMS
- Made in the U.S.A.
Specifications:
- Type: High-Pass
- Cabinet Ready?*: No
- Crossover Frequency: 3.5kHz
- Slope: 18dB/octave
- Impendance: 8 ohms
- Power Handling: 400W
- HF Level: ~
- Mounting cut-out: ~
