Key Features
- 75 Watt RMS Power Handling
- 8 Ohm Nominal Impedance
- 80 to 5,100 Hz Frequency Response
- Copper Voice Coil
- 34 oz. Ferrite Magnet
Description

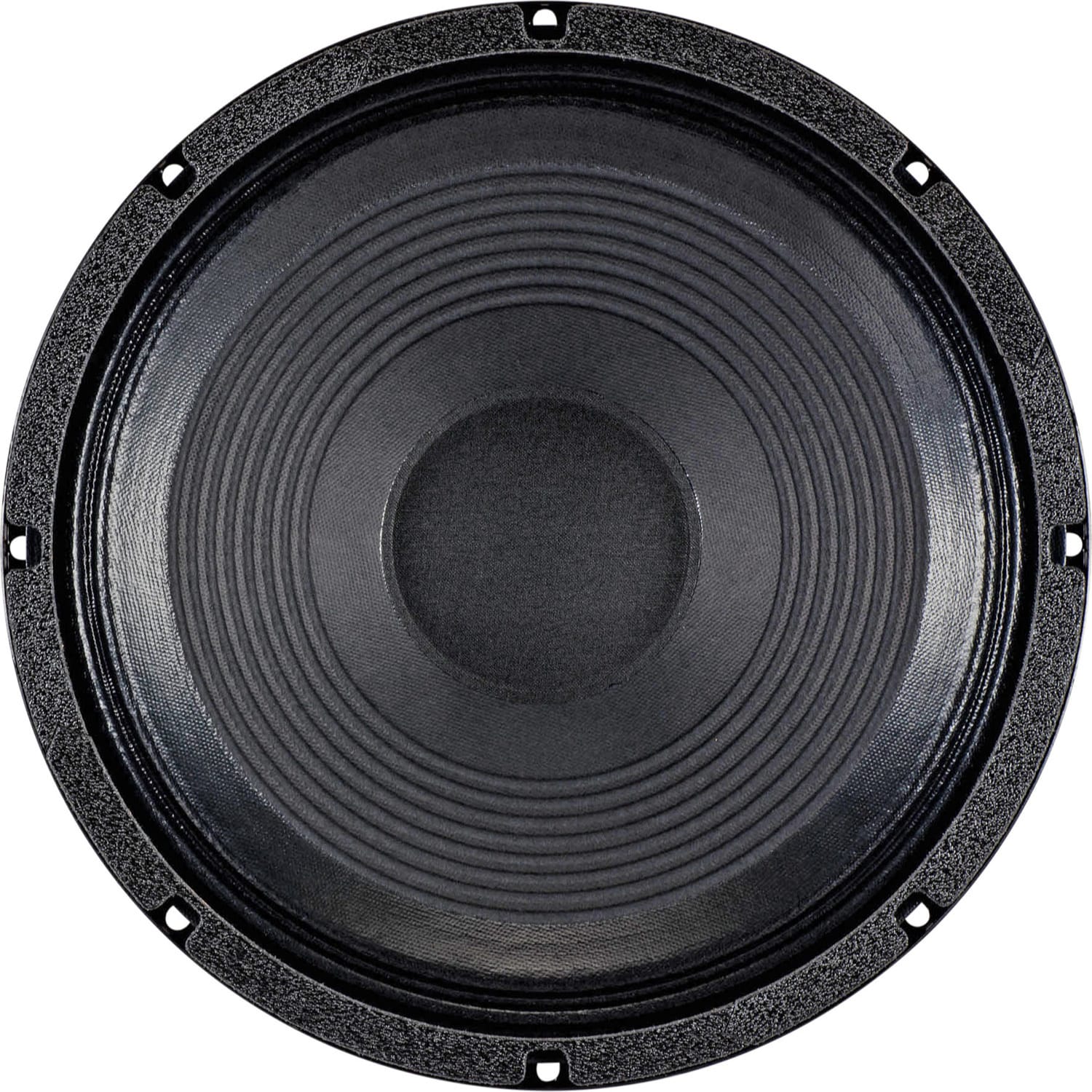

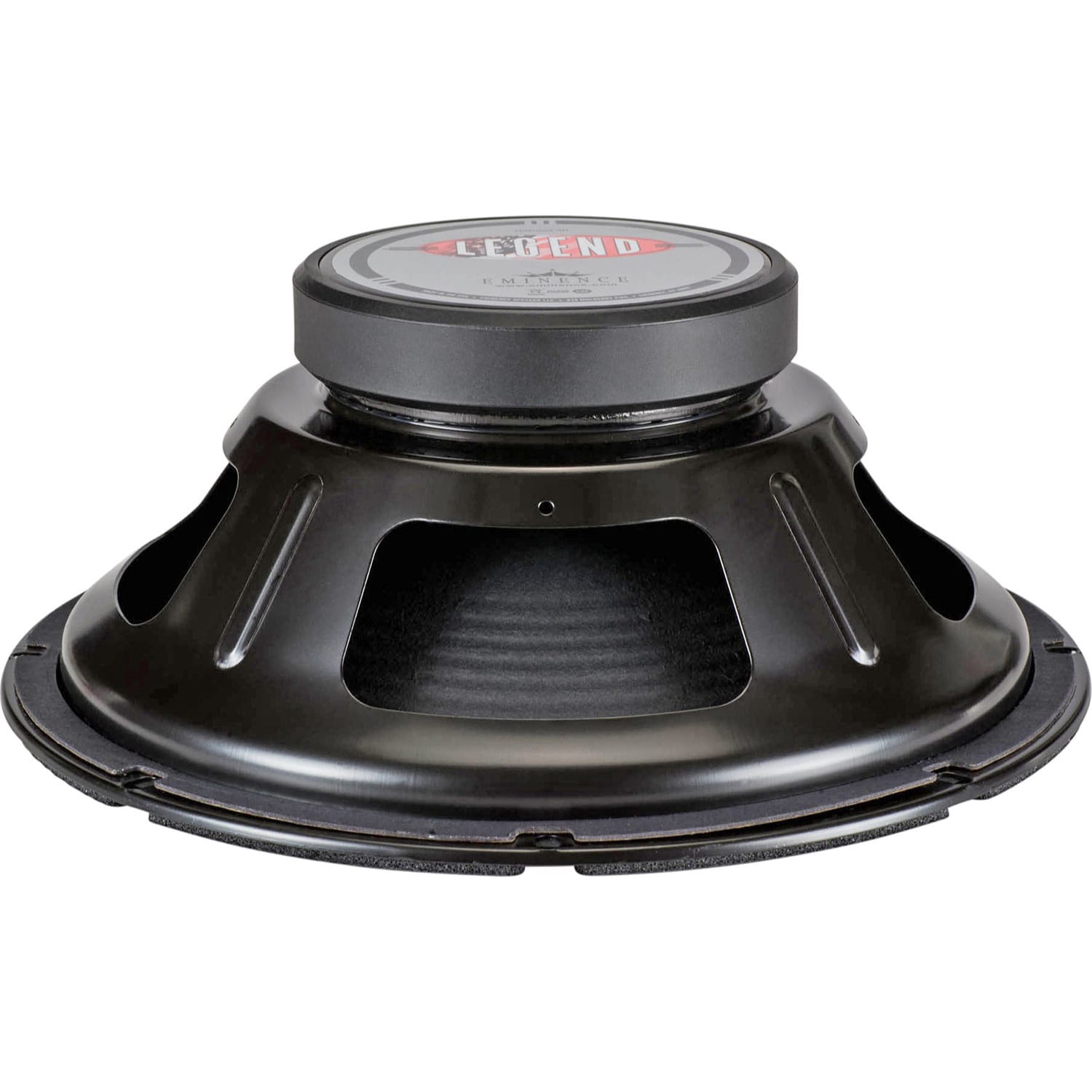

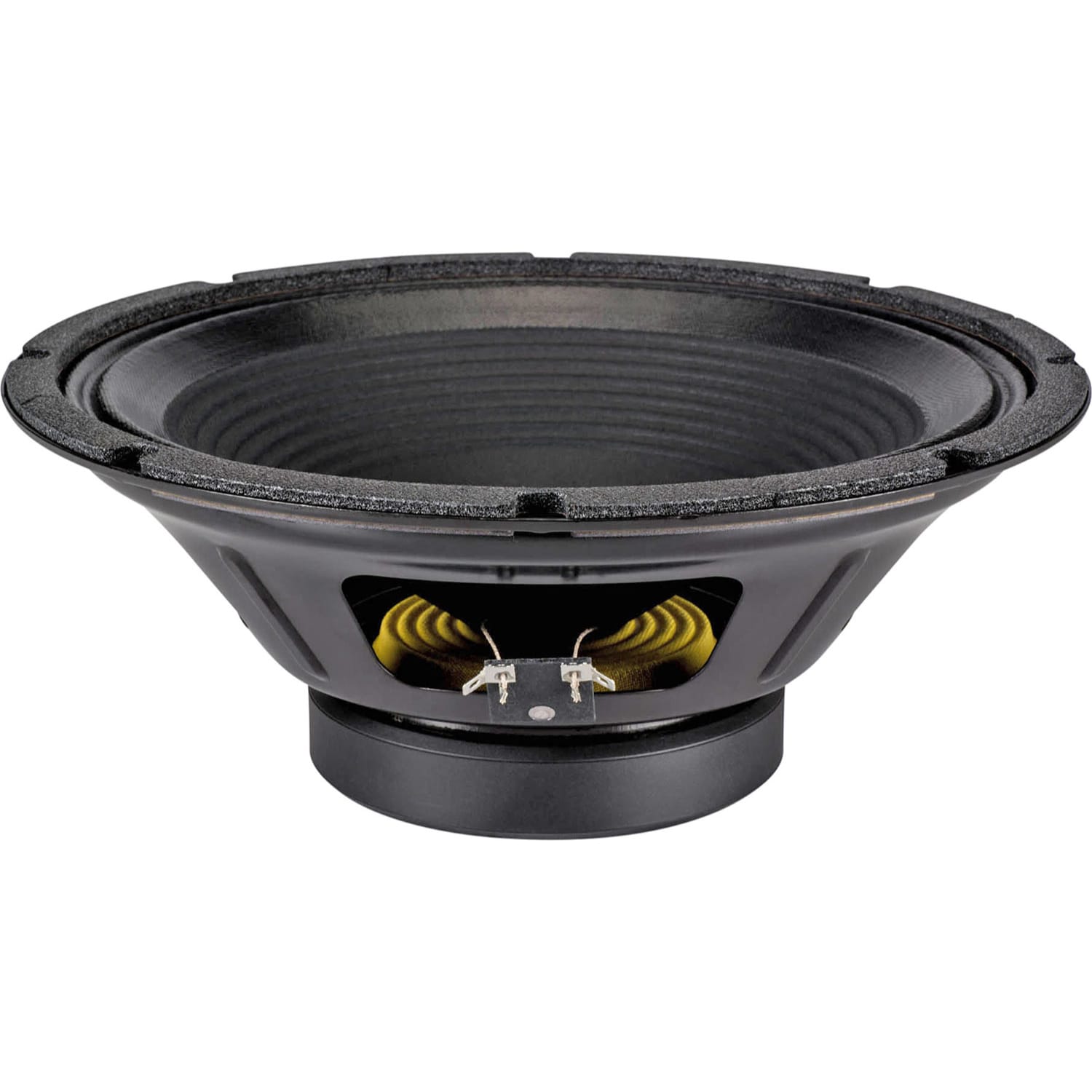

12" Bass Guitar Driver, 8 Ohm, 75 Watt
A British voiced speaker reminiscent of classic OEM tones from the past with tight, punchy lows, warm mids, and crisp, articulate, open highs.
Features:
- For a classic guitar tone with tight bass, warm mids, and articulate highs
- Paper cone with paper surround
- 75 watts RMS power handling
- Designed and assembled in the USA
- 7 year manufacturer's warranty
Specifications:
- SPECIFICATION
- Nominal Basket Diameter: 12", 305 mm
- Nominal Impedance*: 8 ohms
- Power Rating**
- Watts: 75 W
- Music Program: N/A
- Resonance: 111 Hz
- Usable Frequency Range: 80 Hz - 5.1 kHz
- Sensitivity***: 101.1 dB
- Magnet Weight: 34 oz.
- Gap Height: 0.313", 8 mm
- Voice Coil Diameter: 1.5", 38 mm
- THIELE & SMALL PARAMETERS
- Resonant Frequency (fs): 111 Hz
- DC Resistance (Re): 7.36 ohms
- Coil Inductance (Le): 0.55m H
- Mechanical Q (Qms): 15.07
- Electromagnetic Q (Qes): 1.09
- Total Q (Qts): 1.02
- Compliance Equivalent Volume (Vas): 29.61 liters / 1.05 cu.ft.
- Peak Diaphragm Displacement Volume (Vd): 25.9 cc
- Mechanical Compliance of Suspension (Cms): 0.07 mm/N
- BL Product (BL): 11.95 T-M
- Diaphragm Mass Inc. Airload (MMs): 30 grams
- Efficiency Bandwidth Product (EBP): 101
- Maximum Linear Excursion (Xmax): 0.47 mm
- Surface Area of Cone (Sd): 552 cm2
- Maximum Mechanical Limit (Xlim): N/A
- MOUNTING INFORMATION
- Recommended Enclosure Volume
- Sealed: Acceptable
- Vented: N/a
- Driver Volume Displaced: 0.068 cu.ft. / 1.93 liters
- Overall Diameter: 12.26", 311.4 mm
- Baffle Hole Diameter: 11.06", 280.9 mm
- Front Sealing Gasket: Yes
- Rear Sealing Gasket: Yes
- Mounting Holes Diameter: 0.25", 6.4mm
- Mounting Holes B.C.D.: 11.71", 297.4mm
- Depth: 4.44", 112.8 mm
- Net Weight: 7 lbs, 3.18 kg
- Shipping Weight: 9 lbs, 4.08 kgs
- MATERIALS OF CONSTRUCTION
- Coil Construction: Copper voice coil
- Coil Former: Polyimide former
- Magnet Composition: Ferrite Magnet
- Core Details: Non-vented core
- Basket Materials: Pressed steel basket
- Cone Composition: Paper cone
- Cone Edge Composition: Paper cone edge
- Dust Cap Composition: Zurette dust cap
Details
- Manufacturer: Eminence
- MPN: LEGEND 1275
- Model Number: Legend 1275
- UPC: 876358002412
