Key Features
- Male RCA Phono Plug
- Solder Cups
- Black Metal Shell
- Gold Plated Contacts
- Black Color Coding Boot
Description

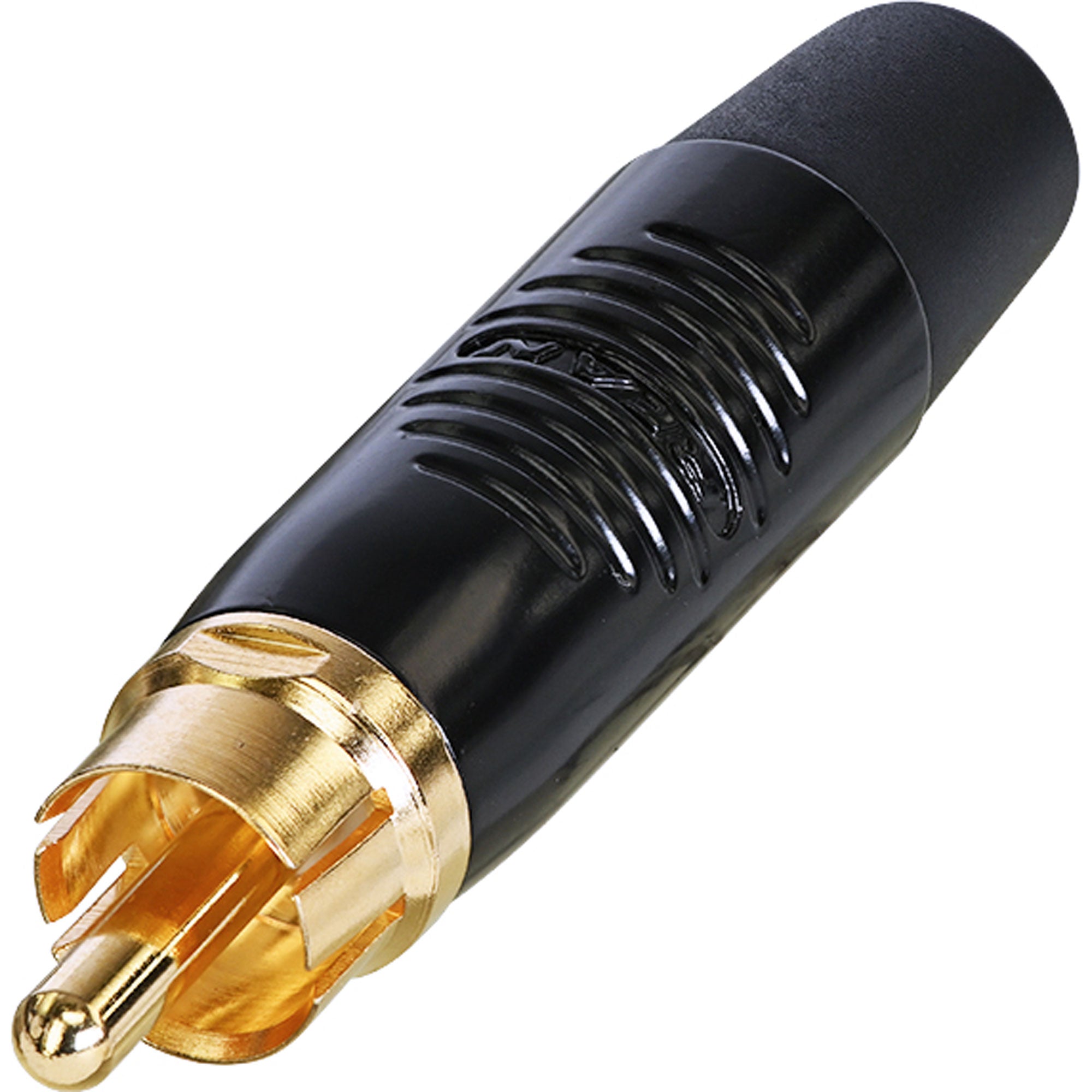

Male RCA Phono Plug with Black Color Coding Boot, Cable End, Black Metal Shell, Gold Contacts
RCA plug, gold plated contacts, black shell, black boot
Features & Benefits
- High quality RCA plugs and jacks, precision processing
- Color code ring and color bushing for channel identification
- Optional gold plated contact products, ensure the stability of signal transmission
- Ergonomic product design, easy to operate
- Plastic or metal shell products, meet various needs
Technical Information
- Product
- Title: RF2C-B-0
- Connection Type: RCA
- Electrical
- Dielectric strength: 500 V dc
- Insulation resistance: > 2000 MΩ (initial)
- Transmission performance: depends on mating connector
- Mechanical
- Lifetime: > 1'000 mating cycles
- Insertion force: ≤ 20 N
- Withdrawal force: ≥ 10 N
- Material
- Contact plating: Gold
- Contacts: Bronze
- Insert: Brass
- Shell: Zinc alloy
- Shell plating: Black
- Strain relief: Steel / POM
- Bushing: PVS
- Lugs: Brass
- Environmental
- Solderability: IEC68-2-20
- Temperature range: -20 °C to +70 °C
Details
- Manufacturer: Neutrik
- MPN: RF2C-B-0
- Model Number: RF2C-B-0
- UPC:
