Key Features
- Male RCA Phono Plug
- Solder Cups
- Black Metal Shell
- Gold Plated Contacts
- Black Color Coding Boot

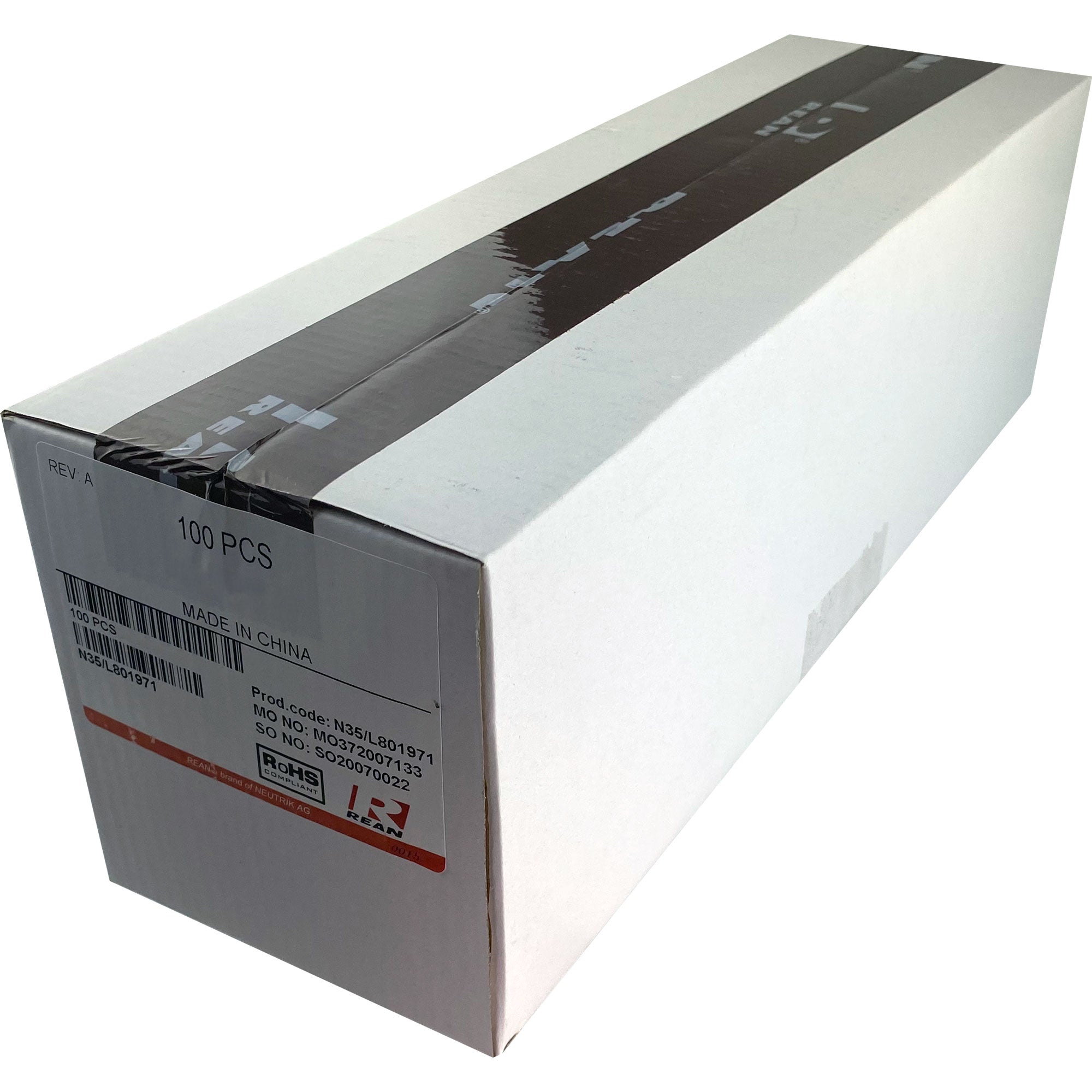

- Full Box of 100 Connectors
Description

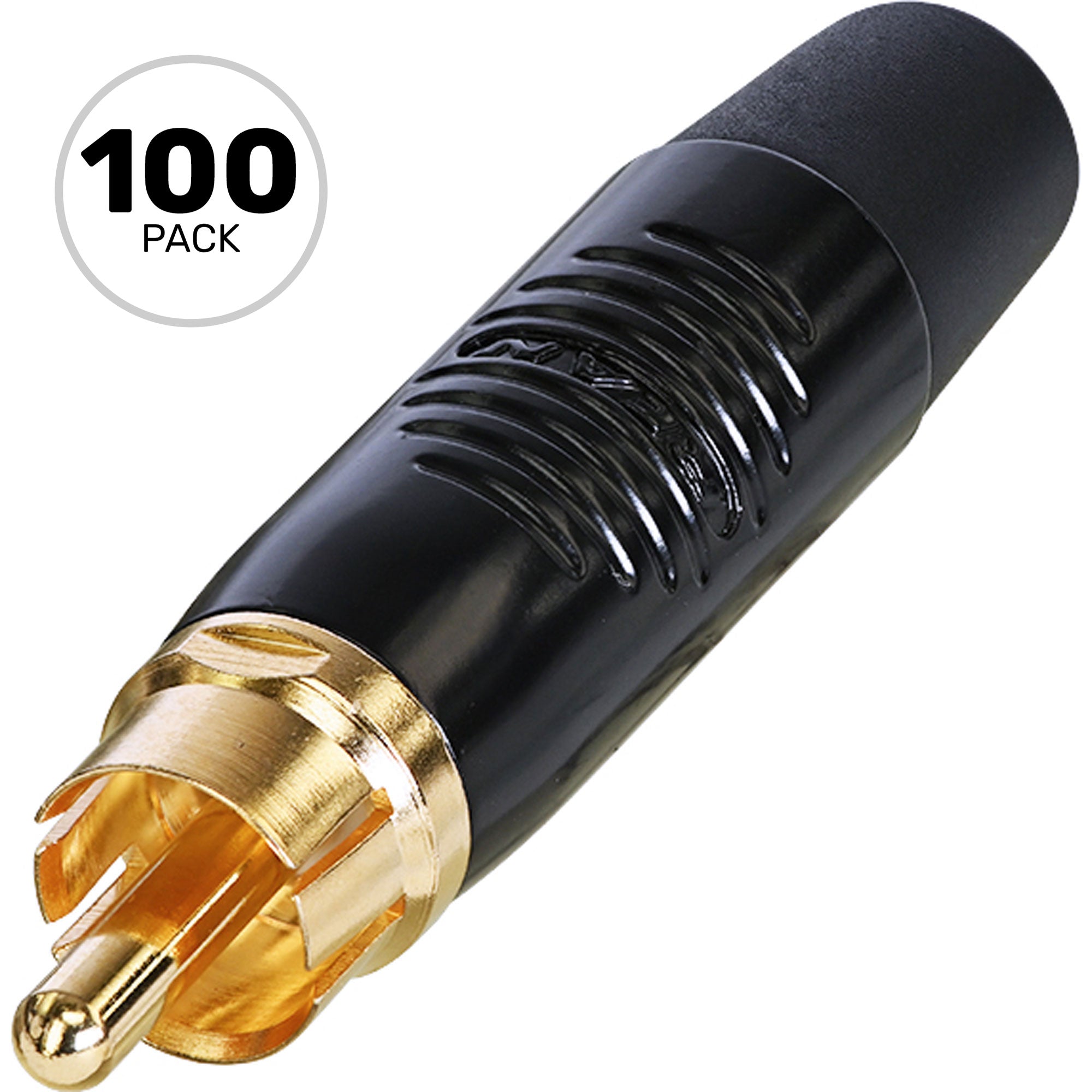

Male RCA Phono Plug with Black Color Coding Boot, Cable End, Black Metal Shell, Gold Contacts - Full Box of 100 Connectors
RCA plug, gold plated contacts, black shell, black boot
Features & Benefits
- High quality RCA plugs and jacks, precision processing
- Color code ring and color bushing for channel identification
- Optional gold plated contact products, ensure the stability of signal transmission
- Ergonomic product design, easy to operate
- Plastic or metal shell products, meet various needs
Technical Information
- Product
- Title: RF2C-B-0
- Connection Type: RCA
- Electrical
- Dielectric strength: 500 V dc
- Insulation resistance: > 2000 MΩ (initial)
- Transmission performance: depends on mating connector
- Mechanical
- Lifetime: > 1'000 mating cycles
- Insertion force: ≤ 20 N
- Withdrawal force: ≥ 10 N
- Material
- Contact plating: Gold
- Contacts: Bronze
- Insert: Brass
- Shell: Zinc alloy
- Shell plating: Black
- Strain relief: Steel / POM
- Bushing: PVS
- Lugs: Brass
- Environmental
- Solderability: IEC68-2-20
- Temperature range: -20 °C to +70 °C
Details
- Manufacturer: Neutrik
- MPN: RF2C-B-0
- Model Number: RF2C-B-0
