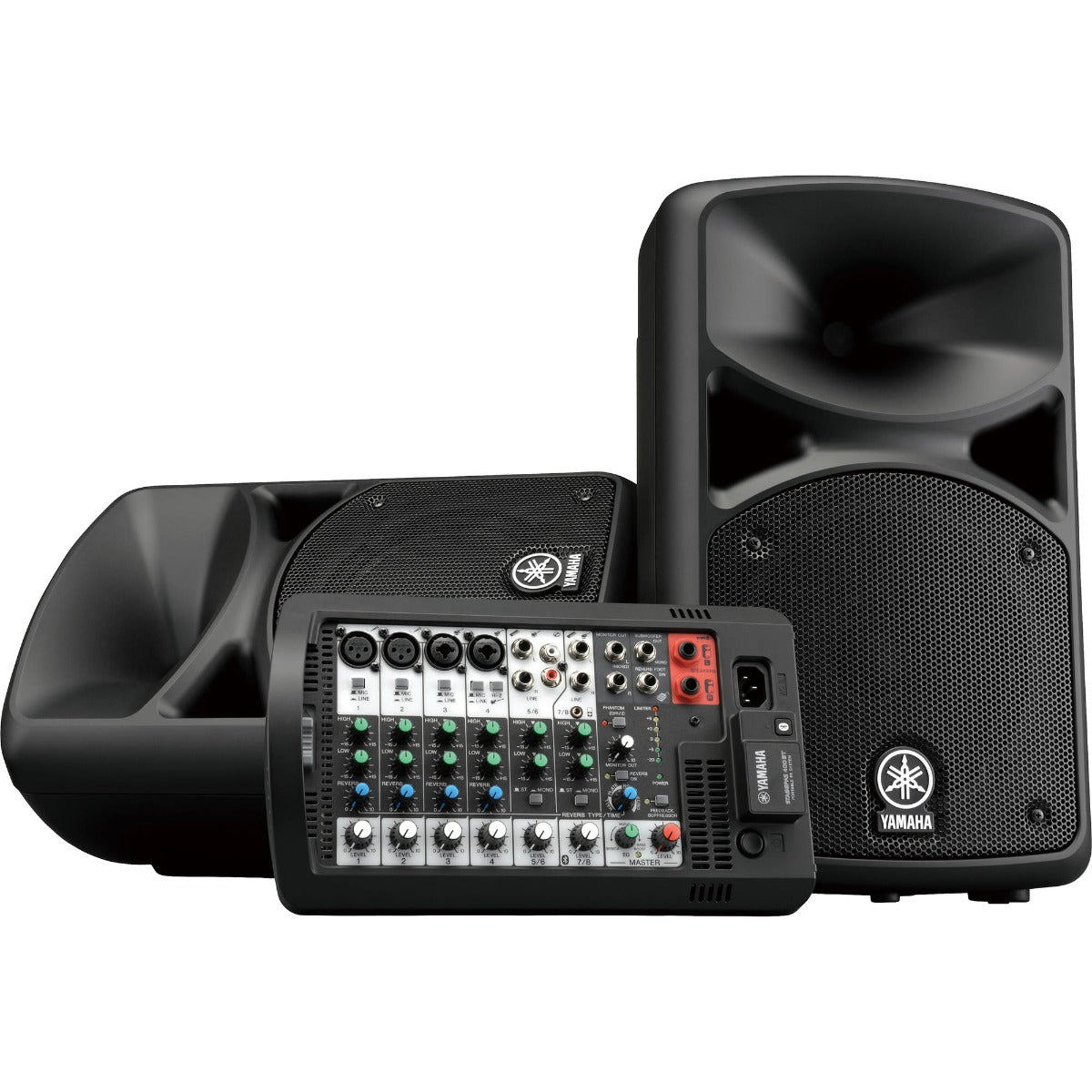

Yamaha STAGEPAS 400BT Portable PA System with Bluetooth

400-watt, portable PA system with 8-channel powered mixer, two 8" speakers, a Bluetooth input, SPX digital reverbs, an onboard feedback suppressor and versatile EQ.

All the World's YOUR Stage
When it comes to portable live sound solutions, it doesn't get any better than STAGEPAS. With impressive power and sound quality, intuitive control, and a comprehensive array of flexible features, including a new Bluetooth wireless audio streaming function, this all-in-one PA system builds on the STAGEPAS legacy of providing everything you need to transform any environment into your own personal stage.

400-watt, portable PA system with 8-channel powered mixer, two 8" speakers, a Bluetooth input, SPX digital reverbs, an onboard feedback suppressor and versatile EQ.

Features:

• 400W (200W + 200W) power output
• High quality speakers (LF:8" woofer/ HF:1" voice coil compression driver)

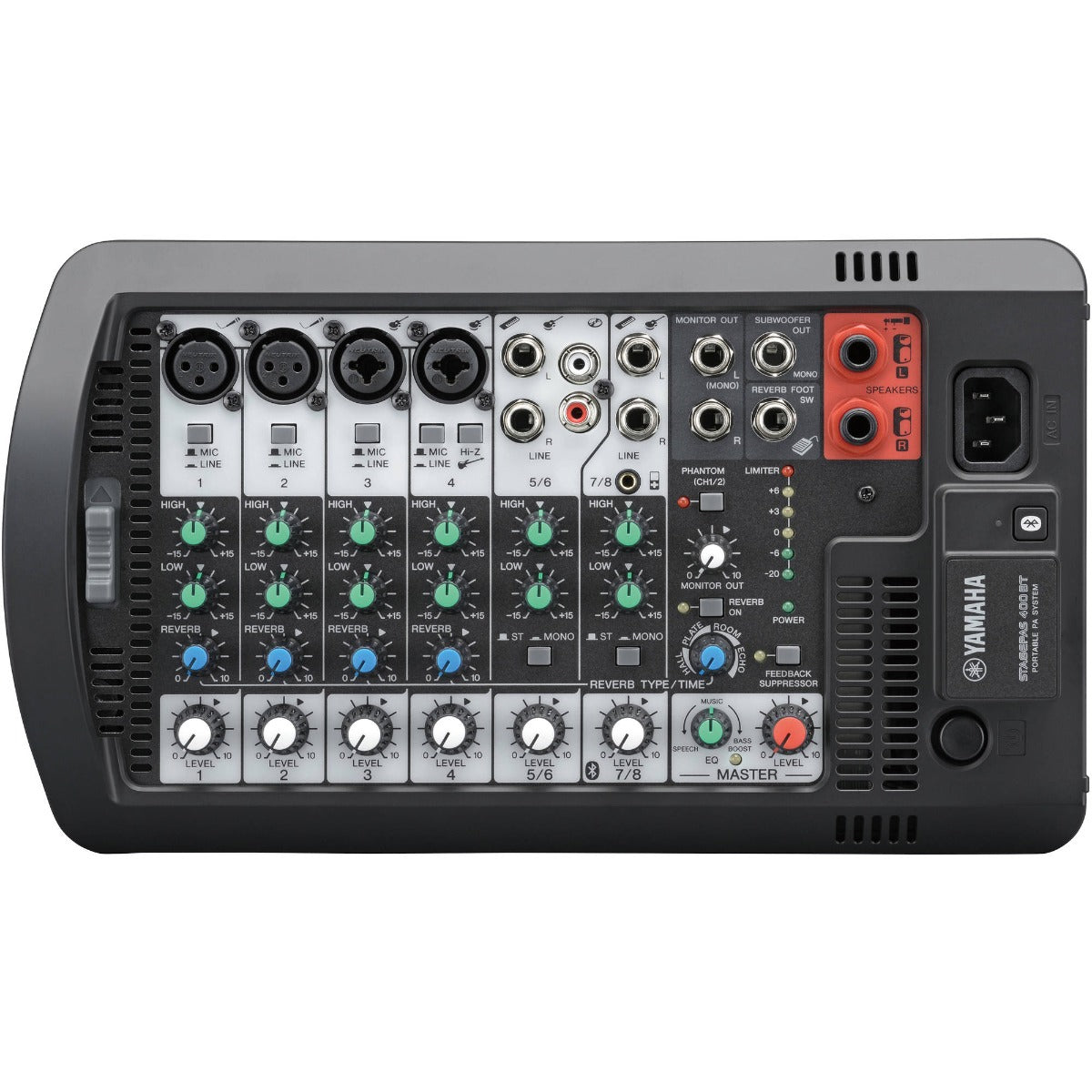

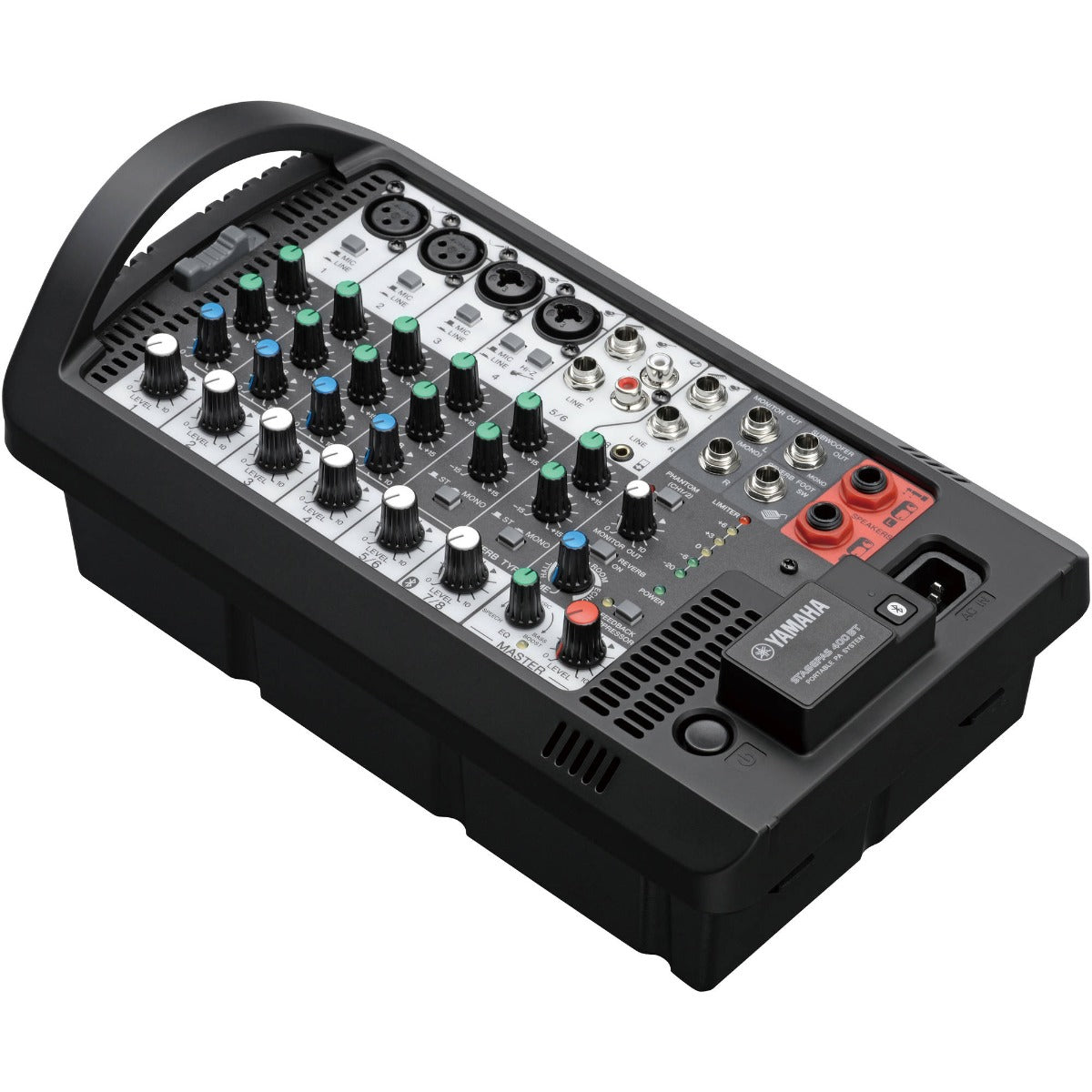

• Detachable 8-channel mixer (4 mono/line + 4 mono / 2 stereo line)
• Bluetooth audio streaming
• 1-Knob Master EQ with virtual bass boost
• High resolution SPX digital reverbs (4 types, parameter control)
• Onboard feedback suppressor
• Great-sounding 2-band channel EQ
• Switchable stereo/ mono inputs
• Hi-Z (high impedance) inputs
• Phantom power
• Monitor and Subwoofer outputs
• Optional reverb footswitch

Specifications:

• TYPE
• Powered mixer with 2 passive speakers
• MIXING CAPABILITY
• Mixing channels: 8
• Input channel functions: Hi-Z switch: CH4, ST/MONO switch: CH5/6-7/8
• Output channel functions: Feedback suppressor, 1-Knob Master EQ
• I/O
• Inputs: 4 mono mic / line + 4 mono / 2 stereo line
• Phantom power: +30V (CH1, 2)
• Outputs: SPEAKERS OUT (L, R), MONITOR OUT (L/MONO, R), SUBWOOFER OUT (MONO) with auto HPF
• Bluetooth: Bluetooth Ver.4.1, A2DP v1.2, Maximum Range: Approx. 10 m
• Control and others: Reverb foot switch
• INPUT CHANNEL FUNCTION
• Hi-Z: CH4
• EQ HIGH: HIGH Shelving: 8 kHz
• EQ LOW: LOW Shelving: 100 Hz
• ON-BOARD PROCESSORS
• DSP: SPX digital reverb (4 program, parameter control)
• ON-BOARD AMPLIFIERS
• Maximum output power @4ohms: 400W (200 W + 200 W) (Dynamic), 360W (180W + 180W) (Continuous)
• SPEAKER TYPE
• Two-way bass-relfex speakers
• FREQUENCY RANGE (-10DB)
• 55 Hz - 20 kHz
• NOMINAL COVERAGE
• H: 90°
• V: 60°
• FLOOR MONITOR ANGLE
• 50°
• COMPONENTS
• LF: 8" (20 cm) cone
• HF: 1" (2.54 cm) voice coil compression driver
• MAXIMUM OUTPUT LEVEL (1M; ON AXIS)
• 125 dB SPL / speaker
• POWER REQUIREMENTS
• 100 V - 240 V 50 Hz/60 Hz
• POWER CONSUMPTION
• 30 W (Idle), 70 W (1/8 Power)
• POLE SOCKET
• 34.8-35.2 mm pole socket with StageLok

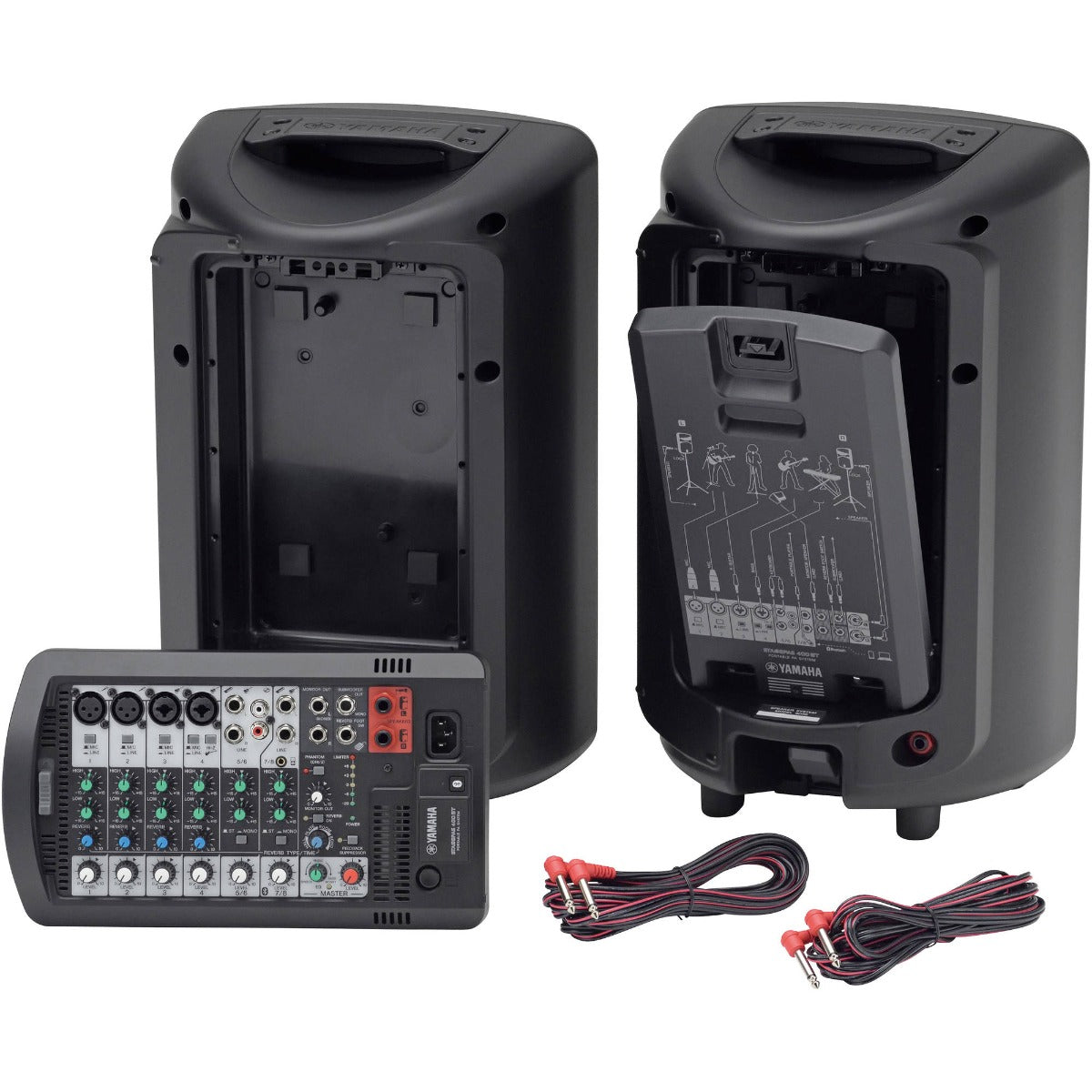

• ACCESSORIES
• Cover panel, Power cord (2m), 2 x Speaker cables (6m), 12 x Non-skid pads, 2 x Ferrite Cores, 2 x Cable ties
• OPTIONS
• Yamaha BMS10A (mic stand adaptor) for mixer mount, FC5 (foot switch) for reverb ON/OFF
• OTHERS
• Handle: 1 x Top
• DIMENSIONS (W X H X D)
• Speaker 289 x 472 x 275 mm, Mixer 308 x 180 x 116 mm
• WEIGHT
• 18.3 kg (40.3 lbs) (2 x Speaker 7.7kg + Mixer 2.9kg)
