Key Features
- 70W Total Output
- 5" Cone Woofer
- 1" Dome Tweeter
- Room Control Response Switch
- High Trim
- 1x XLR Input
- 1x 1/4" TRS Input
- Low Resonance Enclosure
Description

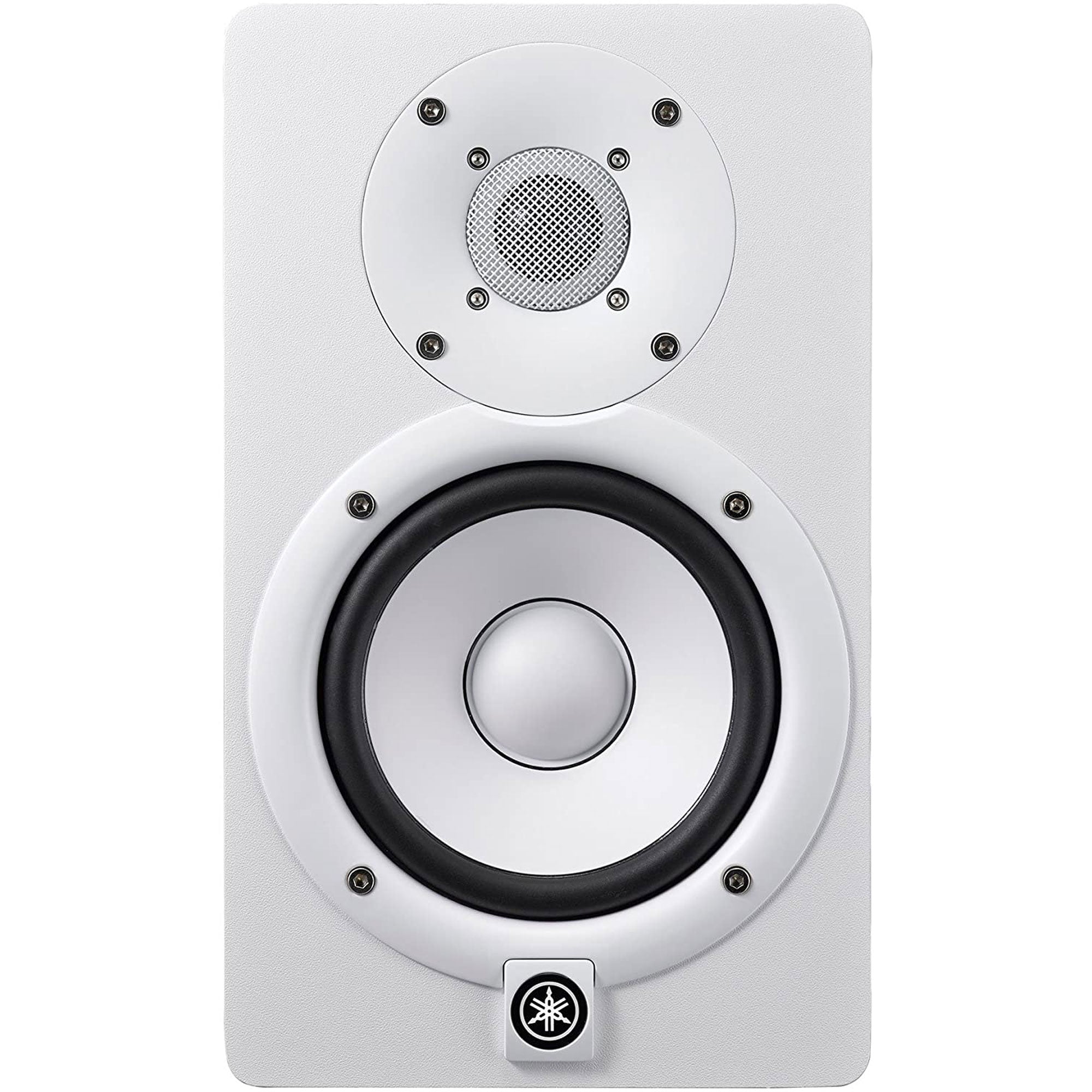

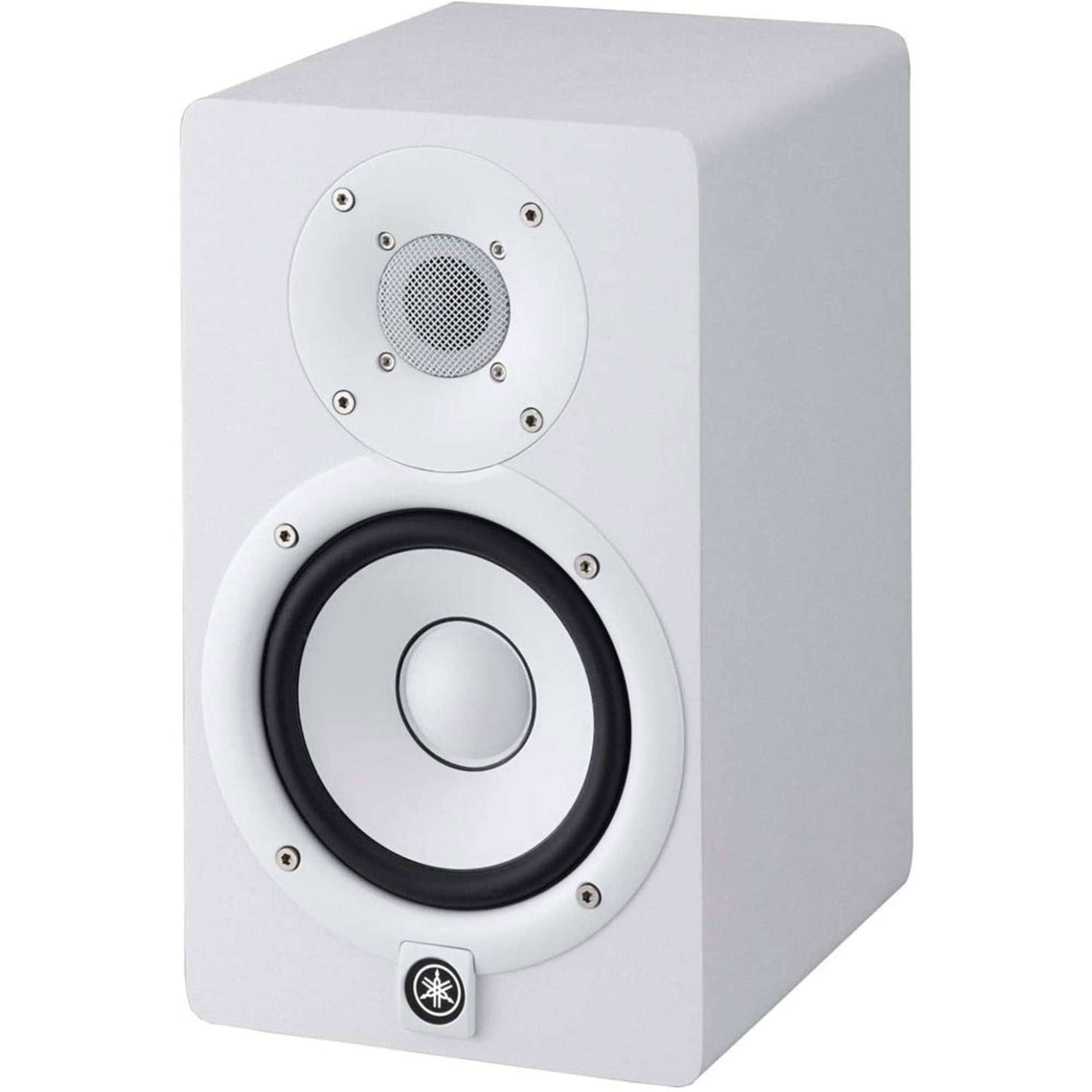

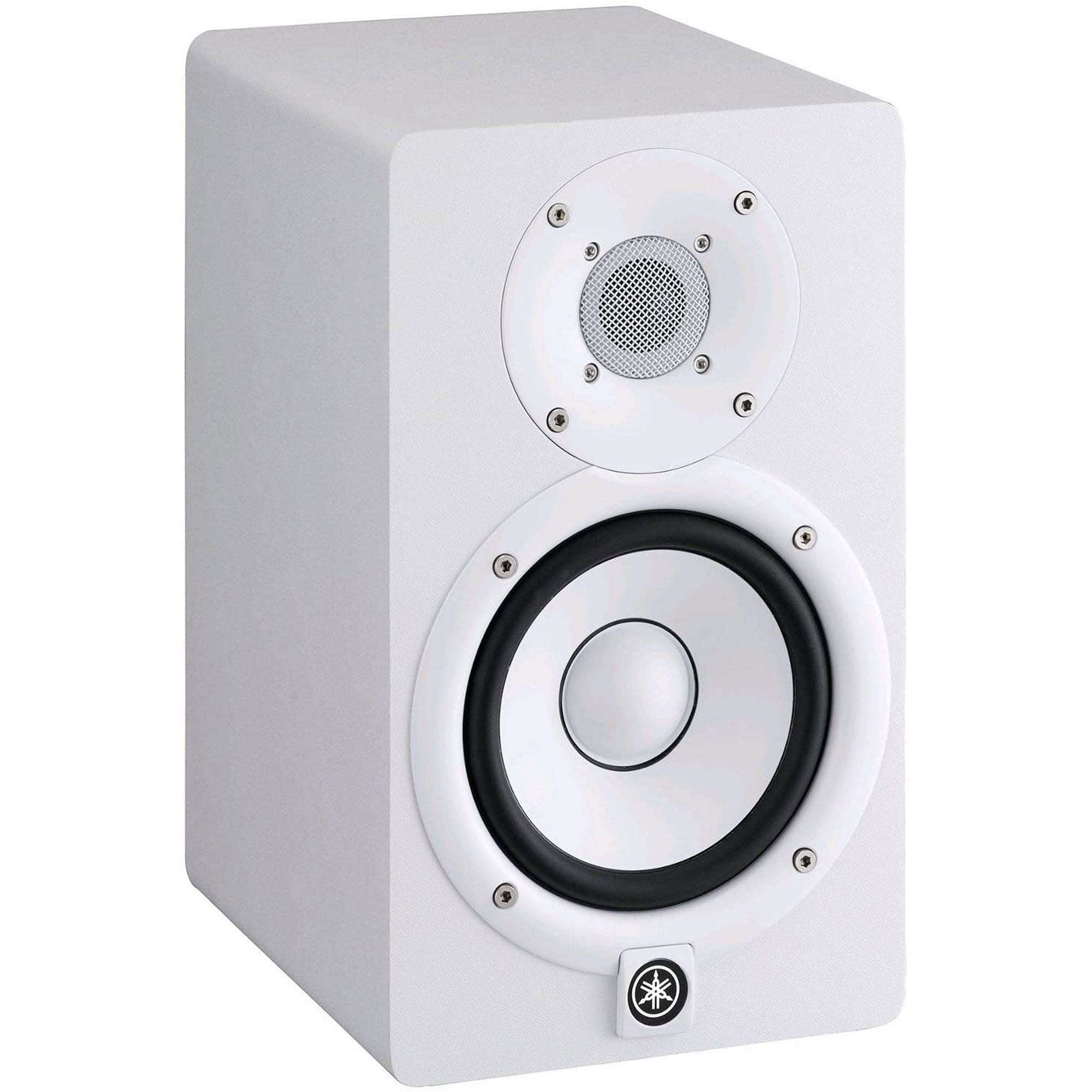

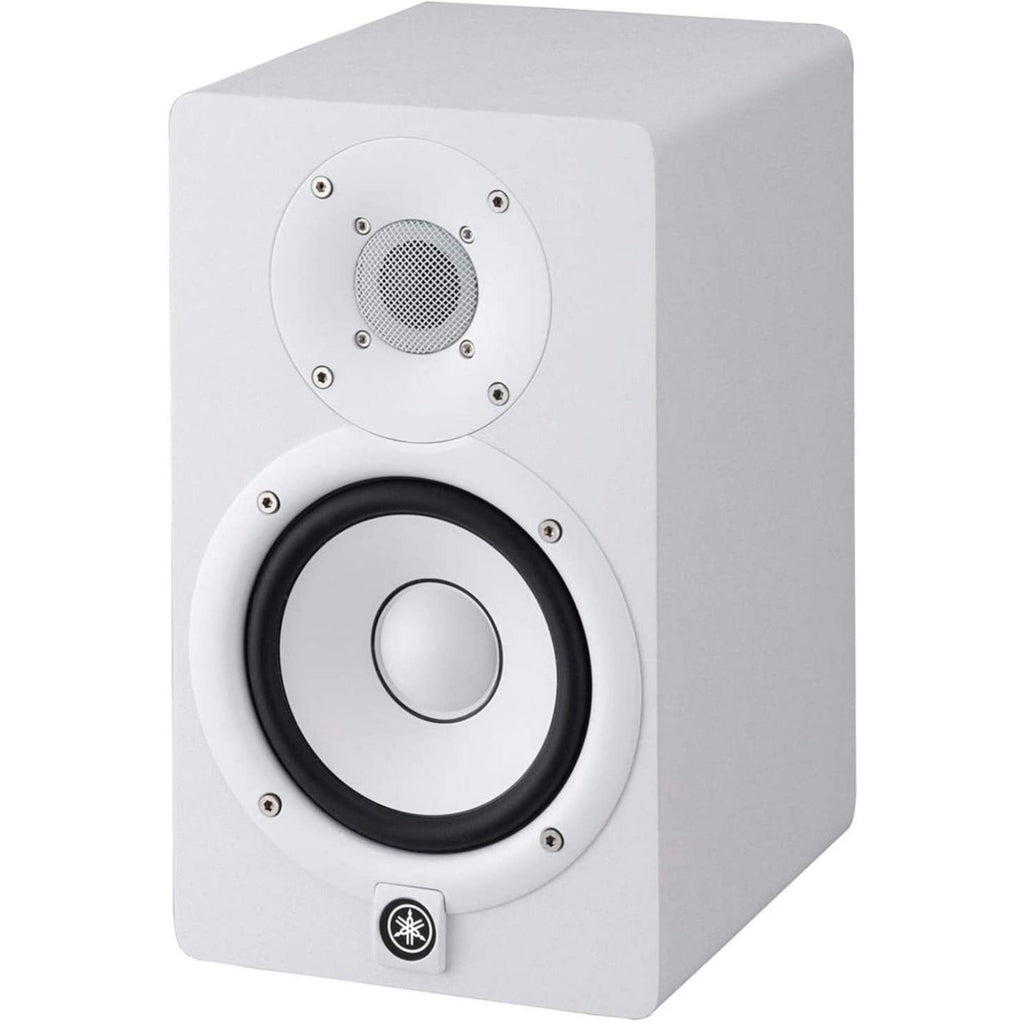

Yamaha HS5 Powered Studio Monitor (Single, White)
2-way bass-reflex bi-amplified nearfield studio monitor with 5" cone woofer and 1" dome tweeter.
The white HS5 Powered Studio Monitor from Yamaha is a 2-way reference speaker that is designed for mixing and monitoring in your home or studio. Equipped with a 70W bi-amplification system that powers a 5" woofer and a 1" tweeter, the HS5 is designed to offer maximum headroom, minimal distortion, and an extended response up to 30kHz. The HS5 has both an XLR and 1/4" TRS input that accept either balanced or unbalanced signals for maximum flexibility in a variety of studio setups.
Low Resonance Enclosure Design
HS Series cabinets are designed to eliminate unwanted resonance and increase the accuracy of sound reproduction to their extreme limit. The enclosures are constructed from a dense MDF with a damped acoustic response. HS Series engineers also employed a traditional three-way mitered-joint technique. Common to architectural design, this construction firmly anchors the corners of the enclosure to improve durability and eliminate unwanted resonance that can influence overall sound.
Noise Reduction Technology
Speaker port design can greatly influence the clarity of overall sound. Often a vortex at the either end of the port can generate air vibrations inside of the port, causing unwanted noise. By adopting a noise reduction technology that incorporates an analysis of a visual representation of the sound, Yamaha's engineers are able to control and reduce the vortex. Through this analysis Yamaha has arrived at a port design that reduces noise up to 6dB.

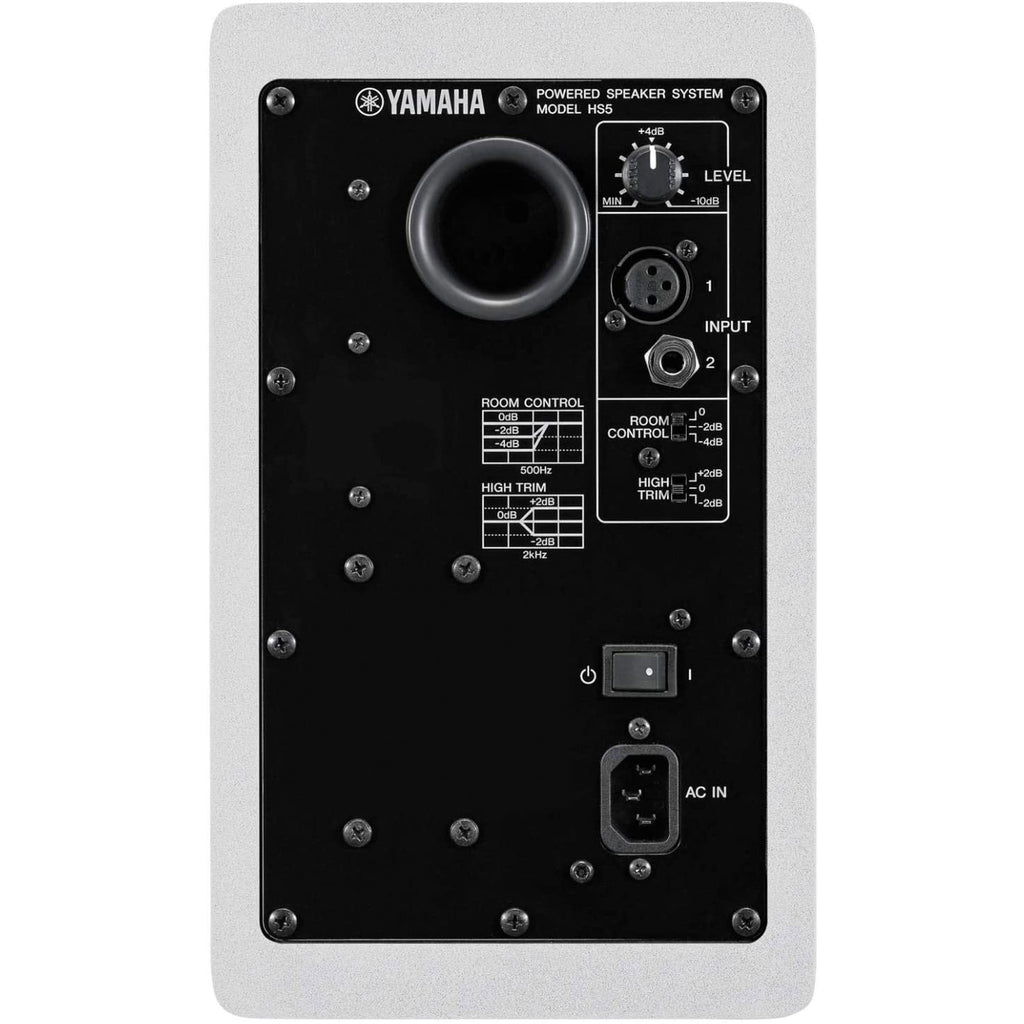

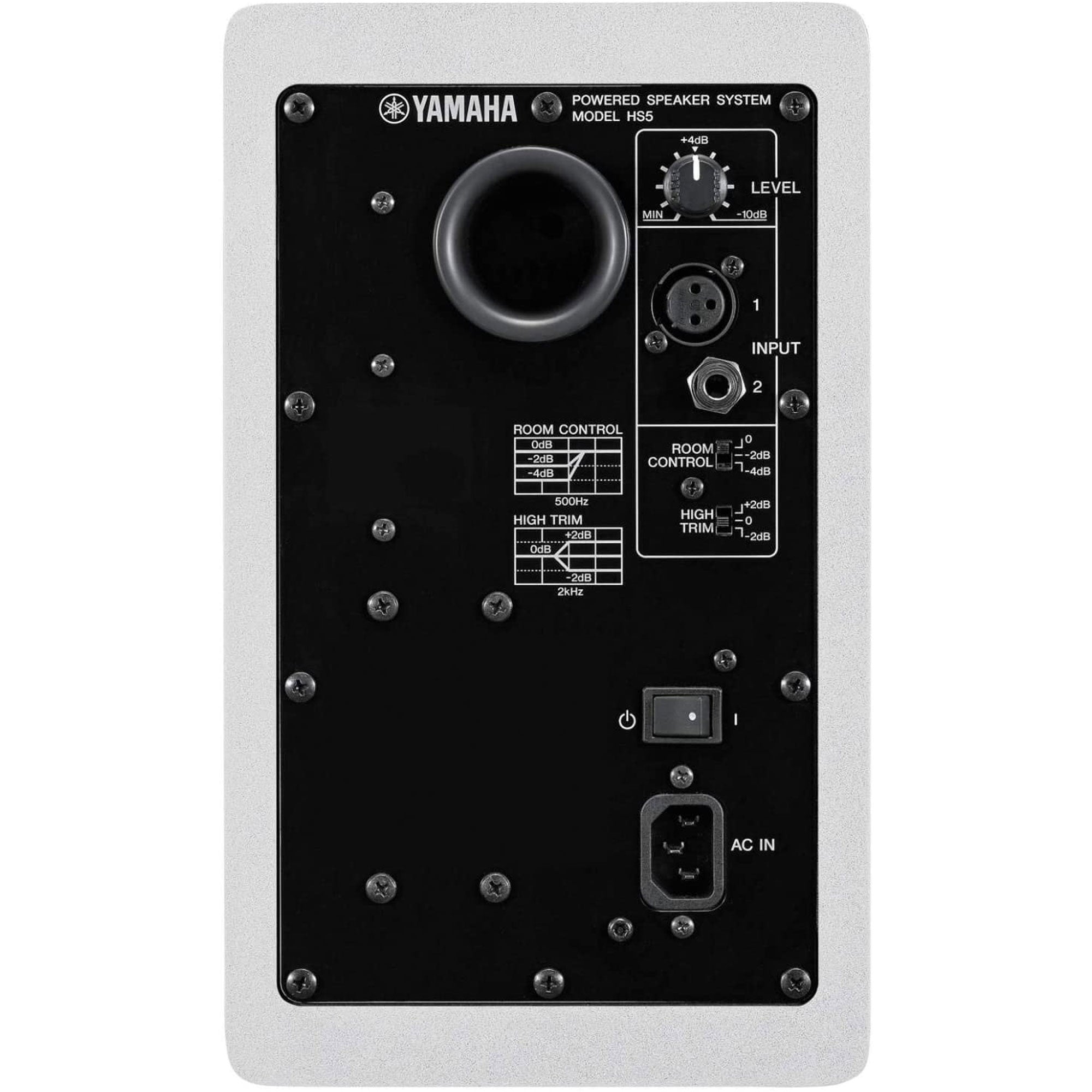

Controls and Connectivity
HS Series full-range models feature two response controls with settings that allow them to adapt to the surface acoustics of rooms of varying shape and size. ROOM CONTROL allows you to attenuate the unnatural, exaggerated low-end that can often occur when speakers are placed next to walls, while HIGH TRIM allows for more flexible control of high frequency response. For inputs, HS full-range speakers can accommodate a range of balanced and unbalanced sources such as mixers, keyboards and audio interfaces with XLR and TRS phone jacks.
Features:
- 2-way bass-reflex bi-amplified nearfield studio monitor with 5" cone woofer and 1" dome tweeter
- 54Hz - 30kHz frequency response
- 45W LF plus 25W HF bi-amp system for high-performance 70W power amplification
- ROOM CONTROL and HIGH TRIM response controls
- XLR and TRS phone jack inputs accept balanced or unbalanced signals
Specifications:
- System Type: 2-way bi-amped powered studio monitor
- Frequency Response: 54 Hz to 30 kHz
- Crossover Frequency: 2 kHz
- Transducer: LF: 5" (127 mm) cone
- HF: 1" (25 mm) dome
- Output Power: Total: 70W
- LF: 45W
- HF: 25W
- Input Sensitivity: -10 dBu / 10 kΩ
- Inputs: 1x balanced XLR3-31 type
- 1x 1/4" (6.35 mm) balanced TRS
- Controls: Level Control (+4 dB/center click)
- EQ: High Trim Switch (+/- 2 dB @ HF), Room Control Switch (0, -2, -4 dB under 500 Hz)
- Indicators: 1x Power On, white LED
- Power Consumption: 45 W
- Enclosure: Type: bass-reflex
- Material: MDF
- Dimensions (WxHxD): 6.7 x 11.2 x 8.7" (170 x 285 x 222 mm)
- Weight: 11.7 lb (5.3 kg)
