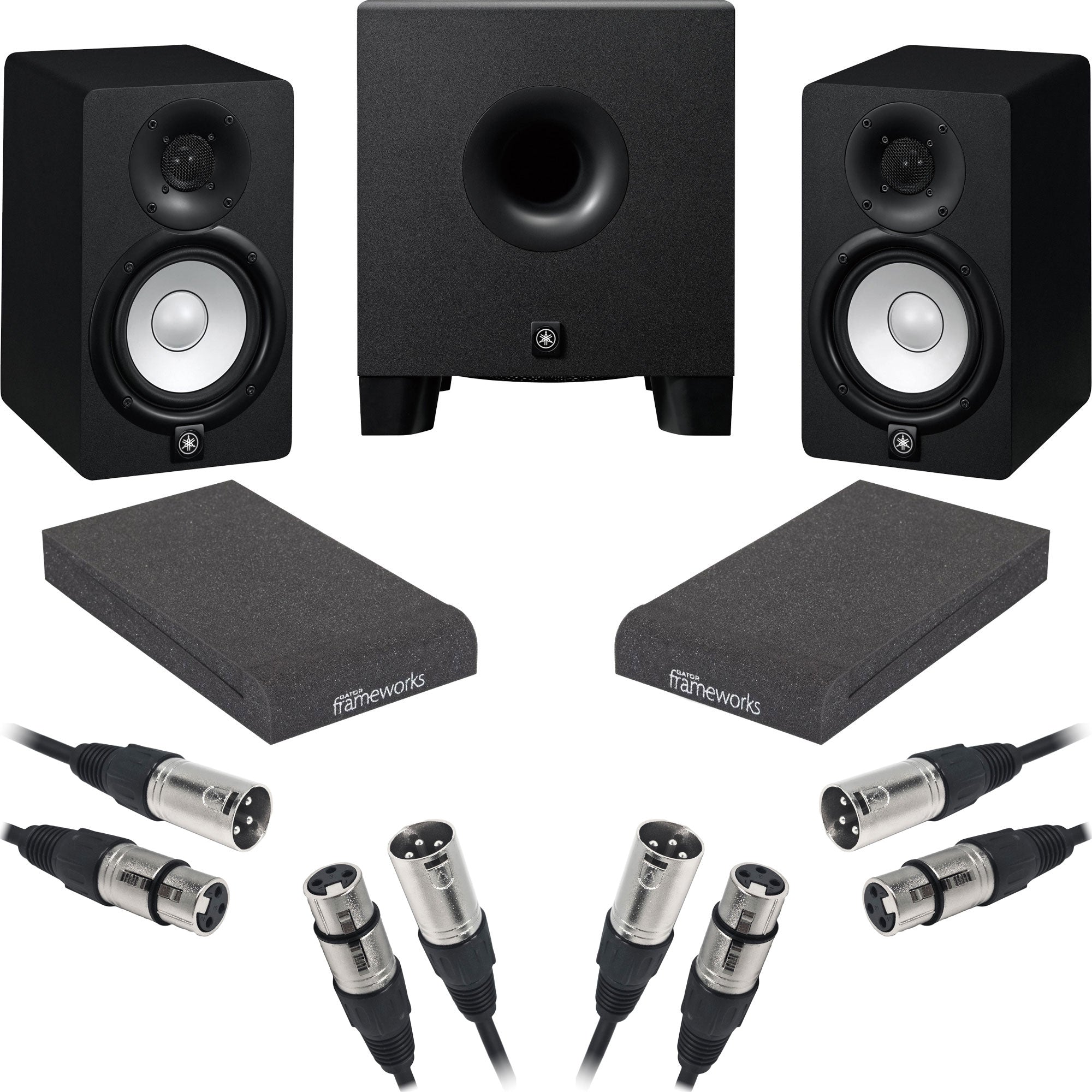

Yamaha HS5 Powered Studio Monitors and HS8S Subwoofer with Isolation Pads and Cables Kit (Black)

Pair of HS5 5" Active Studio Monitors with HS8S 8" Active Studio Subwoofer, Isolation Pads and Four 20' XLR Cables

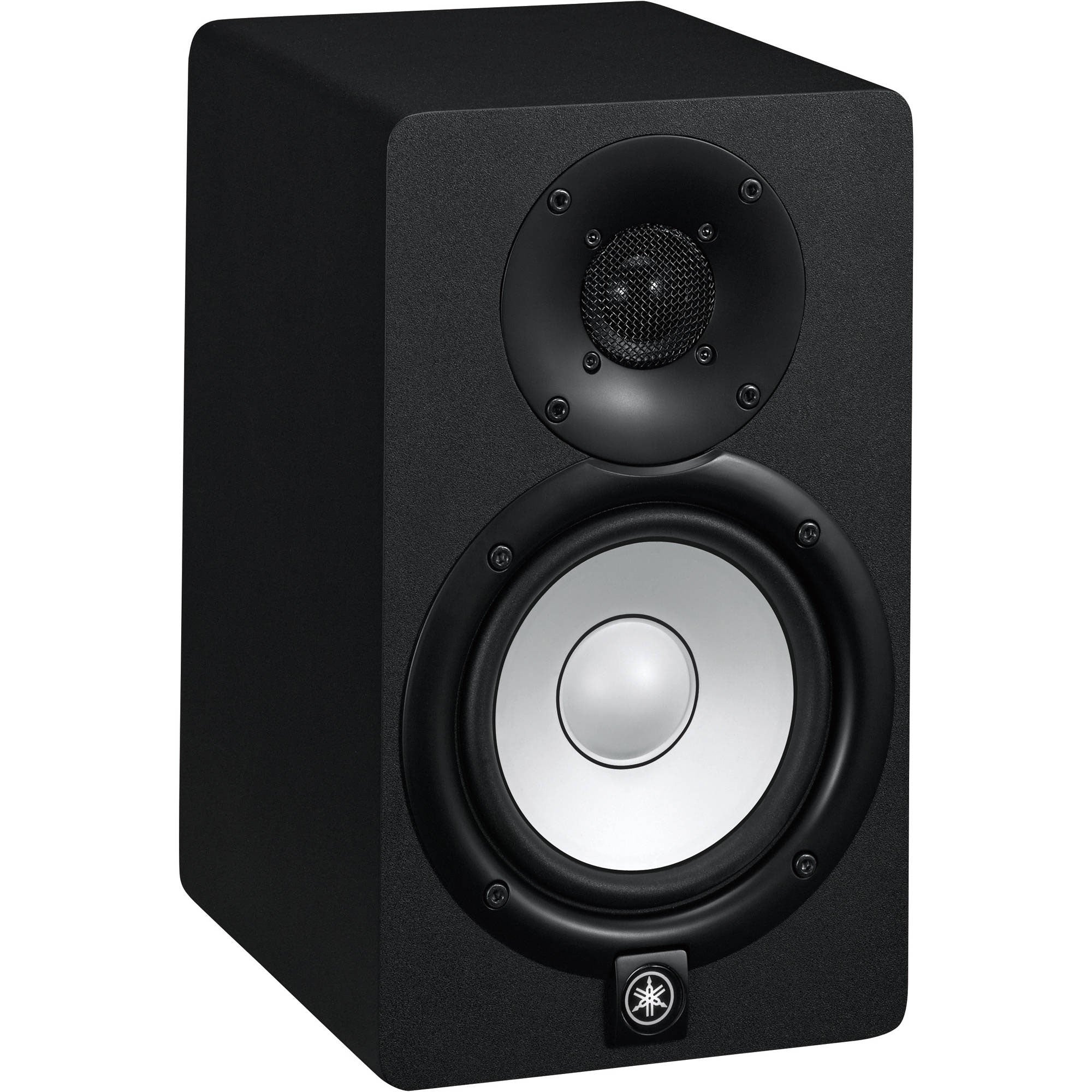

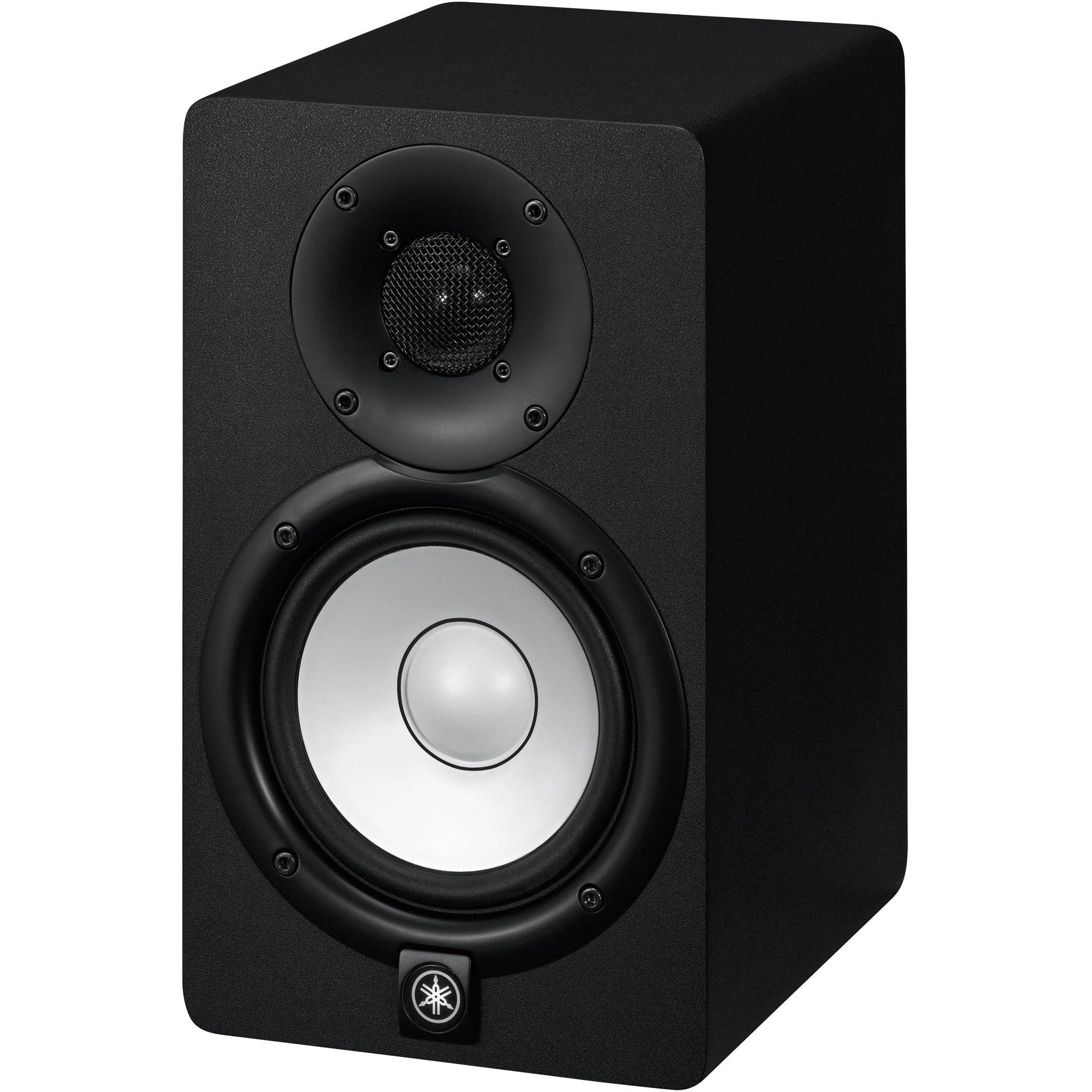

Yamaha HS5 5" Powered Studio Monitor - Black (2 Included)

2-way bass-reflex bi-amplified nearfield studio monitor with 5" cone woofer and 1" dome tweeter.

The HS5 Powered Studio Monitor from Yamaha is a bi-amplified monitor that is designed for accurate sound reproduction. It is capable of up to 70W of total output and features a 5-inch woofer and a 1-inch tweeter with waveguide that can produce frequencies up to 30kHz. The HS5 has both an XLR and 1/4" TRS input that accept either balanced or unbalanced signals for integration into a variety of studio setups.

Low Resonance Enclosure Design
HS Series cabinets are designed to eliminate unwanted resonance and increase the accuracy of sound reproduction to their extreme limit. The enclosures are constructed from a dense MDF with a damped acoustic response. HS Series engineers also employed a traditional three-way mitered-joint technique. Common to architectural design, this construction firmly anchors the corners of the enclosure to improve durability and eliminate unwanted resonance that can influence overall sound

Noise Reduction Technology
Speaker port design can greatly influence the clarity of overall sound. Often a vortex at the either end of the port can generate air vibrations inside of the port, causing unwanted noise. By adopting a noise reduction technology that incorporates an analysis of a visual representation of the sound, Yamaha's engineers are able to control and reduce the vortex. Through this analysis Yamaha has arrived at a port design that reduces noise up to 6dB

Controls and Connectivity
HS Series full-range models feature two response controls with settings that allow them to adapt to the surface acoustics of rooms of varying shape and size. ROOM CONTROL allows you to attenuate the unnatural, exaggerated low-end that can often occur when speakers are placed next to walls, while HIGH TRIM allows for more flexible control of high frequency response. For inputs, HS full-range speakers can accommodate a range of balanced and unbalanced sources such as mixers, keyboards and audio interfaces with XLR and TRS phone jacks

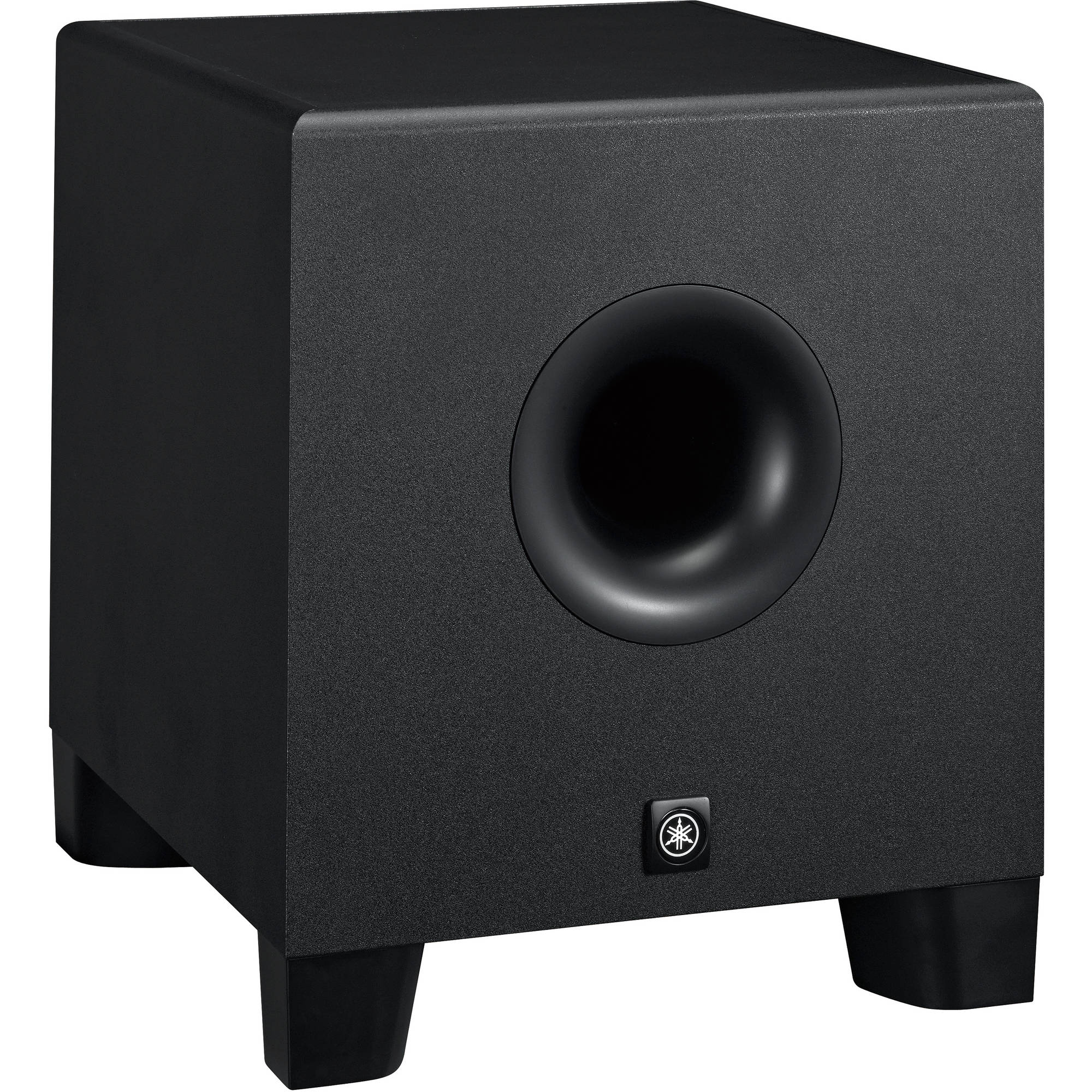

Yamaha HS8S 8" Active Studio Subwoofer (1 Included)

8" bass-reflex powered subwoofer delivers low frequencies down to 22Hz.

The HS8S 8" Powered Subwoofer from Yamaha features an eight-inch cone woofer that is capable of up to 150W of output. It can reproduce frequencies down to 22Hz and features variable low and high cut filters between 80 and 120Hz. You can connect to the HS8S through its stereo XLR or 1/4" TRS inputs. It also has stereo XLR extension sub outputs.

Low Resonance Enclosure Design
HS Series cabinets are designed to eliminate unwanted resonance and increase the accuracy of sound reproduction to their extreme limit. The enclosures are constructed from a dense MDF with a damped acoustic response. HS Series engineers also employed a traditional three-way mitered-joint technique. Common to architectural design, this construction firmly anchors the corners of the enclosure to improve durability and eliminate unwanted resonance that can influence overall sound

Noise Reduction Technology
Speaker port design can greatly influence the clarity of overall sound. Often a vortex at the either end of the port can generate air vibrations inside of the port, causing unwanted noise. By adopting a noise reduction technology that incorporates an analysis of a visual representation of the sound, Yamaha's engineers are able to control and reduce the vortex. Through this analysis Yamaha has arrived at a port design that reduces noise up to 6dB

Controls and Connectivity
The HIGH CUT control sets the cutoff frequency of subwoofer output high-frequency attenuation from 80Hz to 120Hz, while PHASE switch adjusts the phase of the subwoofer output. The LOW CUT switch and LOW CUT controls enables attenuation of low frequencies for output between 80Hz and 120Hz. The HS8S subwoofer is equipped with XLR and TRS phone jack inputs and for outputs XLR for L and R and EXT SUB out

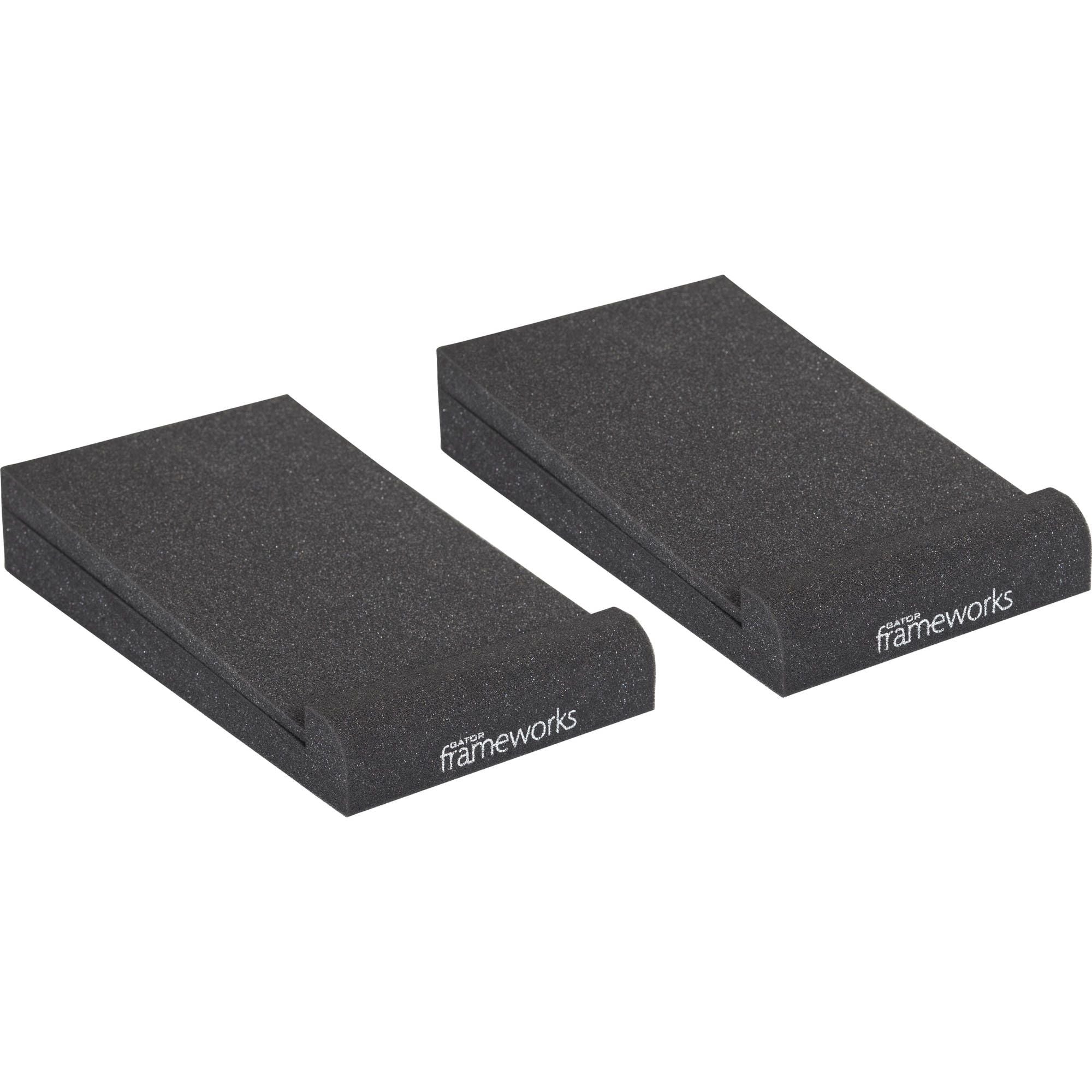

Gator Cases GFW-ISOPAD-SM Frameworks Studio Monitor Isolation Pads (Pair, Small)

Designed for recording studios, broadcast application, and anyone looking to improve their studio monitor's imaging and sound reproduction, this pair of small Gator Cases Frameworks Studio Monitor Isolation Foam Pads enhance the audio by isolating and decoupling your 5" speakers (vertically) from your desktop. The package includes two base platforms and two reversible, removable angling pieces for flat or tilted positioning.

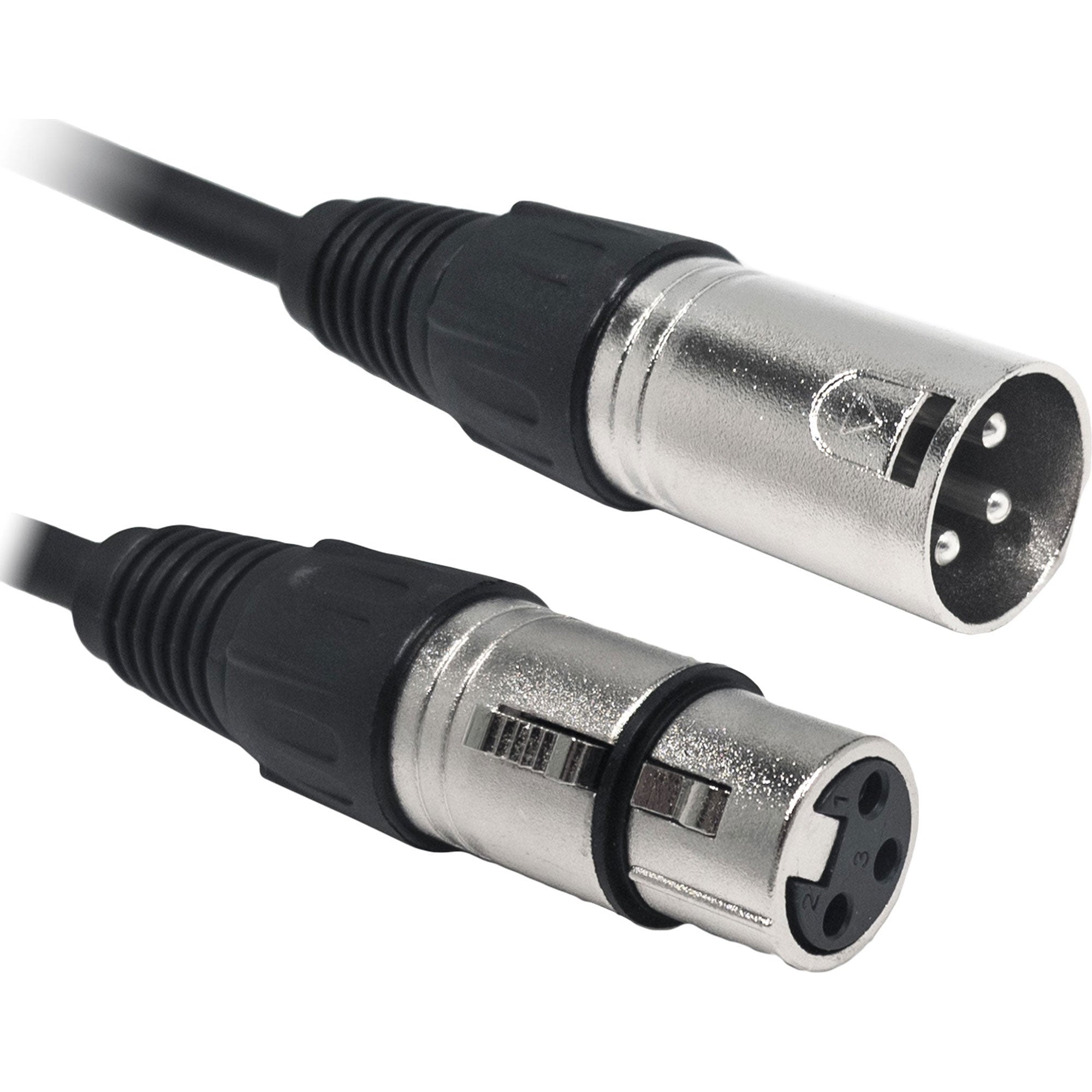

Tour Tough XLR Male to XLR Female Microphone Cable (20') (4 Included)

20 ft. XLR Male to XLR Female professional microphone cable. Great for all balanced mono audio signals.

Features:

Yamaha HS5 5" Powered Studio Monitor - Black (2 Included)

• 2-way bass-reflex bi-amplified nearfield studio monitor with 5" cone woofer and 1" dome tweeter
• 54Hz - 30kHz frequency response
• 45W LF plus 25W HF bi-amp system for high-performance 70W power amplification
• ROOM CONTROL and HIGH TRIM response controls
• XLR and TRS phone jack inputs accept balanced or unbalanced signals

Yamaha HS8S 8" Active Studio Subwoofer (1 Included)

• 8" bass-reflex powered subwoofer delivers low frequencies down to 22Hz
• 22Hz - 150Hz frequency response
• High-power 150W amplifier exclusively designed for low frequencies
• LOW CUT switch, LOW CUT control (80-120Hz) HIGH CUT control (80-120 Hz)
• PHASE switch allow users to set up a subwoofer system with simple connections and no additional equipment
• XLR and TRS phone for outputs and XLR for L and R and EXT SUB

Gator Cases GFW-ISOPAD-SM Frameworks Studio Monitor Isolation Pads (Pair, Small)

• Isolation for Pair of Studio Monitors
• Decouples Monitors from Desktop
• Improves Sound and Imaging
• Fits 5" Studio Monitors Vertically

Tour Tough XLR Male to XLR Female Microphone Cable (20') (4 Included)

• 20 ft. XLR Male to XLR Female professional microphone cable. Great for all balanced mono audio signals.

Specifications:

Yamaha HS5 5" Powered Studio Monitor - Black (2 Included)

• Speaker type: 2-way bi-amp powered studio monitor
• Frequency Range (-10dB): 54Hz - 30kHz
• Components:
  LF: 5" cone
  HF: 1" dome
• Crossover: 2kHz
• Output power: 70W (LF:45W, HF:25W)
• I/O connectors: XLR3-31 type (balanced), PHONE (balanced)
• Power consumption: 45W
• Shape: Bass-reflex type
• Cabinet material: MDF
• Dimensions:
  W: 170mm (6.7")
  H: 285mm (11.2")
  D: 222mm (8.7")
• Net weight: 5.3kg (11.7 lbs.)
• Others: LEVEL control (+4dB/center click) , EQ: HIGH TRIM switch (+/- 2dB at HF) / ROOM CONTROL switch (0/-2/-4 dB under 500Hz)

Yamaha HS8S 8" Active Studio Subwoofer (1 Included)

• Speaker type: Powered subwoofer
• Frequency Range (-10dB): 22Hz - 160Hz
• Components: LF: 8" cone
• Output power: 150W
• I/O connectors: INPUT: XLR3-31 type (balanced) x2, PHONE (balanced) x2 / OUTPUT: XLR3-32 type (balanced) x2 (L&R), XLR3-32 type (balanced) x1 (EXT SUB)
• Power consumption: 70W
• Shape: Bass-reflex type
• Cabinet material: MDF
• Dimensions:
  W: 300mm (11.8")
  H: 350mm (13.8")
  D: 389mm (15.3")
• Net weight: 12.5kg (27.6 lbs.)
• Others: LEVEL control, PHASE switch : NORM./REV., HIGH CUT control (80-120Hz, center click), LOW CUT control (80-120Hz, center click), LOW CUT switch (ON/OFF)
