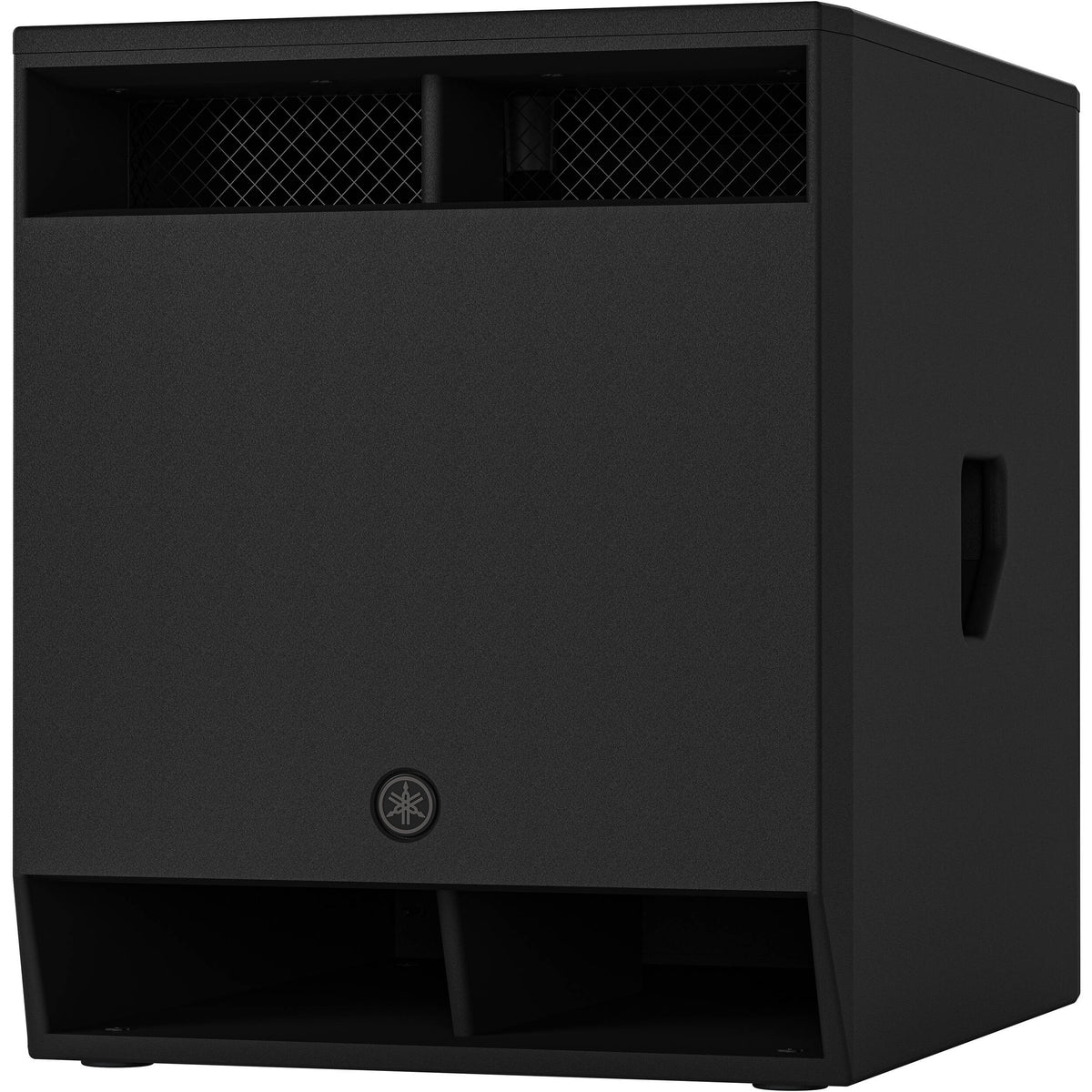

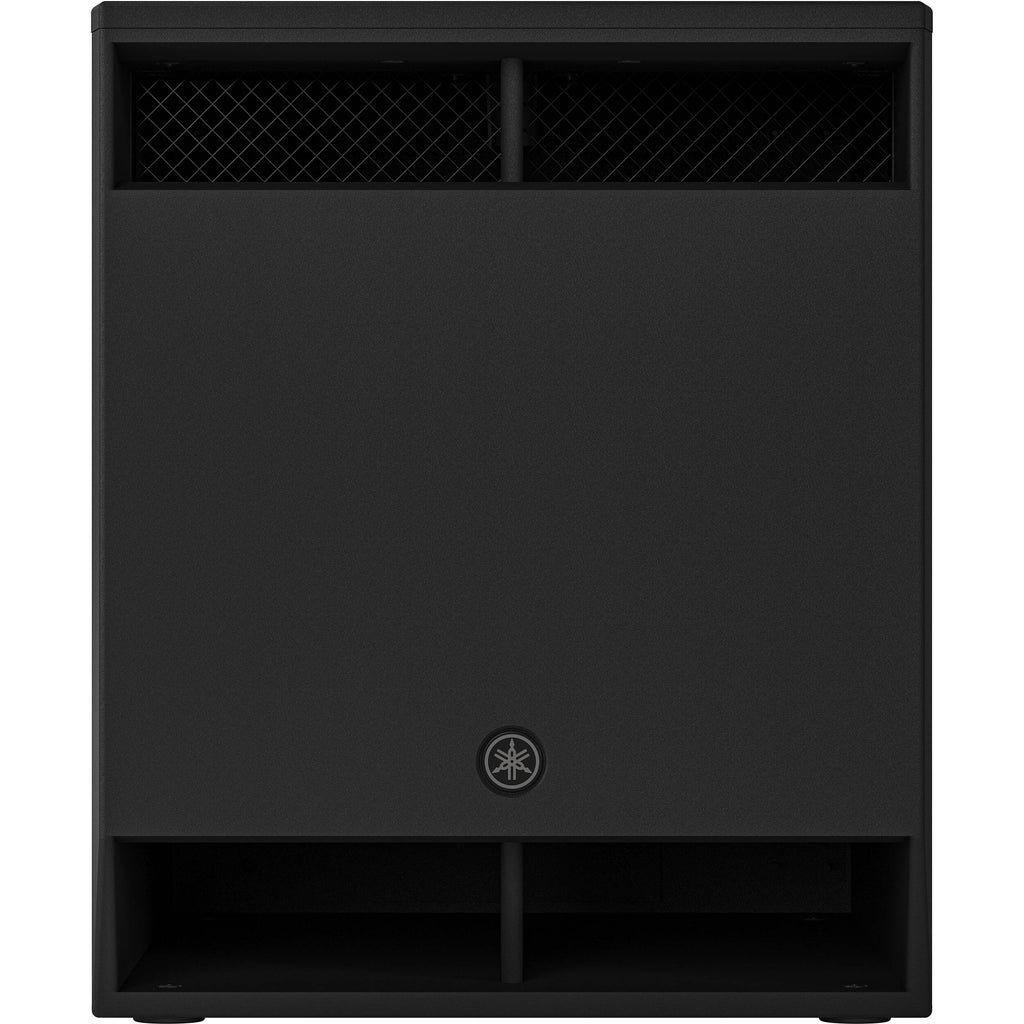

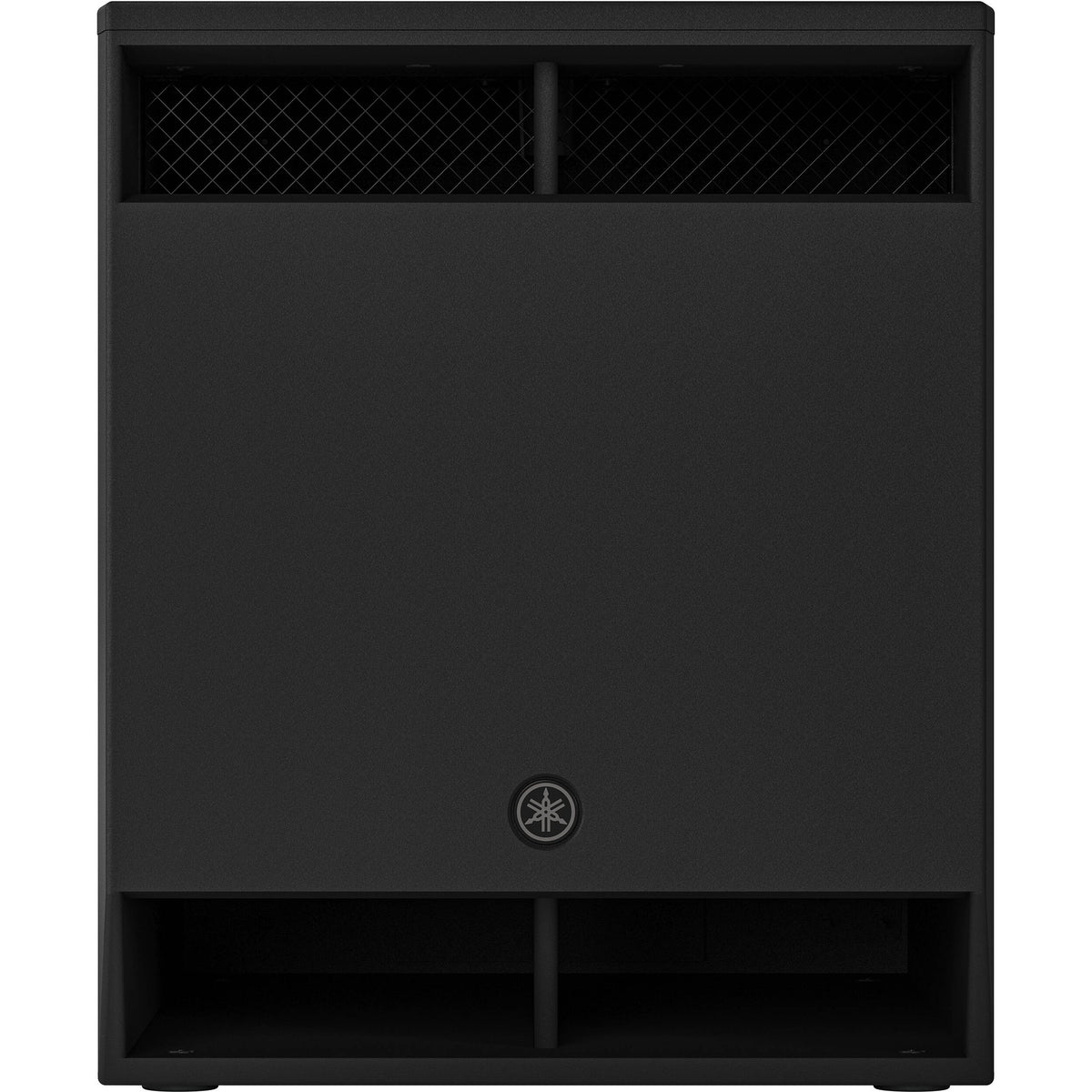

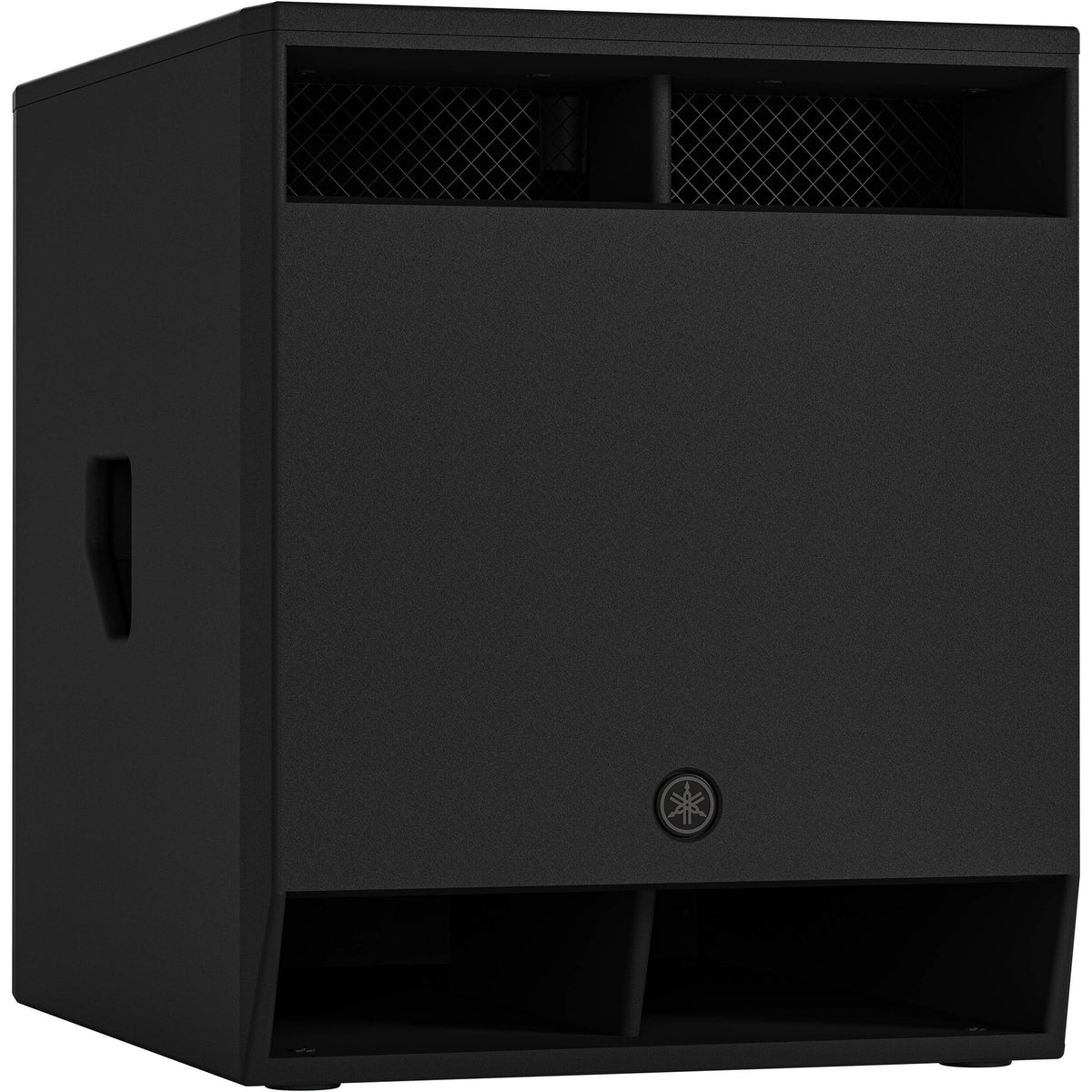

Yamaha DXS18mkIII 18" 2500W Active Subwoofer

Yamaha SKU: YAM DXS18MKIII
MPN: DXS18MKIII UPC: 889025171861

Price:
Sale price$2,330.00
Stock:
1 In Stock & Ready to Ship

Key Features

  • For DJs, Live Performances, & Events
  • Bandpass Wooden Cabinet
  • 2500W Peak Output
  • Class-D Amplifier Design
  • Flexible Color LCD Screen
  • Auto Preset & Expanded EQ DSP
  • Feedback Suppression & Ducker
  • D-Remote App Control
  • Bluetooth Audio Streaming

Description

The Yamaha DXS18 mk3 is an 18-inch powered subwoofer built to add deep, high-impact bass to live performances, DJ sets, and event sound systems. A newly developed Class-D amplifier delivers 2,500 W peak power, driving an 18-inch woofer with a 4-inch voice coil in a bandpass plywood enclosure. With a frequency range of 32–120 Hz (-10 dB) and a measured peak output of 134 dB SPL, it provides substantial low-frequency support for a full-range PA.

Deep Bass with Flexible System Integration

Built-in D-XSUB processing offers NORMAL and XTENDED LF settings to tailor low-frequency reproduction to your application. Flexible DSP crossover settings help integrate the subwoofer with your main speakers, while factory presets optimized for Yamaha DXR mk3 loudspeakers simplify setup when building a matched system.

Rear-Panel Control and Wireless Adjustment

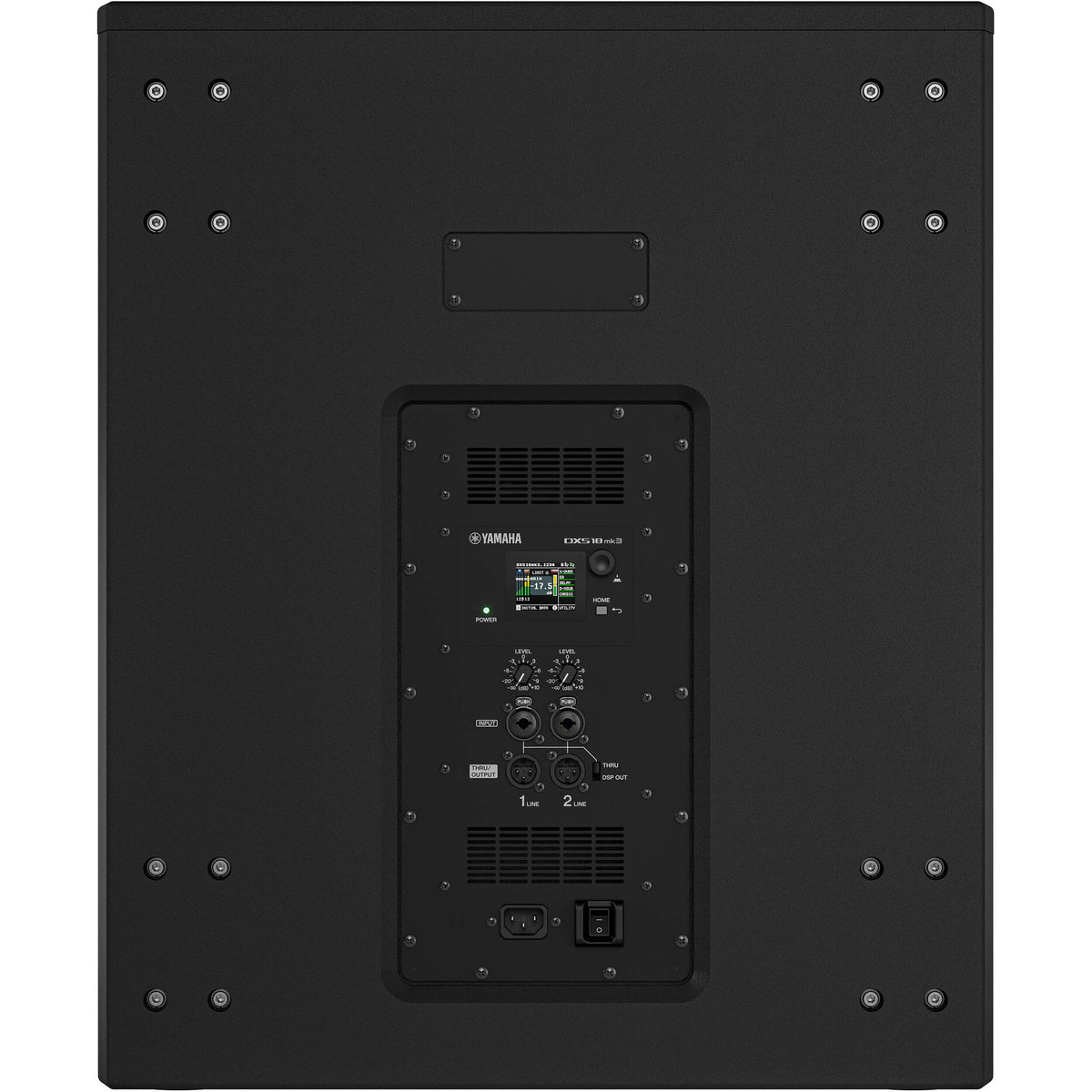

A rear LCD and encoder provide access to presets, parametric EQ, delay, and signal routing. Store up to eight user presets to recall settings for recurring venues or system configurations. Yamaha's D-Remote app for iOS and Android adds Bluetooth remote control and monitoring, letting you adjust system parameters and check limiting, temperature, and error alerts from a mobile device. Bluetooth audio streaming is also supported.

Cardioid Bass Control

For setups using two or more DXS mk3 subwoofers, cardioid mode helps direct more bass toward the audience while reducing sound pressure onstage. This can improve monitoring conditions for performers. Cardioid operation requires multiple subwoofers arranged and configured according to Yamaha's instructions; it is not a single-cabinet directional mode.

Connections and Road-Ready Construction

Two combo inputs and two XLR outputs support connection to your PA, with selectable THRU or DSP OUT routing. The plywood cabinet features a durable black polyurea finish and two side handles. Both a 35 mm pole socket and an M20 threaded socket are provided for compatible speaker poles. Optional SPW-1 casters and an SPCVR-DXS183 cover are available separately.

Key Features

  • 18-inch powered bandpass subwoofer with a 4-inch voice coil
  • Class-D amplification rated at 2,500 W peak and 1,250 W RMS
  • 32–120 Hz frequency range (-10 dB)
  • 134 dB measured peak maximum output at 1 m using IEC noise
  • D-XSUB processing with NORMAL and XTENDED LF settings
  • Flexible DSP crossover, parametric EQ, delay, and routing
  • Rear LCD and encoder with storage for eight user presets
  • Factory presets optimized for DXR mk3 loudspeakers
  • D-Remote control and monitoring for iOS and Android over Bluetooth
  • Bluetooth audio streaming
  • Cardioid mode for systems with two or more DXS mk3 subwoofers
  • Plywood enclosure with black polyurea finish and two side handles

Specifications

  • Speaker type: Powered subwoofer, bandpass
  • Low-frequency driver: 18-inch cone with 4-inch voice coil
  • Amplifier: Class-D
  • Power rating: 2,500 W peak; 1,250 W RMS
  • Frequency range: 32–120 Hz (-10 dB)
  • Maximum output: 134 dB SPL, measured peak, IEC noise at 1 m
  • Conversion: 32-bit A/D and D/A, 96 kHz sampling
  • Analog inputs: Two combo inputs
  • Analog outputs: Two XLR outputs, selectable THRU or DSP OUT
  • Bluetooth: Version 5.0; A2DP with SBC and AAC codecs
  • Cooling: Five-speed fan
  • Pole sockets: 35 mm and M20 threaded
  • Dimensions (W x H x D): 563 x 683 x 721 mm (22.2 x 26.9 x 28.4 inches)
  • Net weight: 51.0 kg (112.4 lb)
  • Optional accessories: SPW-1 casters; SPCVR-DXS183 cover, sold separately

Sold individually.

Details
  • Manufacturer:  Yamaha
  • MPN: DXS18MKIII
  • Model Number: DXS18 mk3
  • UPC: 889025171861
