Key Features
- 10" Cone, 2" Voice Coil (Ferrite)
- 1" Coil Compression Driver (Ferrite)
- 175W Peak, 350W Program, 700W Peak
- Use as Floor Monitor
- Portable Enclosure Design
- Rigging Points for Installation
- Functional Speaker Cover
Description

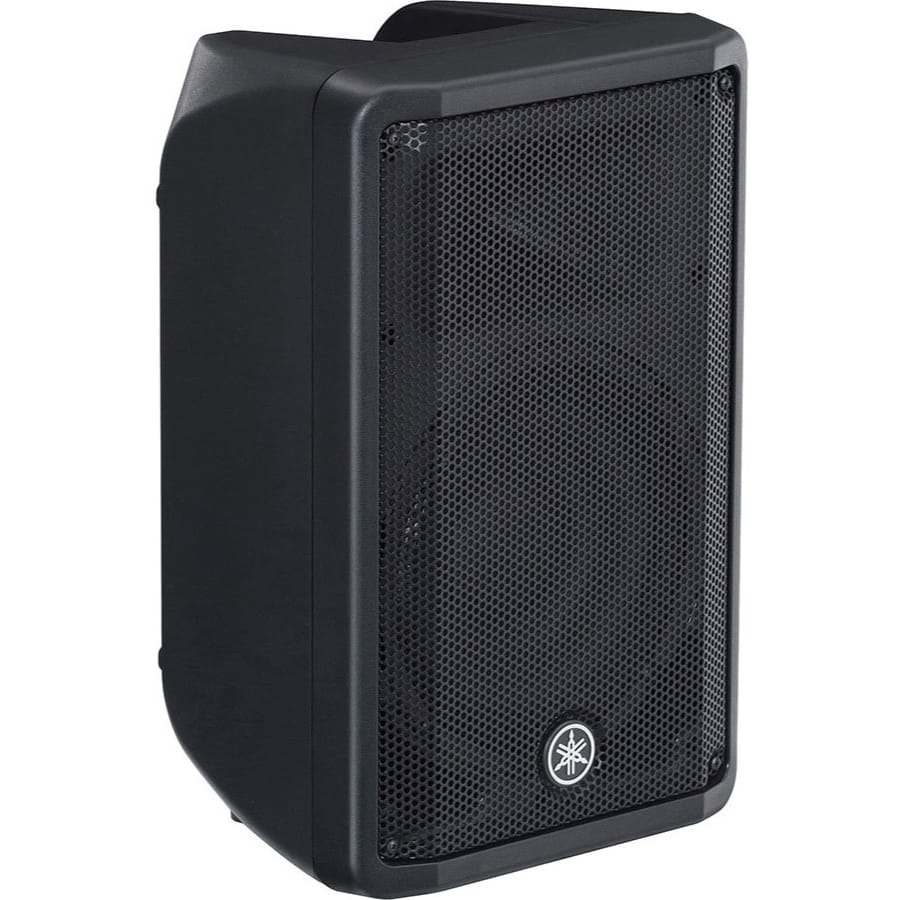

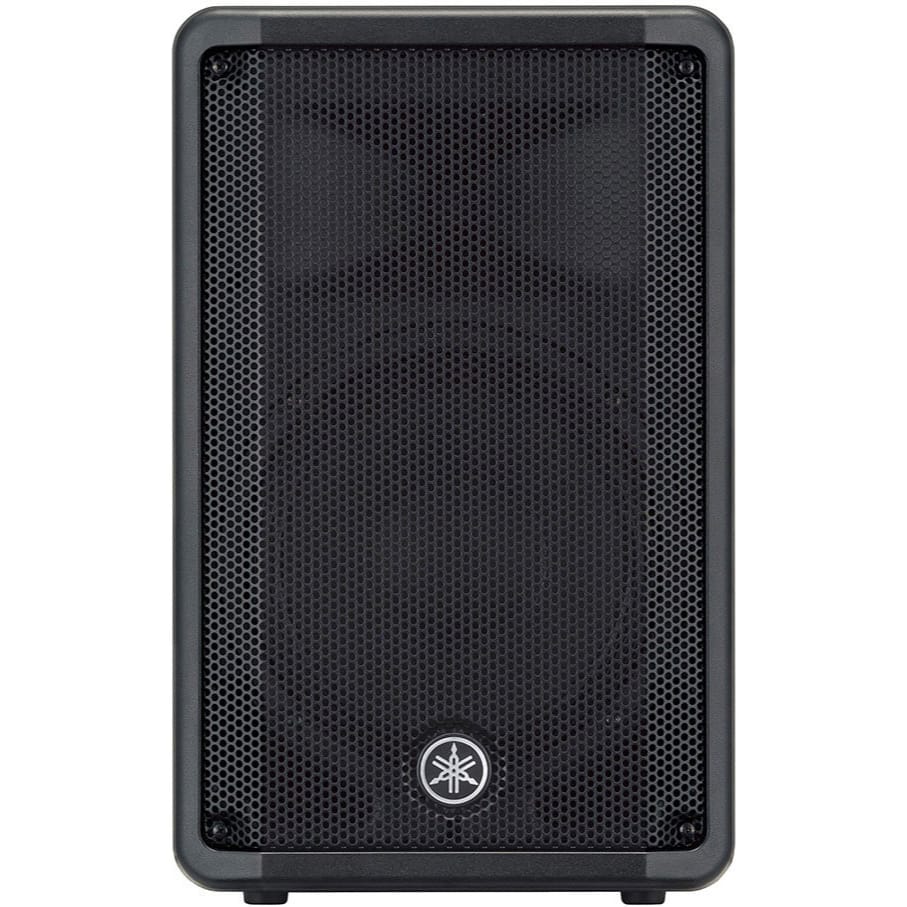

Two-Way Passive Bass Reflex Speaker with 10" Woofer
The Yamaha CBR10 2-Way Passive Bass Reflex Speaker With 10" Woofer is designed to deliver high-power, high-definition sound in a portable and versatile package for applications such as front-of-house, floor monitoring, and rigged configurations. The speaker uses custom designed transducers with a wide-dispersion constant directivity horn to deliver a frequency response of 50 to 20,000 Hz.
The speaker is the most compact model in the series. The power to size and rate ratio make it suitable for both portable and installed applications.
Features:
-
Custom Transducers and Wide-Dispersion Horn
Leverages carefully selected materials with a horn design that minimizes radiation pattern deterioration in oblique directions -
HF Protection Circuit
Limits excessive input that might otherwise damage the speaker -
Rugged, Portable Enclosure Design
Uses a lightweight plastic cabinet with ergonomic handle(s) -

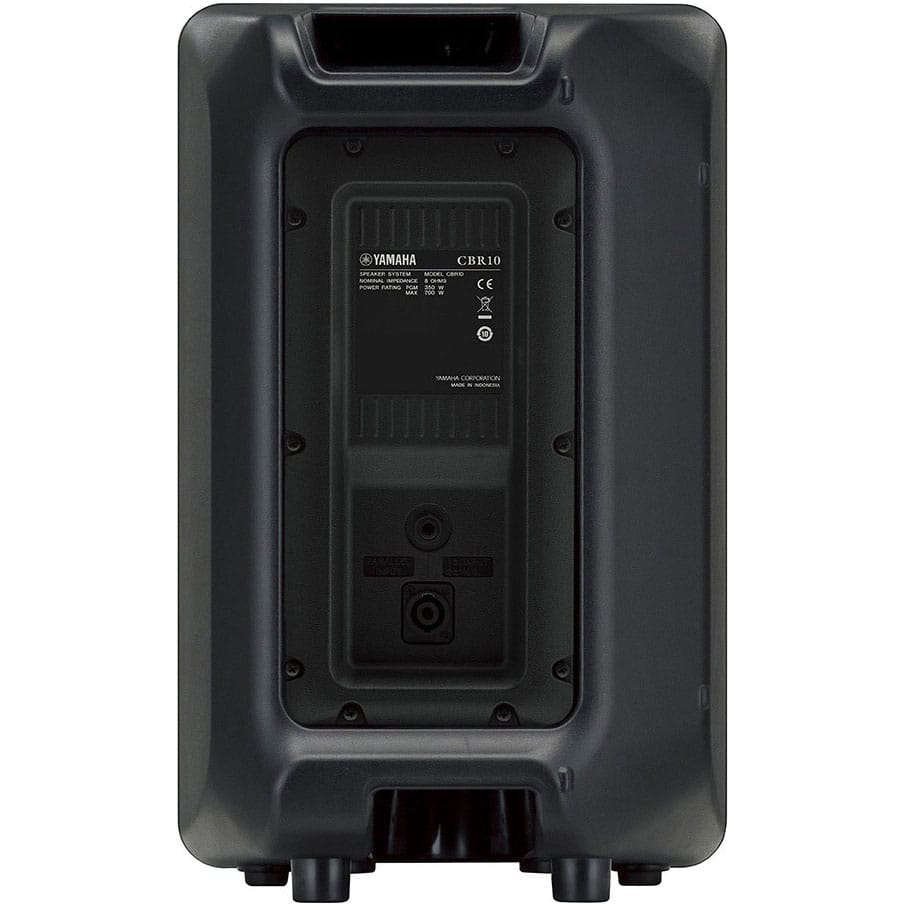

Connectivity
Features one speakON jack and one 1/4" phone jack for fast connectivity -

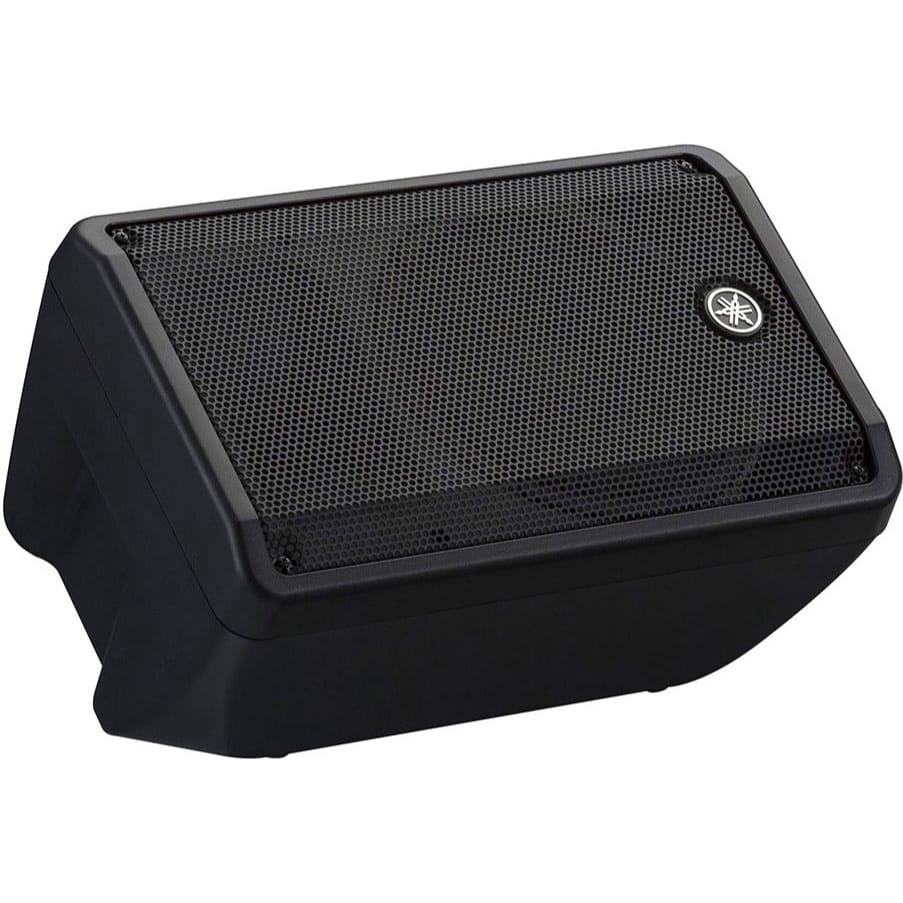

Enclosure Design for Floor Monitoring
Features a 50° wedge angle for floor monitoring -
Rigging Points for Installation
Features M8 rigging points for rigged applications with optional speaker brackets and standardized eye-bolts -
Functional Speaker Cover
Protects speaker from unfavorable weather during outdoor performances
Specifications:
- Speaker type: 2-way Speaker, Bass-reflex Type
- Frequency range (-10dB): 50 Hz - 20 kHz
- Nominal coverage:
H: 90°
V: 60° - Components:
LF: 10" Cone, 2" Voice Coil (Ferrite Magnet)
HF: 1" Voice Coil, Compression Driver (Ferrite Magnet) - Crossover: 2.8 kHz
- Power rating:
NOISE: 175W
PGM: 350W
PEAK: 700W - Nominal impedance: 8Ω
- SPL:
Sensitivity (1W; 1m on axis): 94dB SPL
Peak (Calculated): 123 dB SPL - I/O connectors: 1/4" Phone x 1, speakON NL4MP x 1
- Cabinet material: Plastic
- Finish: Black
- Handle: Top x 1
- Flying and mounting hardware: Bottom x 2, Rear x 1 (Fit for M8 x 15mm Eyebolts)
- Pole socket: 35 mm Bottom x 1
- Dimensions:
W: 308mm (12.1")
H: 493mm (19.4")
D: 289mm (11.4") - Net weight: 9.4 kg (20.7 lbs)
