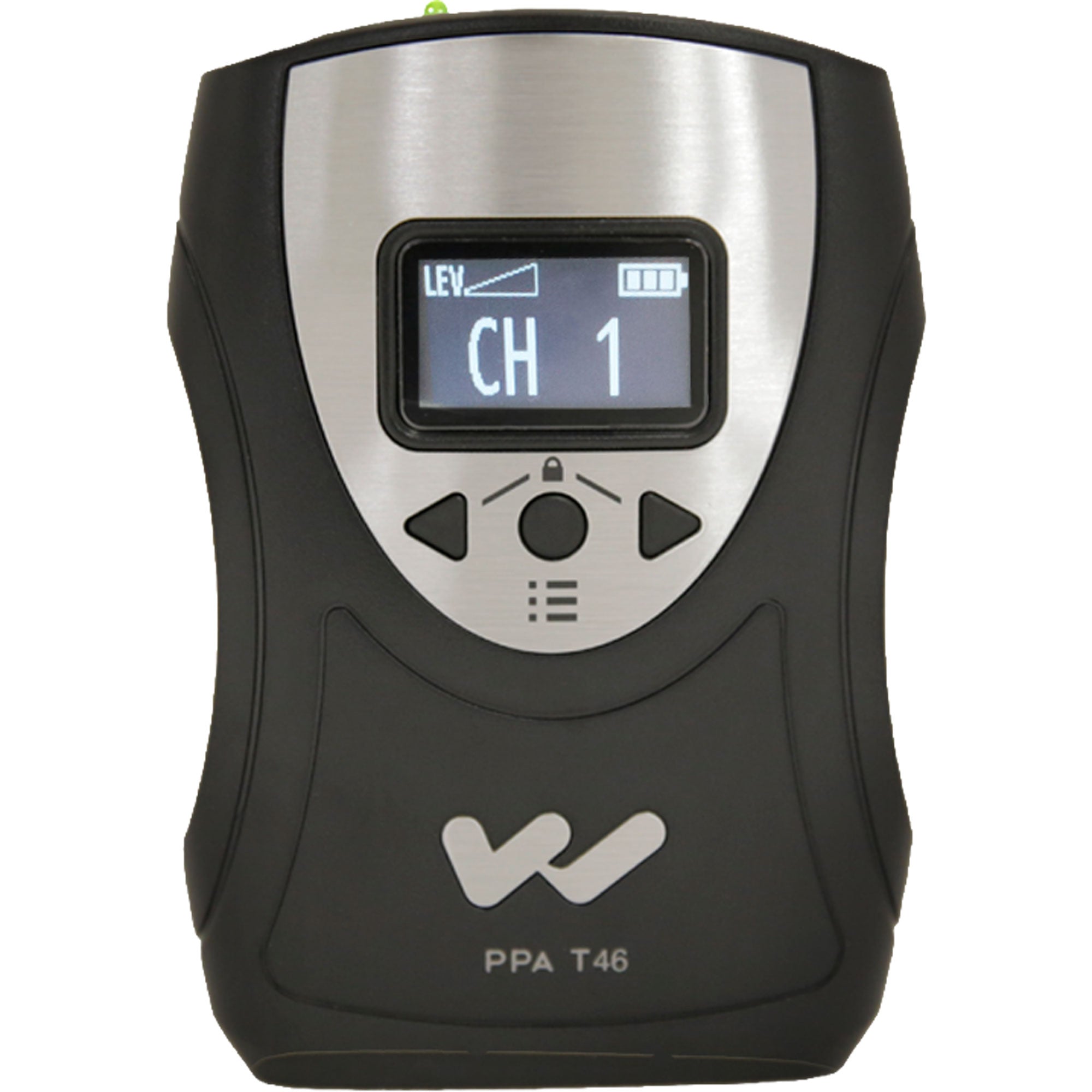

Williams AV PPA T46 Personal PA Bodypack Transmitter (Black & Silver)

PPA T46 FM Transmitter

The T46 FM transmitter will broadcast a speaker's voice on one of seventeen available channels, 72-76 MHz, to listeners using an R37 or R38 receiver. The unit features an easy-to-read OLED screen, convenient menu control buttons, flexible mic, and auxiliary inputs, push-button on/off/mute controls, channel lock, and selectable compression. Lightweight and portable, the PPA T46 has a transmission range of up to 150 feet (46 m). It is ideal for providing hearing assistance for students in the classroom, tour group participants, employee training, business meetings, and more.

Note: The T46 system is approved by the FCC for operation in U.S. markets. The T46 cannot be used in all countries. Check with your government's radio regulations for 72 - 76 MHz operation.

System Includes

• (1) PPA T46 Transmitter
• (1) BAT 001-2 (2) AA Batteries
• (1) CLP 023 Belt Clip
• (1) WCA 087 Auxiliary Input Cable
• Microphone sold separately.
• *All items can be purchased separately

Features

• Sleek, ergonomic design
• 17-channel selectable, 72-76 MHz
• Digitally synthesized frequencies
• 1.25" OLED interface displays:
• master [&] aux volume level
• mic mute
• settings lock
• battery level
• Easy-to-use menu-access controls:
• microphone and auxiliary levels
• 8- or 17-channel mode selection
• current frequency/channel number
• compression (1:1 or 2:1)
• display settings
• MIC input accepts electret mic with 3.5 mm mono plug
• AUX audio input accepts 2.5 mm stereo plug (i.e for MP3 or CD player)
• Range of up to 150' (with PPA R37 receiver)
• FCC Part 15 compliant
• Belt clip for hands-free operation
• Meets ADA guidelines
• Made in the USA
• Limited Lifetime Warranty (90 days on accessories)

Specifications

• Dimensions: 4.1" L x 2.8" W x 1.1" D (104 mm x 71 mm x 28 mm)
• Weight: 2.6 oz (74 g), no batteries
• Color: Black/Silver
• Enclosure Material: Shatter-resistant PC/ABS plastic with textured scratch-resistant aluminum faceplate
• Battery Type options: Two (2) AA 1.5 V non-rechargeable Alkaline batteries (BAT 001-2), 75 mA nominal current drain, up to 30 hours battery life
• Two (2) AA 1.5 V NiMH rechargeable batteries (BAT 026-2), 75 mA nominal current drain, up to 20 hours battery life per charge, recharges in 14-16 hours, uses CHG 3502 or CHG 3512 Charger
• Operating Frequencies: Selectable, 17 channels, 72.1 - 75.9 MHz*. Switchable 8 or 17 Channel Mode. (8-channel mode setting corresponds with PPA R35-8 receiver channels)
• Stability: ± .005%, frequency synthesized, crystal reference, PLL
• Modulation: Wide-band FM, 75 kHz peak, 75 µS pre-emphasis
• RF Output: 80 mV/m at 3 m (max. allowed by FCC rules)
• Range: 150 ft/45 m
• Frequency Response: 180 Hz to 13 kHz, ± 3 dB at 1% max. THD
• Signal-to-Noise Ratio: 65 dB (typical) transmitted
• Transmit Antenna: Integral with microphone cord
• Microphone: Electret type, 3.5 mm mono plug
• External Display: OLED for status and menu information.
• Status: Ch/Freq, Mic Audio Level, Auxiliary Input Audio Level, Battery Status, Mic Mute, Channel Lock, Dual-Preset mode.
• Menu: Ch/Freq display mode select, Volume, Aux Input, Compression,
• 17 or 8-channel mode, screen time out, screen brightness, restore default settings
• External Controls: Momentary push button: push and hold 3 seconds for power On/Off, push and release for microphone mute On/Off. "Up", "Down" and "Menu" buttons for accessing and changing transmitter settings. Battery type switch (Alkaline or NiMH) located behind the battery compartment door
• External Indicators: Power LED - Green, flashes when battery is low
• Mic Input: 3.5 mm mono jack with electret mic bias, adjustable gain with
• 25 dB range
• Aux Input: 2.5 mm stereo jack, adjustable gain with 60 dB range
• Audio Compression: 1:1 (off) or 2:1 (on) selectable in menu
• Compatible Receivers: PFM R31, PFM R32, PFM R33, PFM R36, PPA R35, PPA R37, PPA R35-8, PPA R1600,
• Approvals/Directives: FCC, Industry Canada, RoHS, WEEE
• Warranty: Limited Lifetime Warranty (90 days on accessories)
