Key Features
- Amphenol RF 112562
- Crimp Style
- 50 Ohm Resistance
- For RG-8 / RG-213 Coax Wire
- 3-Piece Connector
Description

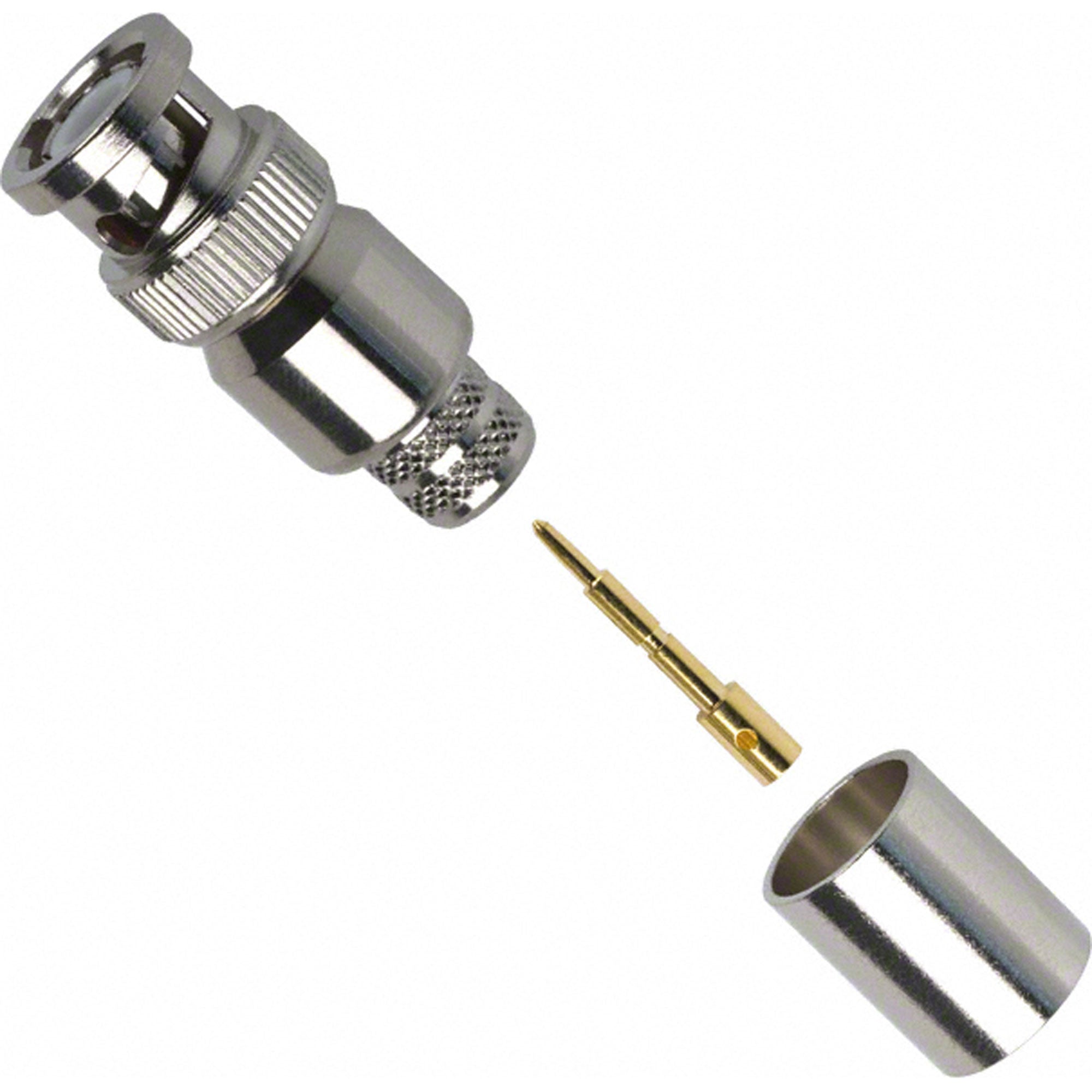

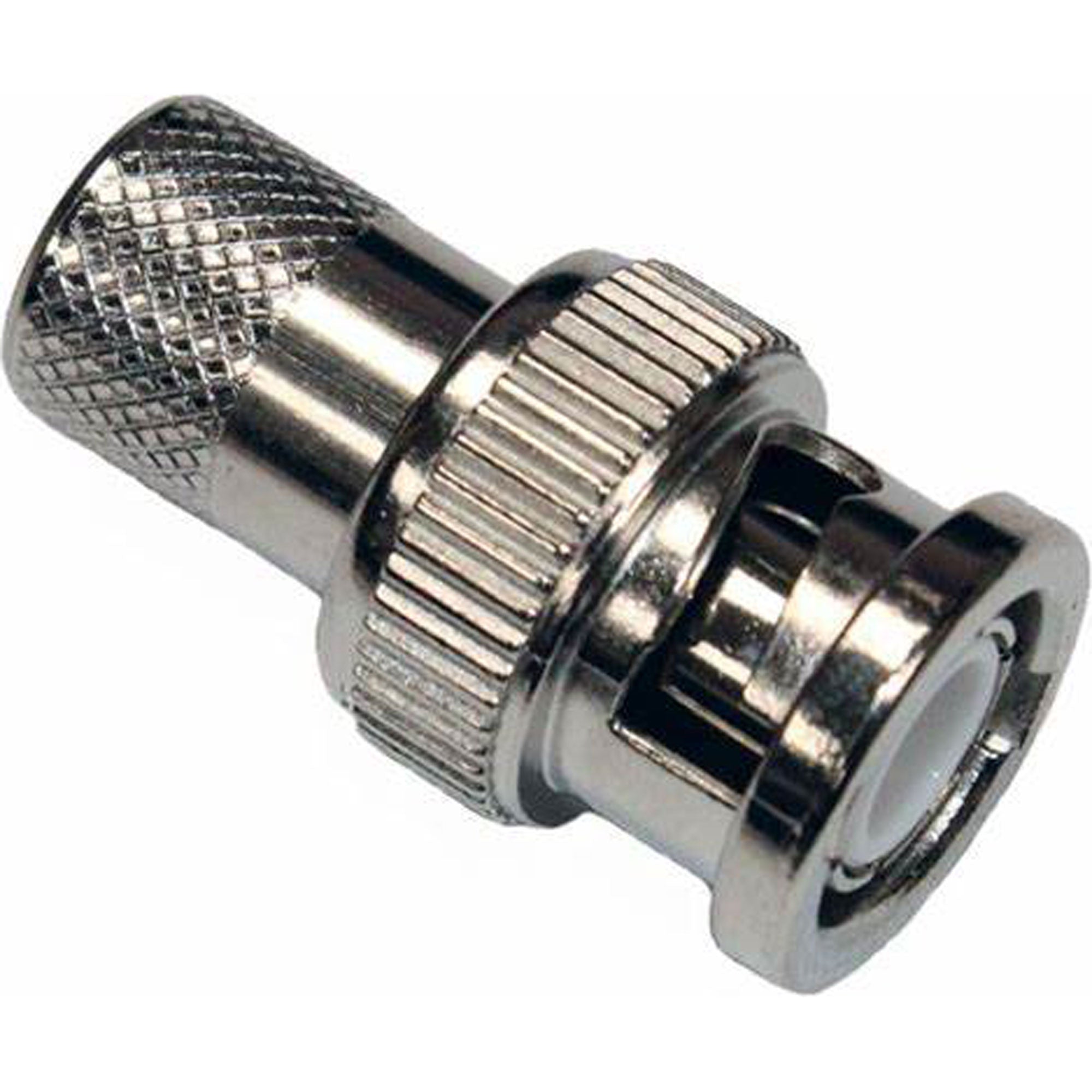

The CN-BM53-8 from West Penn is a 50 ohm RG8 BNC Crimp Style 3 piece connector.

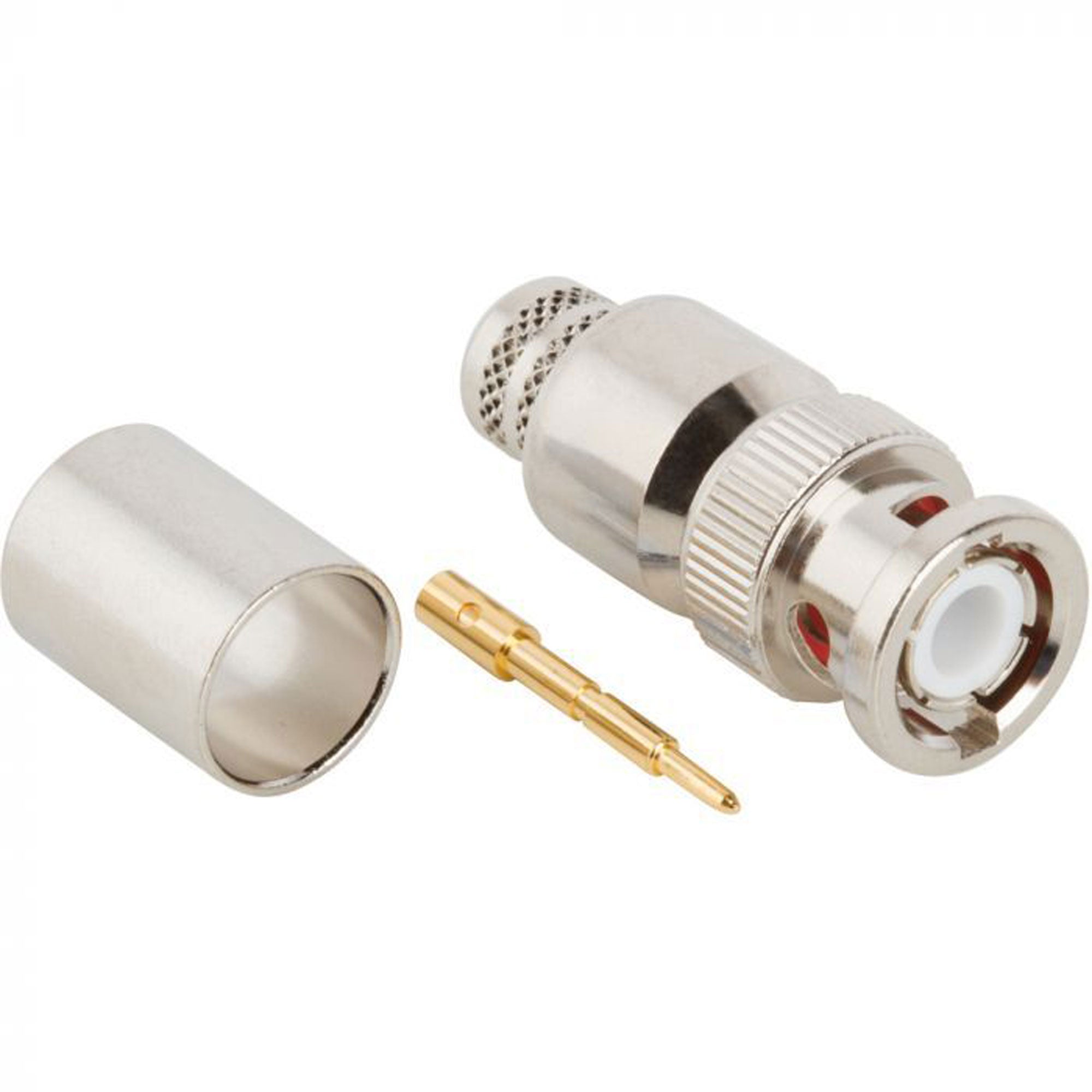

Amphenol RF 112562 - BNC Straight Crimp Plug RG-8 RG-213 RG-225 50 Ohm
RF Connector BNC Straight Crimp Plug RG-8 RG-213 RG-225 50 Ohm
Specifications:
- Alias: B1121A6-NT3G-213U-50
- Body Finish: Nickel
- Body Material: Brass
- Cable Type (Terminates to): RG-8, RG-213, RG-225, Times AA-4478, Belden 8267, Belden 9251, Belden 9880, Belden 89880, Belden 8242, Belden 8268
- Contact Finish: Gold
- Contact Material: Brass
- Contact Termination: Crimp
- Coupling Mechanism: Bayonet
- Crimp Tool: 47-10230
- Export Control Classification Number: EAR99
- Frequency (Max GHz): 4
- Gender: Plug
- IP Rating: Not Rated
- Impedance (Ohms): 50
- Insulator Material: PTFE
- Isolated: No
- Low PIM: No
- Mil Qualified: Not Mil Qualified
- Non Magnetic: No
- Orientation: Straight
- Panel Mounting Feature: Not Applicable
- Ports: 1 (Single Port)
- Size Category: Miniature
- Temp (Max Degrees Celsius): 165
- Temp (Min Degrees Celsius): -65
- Termination Style: Cable - Crimp
Details
- Manufacturer: West Penn
- MPN: CN-BM53-8
- Model Number: CN-BM53-8
- UPC: 612825010173
