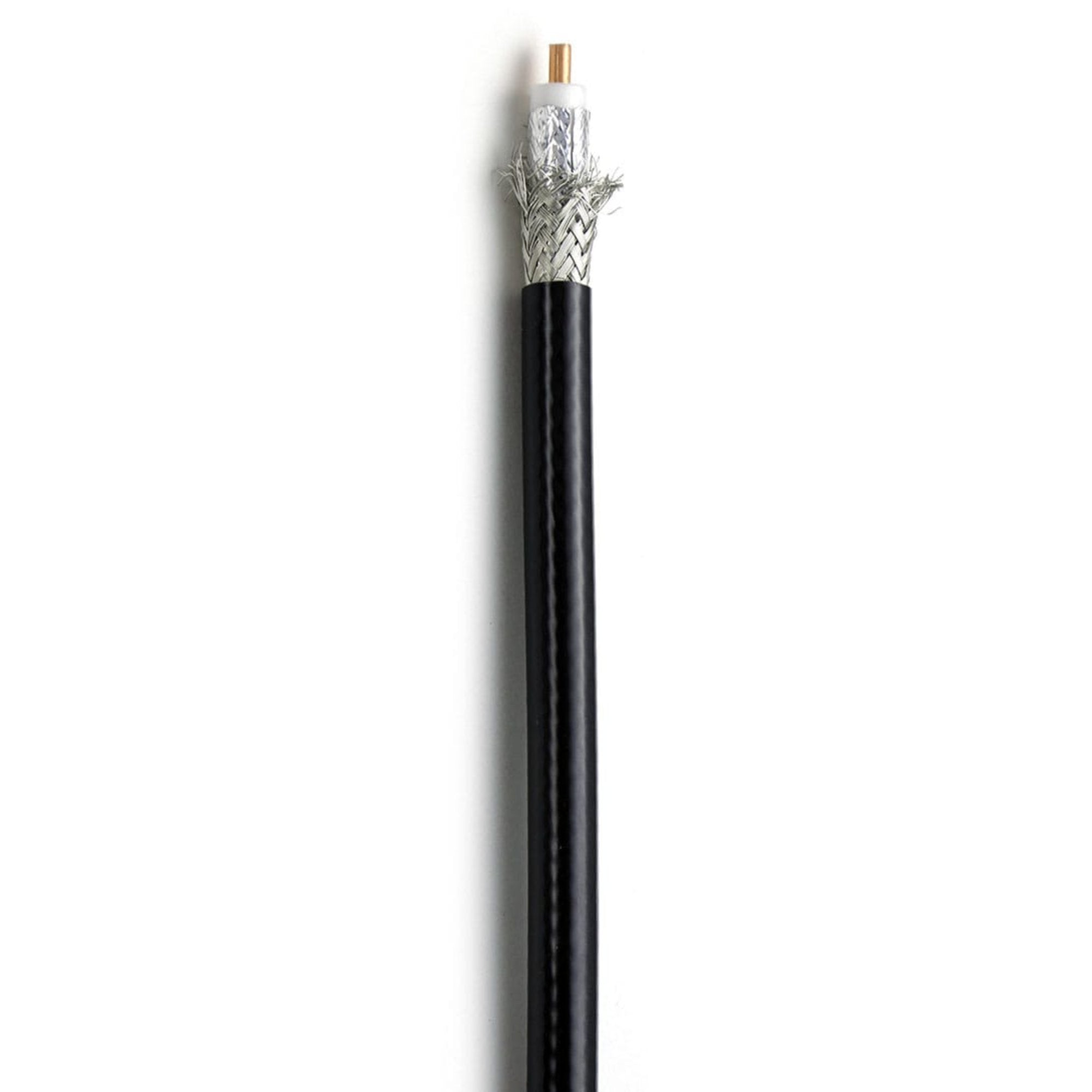

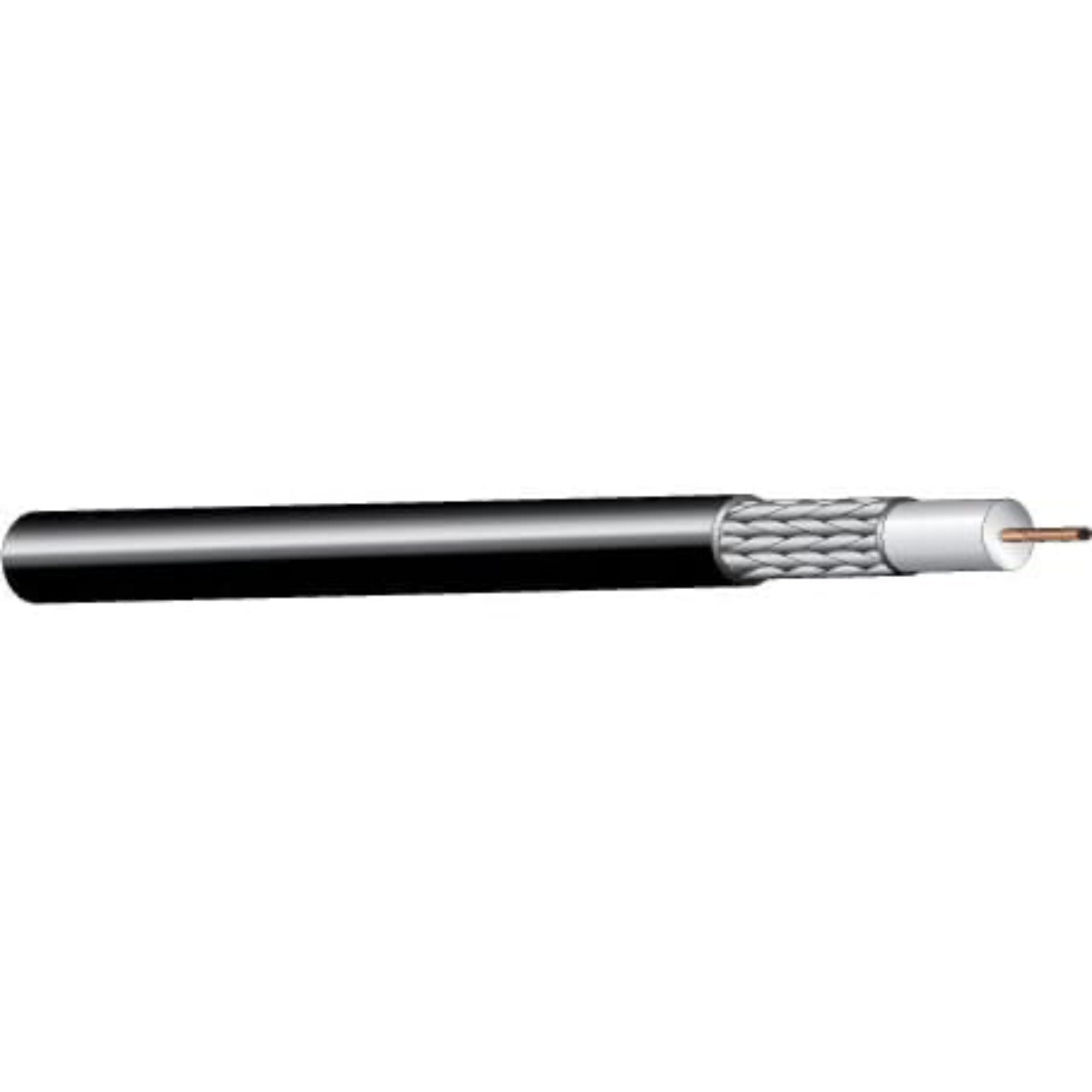

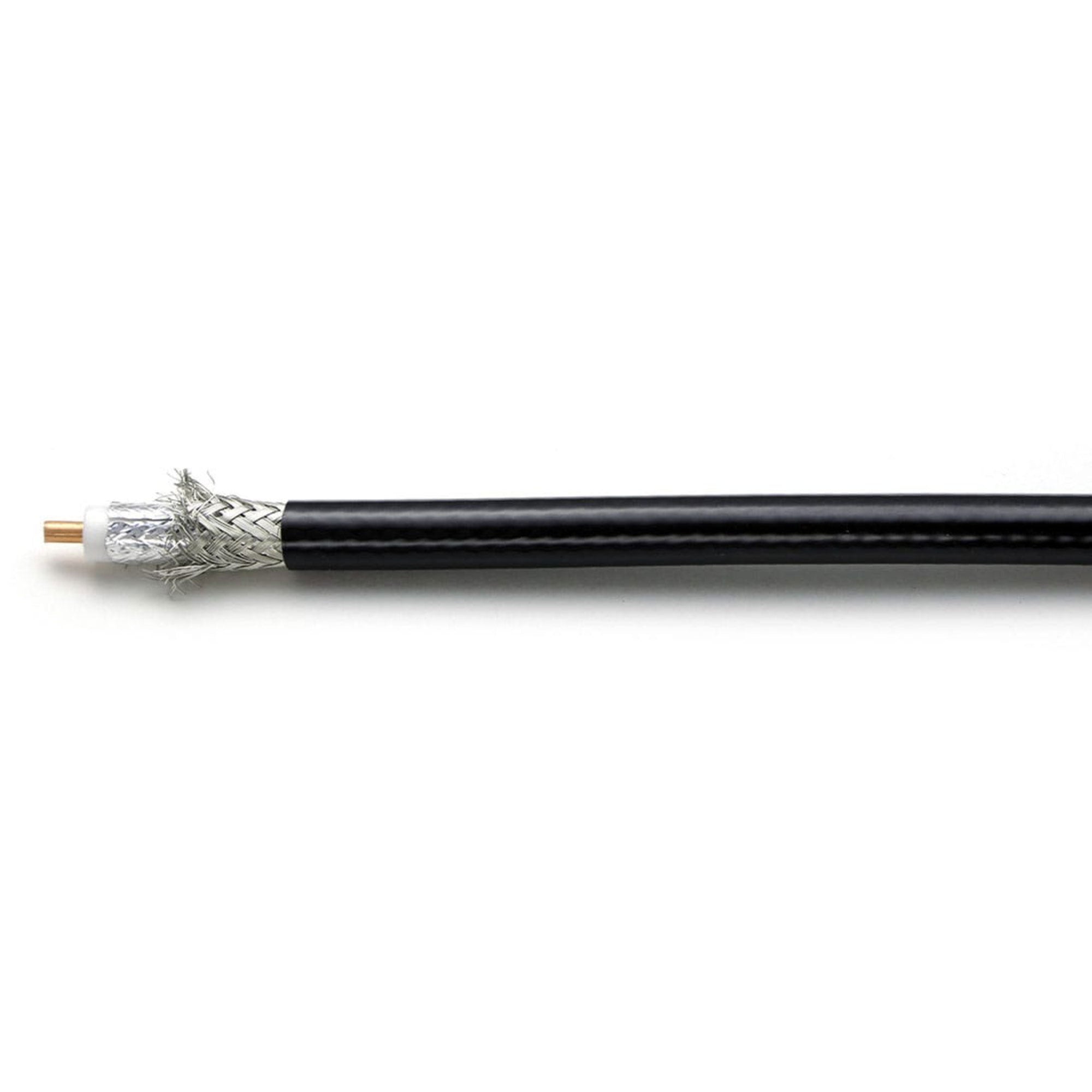

West Penn 810 Flexible RG8 / RG213 12 AWG 50 Ohm Coaxial Cable (Black, By the Foot)

RG213/U Type - RG8/U Type 12AWG 50 Ohm Coax - Flexible Design - Black - Sold by the Foot

Great for RF 50 Ohm Video, Wireless Mic Distribution

Wireless mic systems should use 50 Ohm cables exclusively because of their robust designs and consistent performances. A 50 Ohm coaxial cable, such as an RG-8X/U, has a much lower loss rate than a 75 Ohm cable, and also offers excellent Power Impedance Matching.

Specifications:

• CONSTRUCTION & DIMENSIONS
• CONDUCTOR PARAMETER
• Number of Conductors: 1
• AWG Size: 12
• Conductor Stranding: 7x20
• Conductor Type: Bare copper
• Nominal DCR: 1.9 Ohm/1000ft
• INSULATION PARAMETER
• Insulation Type: Foam Polyethylene
• Insulation Thickness: 0.28 in
• SHIELDING PARAMETER
• Shield Type: 100% Aluminim Foil + 95% Tinned Copper Braid
• ELECTRICAL CHARACTERISTICS
• Nominal Impedance: 55 Ohm
• Nom. Cap. Between Conductors: 25 pF/ft
• OVERALL CONSTRUCTION PARAMETERS
• Jacket Type: PVC
• Jacket Thickness: 0.044 in
• Nominal Cable O.D.: 0.405 in
• Plenum: No
• NEC UL Rating: RG Size
• CM: RG213/RG8
• RoHS Compliant: Yes
• Bend Radius: 4.05 in
• Cable Weight: 105 lbs
• Belden: 8267
• This cable is constructed as a Flexible Design.
• OVERALL ELECTRICAL/OPTICAL CHARACTERISTICS
• Nominal Velocity of Propagation (VP):80 %
• Delay Skew: 1.3na/ft
• UL Flammability: UL1685
• Operating Range: -40 to 75 Deg C
• UL Voltage Rating: 300
• Attenuation Performance:
• FREQUENCY (MHz): ATTENUATION (db/100ft)
• 1 MHz: 0.2 dB
• 10 MHz: 0.6 dB
• 50 MHz: 1.3 dB
• 100 MHz: 2 dB
• 200 MHz: 2.8 dB
• 400 MHz: 4 dB
• 900 MHz: 6.7 dB
• 1000 MHz: 7.2 dB
• Power Rating:
• FREQUENCY [MHz]: MAX POWER RATING [W]
• 1 MHz: 7,950 W
• 10 MHz: 2,761 W
• 50 MHz: 1,122 W
• 100 MHz: 748 W
• 200 MHz: 494 W
• 400 MHz: 326 W
• 700 MHz: 235 W
• 900 MHz: 205 W
• 1,000 MHz: 194 W
• 4,000 MHz: 110 W
