Description

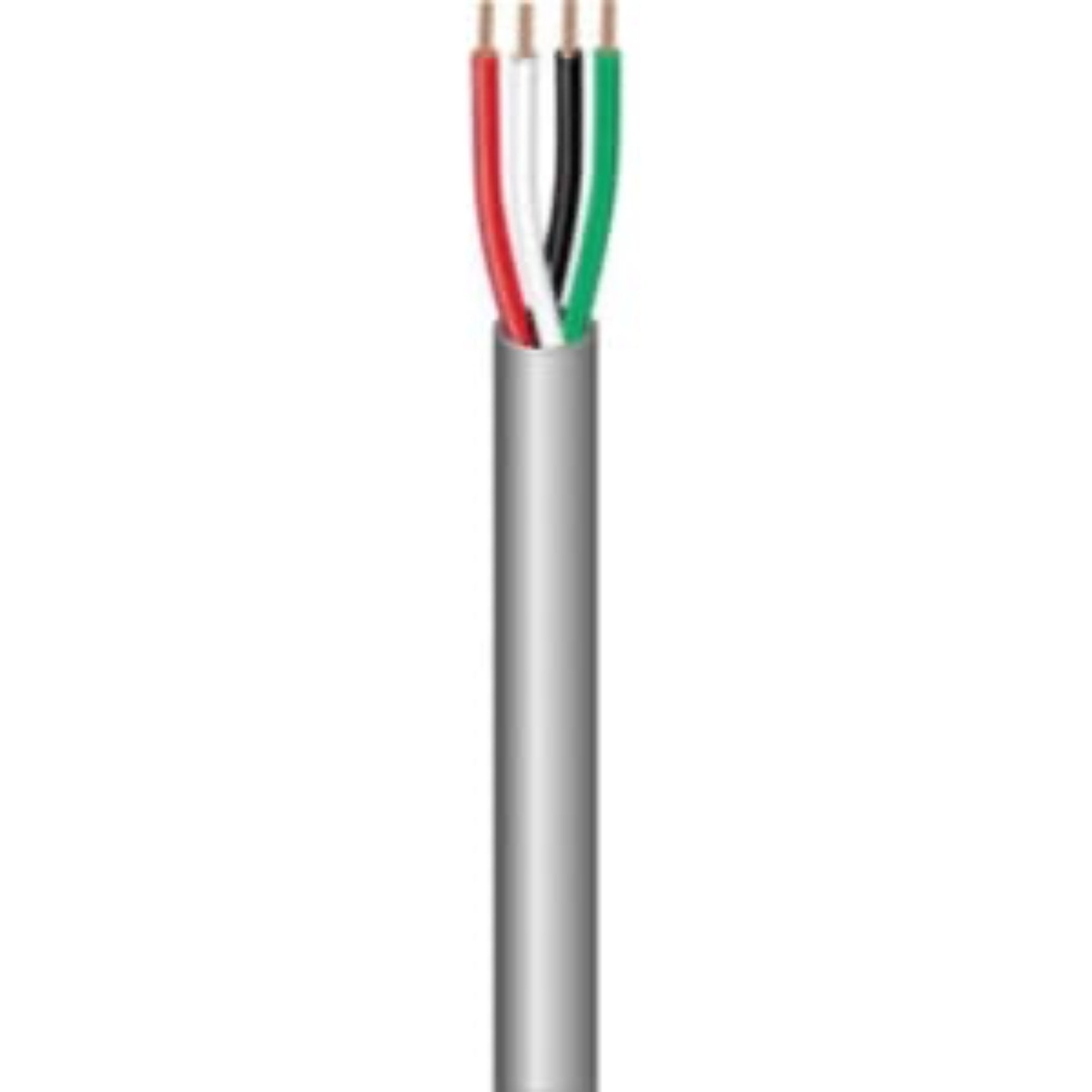

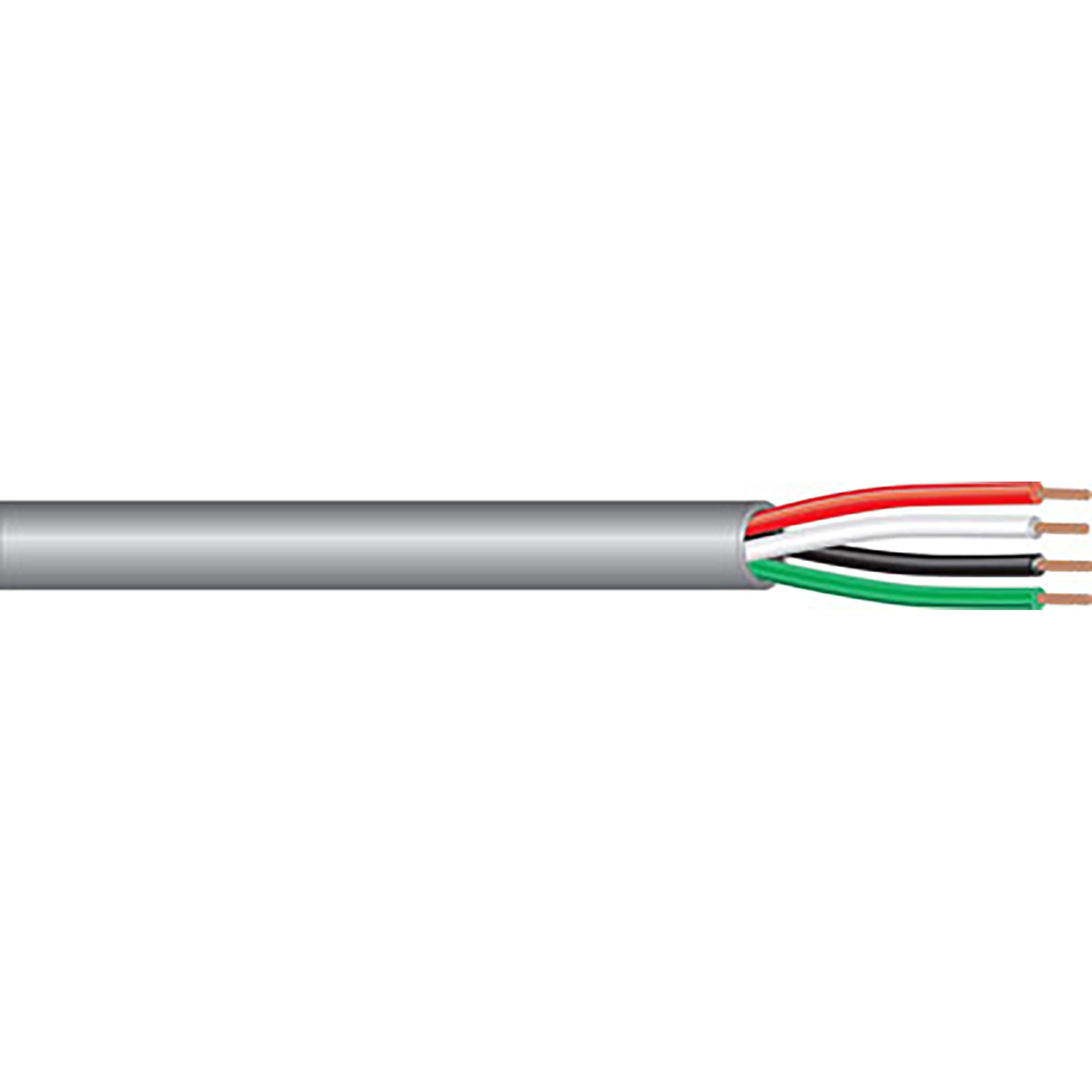

4 Conductor 16awg Non-Plenum Speaker Wire with Stranded Conductors - Grey - Sold by the Foot
16/4 Stranded bare copper conductors, unshielded with an overall jacket.
Applications:
Indoor for: Intercom, Security, Sound, Audio, Background Music, and Power Limited Control Circuits
Part # 245 Specifications
- Construction Parameters:
- Conductor 16 AWG Bare Copper
- Stranding 19x29
- Insulation Material PVC
- Insulation Thickness 0.010" Nom.
- Number of Conductors 4
- Shield None
- Drain None
- Jacket Material PVC
- Jacket Thickness 0.015" Nom.
- Overall Cable Diameter 0.222" Nom.
- Approximate Cable Weight 43.8 Lbs/1M' Nom.
- Flame Rating UL 1666 Riser Flame Test
- Electrical & Environmental Properties:
- Temperature Rating -20C To +60C
- Operating Voltage 300 V RMS
- Max.Capacitance Between Conductors @ 1 KHz 33 pf/ft Nom.
- DC Resistance per Conductor @ 20deg C 4.2 Ohms/1M' Nom.
- Insulation Colors Black, Red, White, Green
- Jacket Color Gray
- RoHS Compliant Yes
- Mechanical Properties:
- Max. Recommended Pull Tension 117 lbs.
- Min. Bend Radius (Install) 2"
