Key Features
- 2 x 16 AWG
- Stranded Bare Copper Conductors
- Unshielded Overall Jacket
- Sequentially Footmarked
- For Indoor Use
- Great for Intercom & Security
- Great for Sound, Audio & Music
- Full 1000' Spool
Description

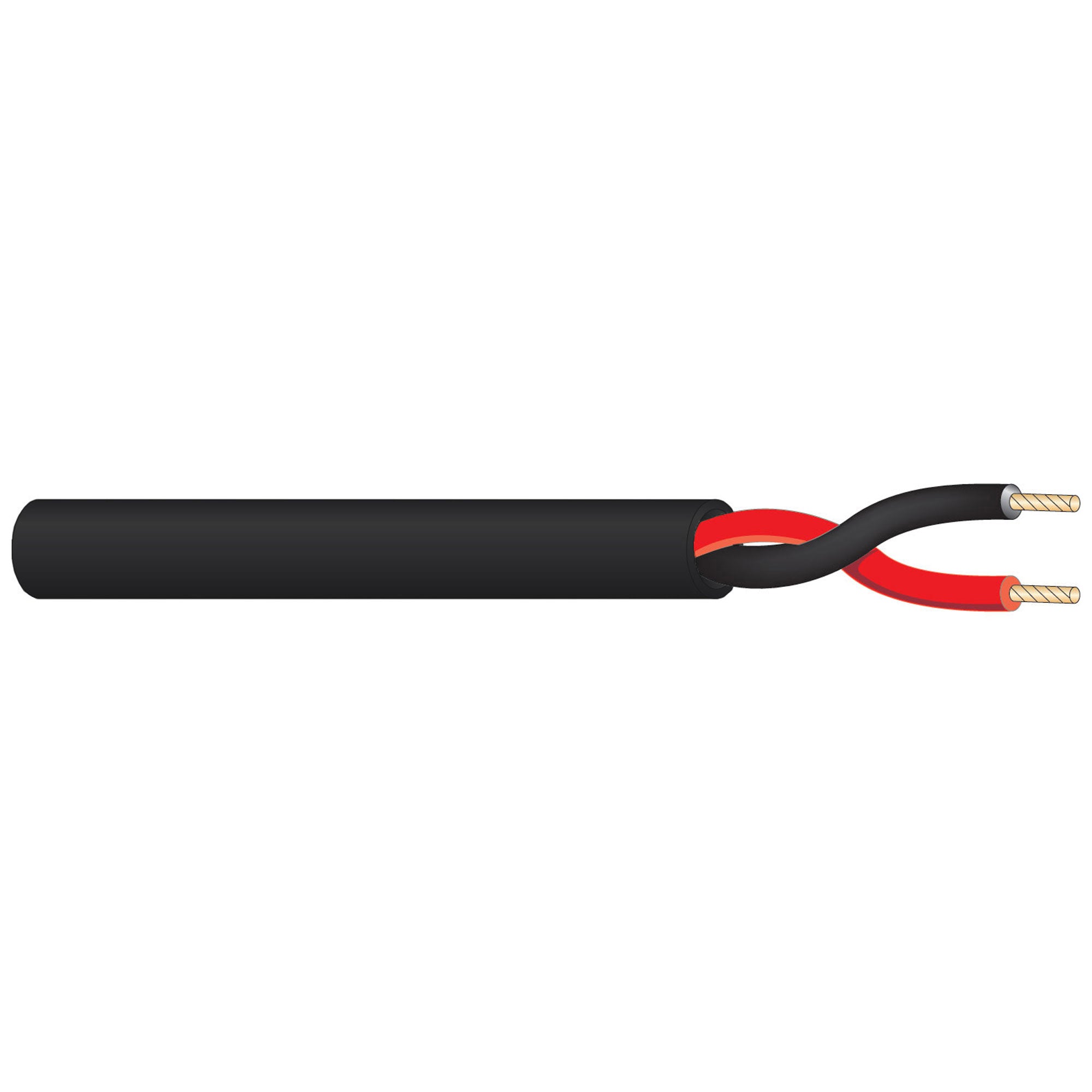

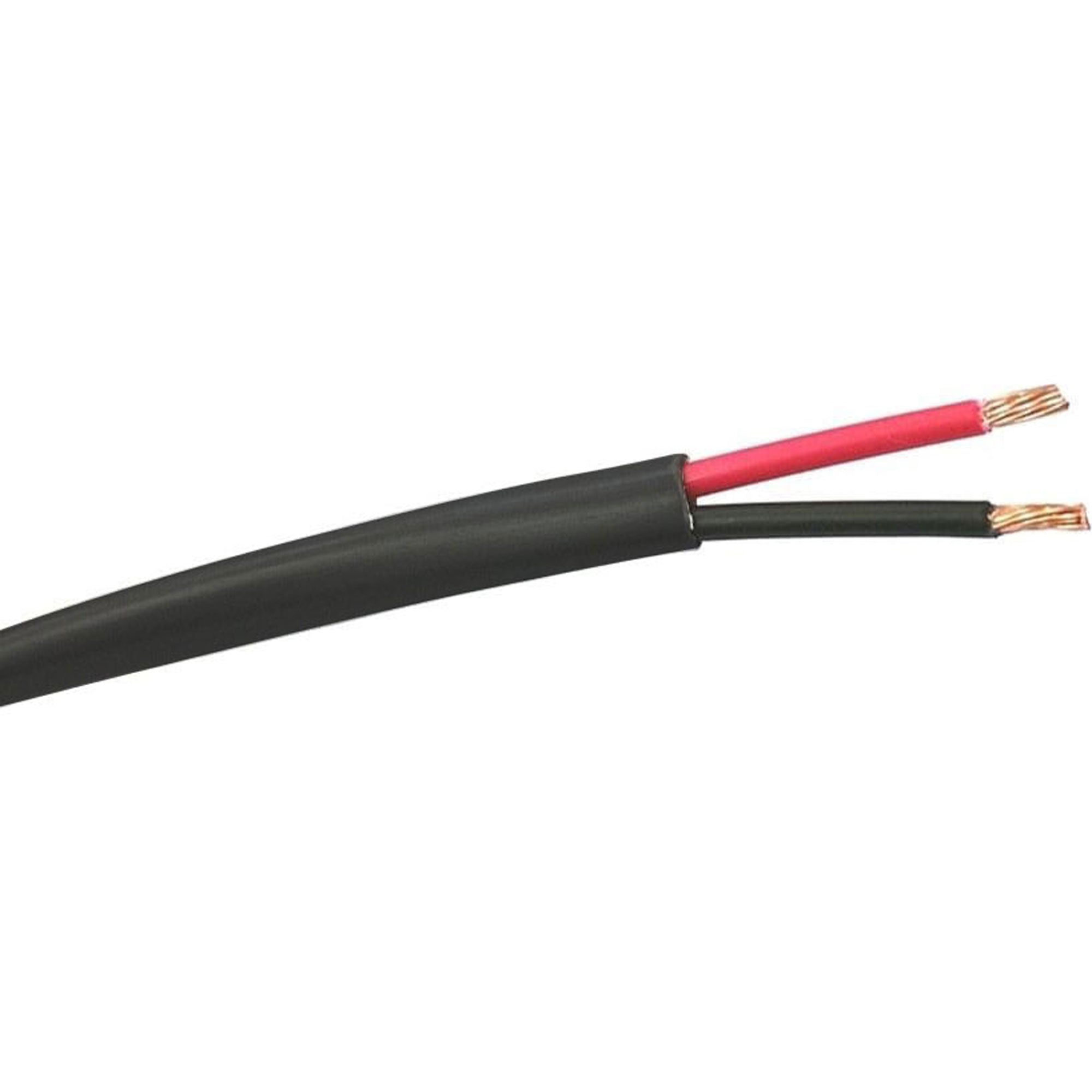

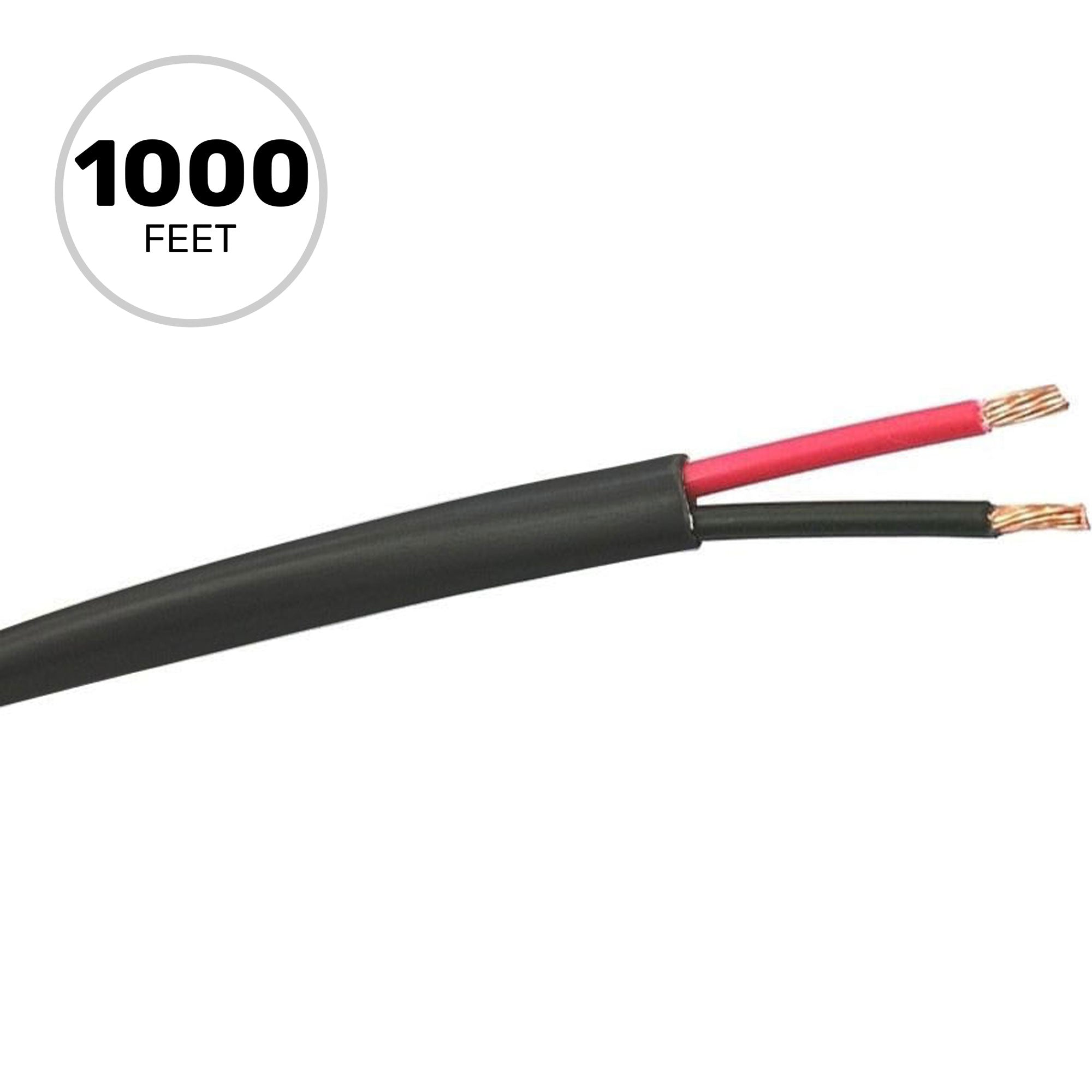

2 Conductor 16awg Non-Plenum CMR Speaker Wire with Stranded Conductors - Black - Full 1000' Spool
16/2 Stranded bare copper conductors, unshielded with an overall jacket.
Applications:
Indoor for: Intercom, Security, Sound, Audio, Background Music, and Power Limited Control Circuits
Specifications:
- CONSTRUCTION & DIMENSIONS
- CONDUCTOR PARAMETER
- Number of Conductors: 2
- AWG Size: 16
- Conductor Stranding: 19x29
- Conductor Type: Bare copper
- Nominal DCR: 4.2 Ohm/1000ft
- Cabling Lay Length: 4 in
- Twists/Foot: 3 twist/ft
- INSULATION PARAMETER
- Insulation Type: Polypropylene - PP
- Insulation Thickness: 0.008 in
- Insulation Color Code: 1. Black 2.Red
- SHIELDING PARAMETER
- Shield Type: None
- ELECTRICAL CHARACTERISTICS
- OVERALL CONSTRUCTION PARAMETERS
- Jacket Type: PVC
- Jacket Thickness: 0.017 in
- Nominal Cable O.D.: 0.182 in
- Plenum: No
- NEC UL Rating: CMR, CMG
- RoHS Compliant: Yes
- Pull Tension: 59 lbs
- Bend Radius: 1.638 in
- Cable Weight: 28 lbs
- OVERALL ELECTRICAL/OPTICAL CHARACTERISTICS
- UL Flammability: UL1666 Vertical Shaft
- CSA Flammability: FT4
- Operating Range: -20 to 60 Deg C
- UL Voltage Rating: 300
