Key Features
- Cryo Treated
- Large Screw Down Terminals
- Accepts 10 to 16 AWG Wire
- Accepts 16mm Cable Diameter
- High Temp Nylon Front Housing
- Polycarbonate Rear Housing
- Stainless Hardware
Description

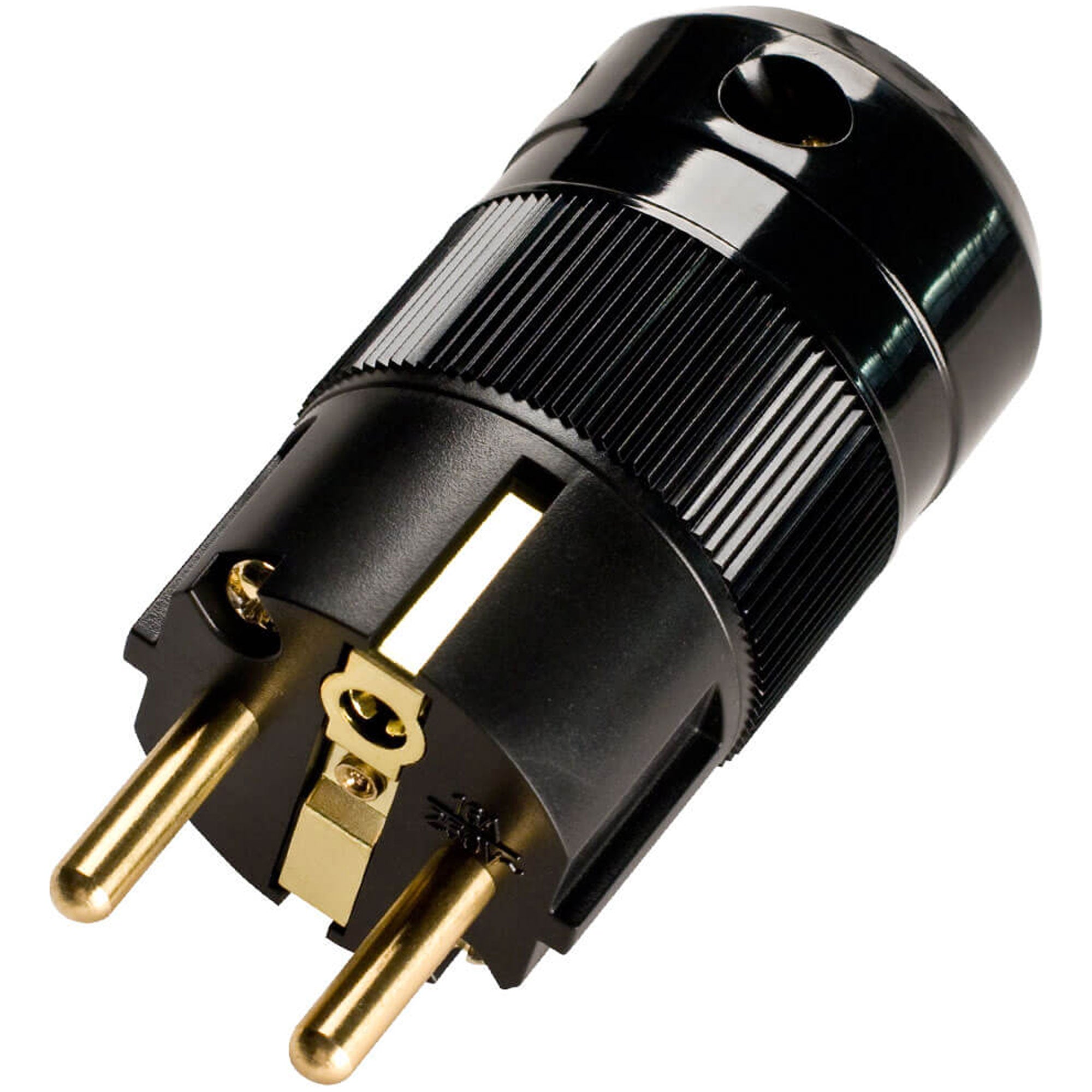

Cryo Treated European Schuko Style Electrical AC Power Connector with Screw Down Terminals - Black
The set screw terminals accept wire gauges from 10 to 14 and hold them tight, so you can be confident that heat or vibrations will not dislodge your connections. This connector accepts cable diameters up to 16 mm. The Cryo treatment Wattgate employs means you get maximum AC transfer for premium sonic benefits to both audio and video equipment.
Construction of the connector body is all polycarbonate and uses all non-magnetic materials to reduce interference. These plugs are rated 250 VAC, 16A. Housing dimensions: 2.52" L x 1.5" Dia. Overall dimensions: 3.27" L x 1.5" Dia.
Note: Tighten the terminal screws to 12 in-lbs. torque. Do not over tighten.
Wattgate Cryo Treated Products
After ten years of researching cryogenic technology, we now cryogenically treat our Wattgate line of products in house. Years of testing different methods and processes within the cryogenic field have led us to develop our own optimized approach.
Our method of Deep Cryogenic Treatment(DCT) is of the indirect or dry type. A specially optimized cycling method is employed to achieve maximum benefit for our products. With the indirect or dry process the parts are never subject to direct contact with liquid nitrogen, avoiding thermal shock to the materials. The process takes between four and five days to complete. We have truly enjoyed the sonic results of this process, we think you will too.
Look for the Cryo Treated logo to be sure that you are getting Cryo Treated Wattgate products.
Features:
- Large screw down terminals for 14 to 10 gauge wire
- Solid brass Cryo treated contacts reduces wear
- Glass filled high temperature nylon front housing
- Polycarbonate rear housing insures long lasting endurance
- Stainless steel hardware won't tarnish
- Accepts large 16mm cable diameter
- 250 VAC, 16A for high amperage devices
Specifications:
- 360i Economy Power Plug
- Large screw down terminals
- Accepts 10 to 16 awg wire
- Accepts 16mm cable diameter
- Glass filled high temperature nylon front housing
- Polycarbonate rear housing
- Stainless hardware
- 16A/250VAC
