Key Features
- Cryogenically Treated
- Perma-Lock Terminals
- Accepts 10 to 16 AWG Wire
- Accepts 16mm Cable Diameter
- Large High Spring-Rate Contacts
- High Temp Nylon Front Housing
- Polycarbonate Rear Housing
Description

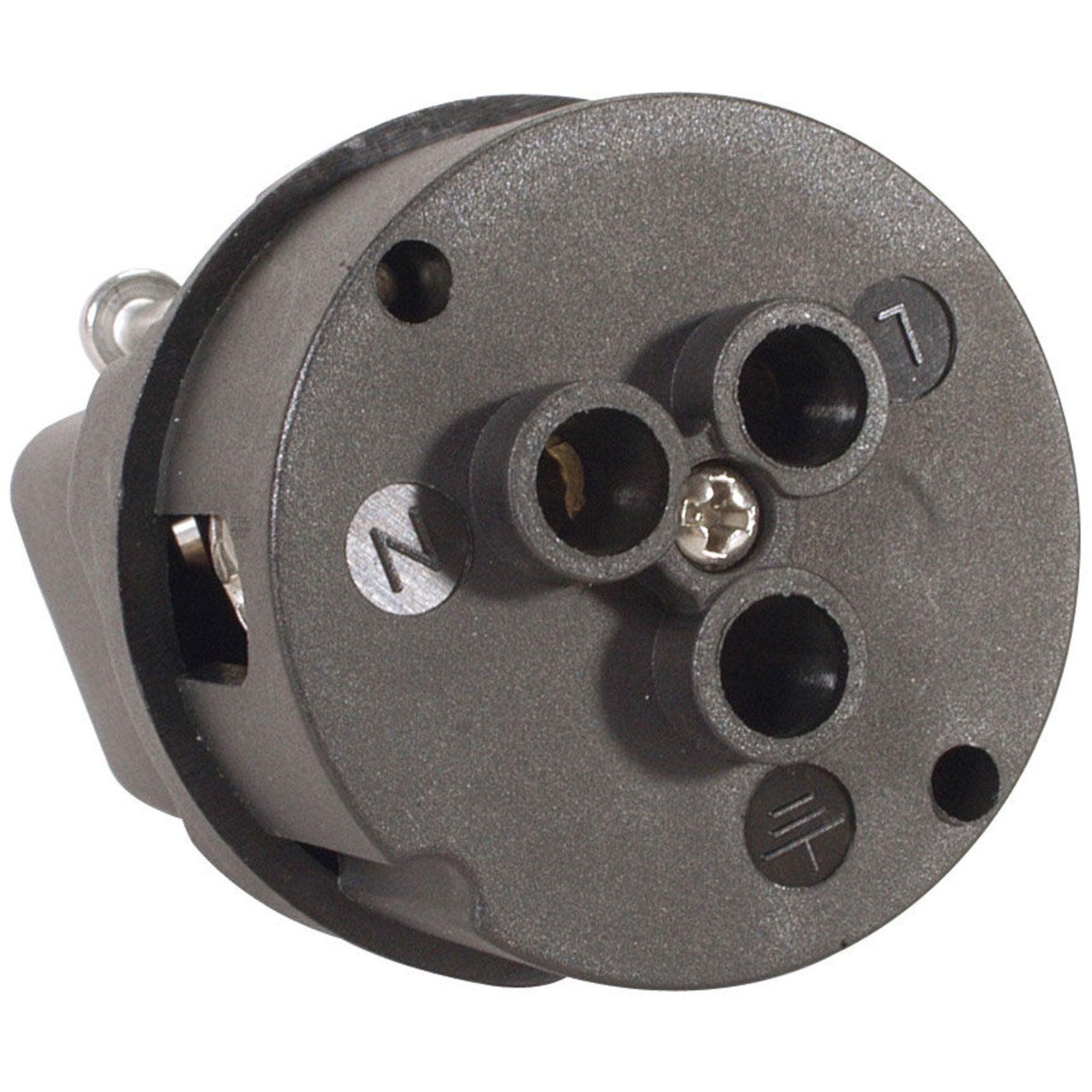

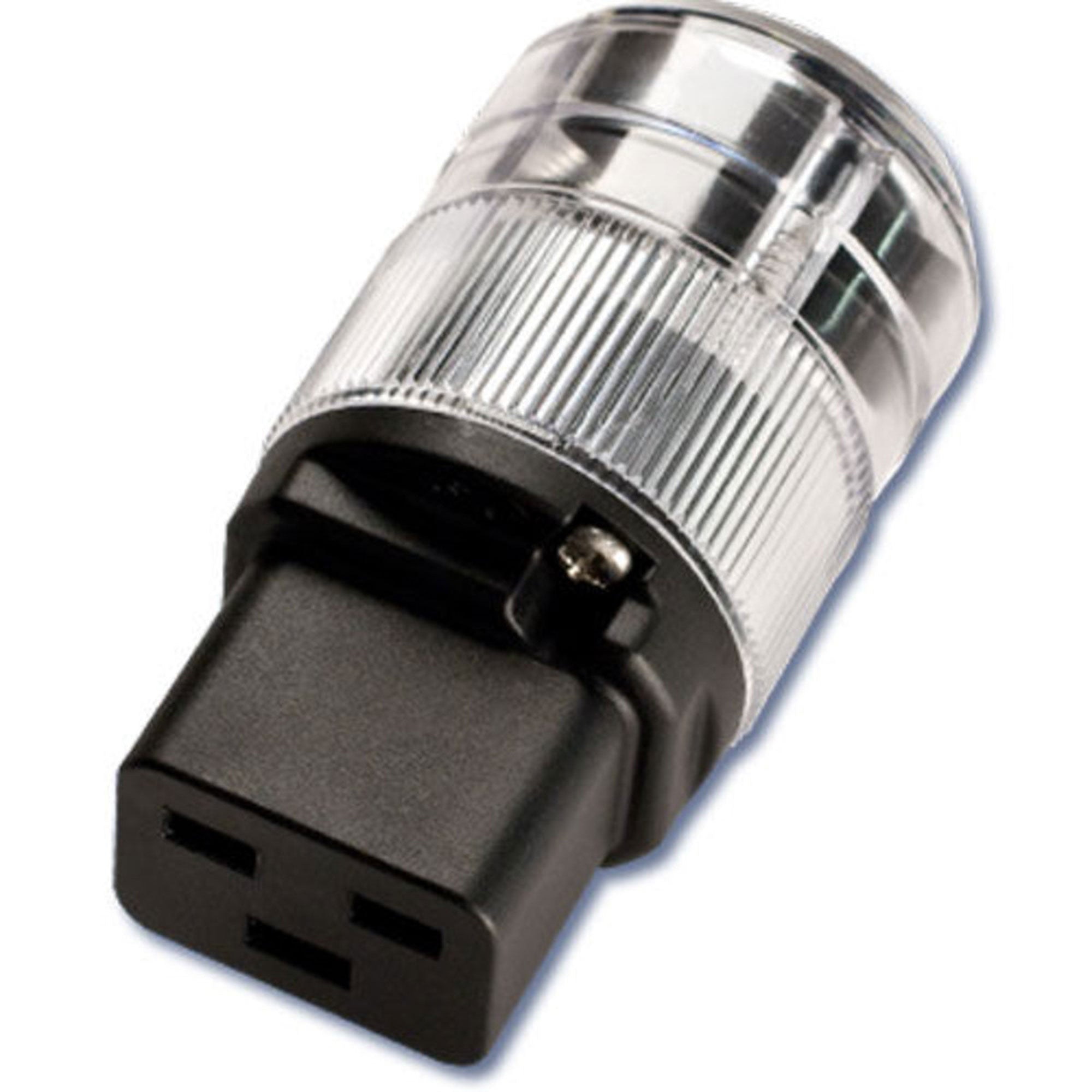

Economy High Current IEC Electrical Power Connector with Perma-Lock Terminals - Clear
Wattgate's 320i HC high current power connector is perfect as a replacement or building of your own audiophile grade power cords. Heavy-duty polycarbonate connector body is available in black or clear. Perma-Lock terminals actually "lock up" the screw's threads. Heat and vibration cannot loosen the screw. This exclusive design creates a superior low resistance connector. Plug is cryogenically treated, 125 VAC, 20A rated, and accepts up to 10 gauge wire.
Features:
- Cryogenically treated
- Perma-Lock terminals
- Accepts up to 10 AWG wire
- Glass filled high temperature nylon front housing
- Large high spring-rate contacts
- Stainless hardware
- 20A/125 VAC or 250 VAC
Specifications:
- Perma-lock terminals
- Accepts 10 to 16 awg wire
- Accepts 16mm cable diameter
- Large high spring-rate contacts
- Glass filled high temperature nylon front housing
- Polycarbonate rear housing
- Stainless hardware
- 20A/125VAC or 250VAC
- Some classifications are 16A/250VAC
