Universal Audio Apollo x16 Gen 2 Thunderbolt 3 Audio Interface with Essentials+ Bundle

18-in/20-out, 24-bit/192kHz, Thunderbolt 3 Audio Interface with HEXA Core Processor, Auto-Gain, Apollo Monitor Correction, Immersive Audio Support up to 9.1.6, and Essentials+ Plug-in Suite - Mac/PC VST, AU, AAX

Experience the gold standard in audio recording.

The next generation of Apollo x16 is here - built for pro studios and serious music producers who need 16 channels of highest-resolution audio conversion and HEXA Core DSP processing for connecting your studio equipment and producing large sessions with UAD plug-ins from Neve, Manley, Avalon, SSL, Auto-Tune, and hundreds more.

Connect to Award-Winning Sound

With widest dynamic range and lowest distortion ever, Apollo x16 is the only audio interface that connects to your analog gear and patchbays, letting you record and mix with authentic analog sounds in realtime over DB-25 connections with selectable +24 dBu operation.

Hear the Details Like Never Before

Now in its Gen 2 design, Apollo x16 features our highest-resolution A/D and D/A converters to date. And when paired with new features like Apollo Monitor Correction by Sonarworks,* this means you'll hear the most accurate representation of your recordings when mixing through monitors or headphones.

Mix Down to Surround

Apollo x16 supports mixing formats up to 9.1.6, so you can create 16-channel immersive audio mixes for Dolby Atmos, Auro-3D, Sony 360 Reality Audio, and others.

Add Hundreds of Effects to Your Rack

Apollo x16 comes in two editions, both delivering a generous suite of UAD plug-ins right out of the box. Build your mix with classic Teletronix LA-2A and 1176 compressors, Pultec EQs, API and SSL channel strips to modern favorites from Auto-Tune, Avalon, and dozens more.

Find Your Perfect Workflow

Easily control all your plug-in routing and monitoring in the UAD Console app. And with the latest features like Bass Management, Immersive Audio up to 9.1.6, and Plug-In Scenes, it's easy to find a flow that fits your needs.

A Hybrid System for Your Mission

Combine Apollo x16's HEXA Core DSP with native processing from your host computer to produce large sessions with complex plug-in chains - a powerhouse hybrid workflow that outpaces any native-only recording setup.

Expand Your Studio as You Grow

Link up to four Apollo x16's for 64 channels of elite-class A/D and D/A conversion, perfect for interfacing with large format recording consoles. Or stack one x16 with other Thunderbolt Apollo rackmount units and control it all from your desktop using Apollo Twin or x4. So no matter how far your music takes you, an Apollo will always be in reach.**

Features

• 18 x 20 Thunderbolt 3 audio interface with HEXA Core DSP plug-in processing

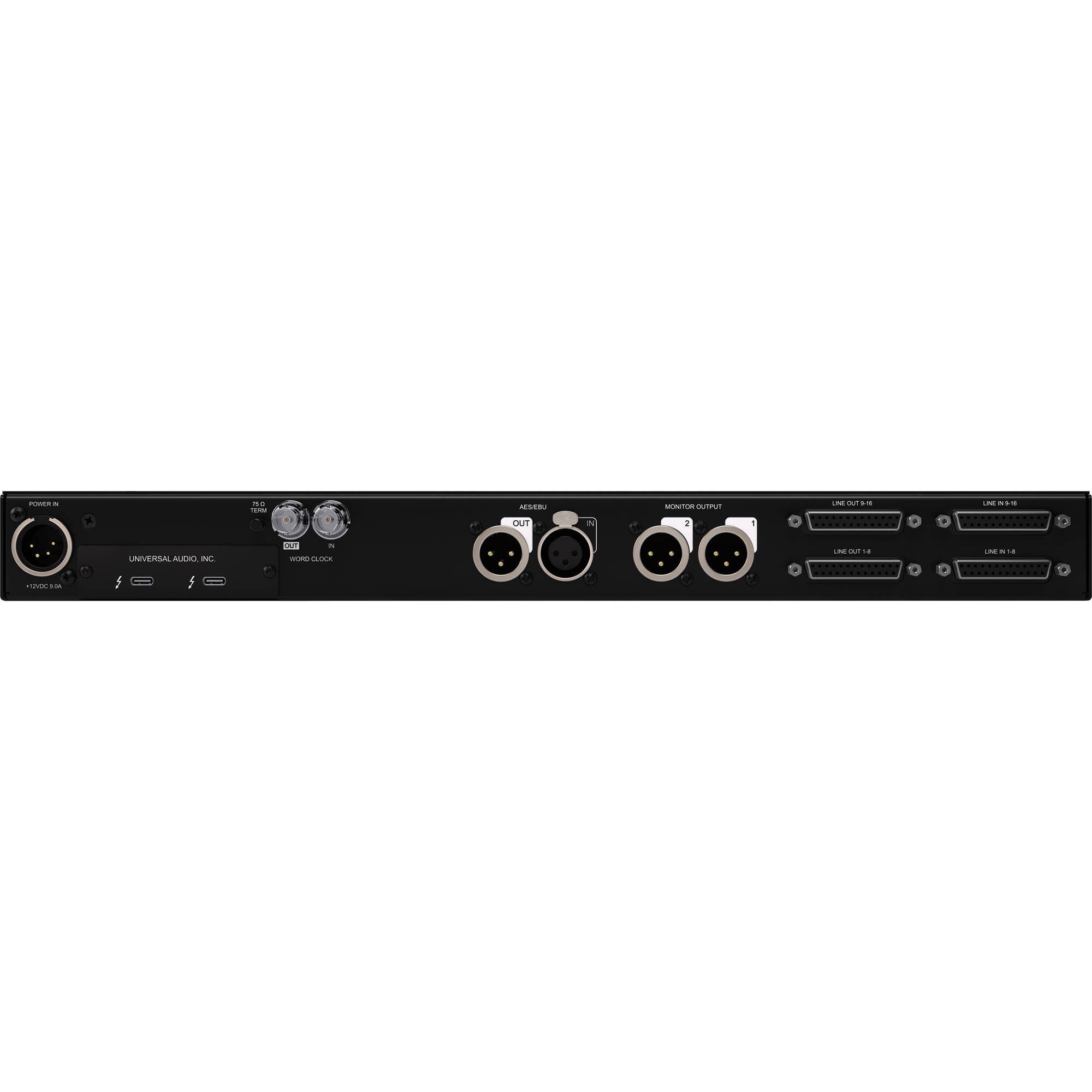

• Two DB-25 inputs (line 1-16), stereo AES I/O (XLR), word clock I/O (BNC)
• Two monitor outs (XLR), two DB-25 outputs (line 1-16 or ALT / 9.1.6 surround)
• Elite-class Apollo X Gen 2 converters with 24-bit / 192 kHz resolution featuring Dual-Crystal Clocking for ultra-low jitter at all sample rates
• Flagship D/A for critical monitoring and playback with 133 dB dynamic range and astonishingly low THD of -129 dB
• Calibrate your main monitor outputs (stereo or immersive) with Apollo Monitor Correction powered by Sonarworks*
• Fully-featured monitor controller with alternate speaker switching and integrated talkback for easy communication with talent
• ALT monitoring support in all monitor modes (2 x ALT mon for stereo, 1 x ALT mon for immersive)
• Updated UAD Console app featuring Plug-In Scenes, subwoofer integration with Bass Management, immersive audio support, and more
• Onboard DSP supports over 200 UAD plug-ins via VST, AU, and AAX 64 formats in all major DAWs
• Includes up to 100+ UAD plug-ins with Essentials+ or Ultimate+ Editions
• Compatible with LUNA, Logic Pro, Pro Tools, Cubase, Ableton Live, and more**
• Expandable with Thunderbolt Apollo interfaces and Dante via Apollo x16D
• Free industry-leading technical support from knowledgeable audio engineers

Plug-ins included with Essentials+

• Channel Strips & Preamps (6)
• Century Tube Channel Strip
• CS-1 Channel Strip
• Helios Type 69 Preamp & EQ
• Precision Channel Strip
• UA 610-A Preamp & EQ
• UA 610-B Preamp & EQ
• Compressors / Limiters (7)
• Fairchild 670 Legacy
• Teletronix LA-2A Classic Leveler
• Teletronix LA-2A Gray Classic Leveler
• Teletronix LA-2A Silver Classic Leveler
• Teletronix LA-2A Legacy Leveling Amplifier
• UA 1176LN Legacy
• UA 1176SE Legacy
• Equalizers (6)
• Helios Type 69 Legacy EQ
• Pultec EQP-1A Legacy EQ
• Pultec EQP-1A Passive EQ
• Pultec HLF-3C Passive EQ
• Pultec MEQ-5 Passive EQ
• Pultec Pro Legacy EQ
• Special Processing (4)
• Auto-Tune Realtime Access
• Oxide Tape Recorder
• Precision Enhancer Hz
• Verve Analog Machines Essentials
• Instruments (1)
• PolyMAX Polyphonic Synth
• Delay & Modulation (3)
• Galaxy Tape Echo
• Precision Delay Mod
• Precision Delay Mod L
• Reverbs & Rooms (3)
• Precision Reflection Engine
• Pure Plate Reverb
• RealVerb Pro Custom Room Modeler
• Guitar & Bass (3)
• Ampeg SVT-VR Classic Bass Amplifier
• Marshall Plexi Classic Amplifier
• Raw Distortion
