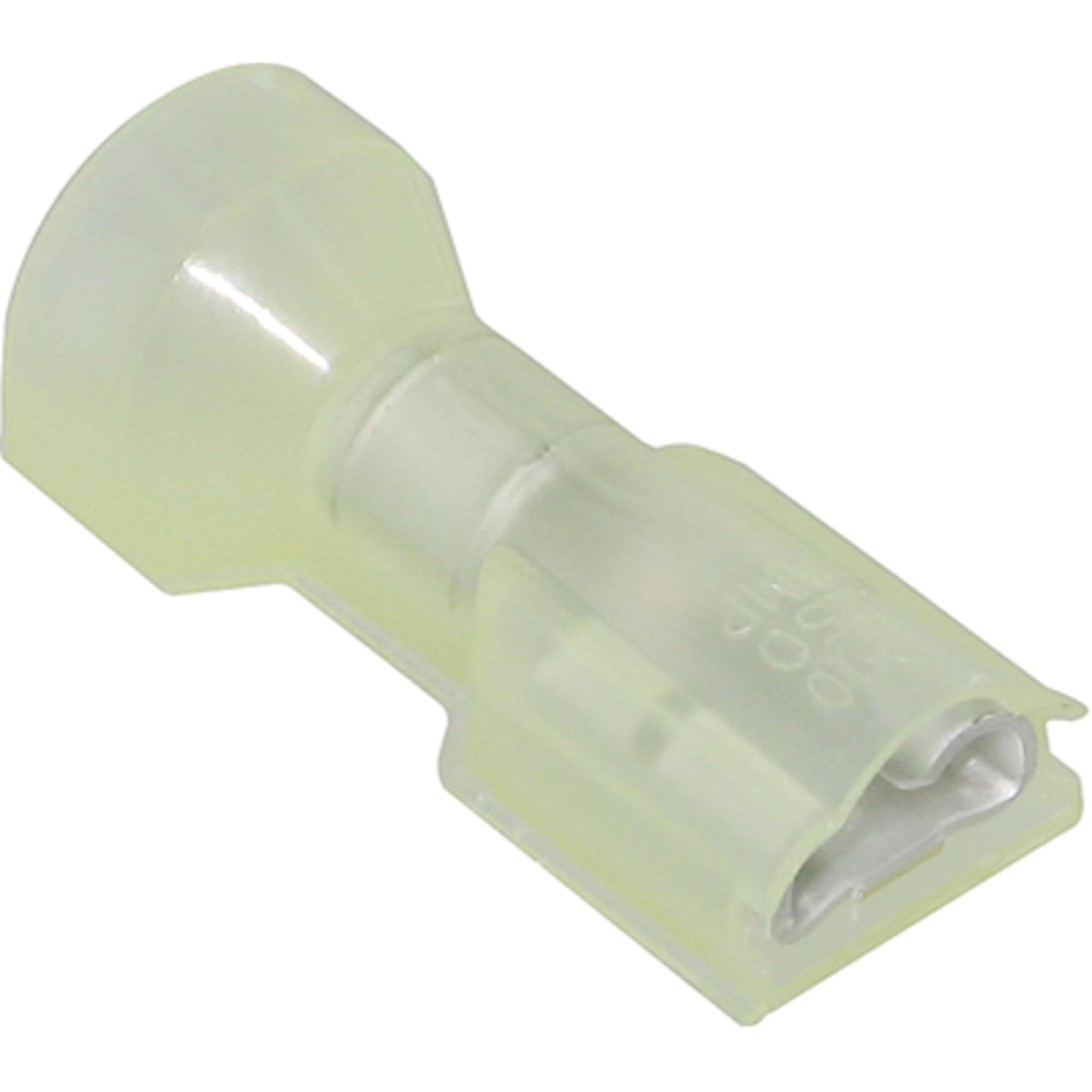

TE Connectivity 4-520448-2 Female 1/4" Quick Disconnect Terminal (10-12 AWG)

Ultra-Fast Plus .250 Series Yellow Insulated Crimp Receptacle 6.35x0.81mm 12 to 10 AWG Wire Size

Ultra-Fast 250, Quick Disconnects, Receptacle, 12 - 10AWG Wire Size, 3.31 - 5.26mm² Wire Size, 6529 - 10382CMA Wire Size

Specifications:

• Product Type Features
• Terminates To: Wire & Cable
• Quick Disconnect Insertion Force: Normal
• Sealable: No
• Insulated: No
• Wire Stop: Yes
• Wire/Cable Type: Regular Wire
• Configuration Features
• Connection Capacity: Single
• Electrical Characteristics
• Voltage (Max) (V): 600
• Body Features
• Fully Insulated: No
• Quick Disconnect Plating Material: Tin
• Insulation Material: Nylon
• Contact Features
• Terminal & Splice Type: Receptacle
• Quick Disconnect Terminal Orientation: Straight
• Contact Base Material: Brass
• Crimp Type: F-Crimp
• Barrel Type: Closed
• Terminal Type: Receptacle
• Mechanical Attachment
• Wire Insulation Support: With
• Mating Retention Type: Dimple
• Dimensions
• Receptacle Terminal Stock Thickness: .41 mm [ .016 in ]
• Wire Size (AWG): 12 - 10
• Wire Size (mm²): 3.31 - 5.26
• Wire Size (CMA): 6529 - 10382
• Quick Disconnect Mating Tab Width: 6.35 mm [ .25 in ]
• Quick Disconnect Mating Tab Thickness: .81 mm [ .032 in ]
• Overall Length: 23.7 mm [ .935 in ]
• Accepts Wire Insulation Diameter Range: 8.13 mm [ .32 in ]
• Usage Conditions
• Operating Temperature Range: -40 - 110°C [ -40 - 230°F ]
• Insulation Requirement: Uninsulated
• Industry Standards
• UL Rating: Listed
• UL Flammability Rating: UL 94V-2
• Packaging Features
• Quick Disconnect Packaging Method: Loose Piece/Carton
• Packaging Quantity: 1000
• Other
• Barrel Color: Yellow
