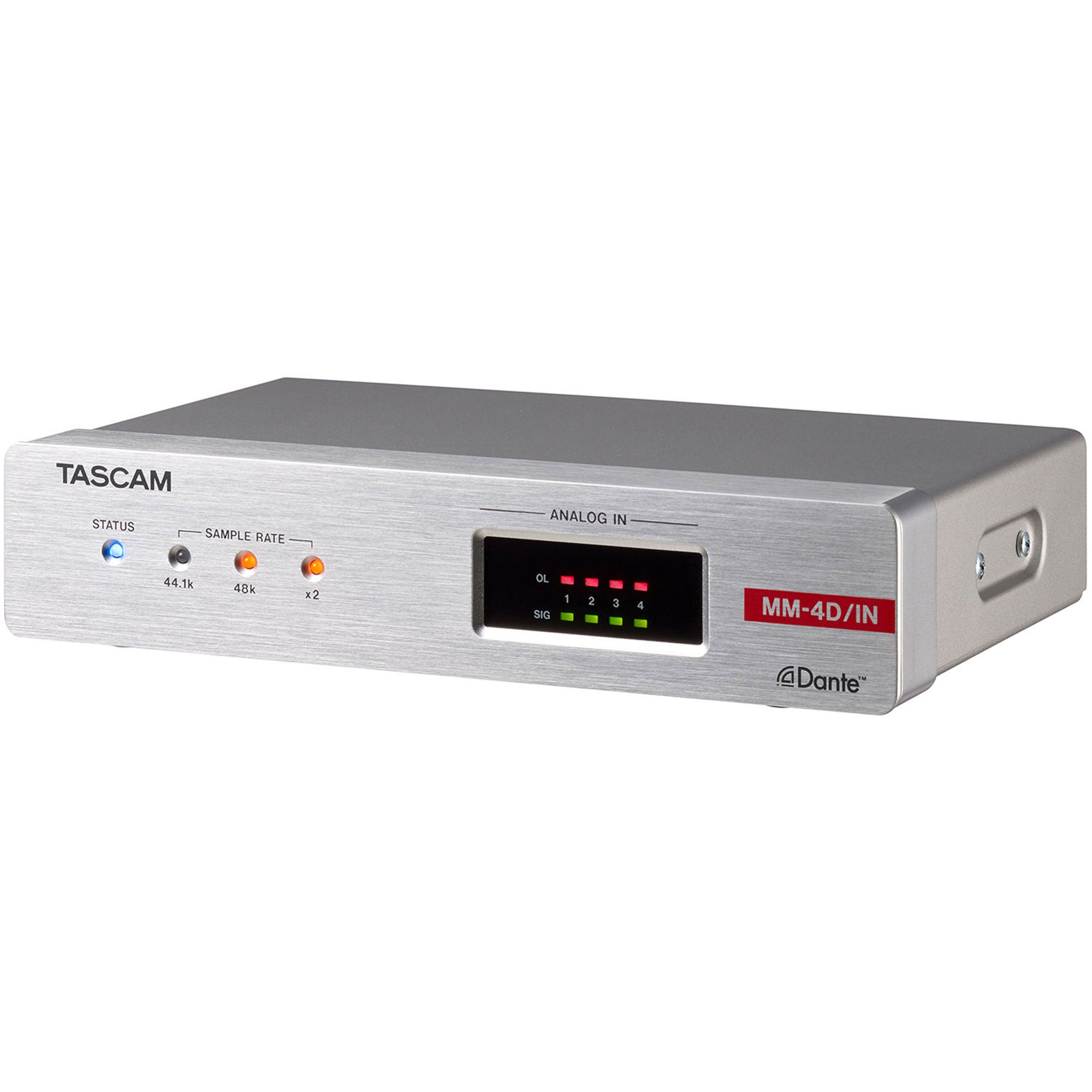

Tascam MM-4D/IN-E 4-Channel Mic/Line Input Dante Converter with Built-In DSP Mixer (Euroblock)

Built-in DSP 4 mic/line input Dante converter to respond to various needs of contractor market and professional audio scene.

The MM-4D/IN-E is a compact converter that converts 4-channel mic/line input signals into Dante signals. With half the size of a standard 1U rack, the MM-4D/IN-E is suitable for different Dante systems as an exquisite analog output unit. The built-in DSP mixer enables small scale systems to fully perform with a variety of input/output models the TASCAM Dante Compact Processor Series offers. MM-4D/IN-E supports up to 96kHz/24bit and uses Euroblock connectors for analog mic/line input.

4 Mic/Line Input, 4 Dante Input/Output

The MM-4D/IN-E converts 4-channel mic/line input signals into 4-channel Dante output signals. It also supports 4-channel Dante input/output making it possible to use audio sources within an established Dante network.

Phantom Power and Remote Gain Control Compatible Mic Preamps

The installed mic preamps support phantom power (+48V) and the input gain can be remote controlled via TASCAM DCP CONNECT software, via Dante or other external controllers.

TASCAM Studio Quality Mic Preamps Installed

The MM-4D/IN-E has installed two natural-sounding, high grade TASCAM mic preamps made with all the knowledge and experience cultivated through the years in the making of pro audio equipment. Input range covers from -70 dBu to +26 dBu, with equivalent input noise achieving less than -125 dB, and signal-noise ratio over 108 dB.

Compressor, 4 Band Parametric EQ, Auto Level, and More Effects Included

They can be finely adjusted depending on the mic/line equipment used.

Built-In 8 in/4 Out Matrix Mixer

Using the built-in matrix mixer, users can mix up to 8 different sources (4-channel mic/line inputs with 4-channel Dante inputs) and configure the settings on each of the four output zones. The matrix mixer is also equipped with a ducking function and an ambient noise compensator function, which detects the level of environmental sounds and automatically adjusts the input level of the source.

Input/Output Routing

Flexible routing allows users to choose the output zone of 4 mic/line inputs or the built-in matrix mixer output zone as 4 Dante output. The MM-4D/IN-E can also be used as a simple mic/line input unit by bypassing the matrix mixer.

PoE Supported

Power supply can be provided to the unit via PoE (Power over Ethernet).

No need for AC adaptors; power supply construction fees and installation costs can be reduced by using a PoE compatible network switch.

Remote Control via Control Software

Controlling effects or the matrix mixer can be easily done through the dedicated control software; depending on the amount of controls the user needs, there are two types:

• TASCAM DCP CONNECT, designed for system integrators/managers that handle the configuration and settings of an entire system.
• TASCAM EZ CONNECT, designed for end-users and allowing them to use simple controls.

Compatible with Windows / macOS / Android / iOS devices.

Features:

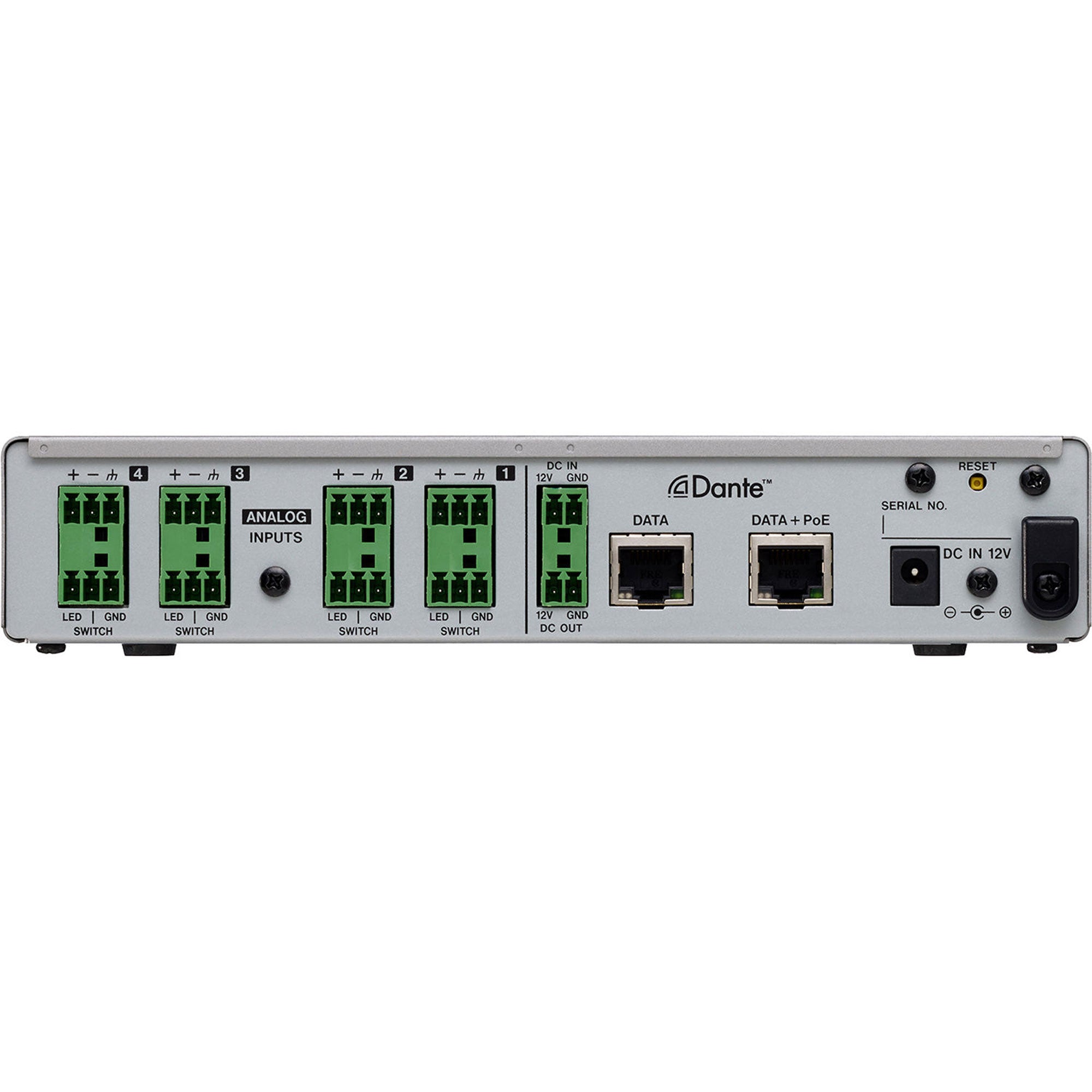

• 4-channel mic/line input with phantom power (+48v) support (Euroblock)
• Supports remote mic gain control
• 4 Dante input/output
• Supports PoE (Power over Ethernet)
• Up to 24bit/96kHz
• Includes a variety of DSP functions for optimal use in different scenes/environments (Output effects, 8 in/4 out matrix mixer)
• Supports Dante daisy chain; this allows two Dante Compact Processor models to be connected without a network switch
• Flexible scene preset function allows to work in different area situations (Up to 50 presets)
• 2 types of user control software available for Windows/Mac/iOS/Android devices:
• For full control: input/output routing selection, DSP/design/scene settings of the complete system, etc.
• For simple control: simple app design for only the necessary functions such as area volume settings, etc.
• Remote control via GPI and Dante
• Half-rack mountable size

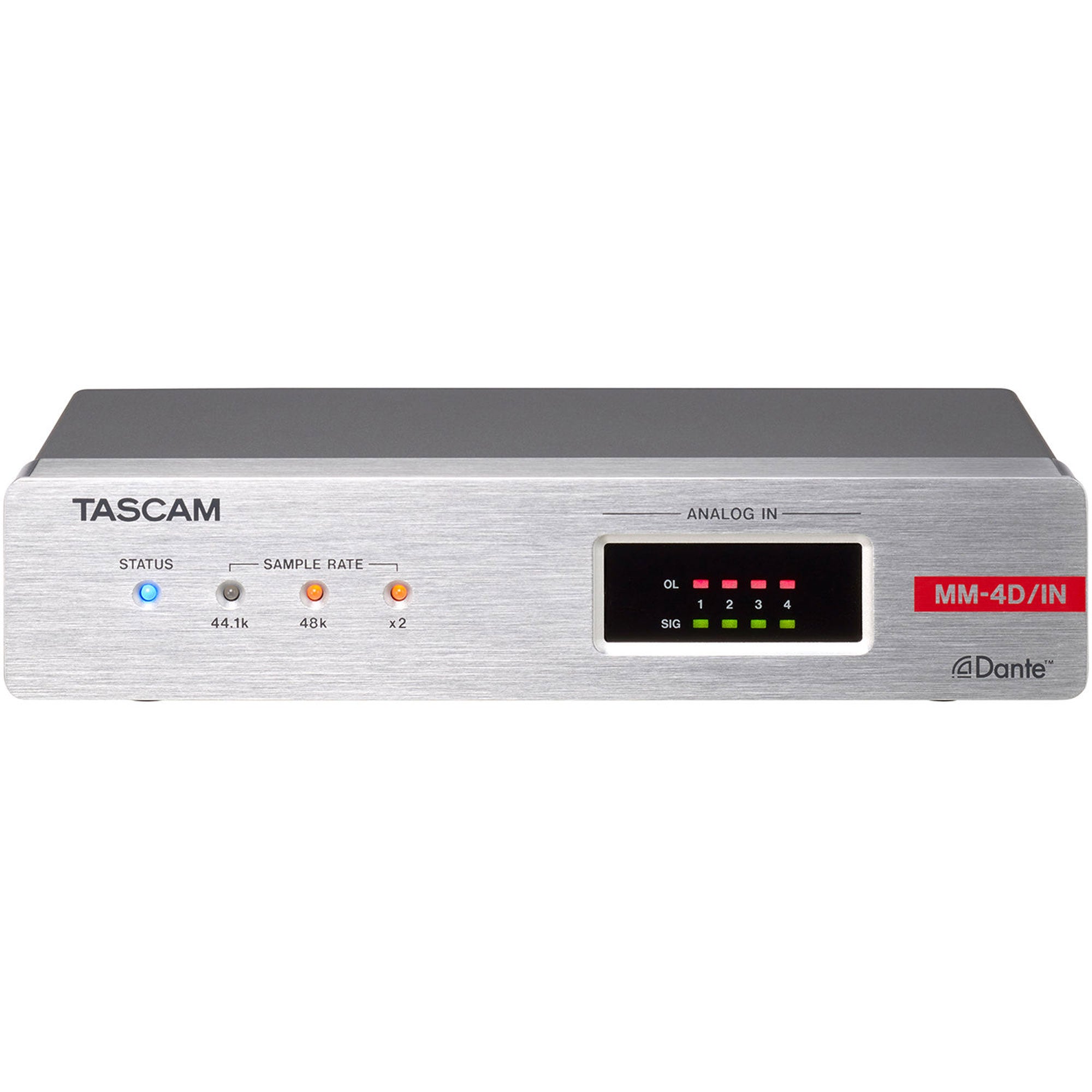

• Equipped with indicators that show LAN/Dante connection status and sample rate
• Equipped with signal indicators that monitor line input signals
• Configurable reference level (via remote control only)
• Surface rack mountable angles for installation under desks included
• Optional accessories:
• AC adapter PS-P1220E for redundant power supply available
• Rack-mountable shelf AK-RS1 to install and store two Dante Compact Processor models in a 19 inch rack case

What's in the box

• MM-4D/IN-E x 1
• Installation brackets x 2
• Euroblock plugs x 4
• Cable band kit x 1
• Owner's Manual (including warranty) x 1
