Switchcraft D3M Male 3-Pin XLR Panel Mount Connector (Nickel/Silver)

D Series 3 Pin XLR Male - Silver Pins / Nickel Finish

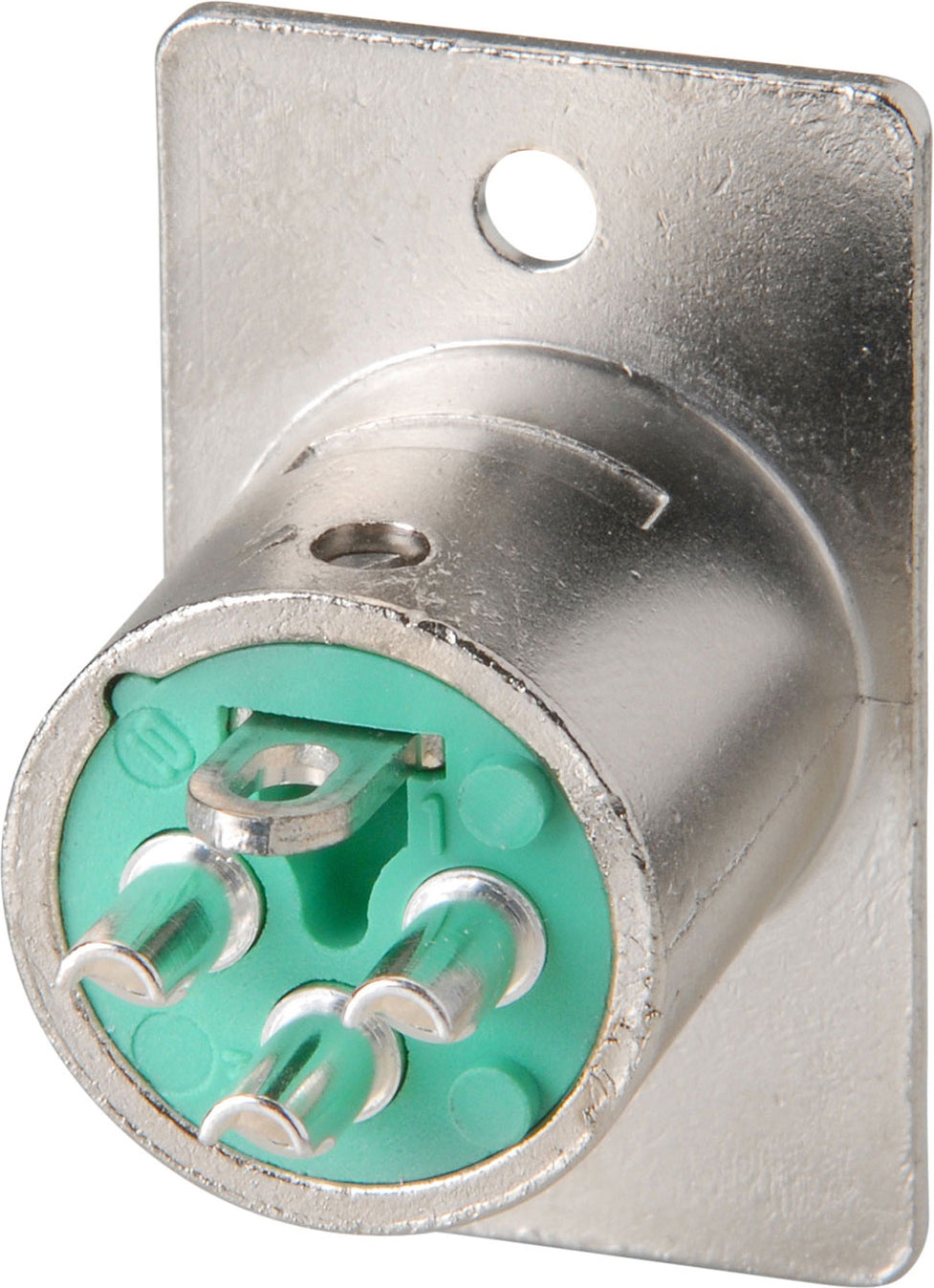

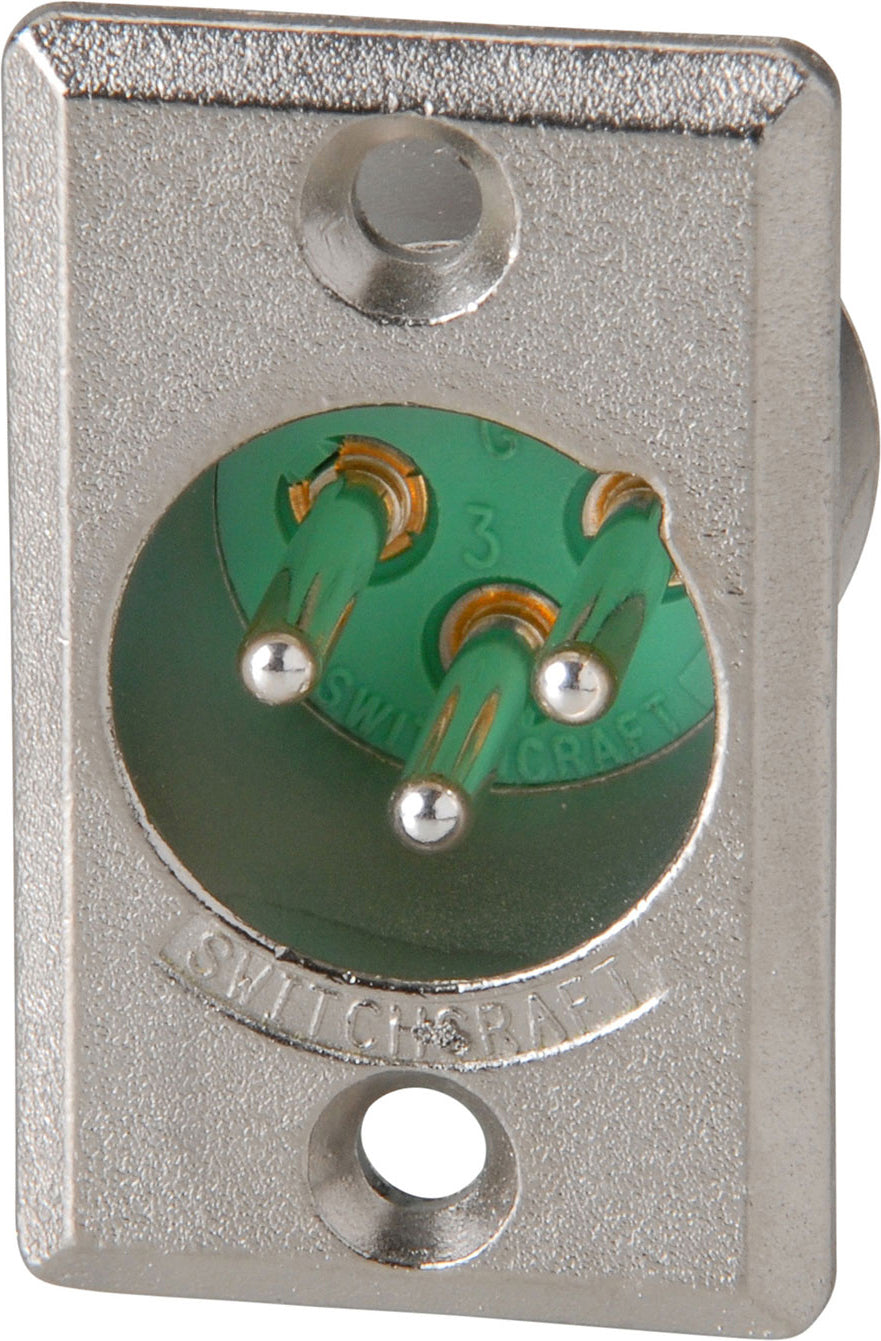

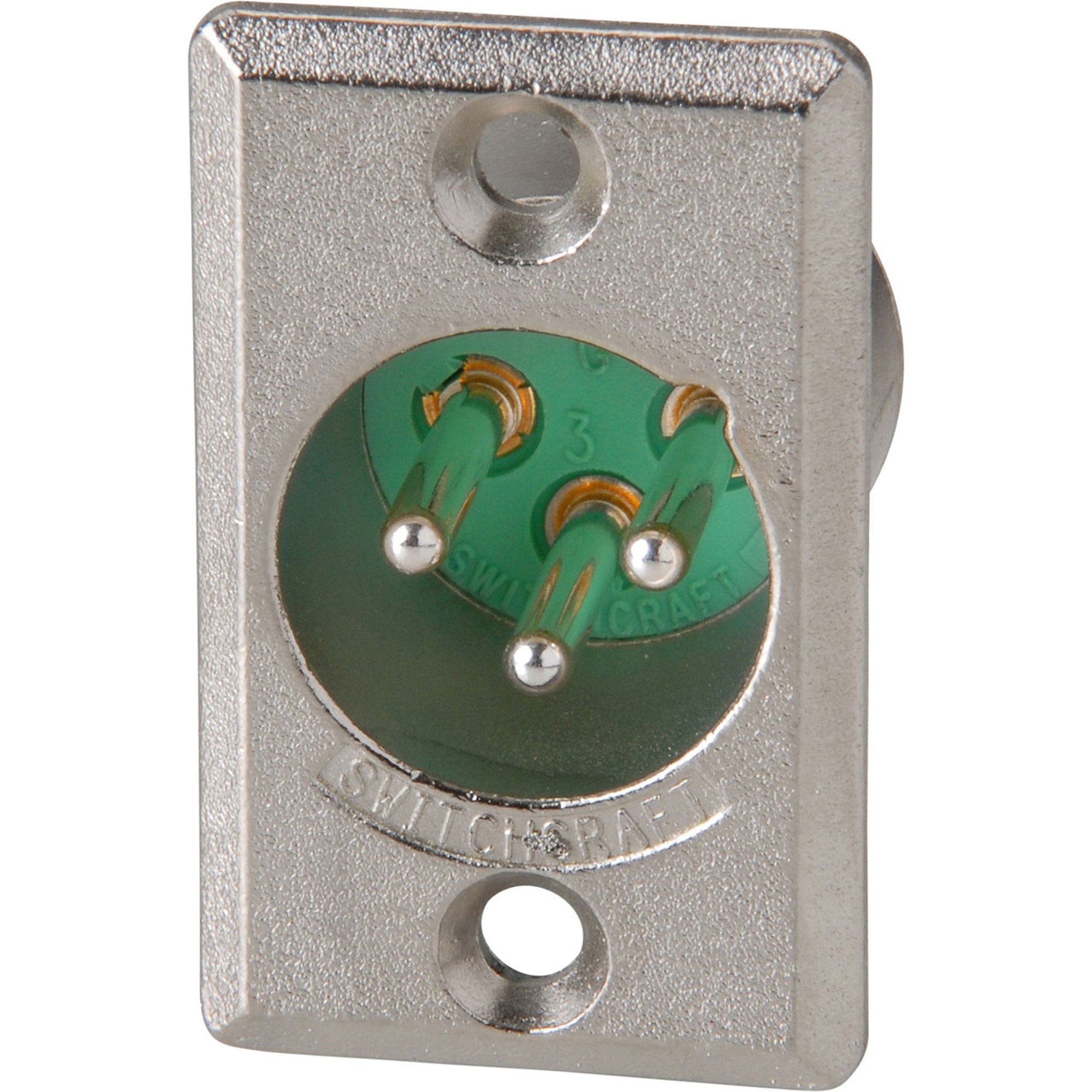

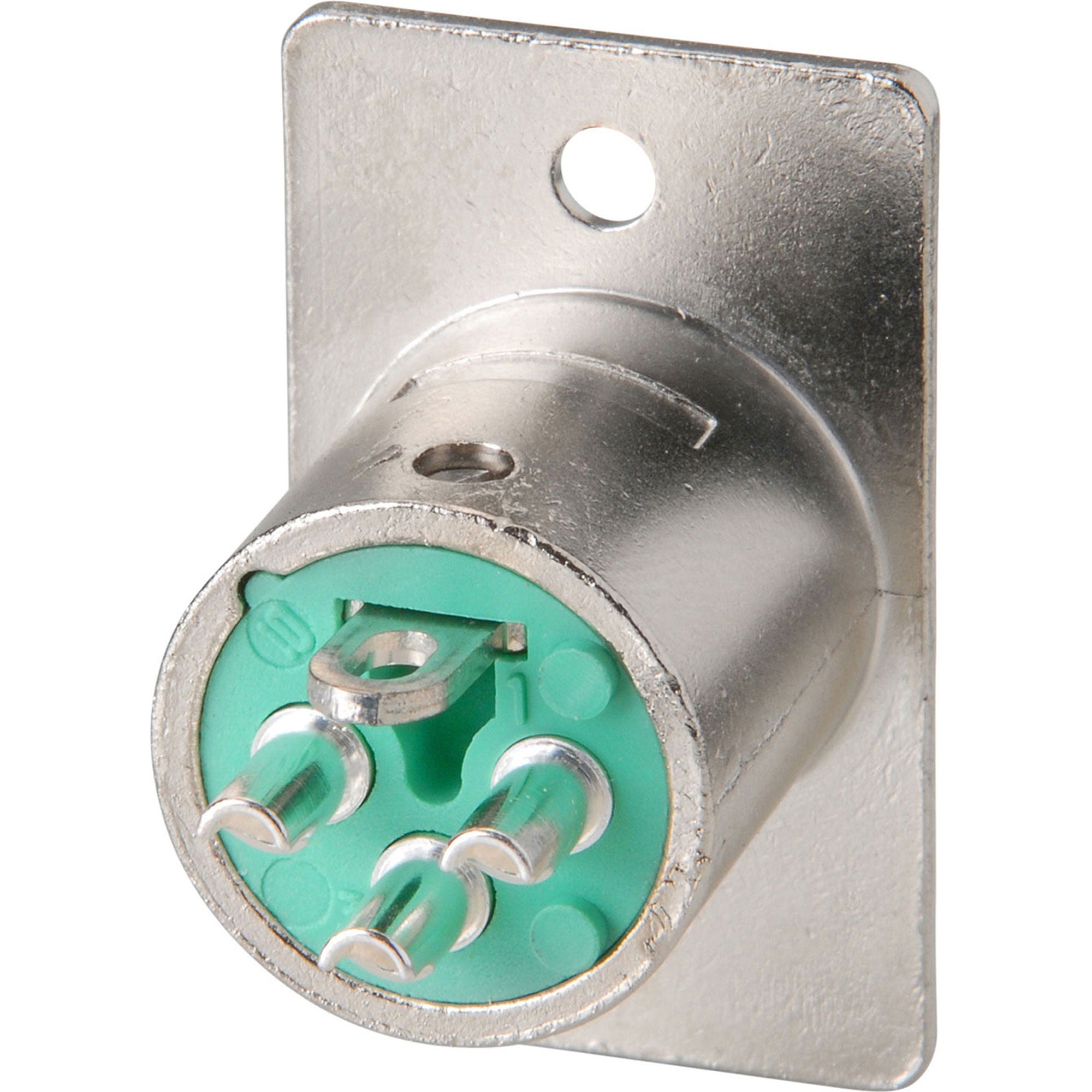

D(*)M SERIES - Male receptacle for panel or chassis mounting. Flange has two .136" (3.45 mm) diameter countersunk holes for #5-40 flat head mounting screws (not supplied). Mounts from front of panel or chassis in .953" (24.21 mm) diameter hole. Series D(*)M has standard latchlock; Series D(*)MD has FAS-DISCONNECT detent. Satin nickel finish (Series D*M and D*MD) and "Black-Velvet" finish (Series D*MBAU).

Specifications:

• ELECTRICAL
• Contact Resistance: 50 milliohm maximum, per pole.
• Current Rating: 3 pole - 15A, 4 pole - 10A, 5 and 6 pole - 7.5A, 7 pole - 5A @ 125VAC.
• Insulation Resistance: 1,000 MO, minimum.
• Dielectric Withstanding Voltage: 1,000 V (rms).
• Capacitance: 2 pF between pins and 4 pF between pins and shell, maximum (AA3M and AA3F).
• MECHANICAL
• Insertion/Withdrawal Forces: 7 pound maximum, 5 pound nominal, insertion; 7 pound maximum, 5 pound nominal, withdrawal.
• Wire Size: #12 wire gauge solid; #14 wire gauge stranded (3 contact). #14 wire gauge solid; #16 wire gauge stranded (4 contact). #16 wire gauge solid; #18 wire gauge stranded (5 and 6 contact). #18 wire gauge solid; #20 stranded (7 contact). (Q-G and QGP).
• MATERIAL
• Q-G CONNECTORS (A AND AA SERIES)
• Shell: Die-cast zinc. Satin nickel finish, black velvet.
• Insert Insulation: Molded thermoplastic.
• Socket Contacts: Silver-plated copper alloy tarnish-resistant; bifurcated on 3-contact type. Gold is available.
• Pin Contacts: Silver-plated copper alloy. Resists tarnishing, and provides excellent electrical conductivity. Gold is available.
• Latchlock: High-strength die-cast zinc.
• Latch Release: Steel, nickel-plated.
• Latch Detent: Formed stainless steel.
• Insert Screw: Stainless steel.
• Flex Relief: TPR (thermoplastic rubber).
