Key Features
- Fits Locking or Non-Locking Plugs
- Nickel Body, Silver Contacts
- 0.175" (4.44mm) Cable Opening
- Solid Metal Housing
- 3 Conductor, TRS Connection
- Solder Eyelets
- Package of 25 Connectors
Description

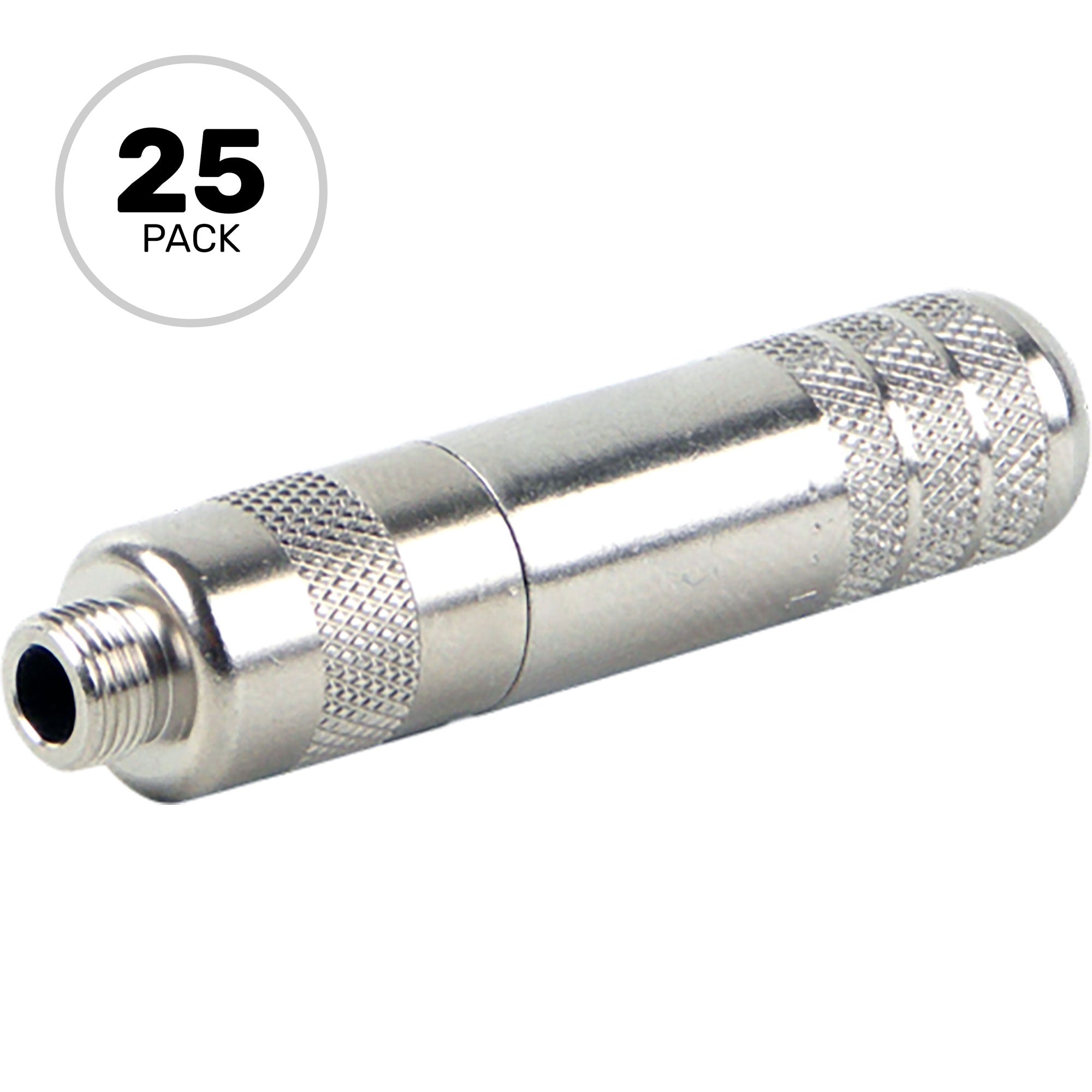

3.5mm Stereo Cable Mount Extension Jack - Nickel Body, Silver Contacts, .175" Opening - Package of 25 Connectors

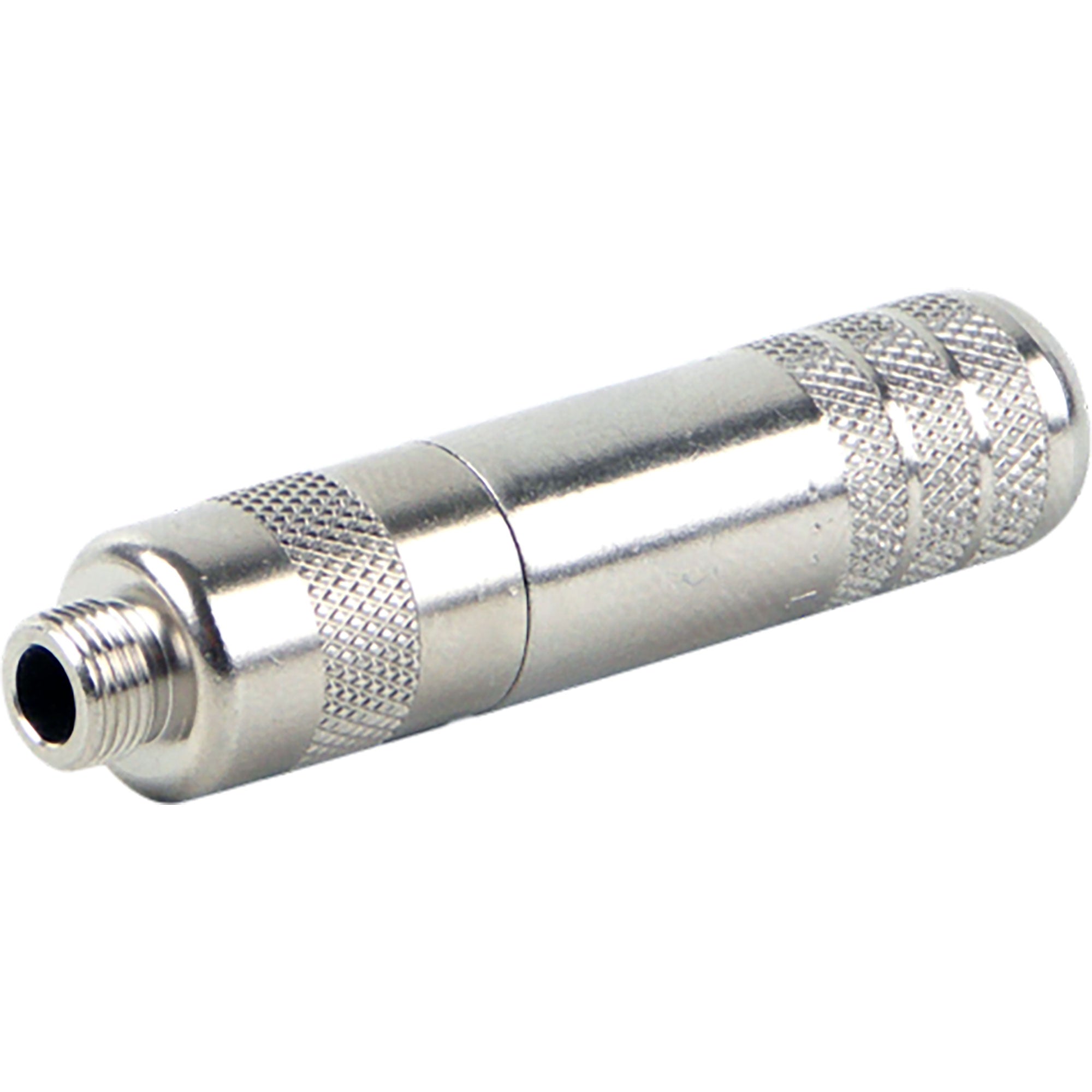

3.5 mm inline jacks with sturdy solid metal housing. Rated to 5,000 insertion / withdrawal cycles. Two piece design simplifies terminations. Mates with 35HD series locking or non-locking plugs.
Features:
- Solid metal housing.
- Available with gold or silver contacts.

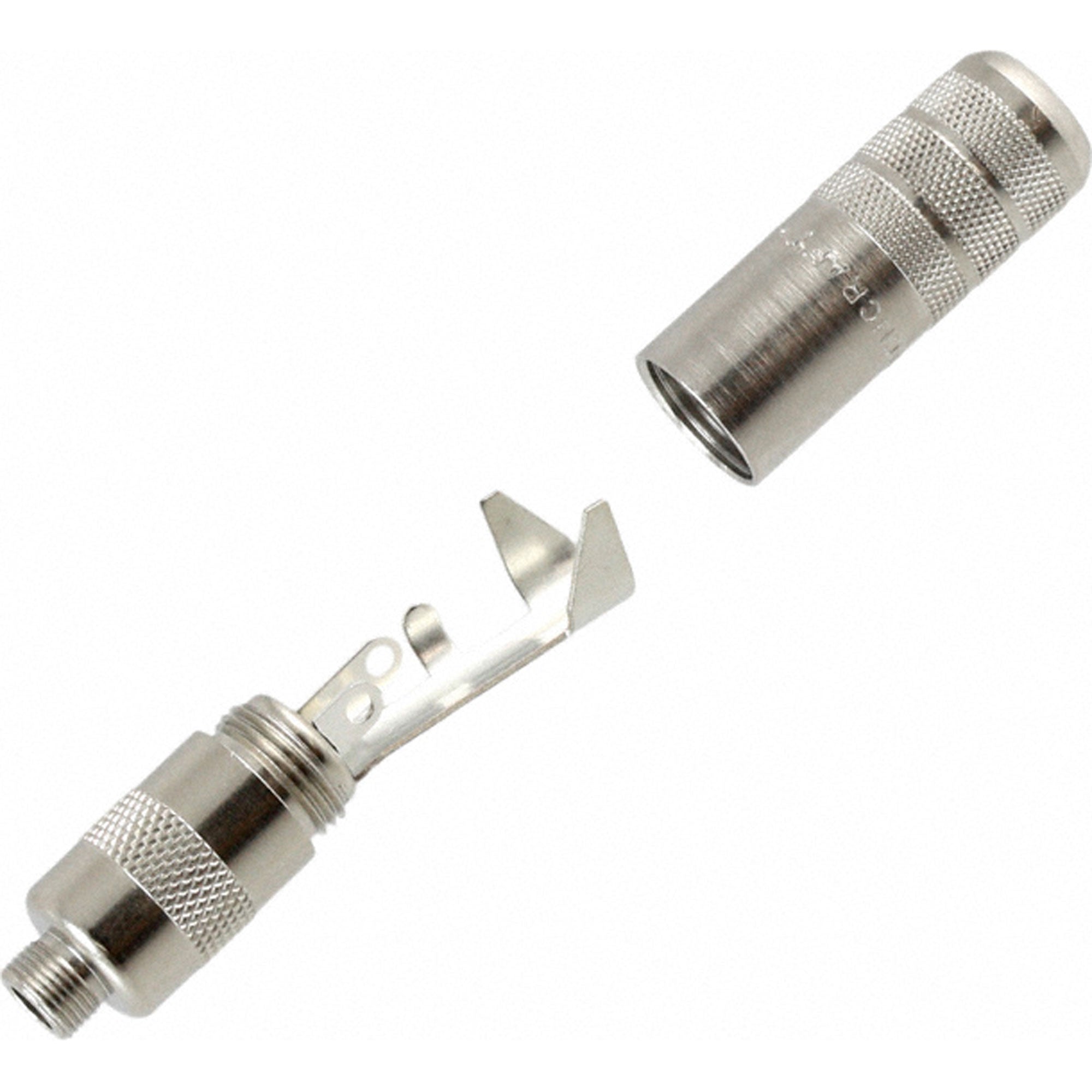

- Two piece design simplifies termination
- Rated to 5000 insertion/withdrawal cycles
- Mates with 35HD series locking or non-locking plugs
Specifications:
- Electrical Specifications
- Contact Resistance: 0.020 ohms
- Insulation Resistance: 2000 megohms
- Dielectric Withstand Voltage: 250VAC
- Mechanical Specifications
- Insertion Force: 8 lbs MAX
- Withdrawal Force: 1lbs MIN
- Life Cycles: 5,000 insertion/ withdrawal cycles
- Max Soldering Temp/Time: 800°F/10s or 700°F/20s
- Vibration per MIL-STD-202F Method 201
- Thermal Shock per MIL-STD-202F Method 107G
- Material Specifications
- Sleeve: Copper alloy, nickel
- Handle: Copper alloy, nickel
- Cable Clamp: C.R.S., tin-plated
- Solder Terminal: Copper alloy, silver or gold plated
- Insulator: Thermoplastic, black
