Sumitomo Sumitube B2 1/8" Flexible Polyolefin 2:1 Heat Shrink Tubing - Grey (By the Foot)

Grey Sumitomo Sumitube B2 1/8-inch 2:1 heat shrink tubing, by the foot

Grey Sumitomo Sumitube B2 is flexible, flame-retarded, radiation-crosslinked polyolefin heat shrink tubing for wire identification, color coding, bundling and compatible electrical insulation applications. This listing is the nominal 1/8-inch size with a 2:1 shrink ratio, sold by the foot.

Other matching colors: Black, Brown, Red, Orange, Yellow, Green, Blue, Purple and White.

Continuous-length ordering

Quantity 1 = 1 foot; quantity 10 = one continuous 10-foot piece. Cut individual sections to suit your assembly, allowing for the listed longitudinal change.

Sizing and installation

The tubing must pass over the largest part before heating and recover sufficiently to grip the covered section. Measure the cable, joint or connector rather than choosing by wire gauge alone. The 2:1 ratio describes diameter recovery, not half the length.

The original size description is 1/8 inch (3.5 mm). Treat 1/8 inch as a nominal designation, not an exact conversion of 3.5 mm. Confirm expanded and fully recovered inside-diameter limits if fit is critical. Install before fitting a connector if tubing cannot pass over it afterward. Do not assume an adhesive-lined or watertight seal.

Apply controlled heat evenly following manufacturer instructions. Minimum listed shrink temperature is 90°C; check surrounding components' heat limits. Avoid overheating, let the assembly cool and inspect coverage and fit. Tubing does not replace mechanical connector strain relief.

Features and applications

• Grey, nominal 1/8-inch, 2:1 tubing.
• Flexible irradiated cross-linked polyolefin.
• Flame-retarded formulation, listed as PBDE/PBB-free.
• Wire marking, color coding and light harness bundling.
• Insulation, protection and reinforcement of suitable wire terminations and joints.
• Insulation and protection of suitable resistors and capacitors.
• By-the-foot continuous-length ordering.

Specifications

• Series: SUMITUBE B2; color: Grey.
• Nominal size: 1/8 inch; original metric size: 3.5 mm.

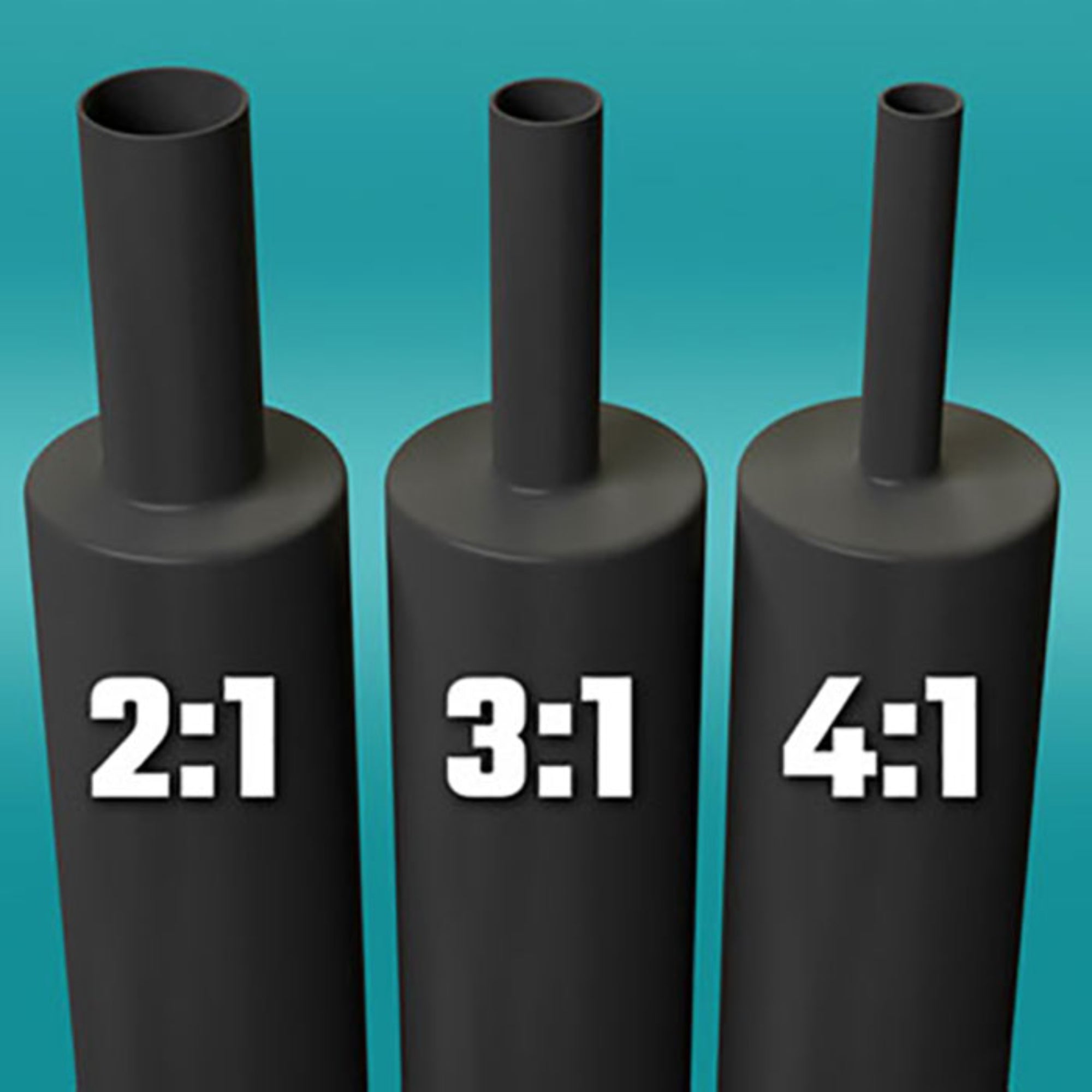

• Shrink ratio: 2:1; listed diameter shrink: minimum 50%.
• Minimum shrink temperature: 90°C.
• Longitudinal change: 0 ±5%.
• Listed continuous operating temperature: −55°C to +135°C.
• Listed SAE-AMS-DTL-23053/5 Class 3.
• Listed UL224: File E48762, SUMITUBE B2 or 826, 125°C, 600 V, VW-1.
• Listed CSA C22.2 No. 198.1: File LR33298, 125°C, 600 V, VW-1.

The 125°C UL/CSA rating temperature is separate from the general operating range. For specification-controlled work, confirm the applicable size, color, current manufacturer documentation and assembly requirements; these listing details are not approval of a finished assembly.

Other configurations

Other sizes and higher-expansion B2(3X), B2(4X) and B2(4XC) series are separate products, not interchangeable shrink ratios for this listing. Confirm fit and availability before choosing an alternative.
