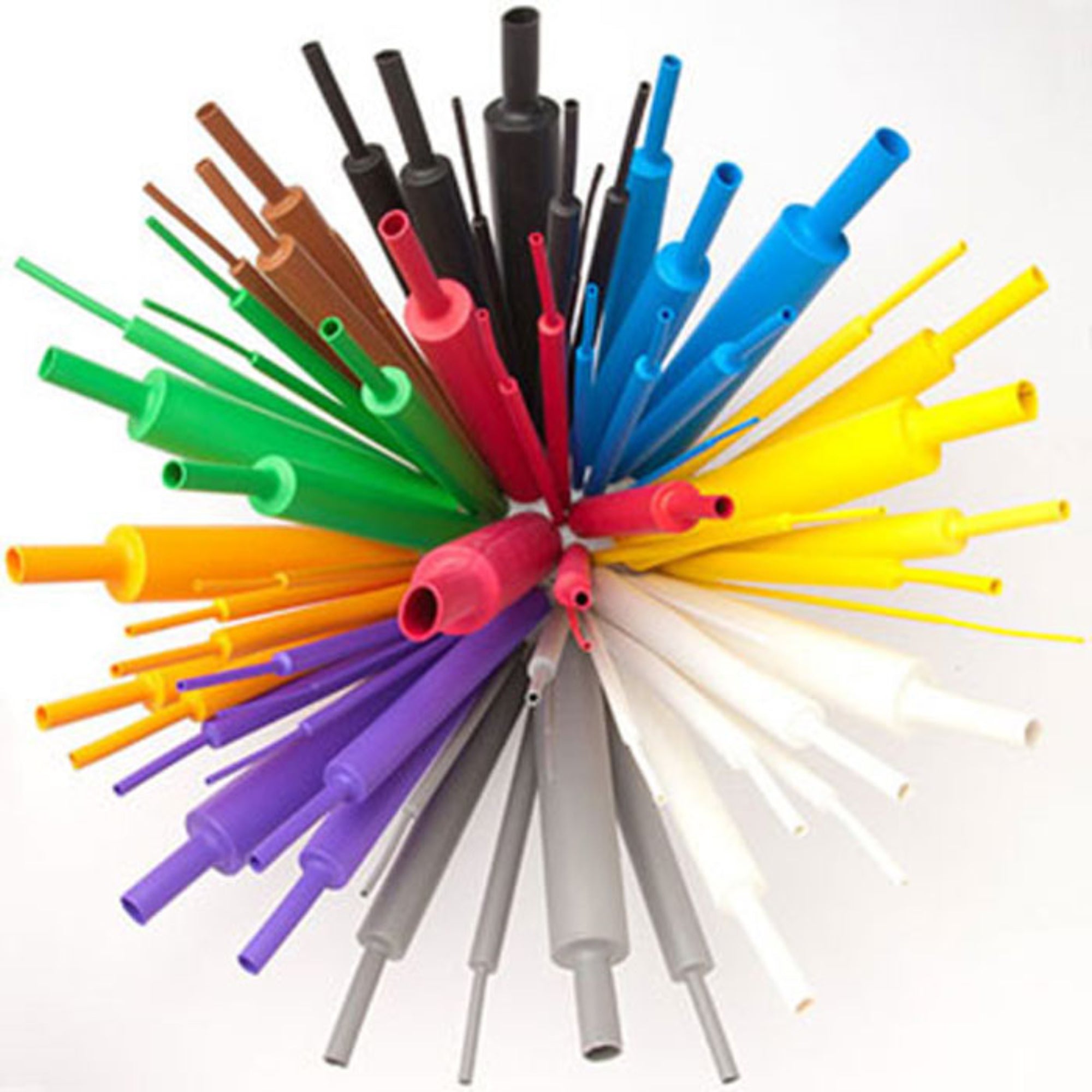

Sumitomo Sumitube A2 1/4" Flexible Polyolefin 2:1 Heat Shrink Tubing - Clear (By the Foot)

Sumitomo Electric SKU: HET A2CLEAR14
MPN: A2 CLEAR 1/4

Price:
Sale price$1.00
Stock:
In Stock & Ready to Ship

Key Features

  • Heat Shrink Ratio 2:1
  • 1/4" (6.4 mm) Diameter Before
  • 1/8" (3.2 mm) Diameter After
  • Transparent Finish
  • Sold by the Foot
  • Shipped in a Continuous Length

Description

SUMITUBE A2 is clear, flexible heat-shrink tubing for insulating wire joints, protecting terminations, and securing cable labels while keeping the underlying connection or identification visible. This listing is the nominal 1/4-inch size, supplied by the foot in a continuous length.

Order the length you need

Enter the number of feet needed in the quantity field. For example, quantity 25 means one continuous 25-foot length, not twenty-five individual pieces. The tubing supplied is Clear.

Choose the right fit

For this nominal 1/4-inch size, the manufacturer lists a supplied inside diameter of 6.8 ±0.4 mm and a maximum fully recovered inside diameter of 3.20 mm. Nominal trade size is not the same as the actual supplied inside diameter.

Choose tubing that slides over the largest part before heating and can recover snugly around the area being covered. The 2:1 ratio describes diameter recovery, not a reduction to half the original length.

Clear protection for visible connections

The irradiated cross-linked polyolefin remains flexible for general-purpose electrical insulation, termination protection, and lightweight harness applications. Its transparent finish allows visual inspection of the covered connection or cable label.

Follow the manufacturer's heating instructions and the temperature limits of the wire, connector, label, and other materials underneath. A2 has a minimum shrink temperature of 110°C and a continuous operating range of -55°C to +135°C.

Not flame-retarded: The A2 manufacturer datasheet classifies this material as flammable. Choose a suitable alternative when the application requires flame-retardant tubing.

Specifications

  • Series: SUMITUBE A2
  • Nominal trade size: 1/4 inch
  • Color: Clear
  • Material: Irradiated cross-linked flexible polyolefin
  • Nominal shrink ratio: 2:1
  • Supplied inside diameter: 6.8 ±0.4 mm
  • Maximum recovered inside diameter: 3.20 mm
  • Recovered wall thickness: 0.64 ±0.07 mm
  • Minimum shrink temperature: 110°C
  • Longitudinal change: 0 ±5%
  • Continuous operating temperature: -55°C to +135°C
  • Flammability: Flammable, per manufacturer datasheet
  • Manufacturer-listed specification: SAE-AMS-DTL-23053/5 Class 2
  • Sales unit: By the foot, continuous length
Details
  • Manufacturer:  Sumitomo Electric
  • MPN: A2 CLEAR 1/4
  • Model Number: Heat Shrink 1/4" Clear 2:1
