Key Features

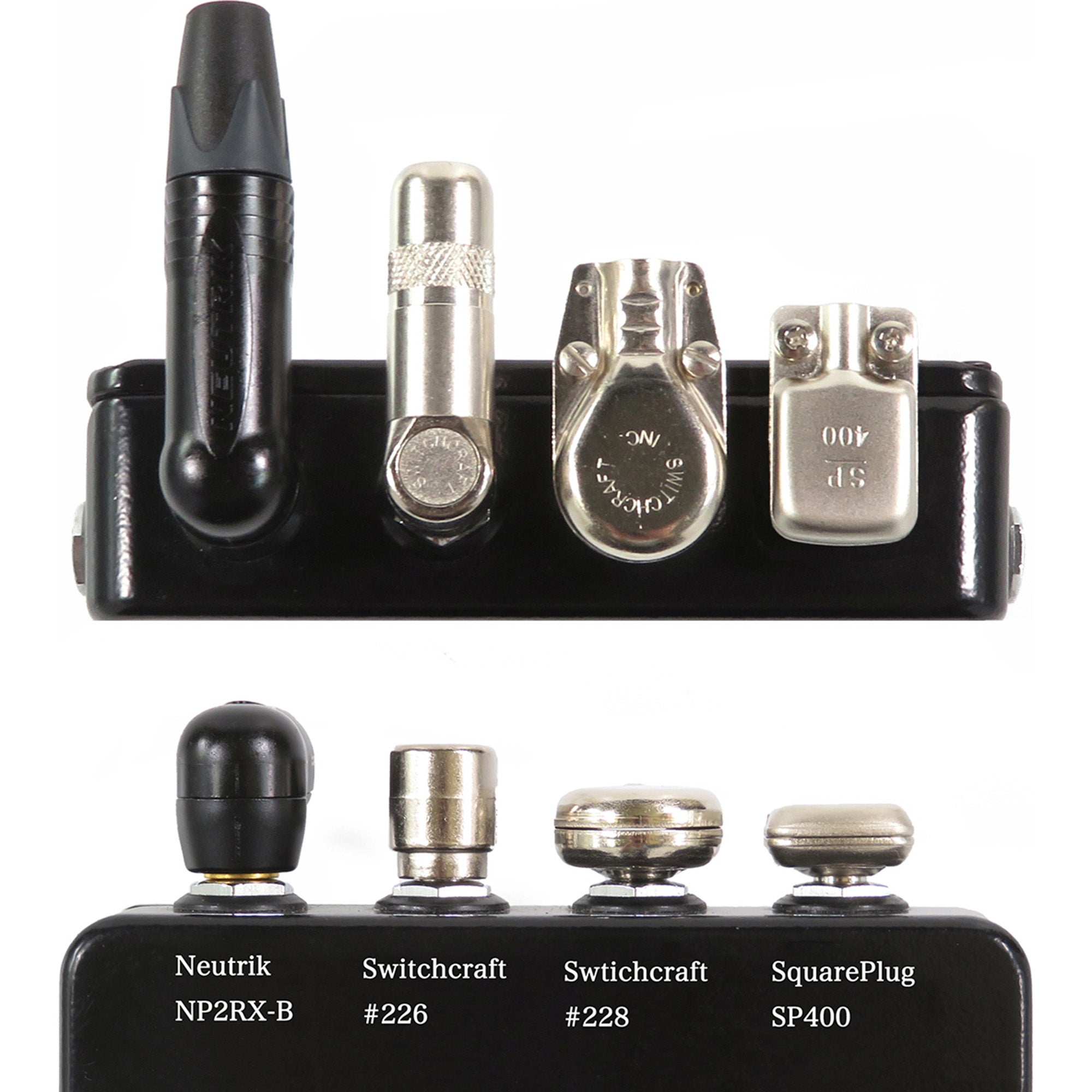

- World's Smallest 1/4" Right-Angle!
- Unmatched Strain Relief & EMI Protection
- Solder Tabs for Quick & Easy Soldering

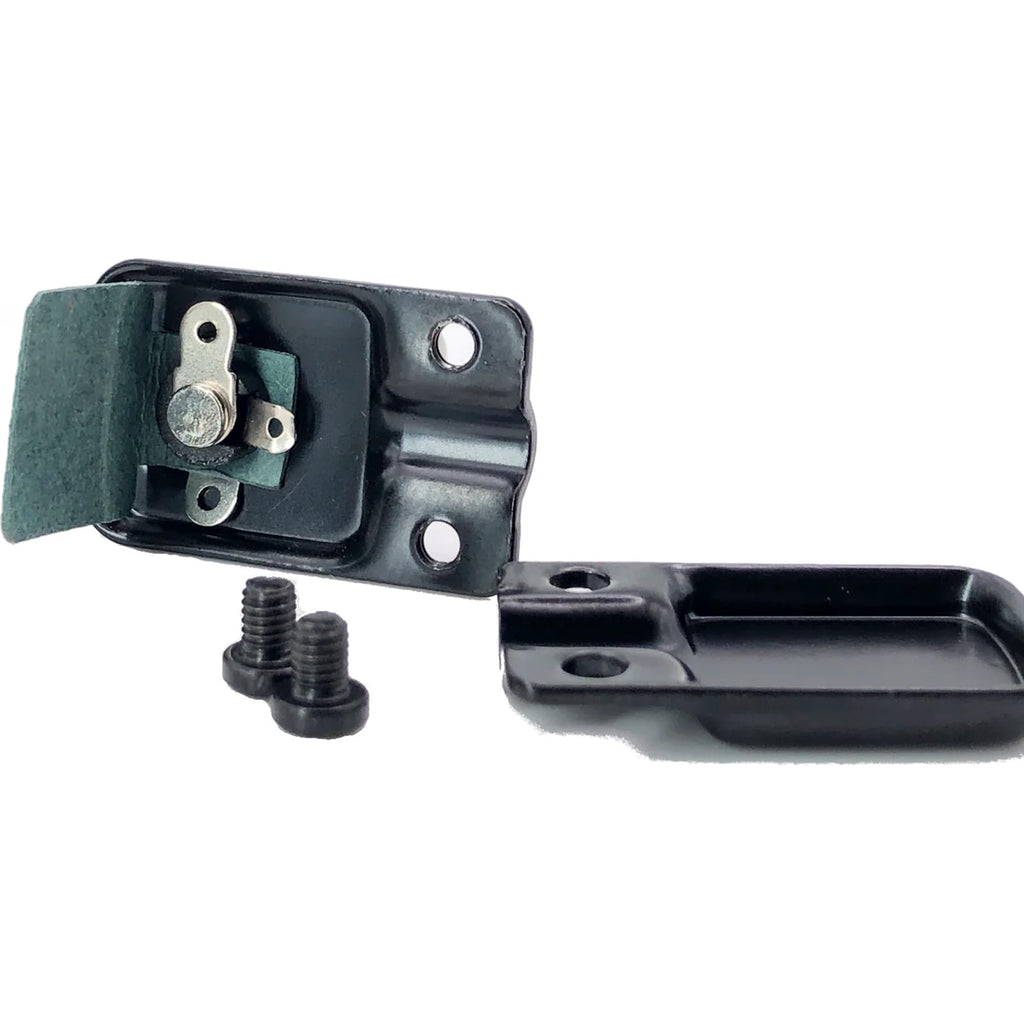

- Insulation Sheet to Prevent Shorting
- Serviceable, All-Metal Construction
- Available in Silver & All-Black Finish
Description

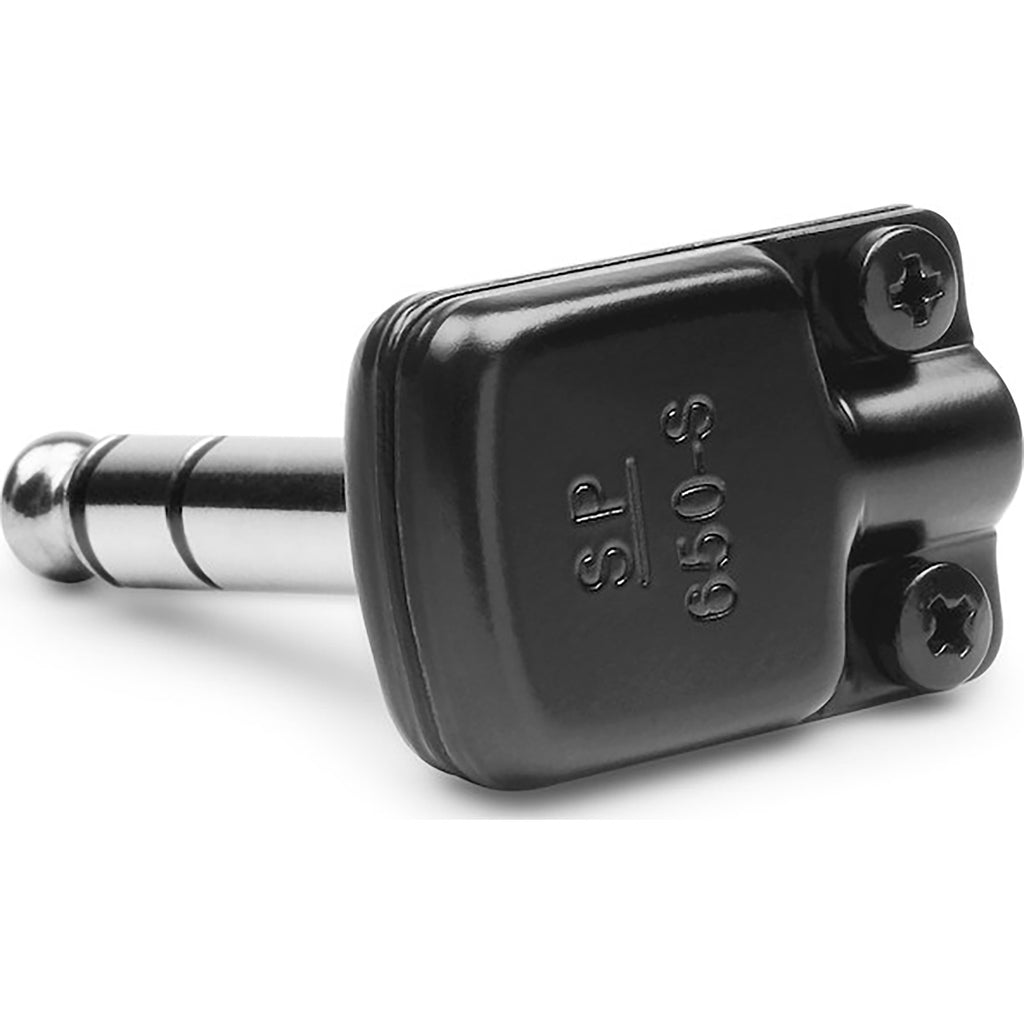

Low Profile Flat 1/4" Stereo TRS Cable End Connector for Cables up to 6.3mm OD - Black
SP650-SBK Right Angle Square Plug TRS connector for larger cable O.D.'s (up to 6.3mm)
SP650-S is the TRS variant of the SP600. It can accommodate cables up to 6.3mm OD, which provides with the SPX SERIES a unique TRS/XLR pairing solution for low profile balanced cable assemblies.
Features:
-
Allows for cables between 0.22 inches to 0.25 inches (5.8 - 6.3mm)
-
Super low profile design for highest packing density.
-
Unmatched strain relief and EMI protection: the SP series features a flat smooth cable channel that's perfectly snug with the right sized cable providing equal pressure around the entire cable, thus insuring proper shielding continuity and effective strain relief action.
-
Solder tabs for tip, ring and sleeve connections for quick and easy soldering and de-soldering.
-
Serviceable, Heavy Duty all-metal construction with no plastic parts
Specifications:
-
Weight: 0.03 lbs
-
SKU: MC-4140LB
-
Color: Black
-
Gender: Male
-
Orientation: Right Angle
-
Number of Positions: 3
-
Termination: Solder Type
-
Cable O.D. Allowance: 0.248 inches (6.3mm)
-
Connector Length: 1.1 inches (28mm)
-
Connector Diameter: N/A
-
Connector Width: 0.73 inches (18.5mm)
-
Connector Thickness: 0.38 inches (9.7mm)
-
Manufacturer: SquarePlug
