Soundcraft Mini Stagebox 32R Professional Audio Mixer

Low-Cost Option For Stage Connectivity

The new Mini Stagebox range from Harman's Soundcraft provides a simple solution to stage connectivity offering a lower-cost option for many systems where the modularity and configurability of the larger systems are not required.

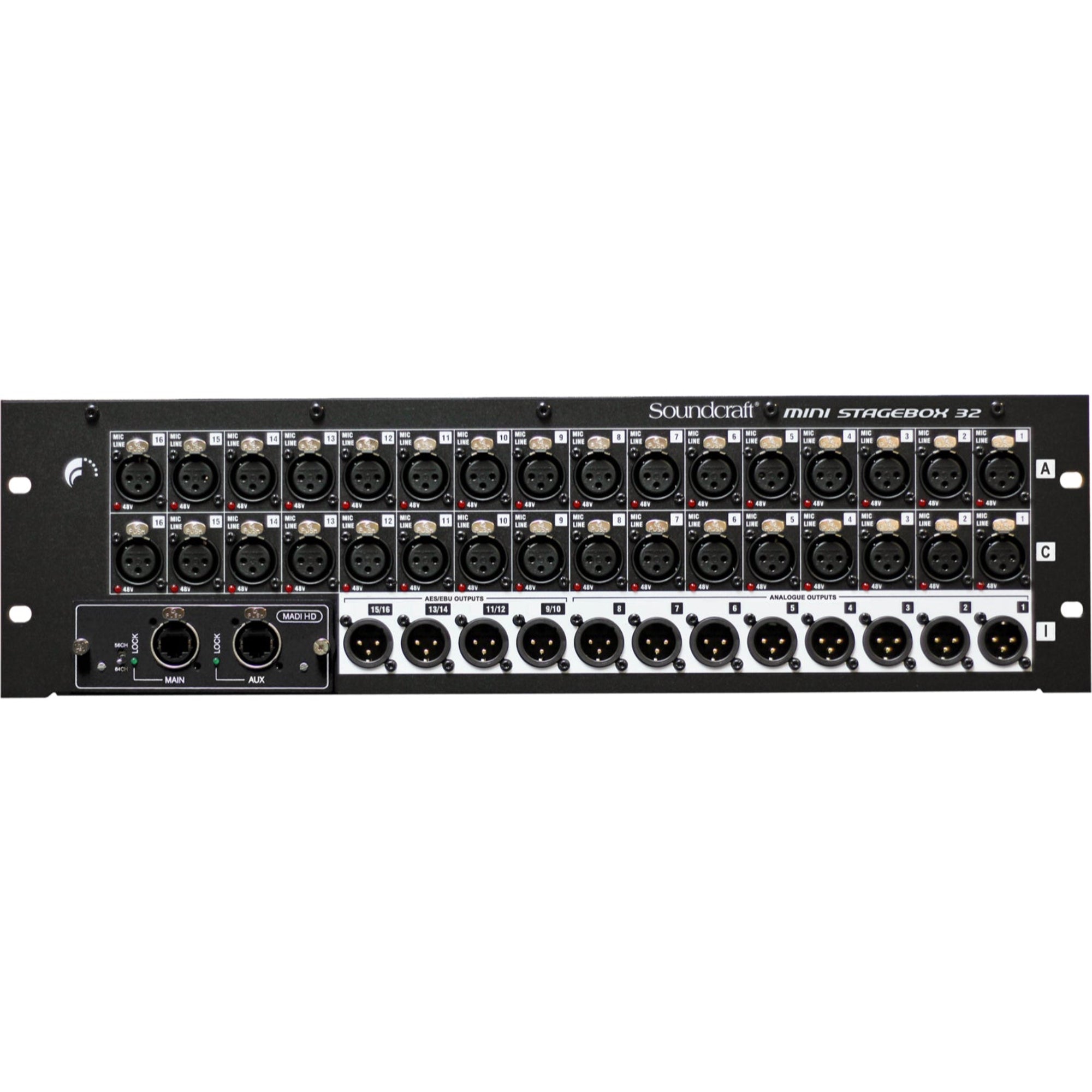

The Mini Stagebox 32R (3U) provides 32 analogue inputs and 8 analogue line outputs, with 4 pairs of AES outputs, providing a total I/O capacity of 32 inputs and 16 outputs, with the Mini Stagebox 16R (2U) model providing 16 analogue inputs and 8 line outputs making a 16 x 8 matrix. They connect to any of the Soundcraft Si Expression, Si Compact, Si Performer, Si Series and Vi Series consoles via a MADI card fitted to the option card slot.

The Mini Stagebox models contain an integral PSU so are completely self-contained and sit comfortably stage-side.

The new units are part of the ViSi Connect range of interface options for all Soundcraft mixing consoles which includes the Compact and Vi Stageboxes and a range of option cards such as MADI, AES, CobraNet and AES.

Both models are supplied with the stagebox card installed, plus the corresponding card for an Si series console (Vi console MADI cards sold separately)

Features:

• The Mini Stagebox 32 is ideal for for expanding the I/O capabilities of any of the Vi or Si range of consoles regardless of whether that I/O is needed locally or hundreds of metres away on the stage.
• The Soundcraft Mini Stagebox 32 requires only 3U of rack space and, in this tiny footprint, provides 32 recallable mic/line inputs, 8 balanced line outputs and 4 pairs of AES outputs, all lifted directly from the Vi1 and larger Compact Stagebox.
• The Mini Stagebox 32 is connected to the host console using Cat-5, similar to how the larger 64 mic/line Vi6 Stagebox is hooked up, and shares the same redundant MADI cable capability when connected directly to a single console. The efficient design negates the need for a fan so making the MINI Stagebox ideal for applications where silence is a must!
• Expansion Slots: On the rear of the Mini Stagebox 32 are two blank panels reserved for future expansion.

Specifications:

• Frequency Response:
  Mic / Line Input to any Output: +0/-1dB, 20Hz - 20kHz
• T.H.D.:
  Mic Sensitivity -30dBu: < 0.01% @ 1kHz
• Noise:
  Residual noise: -85dBu
  Mic Input E.I.N. (maximum gain): -125dBu (150Ω source)
  Mix noise, masters at unity: < -86dBu
  1 input to mix at unity gain: -84dBu
  CMRR mic @1KHz (max gain): -86dBu
• Crosstalk (@ 1kHz):
  Mic - Mic: <-80dB @ 1kHz
• Input Gain:
  Mic Gain: -5dB - 58dB integrated pad design 1dB steps
  Max. input level: +24dBu
  Max. output level: +22dBu
  Sample rate: 48kHz
  Convertor resolution: 24 bit
  Latency: 1.5ms
  Internal clock accuracy: +/- 25ppm
  Mains power consumption: 33W
  Mains voltage operating range: 90 - 264 VAC, 47 - 63Hz
  Operating temperature range: -10oC - +50oC
  Relative humidity: 0 - 90%
  Storage temperature range: -10 (C) - +50 (C)
