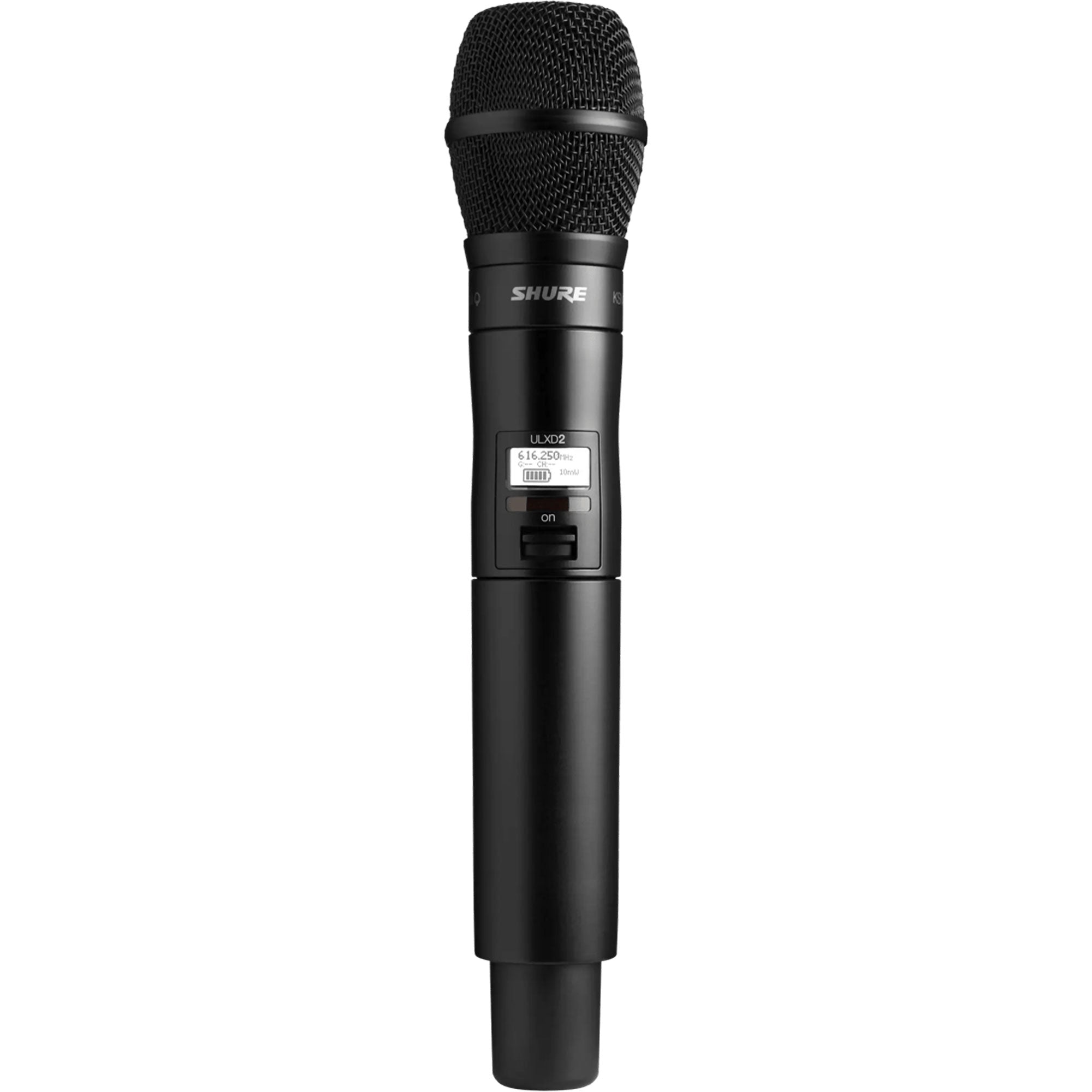

Shure ULXD2/KSM9HS Handheld Wireless Transmitter with KSM9HS Capsule (G57: 470-608 MHz)

ULX-D Series Wireless Handheld Microphone Transmitter with Interchangeable KSM9HS Microphone Cartridge - G57 Band (470 MHz - 608 MHz)

The KSM9HS with the ULXD2 digital handheld transmitter features the KSM9HS hypercardioid/subcardioid condenser vocal microphone head which captures vocal subtlety with extraordinary detail to deliver clear articulation and precise vocal reproduction for live performance.

The Shure ULXD2 is a handheld wireless transmitter compatible with ULX-D Digital Wireless Systems. With a rugged yet lightweight aluminum body and integrated antenna, the ULXD2 delivers uncompromising audio quality and RF performance, AES 256-bit encryption for secure transmission, and advanced rechargeability options for professional sound reinforcement applications.

Note: When purchasing separate wireless components, please match their frequency bands to ensure proper system operation.

Features:

• 30 Hz-20 kHz range with flat frequency response (actual response is microphone dependent)
• Interchangeable Shure microphone cartridges, including the legendary SM58
• AES 256-bit encryption for applications for which secure transmission is needed
• Proprietary Shure Gain Ranging optimizes the system's dynamic range for any input source, eliminating the need for transmitter gain adjustments
• Optional Shure SB900 lithium-ion rechargeable battery pack provides over 12 hours of battery life, precision metering in hours and minutes, and zero memory effect
• External charging contacts for docked charging (with the SBC200 Dual Docking Charger)
• Transmitter Mute Mode repurposes the On/Off switch into a mute switch, enabling audio muting while preserving RF channel presence
• Backlit LCD with easy to navigate menu and controls
• Rugged metal construction
• Frequency and power lockout

Specifications:

• Audio Input
• Configuration: Unbalanced
• Maximum Input Level: 1 kHz at 1% THD
  145 dB SPL (SM58), typical
  Note: Dependent on microphone type
• Mic Offset Range: 0 to 21 dB (in 3 dB steps)
• Battery Type: Shure SB900 Rechargeable Li-Ion or LR6 AA batteries 1.5 V
• Battery Runtime: @ 10 mW
  Shure SB900: >11 hours
  Alkaline: 11 hours
• Dimensions: 86 mm x 66 mm x 23 mm (3.4 in. x 2.6 in. x 0.9 in.) H x W x D
• Weight: 142 g (5.0 oz.), without batteries
• Housing: Cast aluminum
• RF Output
• Antenna Type: Integrated Single Band Helical
• Occupied Bandwidth: <200 kHz
• Modulation Type: Shure proprietary digital
• Power: 1 mW, 10 mW, 20 mW
  See Frequency Range and Output Power table, varies by region
• Audio Input
• Connector: 4-Pin male mini connector (TA4M), See drawing for details
• Configuration: Unbalanced
• Impedance: 1 MΩ, See drawing for details
• Maximum Input Level: 1 kHz at 1% THD
  Pad Off: 8.5 dBV (7.5 Vpp)
  Pad On: 20.5 dBV (30 Vpp)
• Preamplifier Equivalent Input Noise (EIN): System Gain Setting >= +20
  -120 dBV, A-weighted, typical
• RF Output
• Connector: SMA
• Antenna Type: 1/4 wave
• Impedance: 50 Ω
• Occupied Bandwidth: <200 kHz
• Modulation Type: Shure proprietary digital
• Power: 1 mW, 10 mW, 20 mW
  See Frequency Range and Output Power table, varies by region
• Audio Output
• Gain Adjustment Range: -18 to +42 dB in 1 dB steps (plus Mute setting)
• Configuration
  XLR: balanced (1=ground, 2=audio +, 3=audio -)
• Impedance: 100 Ω
• Full Scale Output:
  LINE setting: +18 dBV
  MIC setting: -12 dBV
• Mic/Line Switch: 30 dB pad
• Phantom Power Protection: Yes
• ULXD2
• Mic Offset Range: 0 to 21 dB (in 3 dB steps)
• Battery Type: Shure SB900 Rechargeable Li-Ion or LR6 AA batteries 1.5 V
• Battery Runtime: @ 10 mW
  Shure SB900: >11 hours
  Alkaline: 11 hours
  See Battery Runtime Chart
• Dimensions:
  VHF V50 and V51: 278 mm x 51 mm (10.9 in. x 2.0 in.) L x Dia.
  Other frequency bands: 256 mm x 51 mm (10.1 in. x 2.0 in.) L x Dia.
• Weight:
  VHF V50 and V51: 348 g (12.3 oz.), without batteries
  Other frequency bands: 340 g (12.0 oz.), without batteries
• Housing: Machined aluminum
• Networking
• Network Interface: Dual Port Ethernet 10/100 Mbps, 1Gbps, Dante Digital Audio
• Network Addressing Capability: DHCP or Manual IP address
• Maximum Cable Length: 100 m (328 ft)
• Cascade Output
• Connector Type: BNC
  Note: For connection of one additional receiver in the same band
• Configuration: Unbalanced, passive
• Impedance: 50 Ω
• Insertion Loss: 0 dB
• RF Input
• Spurious Rejection: >80 dB, typical
• Connector Type: BNC
• Impedance: 50 Ω
• Bias Voltage: 12 to 13 V DC, 150 mA maximum, per antenna
  Switchable on-off
• ULX-D Specifications
• RF Carrier Frequency Range: 470-932 MHz, varies by region (See Frequency Range and Output Power table)
• Working Range: 100 m (330 ft)
  Note: Actual range depends on RF signal absorption, reflection and interference.
• RF Tuning Step Size: 25 kHz, varies by region
• Image Rejection: >70 dB, typical
• RF Sensitivity: -98 dBm at 10-5 BER
• Latency: <2.9 ms
• Audio Frequency Response:
  ULXD1: 20 - 20 kHz (±1 dB)
  ULXD2: Note: Dependent on microphone type
• Audio Dynamic Range: A-weighted, typical, System Gain @ +10
  XLR Analog Output: >120 dB
  Dante Digital Output: 130 dB
• Total Harmonic Distortion: -12 dBFS input, System Gain @ +10
  <0.1%
• System Audio Polarity: Positive pressure on microphone diaphragm produces positive voltage on pin 2 (with respect to pin 3 of XLR output) and the tip of the 6.35 mm (1/4-inch) output.
• Operating Temperature Range: -18¬∞C (0¬∞F) to 50¬∞C (122¬∞F)
  Note: Battery characteristics may limit this range.
• Storage Temperature Range: -29¬∞C (-20¬∞F) to 74¬∞C (165¬∞F)
  Note: Battery characteristics may limit this range.
