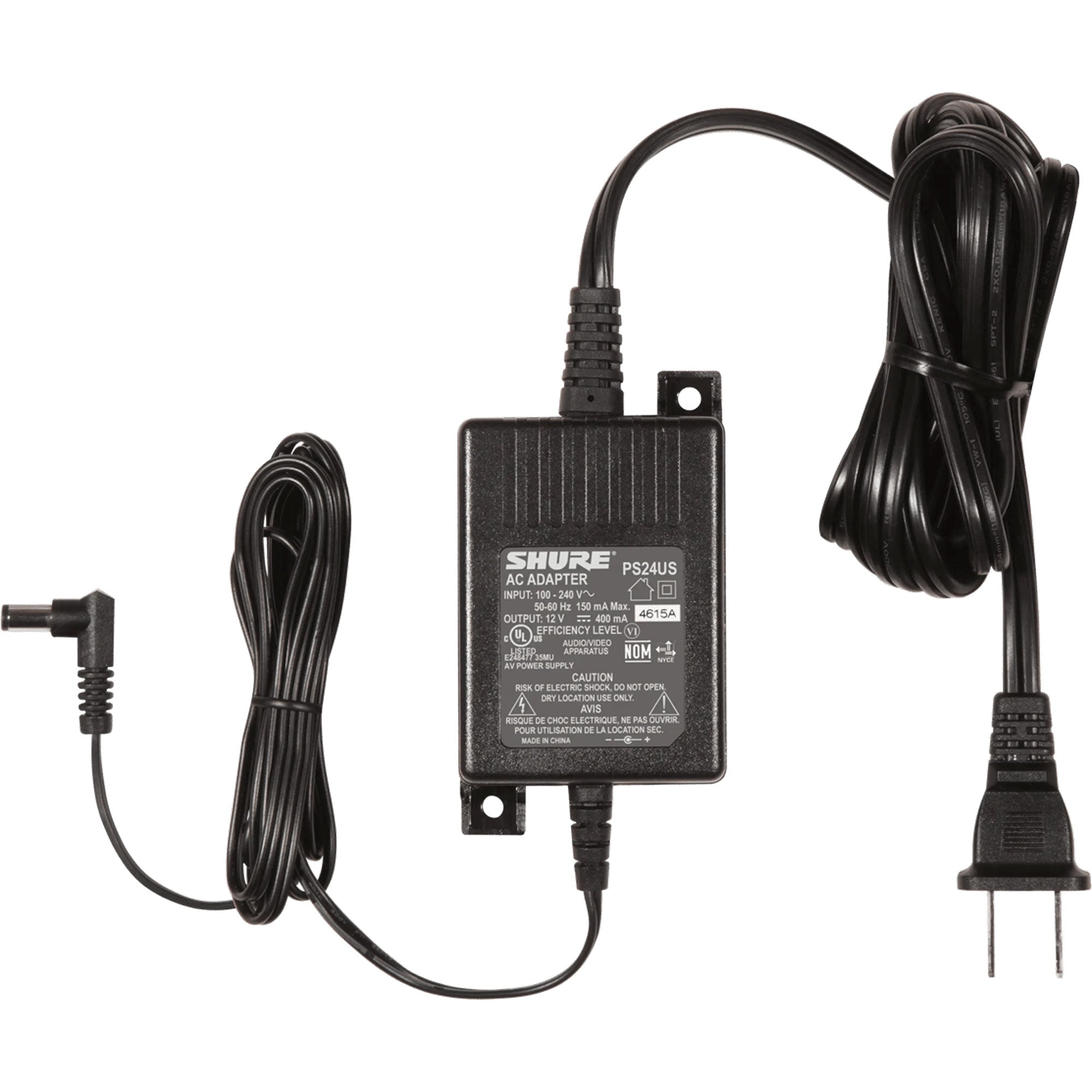

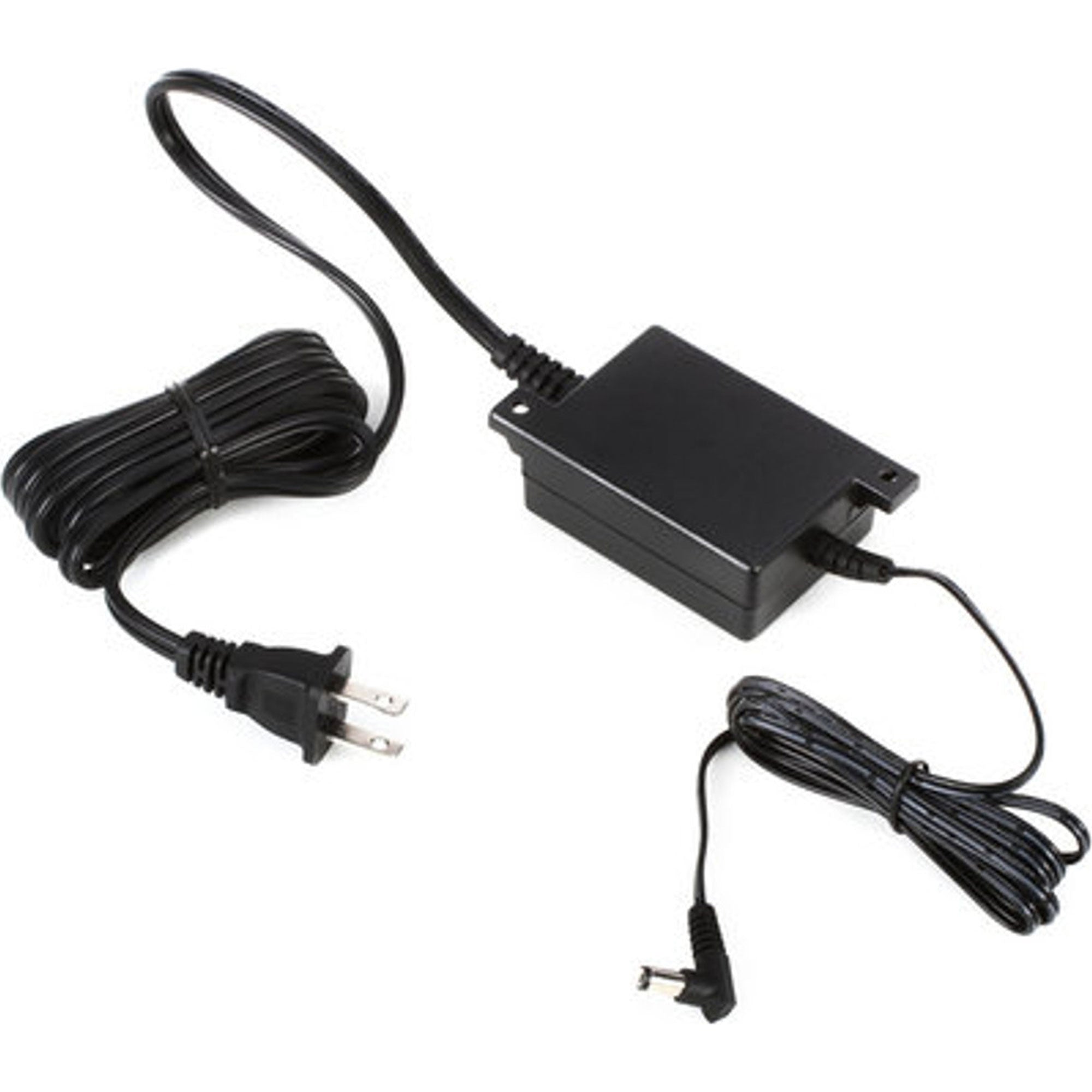

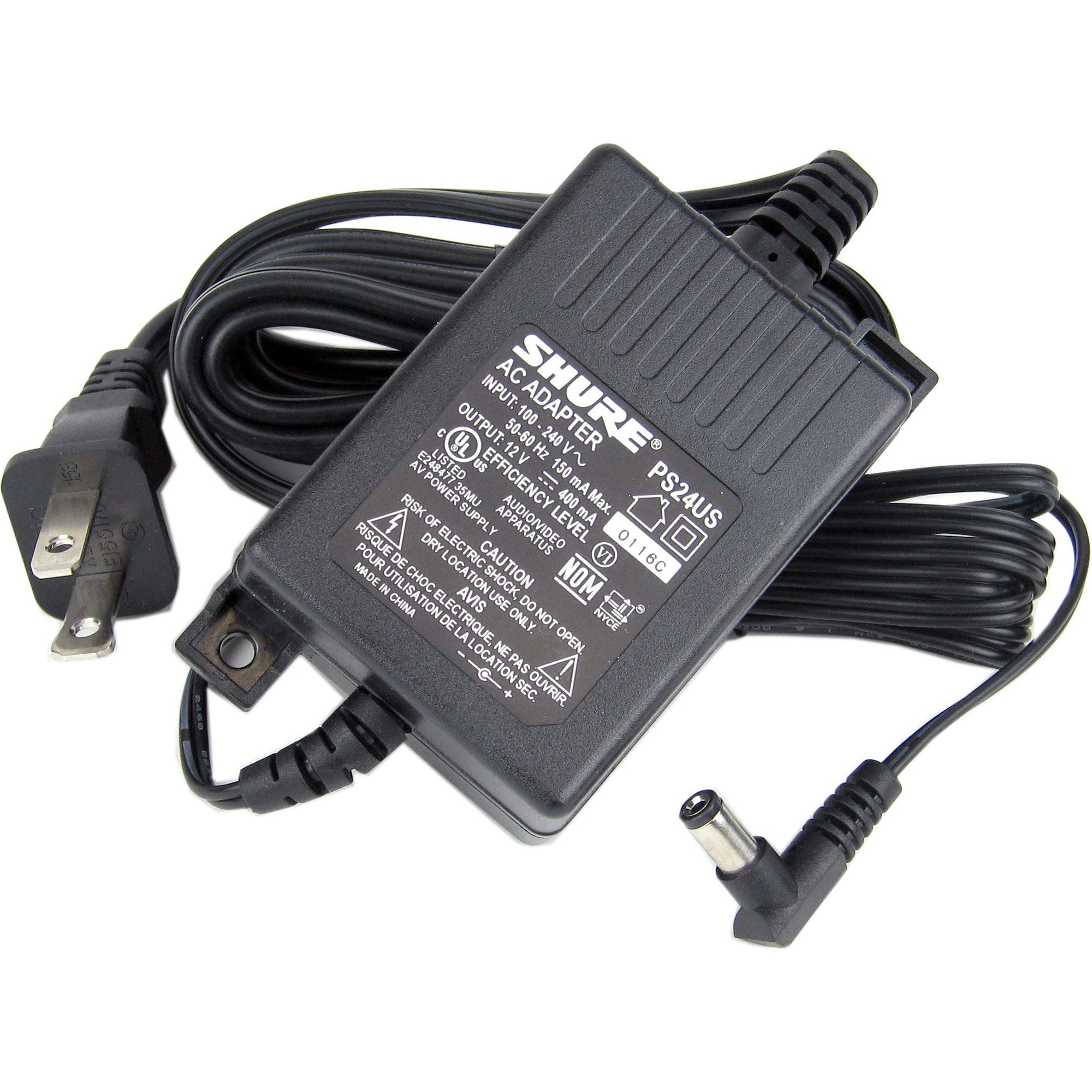

Shure PS24US Power Supply for Select Wireless Receivers

Replacement 15 VDC Power Supply for Shure Wireless Receivers

12V DC in-line power supply adheres to energy-efficient standards and features 2 built-in mounting tabs for easy installation.

PS24 adheres to energy-efficient power standards and features two built-in mounting tabs for convenient installation.

The PS24US from Shure is a 12 VDC power supply. It is intended for use with BLX4, BLX88, and BLX4R wireless receivers. It features an input- and output-cable length of 6 feet.

Specifications:

• Rated input: 100 - 240 VAC, 50-60 Hz, 150 mA maximum.
• Rated output: 12 VDC, 400 mA
• Leakage current: less than 30 uA
• Input cable: 72 inches (1.8 meter) long; two-prong plug North American A.C. plug
• Output cable: 72 inches (1.8 meter) long; DC Coax plug
• DC Coaxial Plug: right-angle female; non-locking; 2.1 mm inside diameter; 5.5 mm outside diameter; tip/center = positive; sleeve = negative
• Dimensions of power supply plastic enclosure: 2.7" long x 2.1" wide x 1.1" thick; 69 mm x 53 mm x 28 mm; two mounting tabs are provided.
