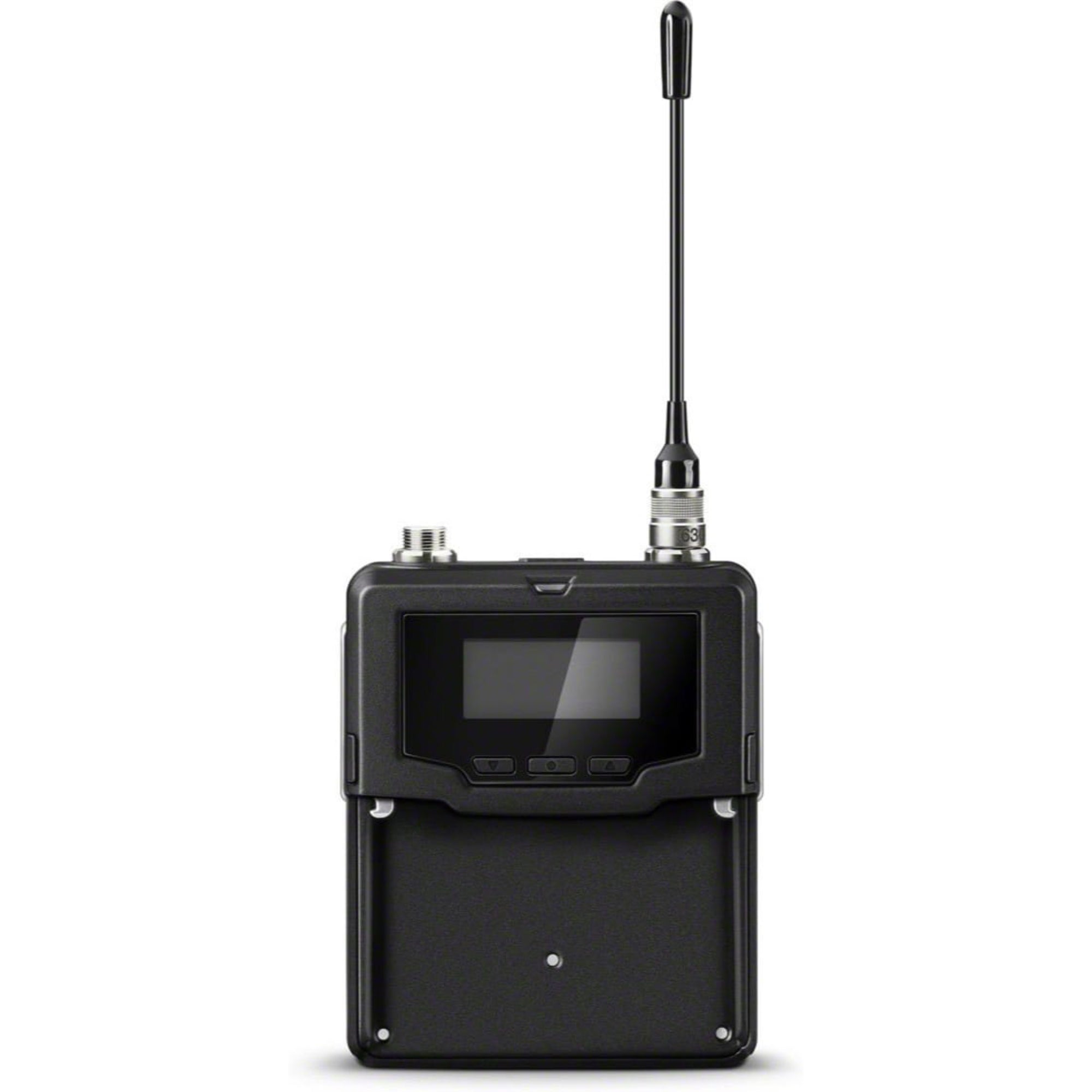

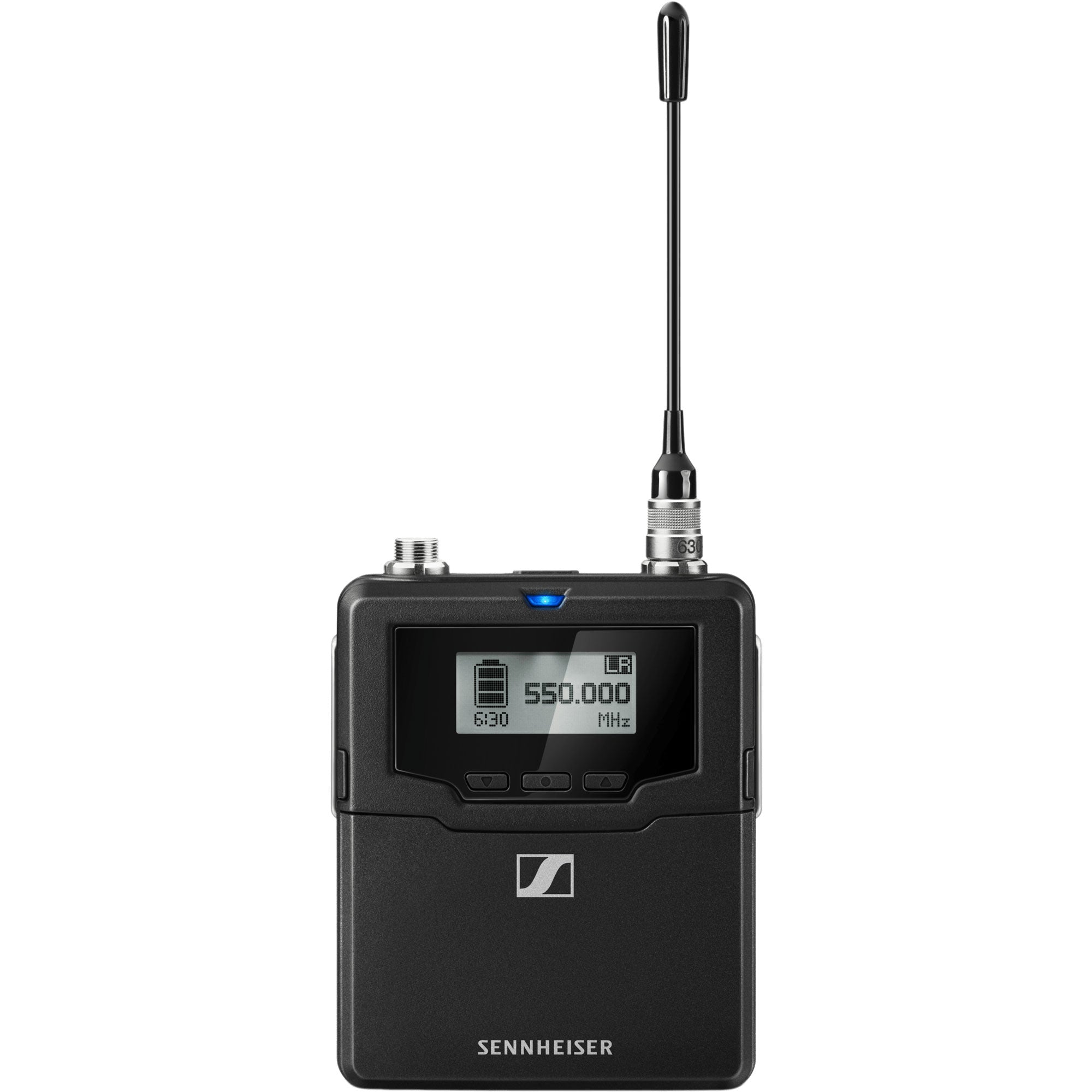

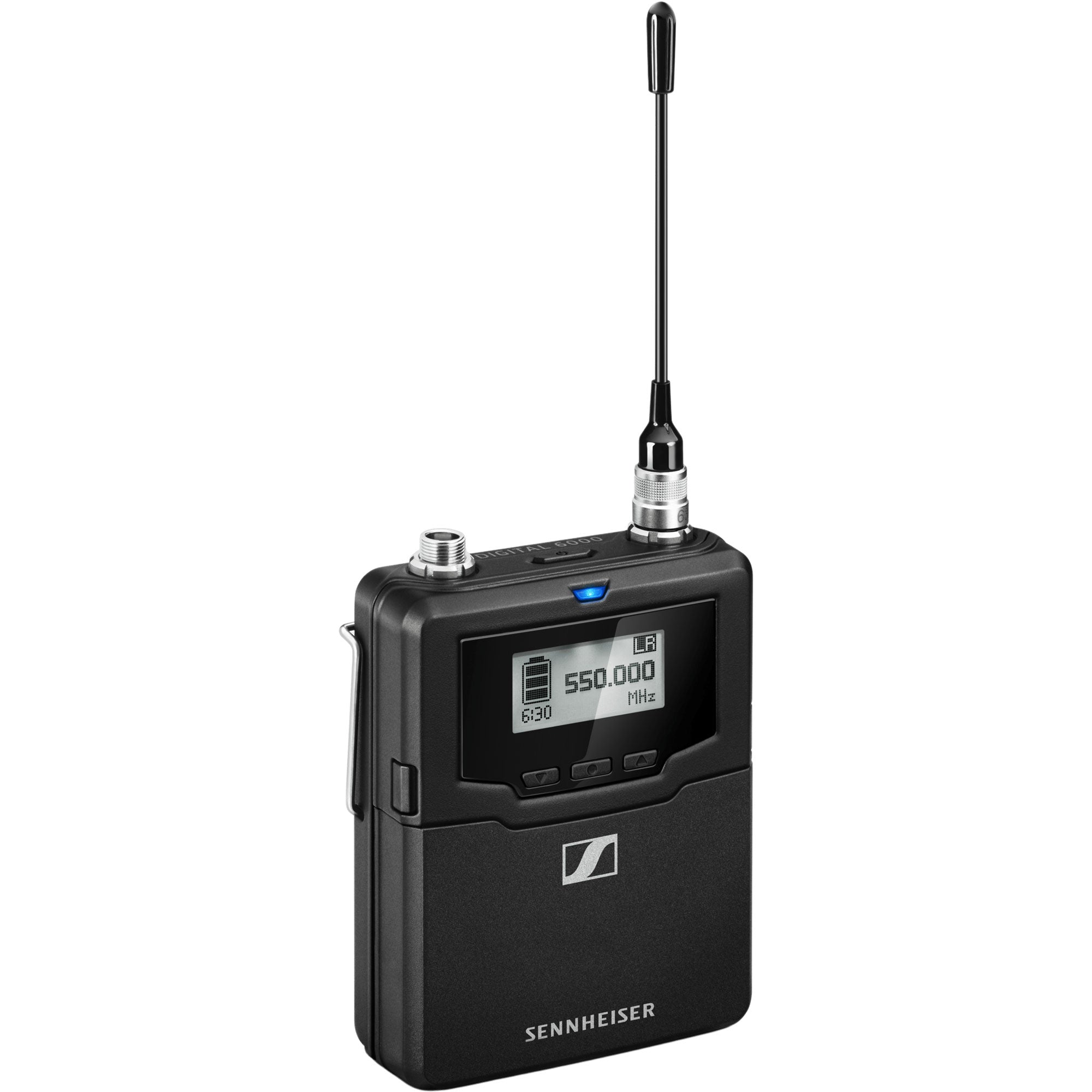

Sennheiser SK 6000 BK A5-A8 Bodypack Transmitter (A5-A8: 550-638 MHz)

Wireless Bodypack Transmitter (Frequency Range A5-A8: 550-638 MHz)

The lightweight SK 6000 digital pocket transmitter can be combined with lavalier microphones and headsets, and shines as a high-end solution for instruments like guitar and bass. Maximum transmission reliability of the renowned Long Range mode and outstanding audio quality of the Sennheiser Audio Codec (SeDAC) are shared with the wireless masterpiece, Digital 9000. Sophisticated electronics prevent disturbing intermodulation, even with numerous transmitters in the most confined spaces. This allows operation in an equidistant frequency grid and efficiently utilizes the available frequency spectrum.

The right microphone for every application: Sennheiser lavalier microphones MKE 1, MKE 2 and MKE 40, Headsets HSP 2, HSP 4 and SL Headmic.

A special magnesium housing offers the perfect balance between light weight, inconspicuous size and rugged construction with shielding against moisture. The BA 61 lithium-ion battery pack ensures up to 6.5 hours of operation. Alternatively, operation is also possible with batteries from the B 60 battery set.

Additionally, the transmitter is compatible with the EK 6042 and EM 9046 in Long Range mode.

Features:

• Frequency: 550-638 MHz
• Sennheiser 3-pin connector allows connection to a variety of microphones or an instrument
• Highly effective intermodulation protection
• AES 256 encryption and Digital 9000 encryption
• Compatible with EK 6042 and EM 9046 in Long Range mode
• Li-ion battery packs with 5.5 hours run time
• Magnesium housing

Specifications:

• Dimensions: 3 x 2.4 x 0.8 in (with BA 61 battery pack)
• Weight: Approx. 0.3 lbs (with BA 61 battery pack and belt clip)
• Audio Input: 3-pin audio socket
• Power Consumption: Max. 960 mW
• RF Output Power: 25 mW rms, 50 mW peak
• Switching Bandwidth: 88 MHz
• Operating Time: 6.5 h (with BA 61 battery pack)
• Modulation: Digital modulation long range mode
• Gain:
  Mic: Adjustable in 3 dB steps from 0 dB to +42 dB
  Line: Adjustable in 3 dB steps from -6 dB to +9 dB
• Frequency Range: SK 6000 A1 - A4: 470 - 558 MHz
• Input Impedance:
  Mic: 22kΩ
  Line: 1 MΩ
• Audio Codec: SeDAC (Sennheiser Digital Audio Codec)
• AF Frequency Response:
  Line: 30 Hz - 20 kHz (3 dB)
  Mic: 30 Hz - 20 kHz (3 dB)
• Frequency Stability: < 5 ppm
• Tunability: 25 kHz steps
• Lower Cut-Off-Frequency:
  Mic: Adjustable, 30 Hz, 60 Hz, 80 Hz, 100 Hz, 120 Hz
  Line: 30 Hz, 60 Hz, 80 Hz, 100 Hz, 120 Hz
• Instrument Cable Emulation: Adjustable cable length with 3 steps
• Encryption: AES 256 and Digital 9000 encryption

Includes:

• 1 SK 6000
• 1 Beltclip
• 1 Antenna
• Safety Guide
• Quick Guide
