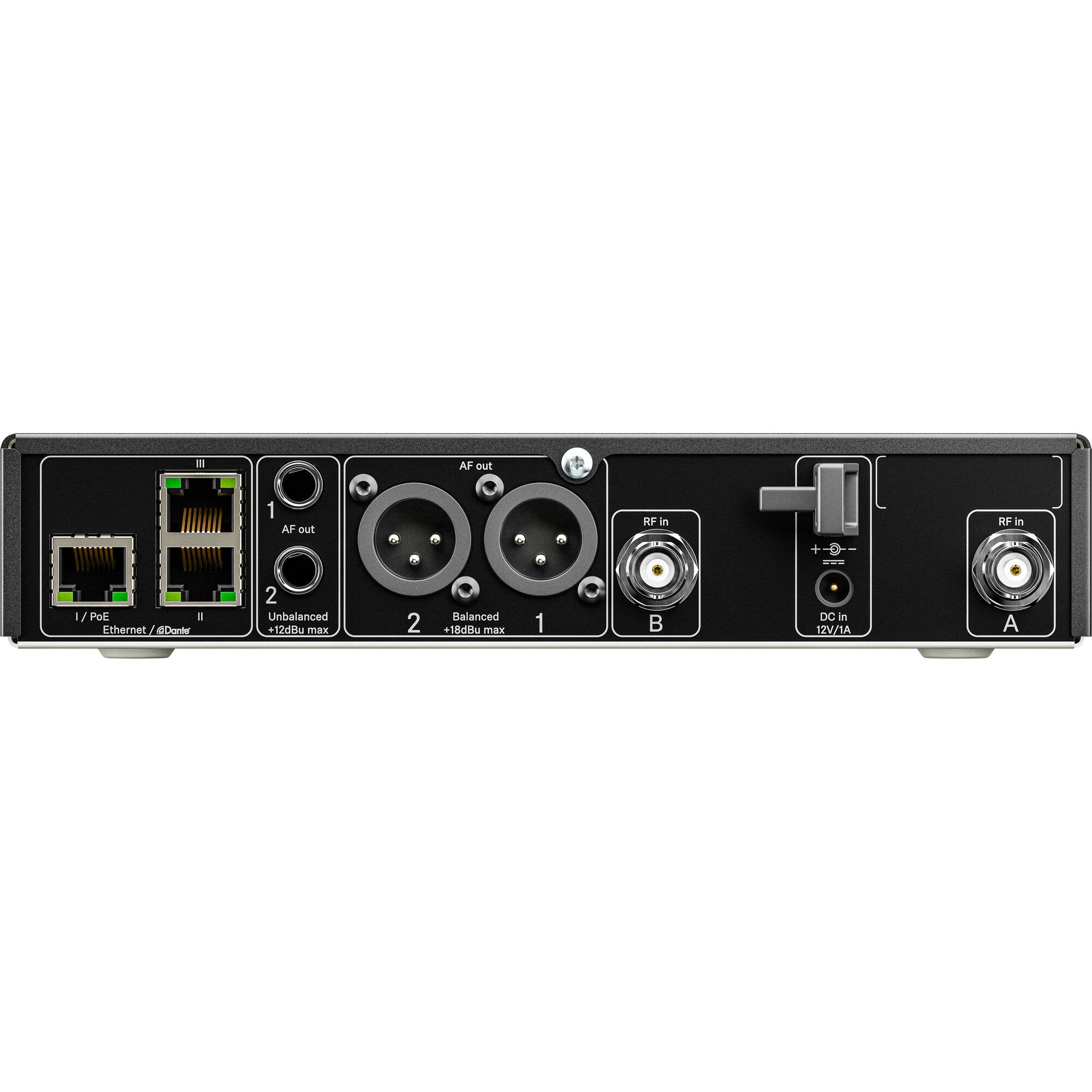

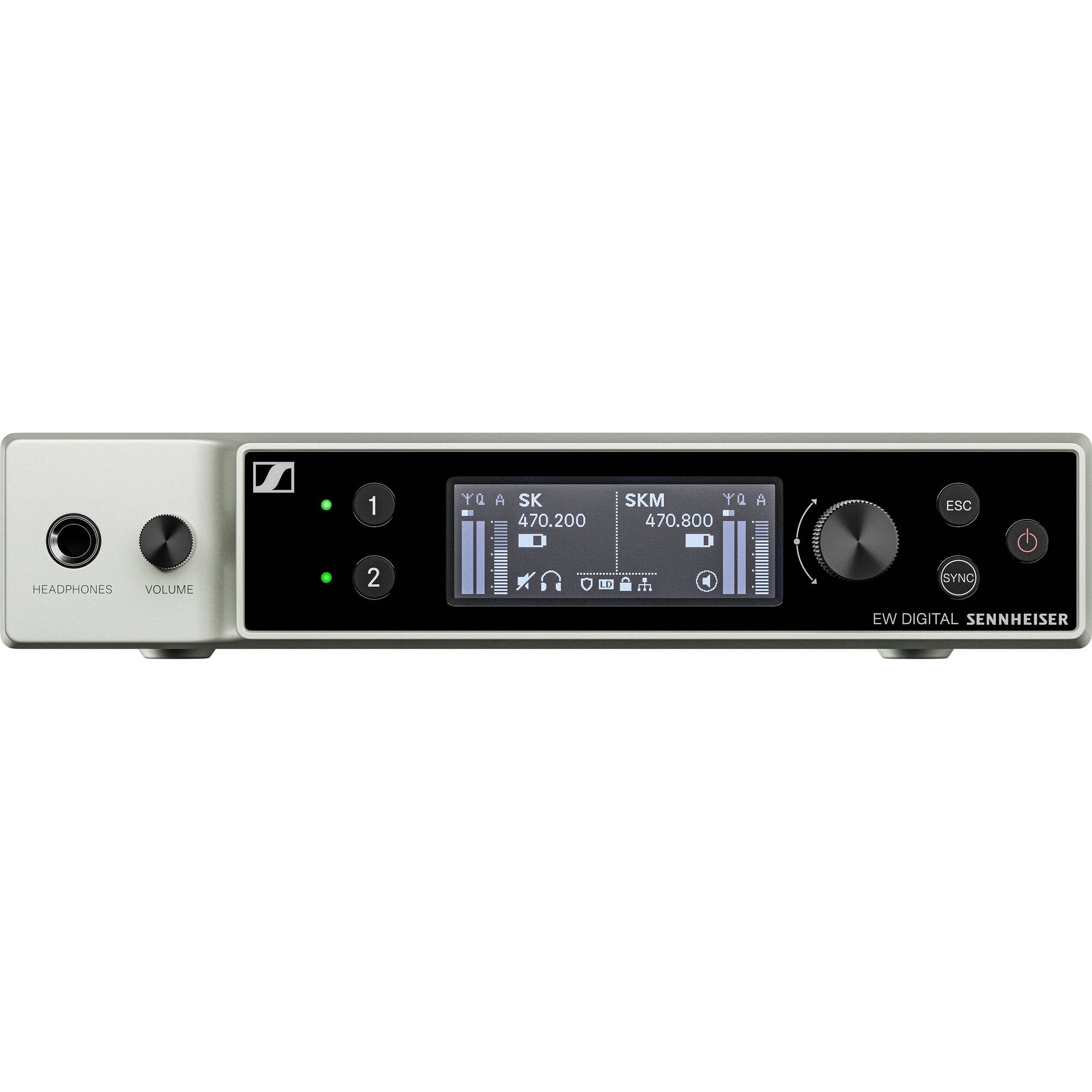

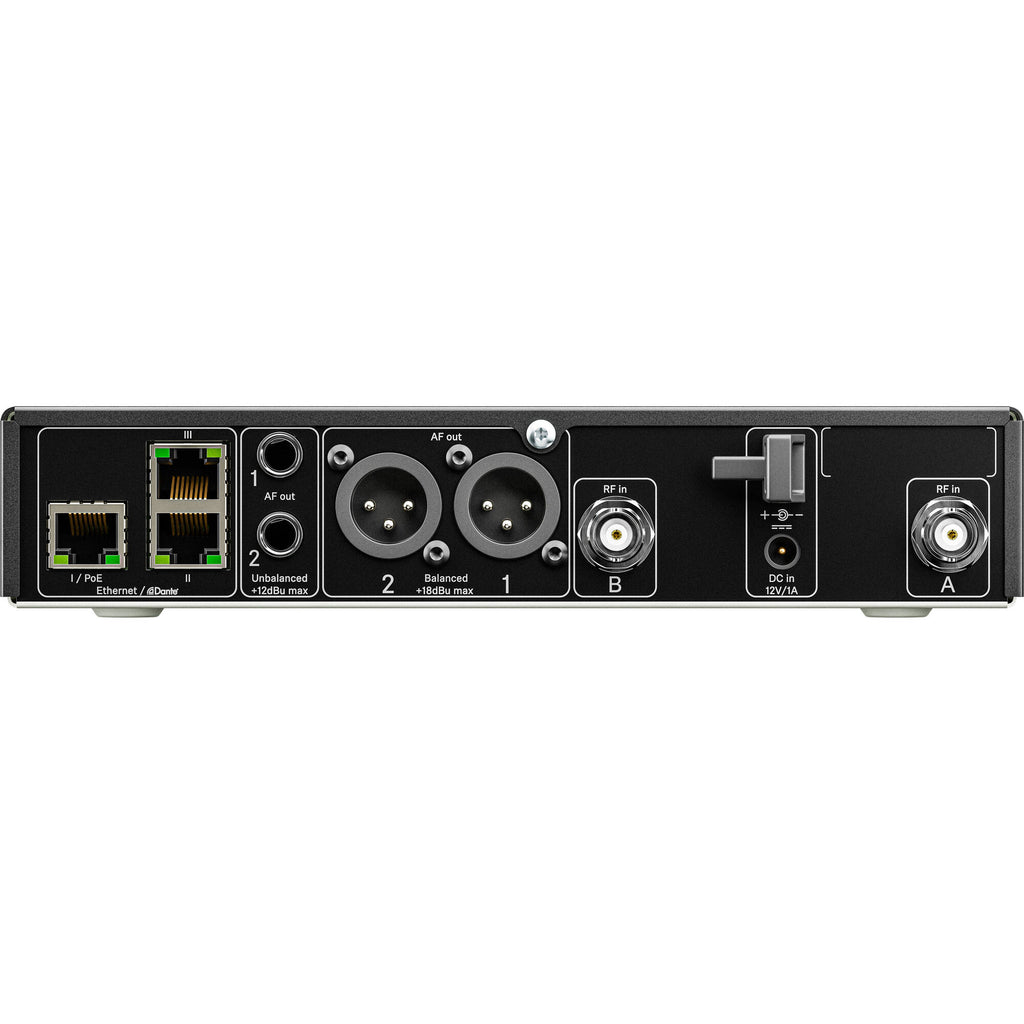

Sennheiser EW-DX EM 2 DANTE Two-Channel Rackmount Receiver with Dante (Q1-9: 470-550 MHz)

Two-Channel Digital Wireless Rackmount Receiver with Dante - Frequency Band Q1-9: 470 to 550 MHz

Half-rack (9.5") receiver for use with Evolution Wireless Digital handheld, bodypack and tablestand transmitters.

Introducing EW-DX

Focus less on the wireless and more on the audio. Sennheiser EW-DX simplifies your professional workflow by utilizing refined technologies and decades of research to deliver a digital UHF system that can be scaled with ease. Multiple hardware and software options create networkable solutions for nearly any stage or campus, while equidistant channel spacing, auto scan, and Bluetooth Low Energy sync automatically coordinate and set frequencies with the push of a button. Monitor your devices from a distance-even from your pocket-with tools like Sennheiser's Control Cockpit, Wireless Systems Manager, and Smart Assist app. The future of wireless is here.

First released in June 2021, Evolution Wireless Digital provides the most reliable connection for any situation, any place, today or tomorrow - whether it's voice, lecture, conference, moderation, or live performance. Learn more about 2021 EW-D release and how this expanding family of products can help you simplify your workflow and save you precious time, while satisfying all the business and technical needs you might have.

Truly simplified workflow

EW-DX takes the complexities out of wireless audio by employing sophisticated tools that streamline the setup and monitoring process. With the press of a button, Auto Scan automatically assigns channels using an equidistant tuning grid that allow you to pack more channels more reliably, without problematic intermodulation interference. Take control of the system from your mobile device via the Sennheiser Smart Assist app or utilize advanced software options like Wireless Systems Manager (WSM) and Sennheiser Control Cockpit for a detailed system view in complex, networked environments.

Ready to scale, ready to deliver

Evolution Wireless Digital is a system that evolves with you. Choose from multiple hardware options, including 2-channel half-rack (9,5") or 4-channel full-rack (19") receivers to right-size your needs today, while keeping expansion open for tomorrow. Dante network audio, Ethernet control ports, and AES-256 encryption allow EW-DX to be securely transmitted and placed on IT networks, allowing systems to be managed and flex as needs change. Activate Link Density Mode to pack even more channels in a dedicated space and take full advantage of interchangeable series components across the Evolution Wireless Digital line. A wide range of accessories to manage power and signal distribution give you the options you need to build a system you can count on.

Rock-solid digital audio throughout

Quality and reliability are standard with all Sennheiser products. With EW-DX, digital UHF transmission is augmented by wide, class-leading dynamic range and ultra-low latency. Sennheiser's proprietary SePac audio codec and new conversion technology sum up to deliver outstanding audio transparency, from capsule input to system output. Intelligent Switching Diversity is an advancement in RF technology that enables the switching of antennas between audio frames to deliver a stable transmission without audible artifacts. In-device charging, 12-hour battery operation, and switching bandwidth up to 88 MHz are only a few more of the many features that make EW-DX the right tool for the job.

Features:

• 2 channel half rack (9.5")
• Up to 88 MHz switching bandwidth
• PoE IEEE 802.3af Class 3
• Equidistant Channel Spacing: 146 channels in standard mode; 293 channels in Link Density Mode
• Network enabled for control with Sennheiser Control Cockpit/ media control system through a number of 3rd party modules
• Clear and easy focused user interface with OLED display
• Ethernet connectivity (IPv4 and IPv6)
• Secure AES 256 encryption
• External PSU 12V/1A
• All-metal housing

Includes:

• EW-DX EM 2 rack receiver
• 2 rod antennas
• power supply with country adapters GA 3 rackmount set
• 4 rubber feet
• quick guide
• safety guide
• manufacturer declaration sheet
