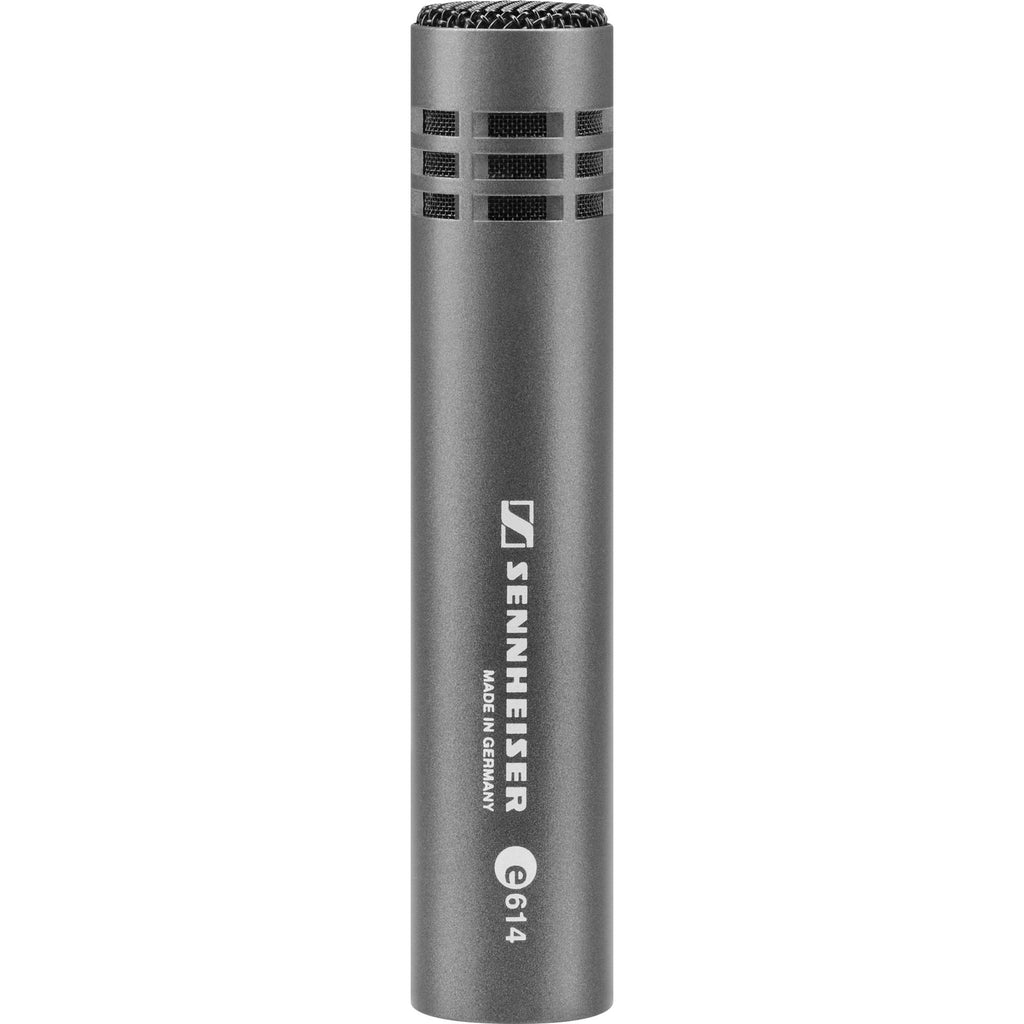

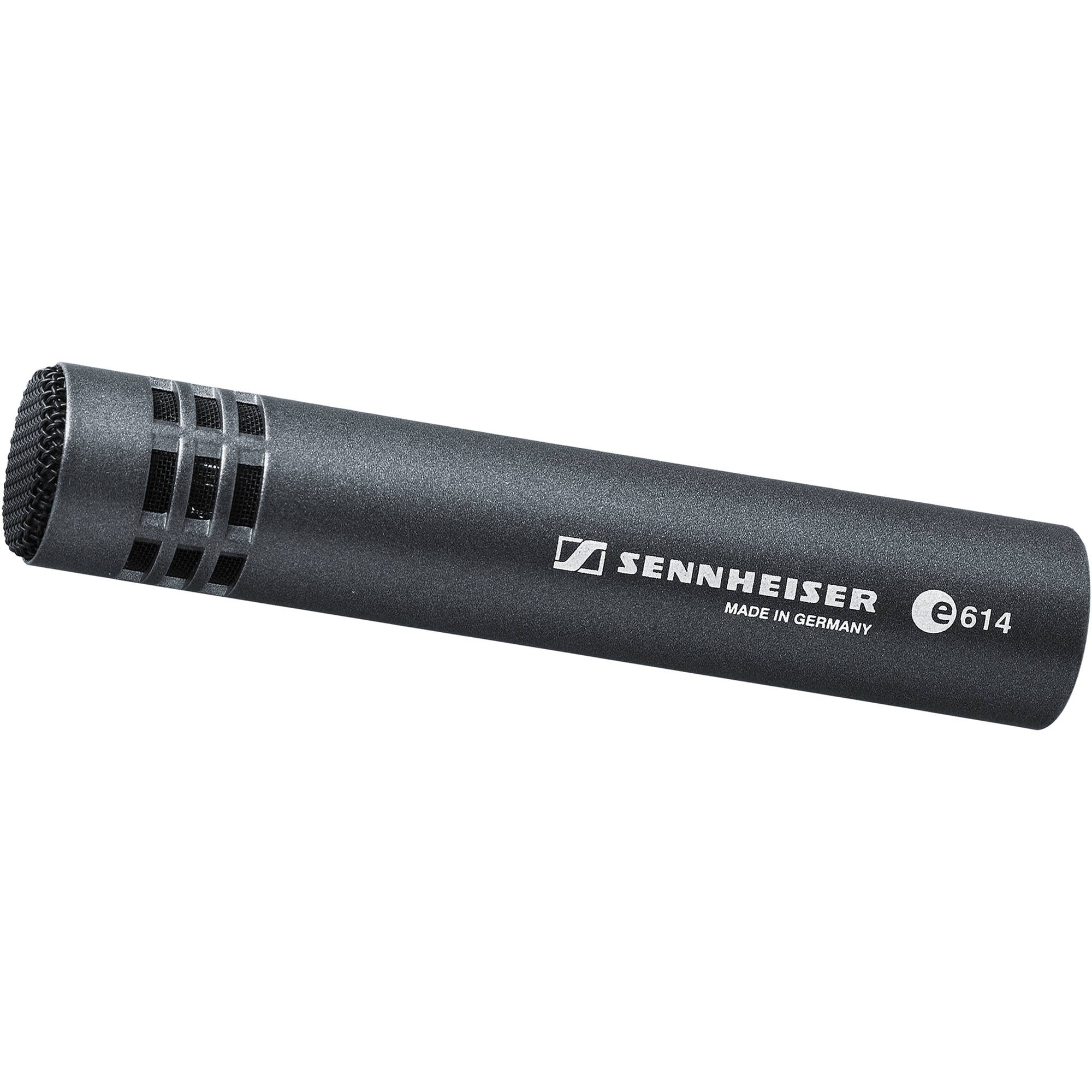

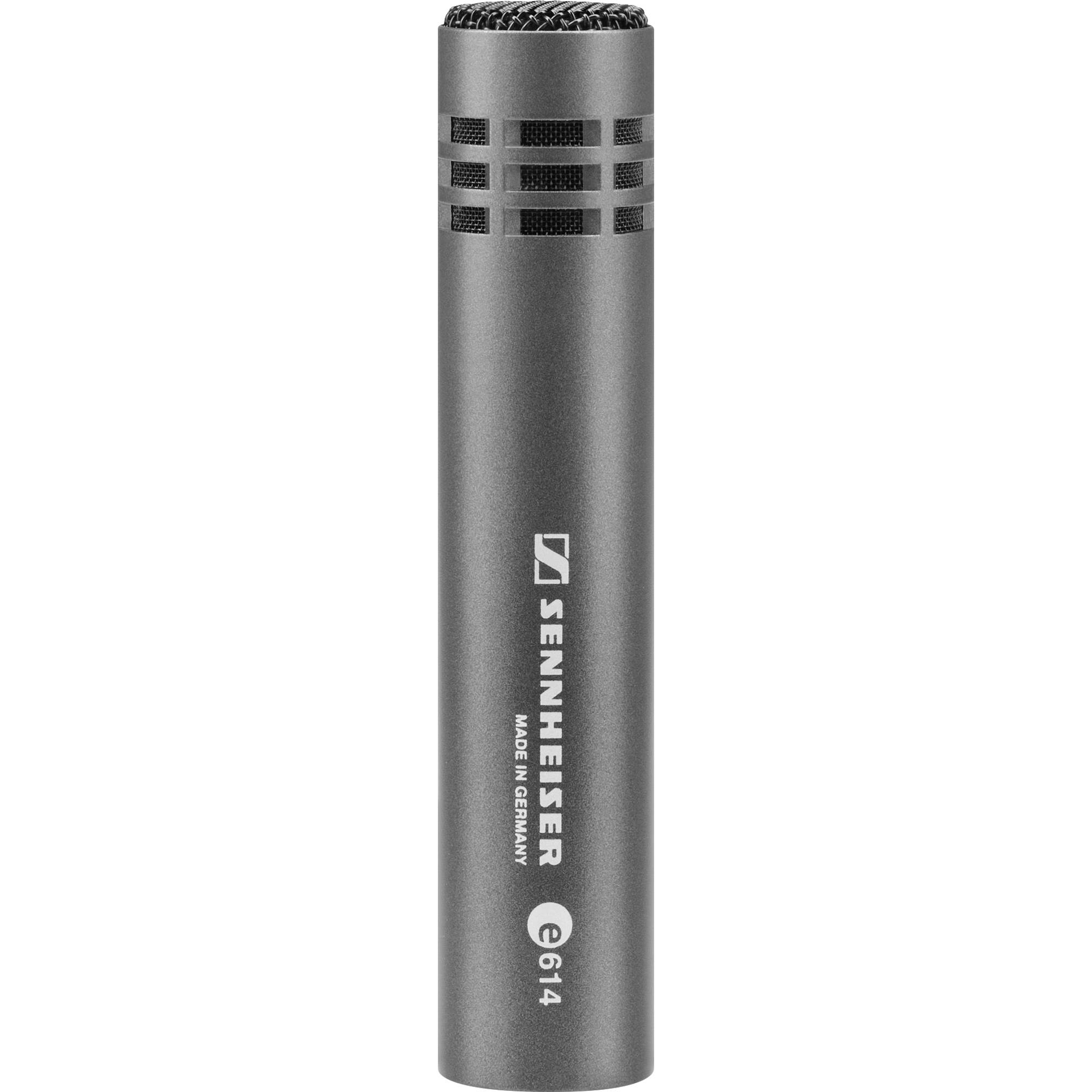

Sennheiser e 614 Supercardioid Condenser Instrument Microphone

Supercardioid Small-Diaphragm Condenser Microphone for Instruments with High SPL Handling

Super-cardioid electret condenser microphone for demanding instrument recordings, and performances that produce extended frequencies, high SPL handling and transient response. For woodwind, strings, and home recording.

The e 614 is a super-cardioid condenser microphone, designed for demanding instrument recordings and performances that require extended frequency response, high SPL handling, fast transient response and compact size. While drumset overhead miking was the first design priority, the e614 also works exceptionally well on percussion setups as well, fitting comfortably into tight setups. The e 614 can handle high SPLs and features medium sensitivity, which ensures reduced bleed from other instruments on stage. Because of its excellent acoustic properties, this mic is also ideal for home recording.

Features:

• 40-20,000 Hz
• Designed for demanding applications where extended frequency range, high SPL handling, fast transient response and small size are required
• Captures the shimmer and the contact of sticks, mallets and hands
• Nearly flat response from 40 Hz to 20 kHz and a supercardioid pattern

Specifications:

• Dimensions: Ø 20mm, L = 100mm
• Connector: XLR-3
• Frequency response: 40 - 20000 Hz
• Transducer principle: pre-polarised condenser microphone
• Weight: w/o cable: 93 g
• Pick-up pattern: super-cardioid
• Sensitivity in free field, no load (1kHz): 3 mV/Pa = - 50dB (0 dB = 1 V/Pa)
• Nominal impedance: 50 Ω
• Min. terminating impedance: 1000 Ω
• Phantom powering: 12 - 52 V / 3 mA
• Equivalent noise level: 24 dB(A)
• Equivalent noise level weighted as per CCIR 468-3: 35 dB
• Maximum sound pressure level (passive): 139 dB/SPL

Includes:

• Sennheiser e 614 Supercardioid Condenser Microphone
• Sennheiser MZQ100 Quick Release Stand Adapter for K3U, MD409 and MKH-416 Microphones
• Protective Pouch
• Limited 2-Year Warranty
