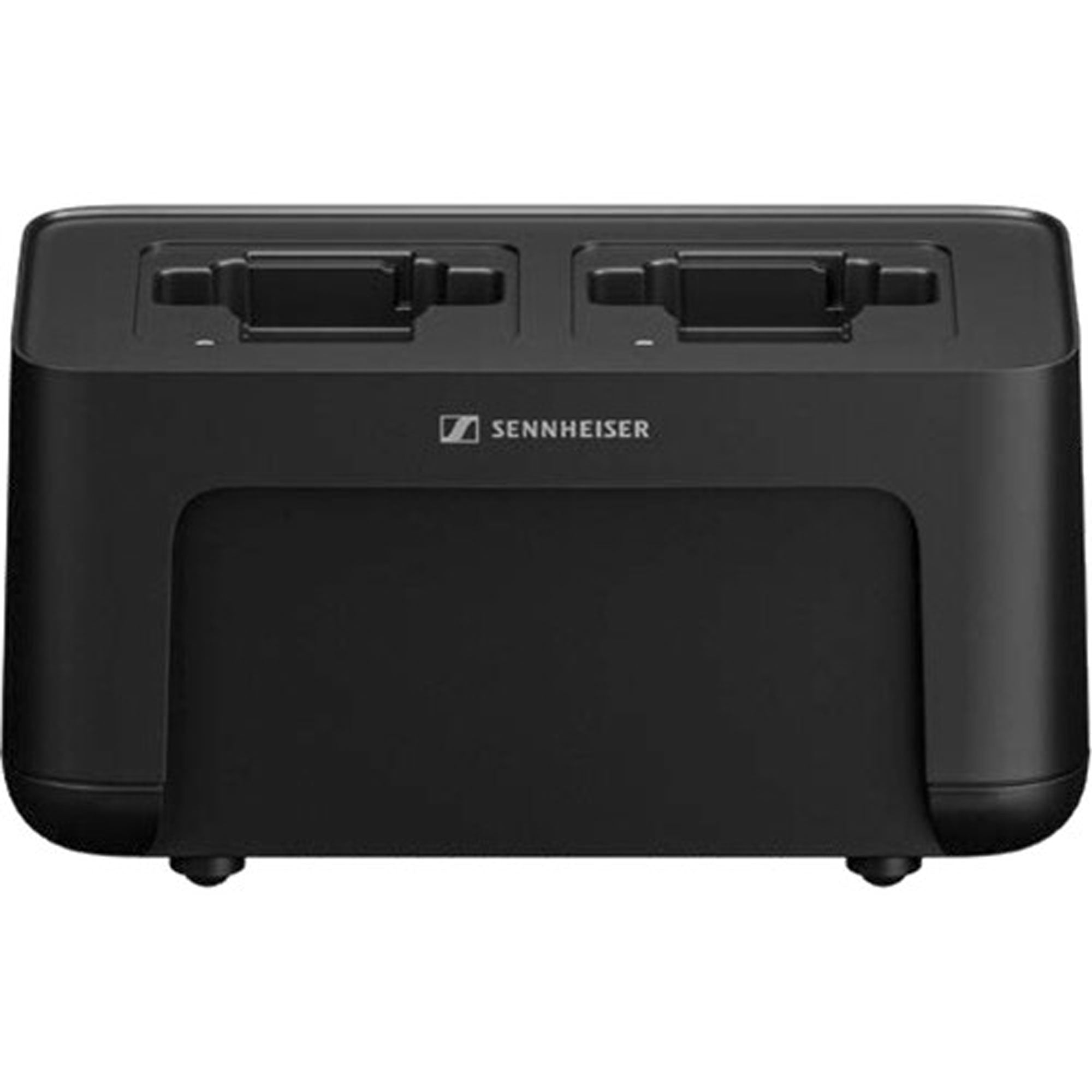

Sennheiser CHG 70N Network-Enabled Charger for EW-DX Series

Two Bay Network Enabled Charger for EW-DX SKM, EW-DX SK or BA70

The Sennheiser CHG 70N is a network-enabled charger with two bays, capable of simultaneously charging up to two EW-DX SKM handheld and/or EW-DX SK bodypack transmitters with their respective BA 70 batteries inside. It can also recharge standalone BA 70 batteries. The Charger features an RJ45 network socket that supports the Media Control Protocol to provide remote control and status monitoring via the Sennheiser Control Cockpit software or a third-party application.

The CHG 70N operates on Power over Ethernet (PoE IEEE 802.3af Class 0) or on 12 VDC input voltage supplied from the EW-D POWER SUPPLY (available separately). Up to five chargers can be daisy-chained with only one PoE network connection or power supply needed-allowing you to recharge up to ten battery packs or transmitters at the same time.

Charging time for a full charge is approximately 3.5 hours (2 hours for 80% charge). A colored LED at each charging bay indicates charge status.

Features:

• Control and Monitoring via the Sennheiser Control Cockpit and 3rd party applications
• 2 bays: charge EW-DX SKM, SK or BA70
• Power via PoE or power supply unit
• Cascade up to 5 CHG 70N (only one network connection and power supply needed)
• 2h charging time (0 ~ 80%), 3h till 100%

Specifications:

• Power supply: 12 V ⎓ (single device or cascade of up to 5 devices) or PoE IEEE 802.3af Class 0 (CAT5e or higher) (single device only)
• Current consumption: max. 3.5 A for cascade of up to 5 devices
• Network socket:
  RJ-45, IEEE 802.3;
  10base-T (half and full),
  100base-TX (half and full)
• Dimensions approx.: 200 x 104 x 116 mm (7.9" x 4.1" x 4.6")
• Weight approx.: 640 g
• Charging bays: 2
• Charging capacity per bay:
  BA 70 rechargeable battery
  or
  EW-DX SK with BA 70
  or
  EW-DX SKM with BA 70
• Charging voltage: 4.35 V
• Charging current:
  min. 344 mA
  max. 860 mA
• Charging status indicator: 1 LED per bay (red, yellow, green)
• Charging time for full charge: max. 3.5h
• Charging temperature range: -10 °C - 50 °C (14 °F - 122 °F)
• Storage temperature range: -20 °C - 70 °C (-4 °F - 158 °F)
• Relative humidity: max. 95 % non-condensing
