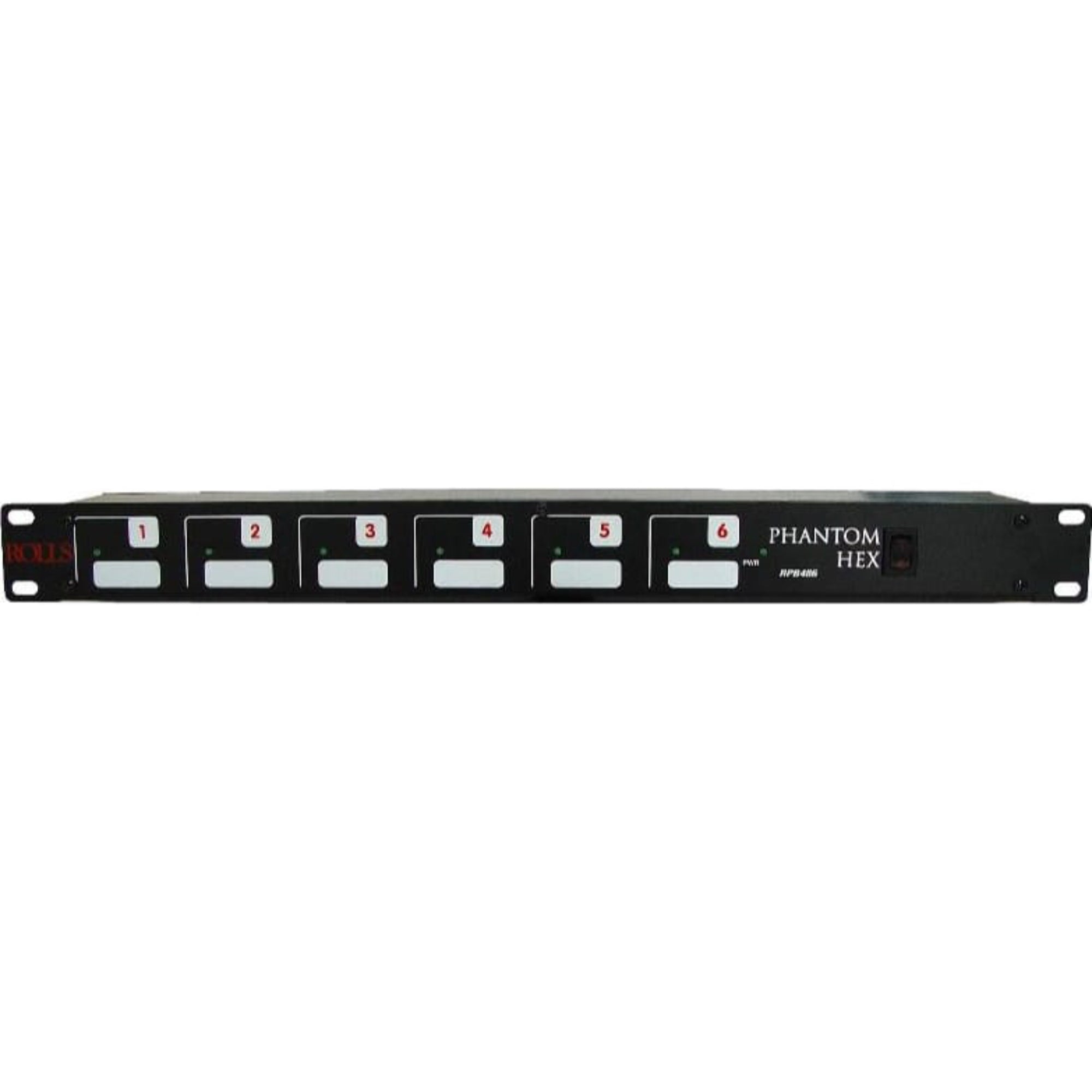

Rolls RPB486 Phantom Hex 6-Channel Phantom Power Supply

Phantom Hex 6-Channel Phantom Power Supply for Condenser Microphones, 1 Rack Space

The RPB486 powers up to 6 condenser microphones with 48 volts of ultra clean phantom power. The outputs are 1/4" Tip-Ring-Sleeve balanced for easy connection to a digital multi-track recorder. To eliminate the possibility of any DC voltages, the RPB486 features pull-down resistors and isolation capacitors on all outputs.

Features:

• XLR Input, 1/4" TRS Balanced Output.
• +48 Volt Regulated Phantom Power.

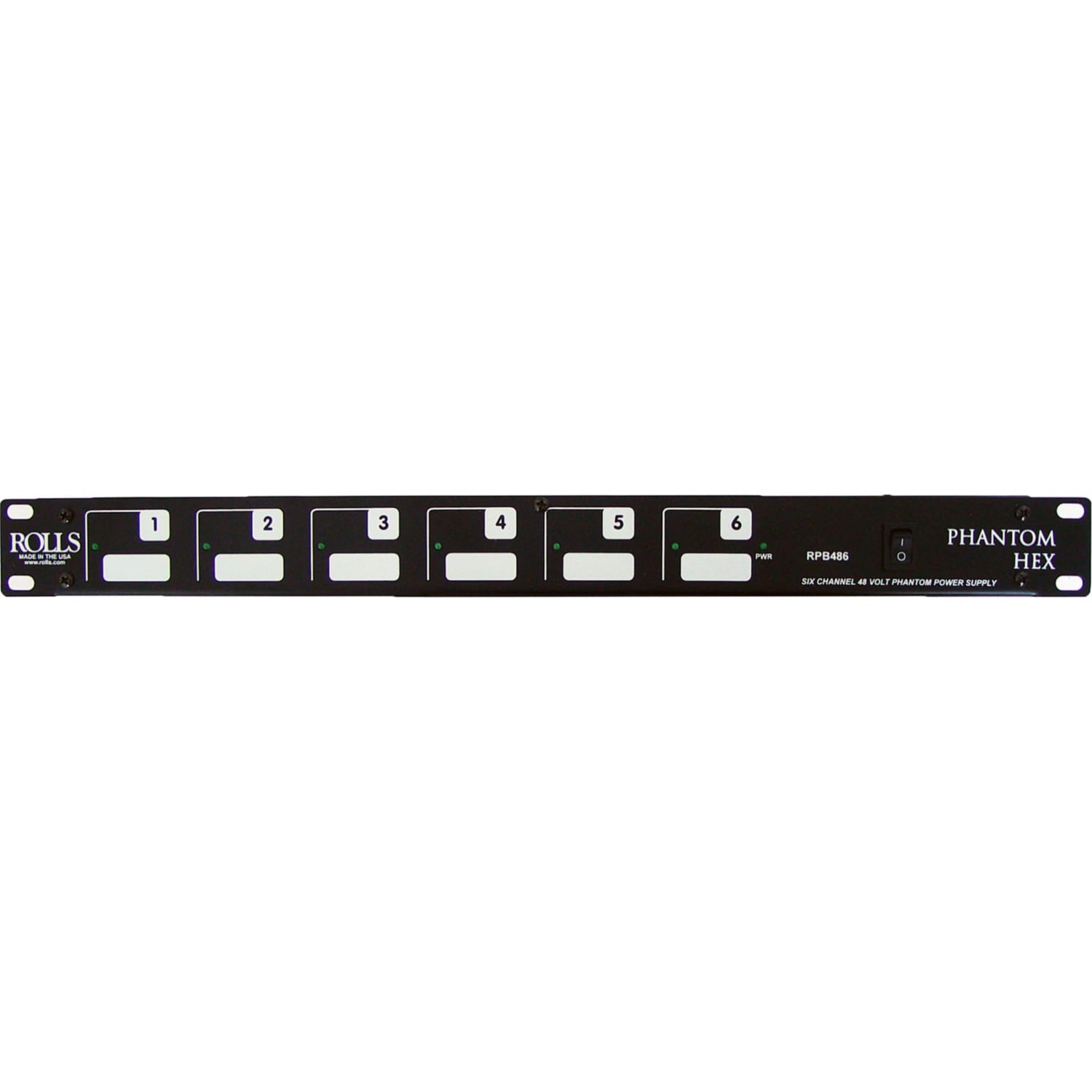

• LED "In Use" Indication.
• Perfect for digital multitrack use.

Specifications:

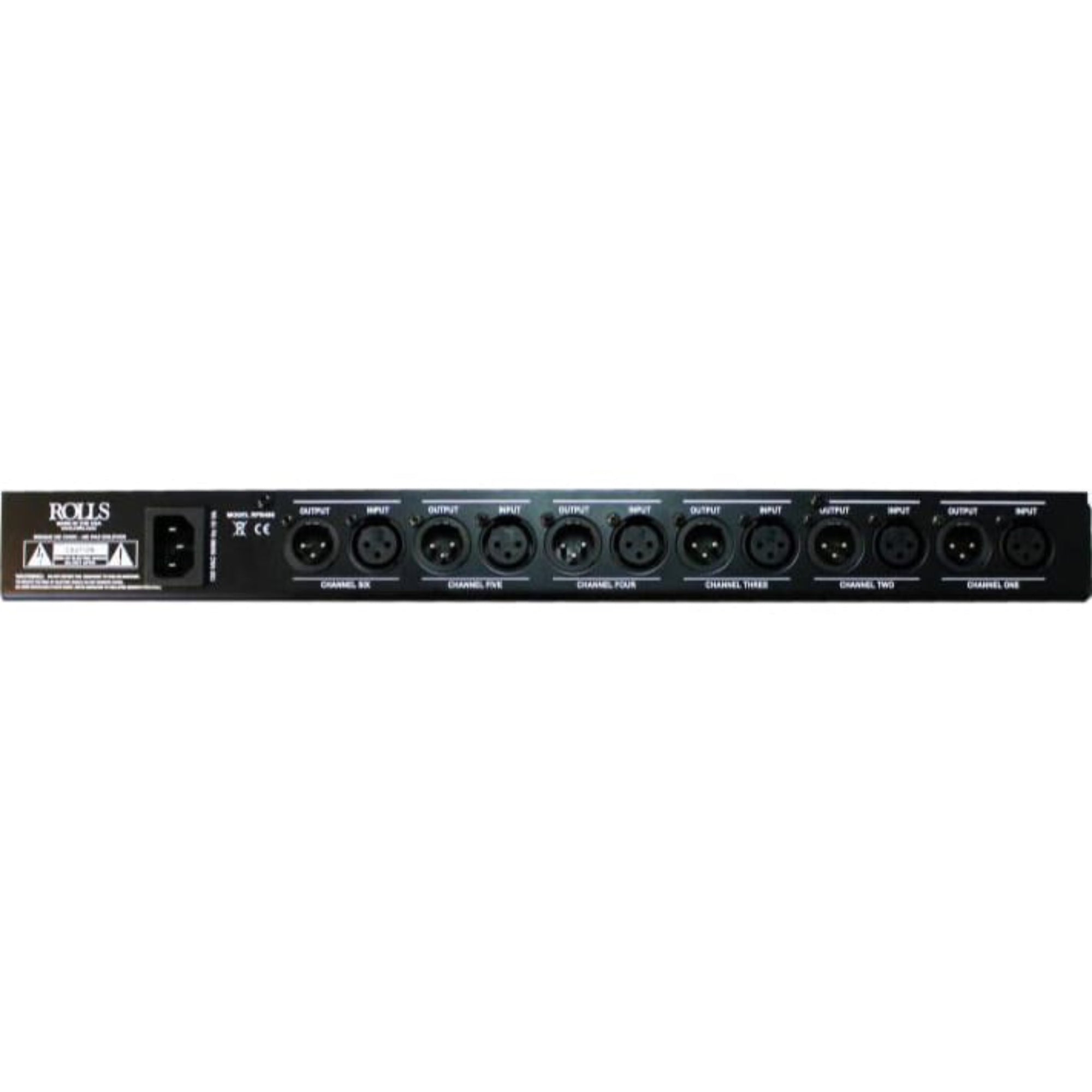

• Connectors: 6: XLR female jacks (pin 2 hot), 6: 1/4" TRS jacks (tip positive)
• Phantom Power Voltage: 48 Volts
• Max Phantom Power Current: 14 mA each channel
• Power Supply: Linear 120VAC 50/60Hz
• Size (W x H x D): 19" x 1.75" x 2.5" (48 x 4.5 x 12.7)
• Weight: 4 lbs.
