Rolls RM169 Professional Bluetooth Audio Mixer

Rolls SKU: ROL RM169
MPN: RM169 UPC: 675889001693

Price:
Sale price$347.00
Stock:
Out of Stock, But We'll Ship It Fast!

Key Features

  • 2 XLR Microphone Inputs
  • Individual Phantom Power on Each Mic
  • 4 Stereo RCA Inputs + 3.5mm TRS Input
  • 1/4" Microphone Insert

Description

Mix microphones, wired playback, and Bluetooth in a compact rack setup.

The Rolls RM169 brings two microphone channels and four stereo line-source inputs into a shallow 1U mixer, with Bluetooth connectivity for wireless playback. Stereo XLR and RCA outputs connect the combined mix to compatible sound-system equipment, while a front-panel headphone output provides convenient local listening.

For a presentation room or small venue, you can keep microphones and playback sources connected at the rack, then use the front-panel connections when a temporary source needs to join the setup.

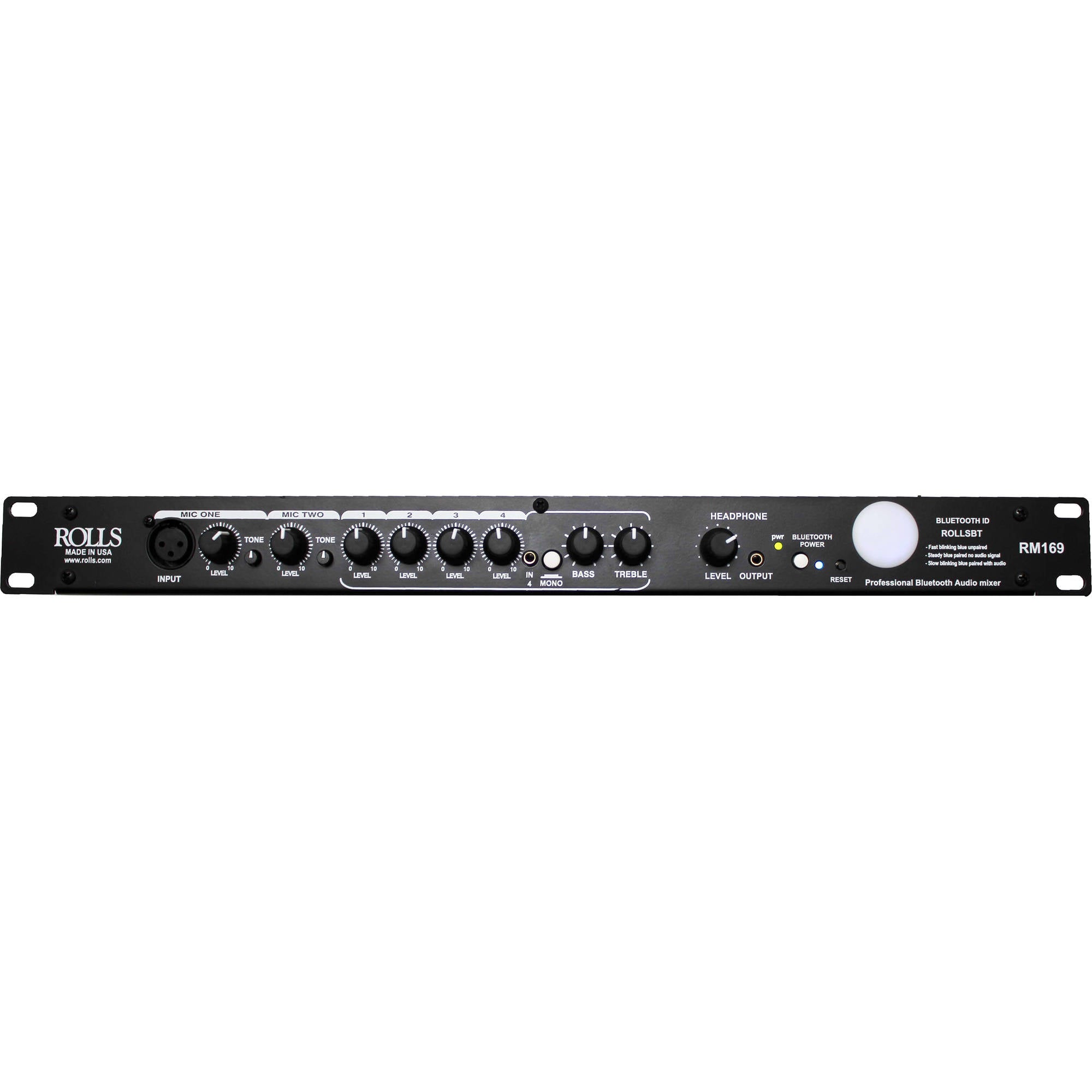

Two microphone channels with front-panel access

The microphone section provides balanced XLR connections, including a paralleled front-panel input. That front connection offers an alternative access point, not a third independent microphone channel. Follow the manufacturer's guidance before using paralleled connectors simultaneously.

Phantom power is individually switchable and listed at 15V DC. Enable it only for microphones that require it and support that voltage; a microphone requiring 48V phantom power is not automatically compatible. A 1/4-inch TRS microphone insert supports compatible external processing using the specified send/return wiring.

Connect wired sources or stream over Bluetooth

Four stereo RCA source inputs and a front-panel stereo 3.5 mm connection accommodate playback equipment. The front-panel jack is an additional connection option, not evidence of another independently controlled source channel.

A dedicated Bluetooth level control sets the wireless playback level in the mix. Wireless performance depends on the connected device, placement, and interference; no fixed operating range is assumed.

Feed your sound system and monitor locally

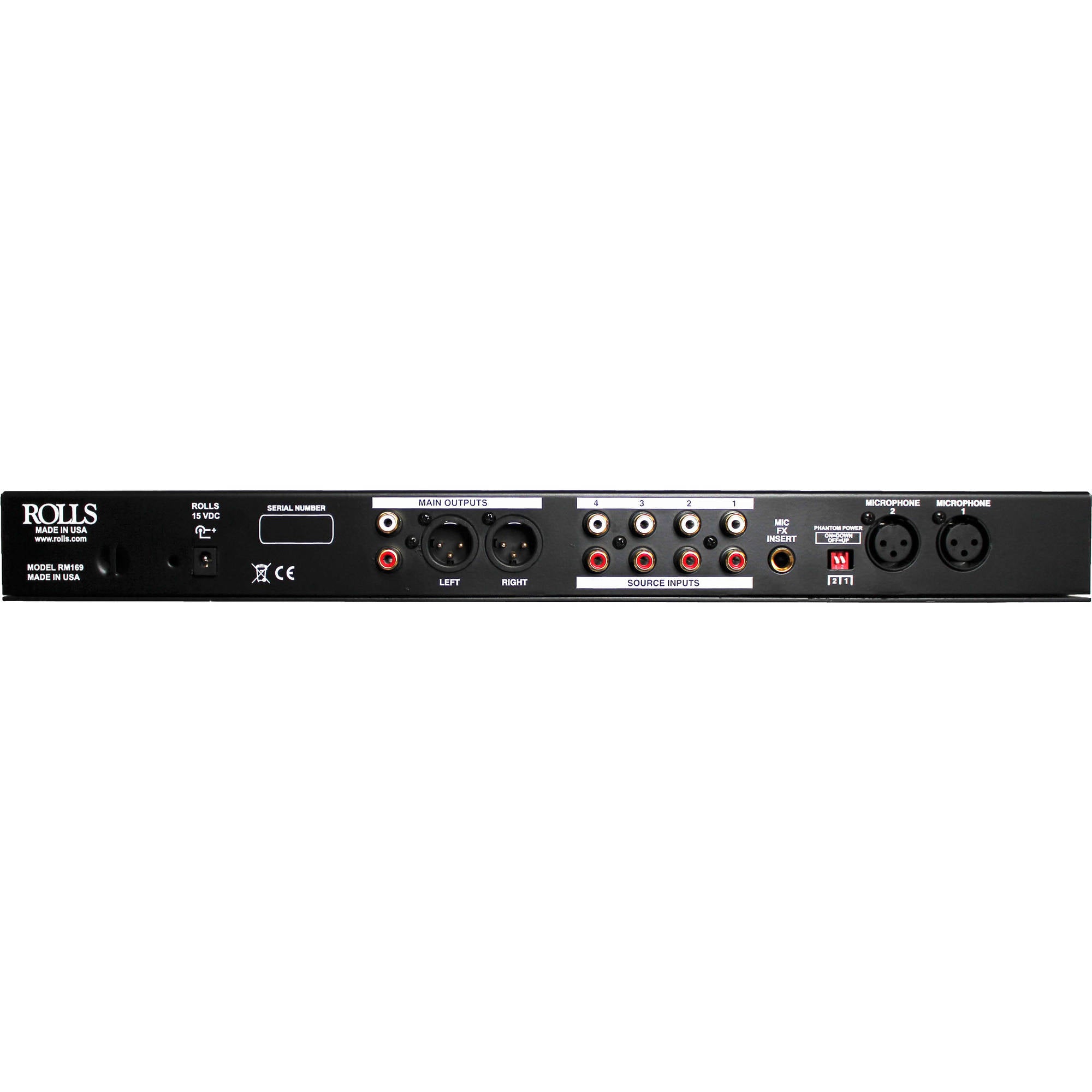

Use the balanced XLR outputs or unbalanced stereo RCA outputs to feed suitable line-level equipment such as powered speakers, processors, or a separate power amplifier. The RM169 does not directly power passive speakers, and its different output connectors do not establish separate zone mixes.

The front-panel headphone output has its own volume control for local listening. Start at a low level and increase gradually. Bass and treble controls provide tonal adjustment, with listed ranges of ±12 dB at 100 Hz and 11 kHz respectively.

At a glance

  • Microphone channels: Two, with balanced XLR connections and a paralleled front-panel input
  • Wired sources: Four stereo RCA inputs plus a front-panel stereo 3.5 mm connection option
  • Wireless playback: Bluetooth input with dedicated level control
  • Phantom power: Individually switchable, listed at 15V DC
  • Processing connection: 1/4-inch TRS microphone insert
  • Main outputs: Stereo balanced XLR and unbalanced RCA
  • Monitoring: Front-panel headphone output with volume control
  • Maximum listed gain: 60 dB microphone; 26 dB source
  • Listed input impedance: 600 ohms microphone; 22 kilohms RCA source
  • Listed output impedance: 51 ohms
  • Maximum listed output level: +17 dBV
  • Listed power requirement: 15V DC, 100 mA current drain
  • Rack format: 1U, 19-inch rack
  • Listed dimensions: 19 × 1.75 × 4 inches
  • Listed weight: 5 lb (2.3 kg)

Use a manufacturer-approved power supply and confirm its voltage, polarity, connector, and current capacity before connection.

Details
  • Manufacturer:  Rolls
  • MPN: RM169
  • Model Number: RM169
  • UPC: 675889001693
