Key Features
- Compact and Mountable
- Class-D Amplifier
- RCA & Screw Terminal Inputs
- Phoenix I/O
- Individual Level Controls
- Stereo or Bridged Operation
- Switchable Limiter
- Includes Power Adapter
Description

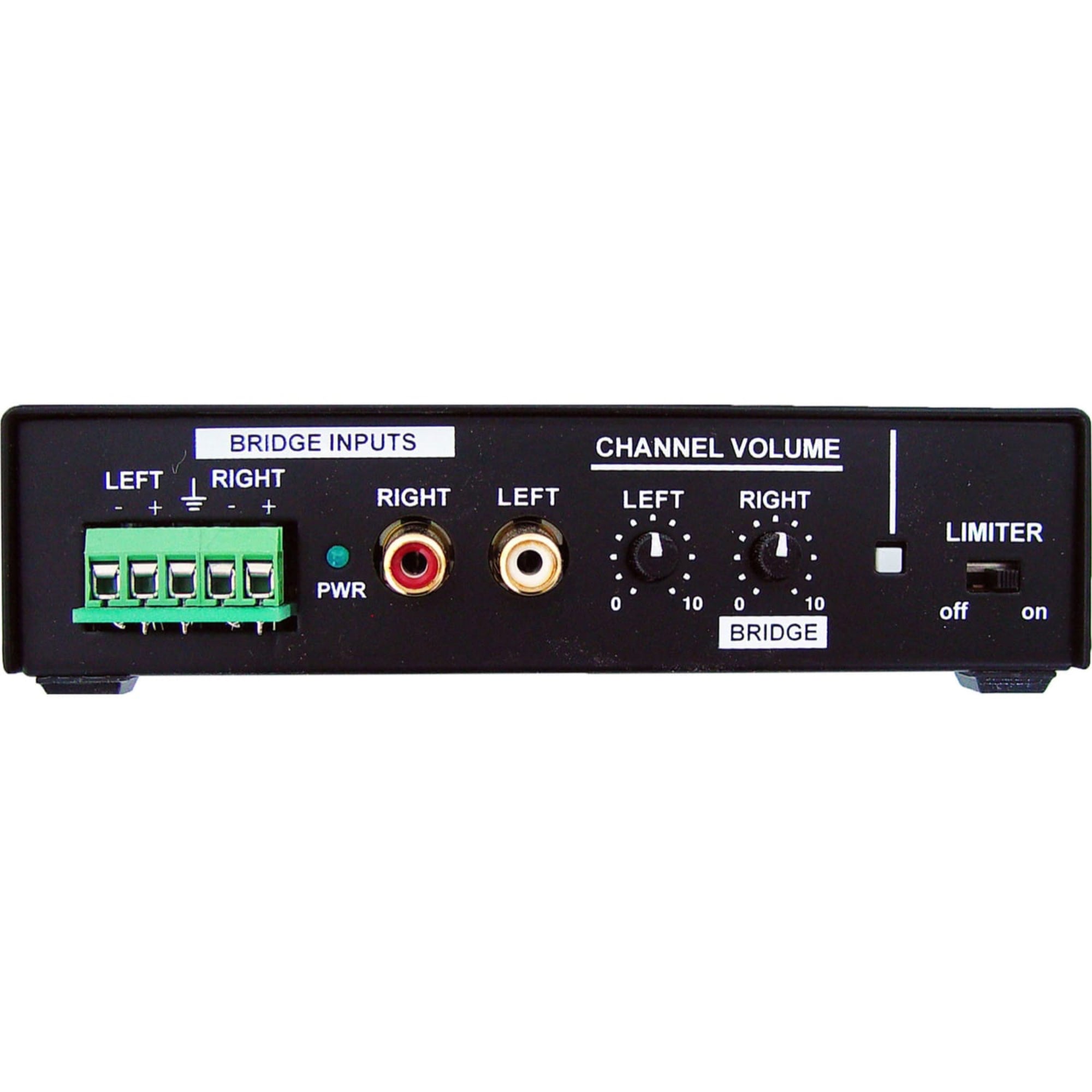

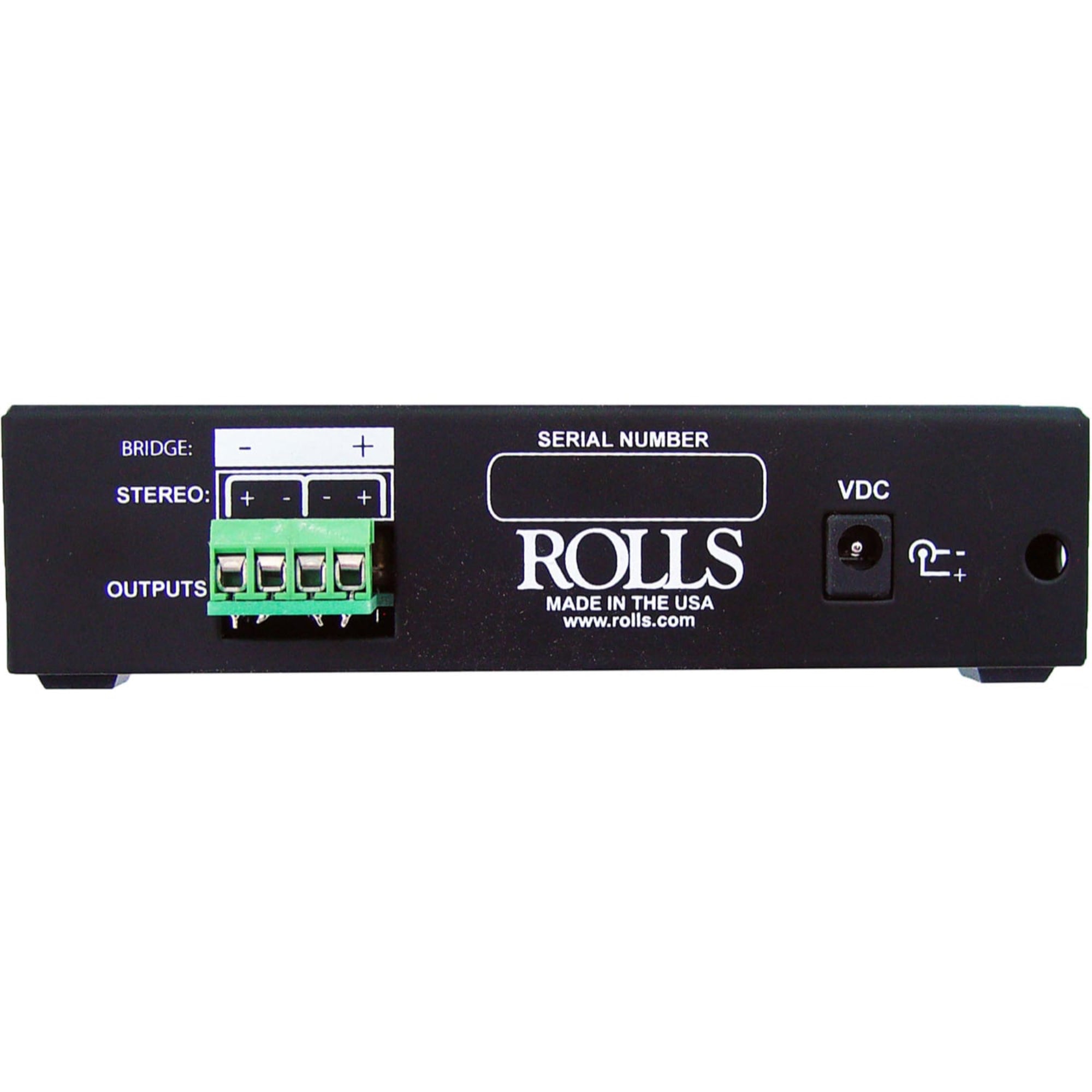

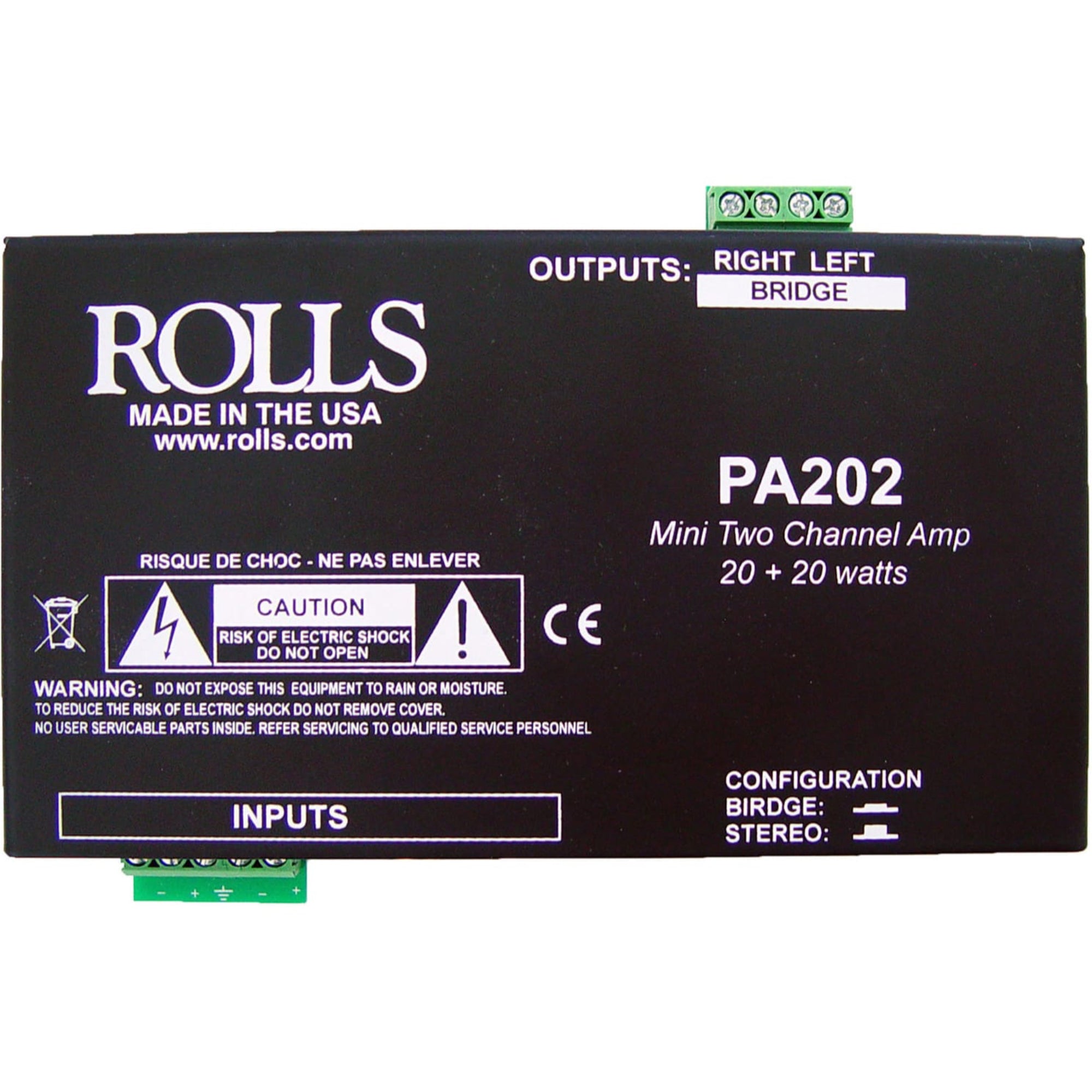

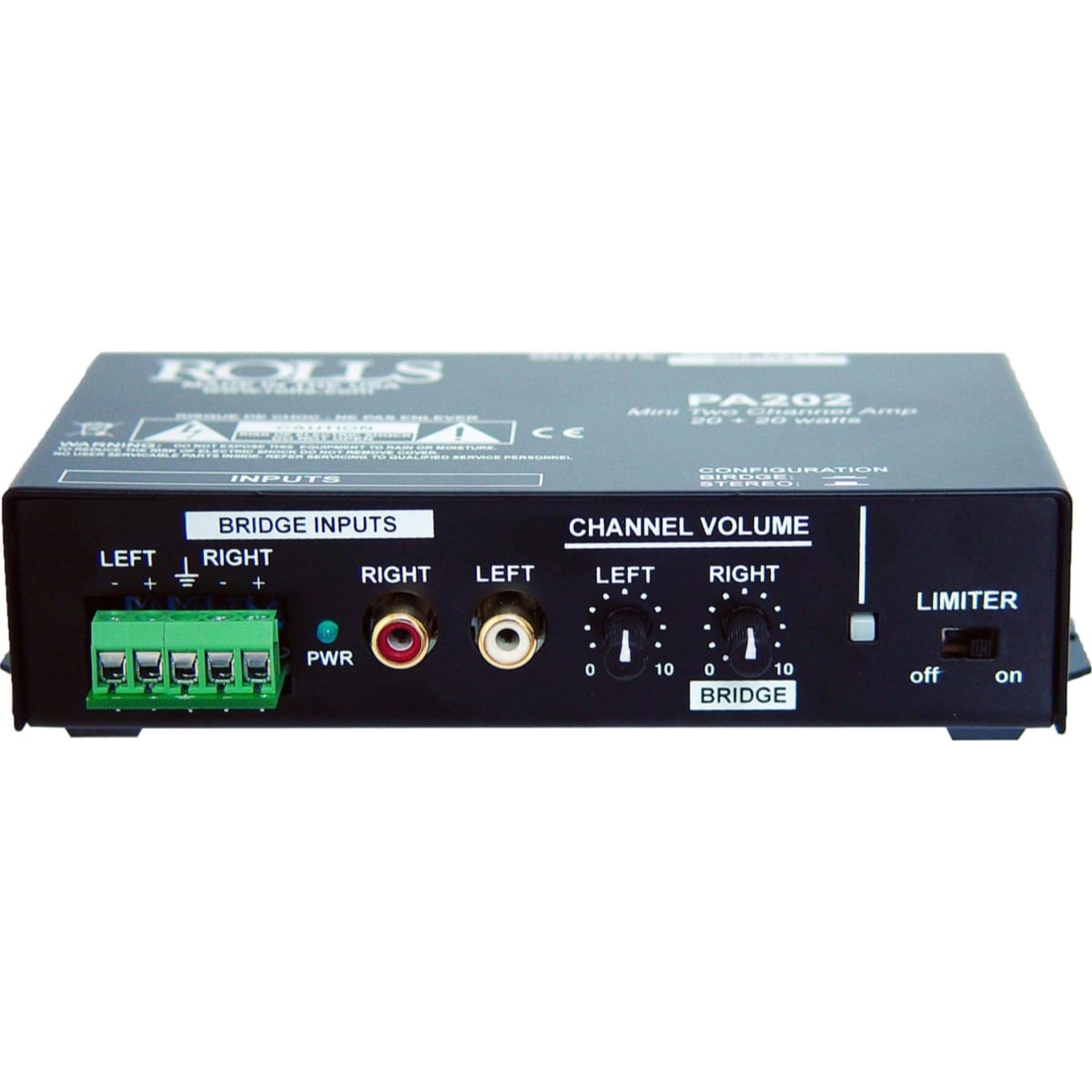

Mini 2-Channel Class-D Amplifier, 20 Watts per Channel
Small general purpose audio power amplifier for projector, ceiling mount, or rack monitoring. Great for boardroom and classroom applications. Ideal for small space installations where a larger amplifier won't fit. Works with 4 or 8 ohm loads. Has bridge switch for higher power mono and a limiter. Included 24 VDC inline IEC power supply.
Features:
- Small size with mounting tabs
- Balanced and Unbalanced Inputs
- Pheonix type input and output
- Low cost, helps win your bid
- Optical Limiter for maximum clean power output
- Bridge switch for 40W mono operation
- Included 24 VDC inline IEC power supply.
Specifications:
- Input Connectors: Screw Term & Dual RCA
- Outputs Connectors: Screw Terminals
- Max Gain: 34 dB/Channel
- Bandwidth: 20 - 25KHz
- Voltage Gain: 32 dB
- Input Sensitivity: 28 mV
- Included 24 VDC inline IEC power supply.
- Line Input Impedance: 47K Ohms
- Power Output: 20 watts X 2 @ 4 Ohms, 40 watts bridge @ 8 Ohms
- Maximum Supply Voltage: 30 VDC
- THD: .05% typical
- EIN: 3 mV
- Efficiency: 85%
- Cooling: Conection Cooling (No Fans)
- Standby and Idle Current Draw: .005/.01 Amps
- Signal to Noise: >100 dB
- Size: 4.25 x 1.5 x 2.375 (W x H x D)
- Weight: 1 lb.
Details
- Manufacturer: Rolls
- MPN: PA202
- Model Number: PA202
- UPC: 675889020205
