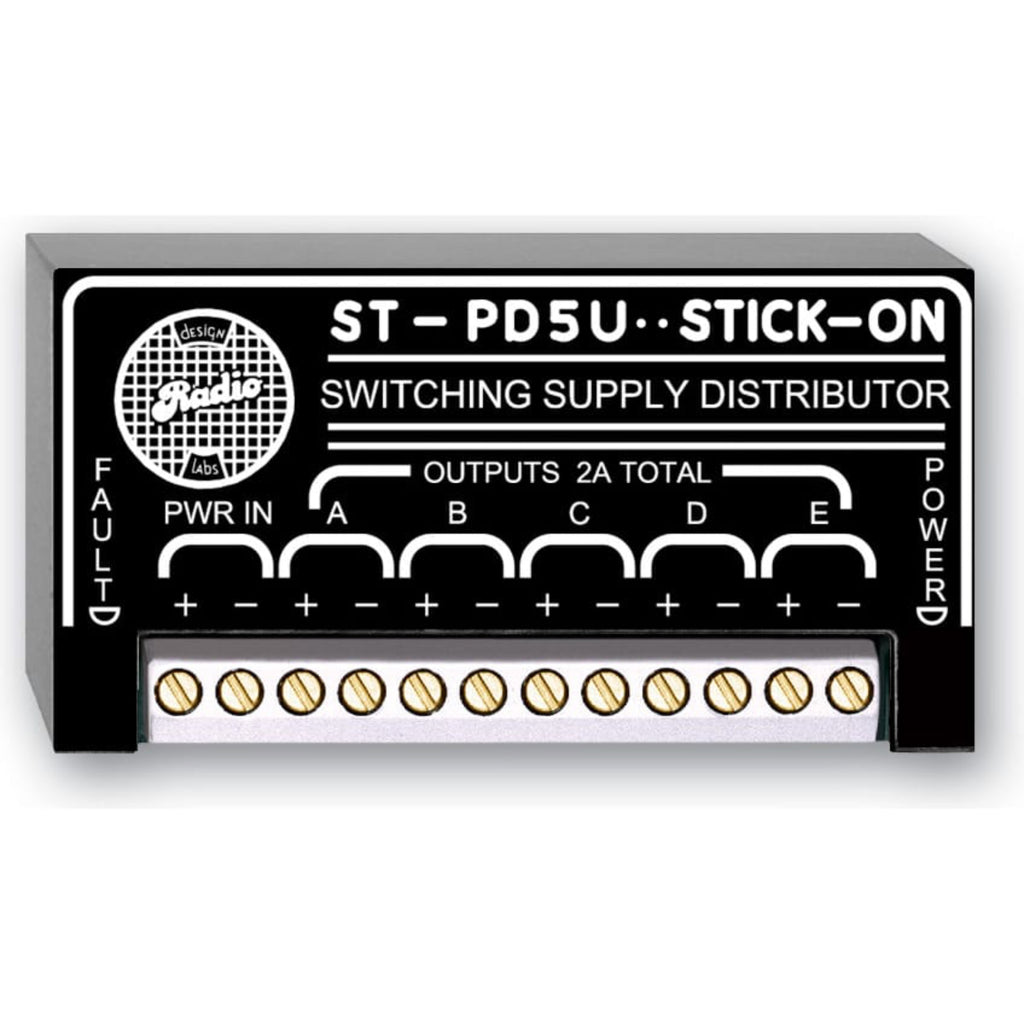

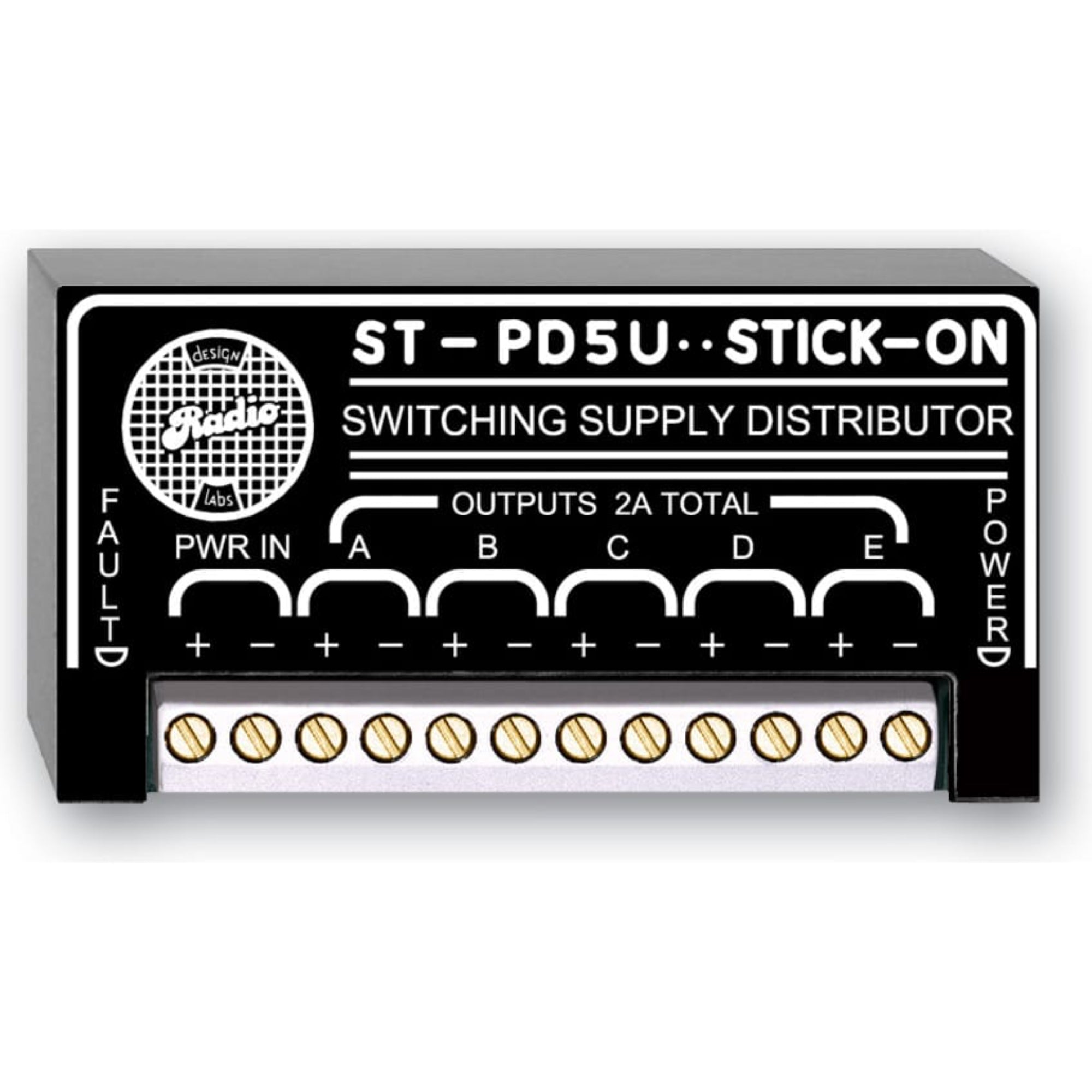

RDL ST-PD5U Power Distributor Switching

Power Distributor - Switching - (PS-24AS/PS-24KS/PS-24V2A)

The ST-PD5U is the ideal choice where power distribution from a current-limited switching power supply is needed. It is suitable for powering up to five modules from a single power supply. The current limiting circuitry in many switching power supplies will cause the supply to shut down upon power-up when a high current capacitive load is connected. Upon application of power, the ST-PD5U ramps the voltage up, charging any load capacitance as quickly as possible, then switching full voltage to the load. If reverse polarity is connected to the input, the ST-PD5U disconnects the load until the condition is corrected.

In system design, various modules are frequently operated from a single power supply. Good engineering practice requires that the power wiring to each module originate at the power supply output. The ST-PD5U serves as the power source for each of five modules. A single ST-PD5U can provide power to RDL's floating modules. A separate ST-PD5U can provide power to ground-referenced modules. (Do not attempt to intermix floating and ground-referenced modules from a single ST-PD5U.) Note: If using a linear power supply, distribute the voltage to multiple modules using an RDL ST-PD5

Wherever power distribution from a switching power supply is needed, the ST-PD5U is the ideal choice. Use the ST-PD5U combined with other RDL RACK-UP, STICK-ON, Flat-Pak or TX series products as part of a complete audio/video system.

Features:

• Distribution of 24 Vdc Power
• Soft-Start from Switching Supply
• Distribution of dc Power
• Up to 5 Power Distribution Points
• Voltage Presence Indication
• Reverse Voltage Protection

Specifications:

• Input/Output Voltage:24 Vdc @ 2 A (Intended for use with current limited switching supply)
• Number of Outputs (5):Total load current must not exceed 2 A
• Indicators (2):POWER LED
• FAULT LED
• Ambient Operating Environment:0 C to 50 C
