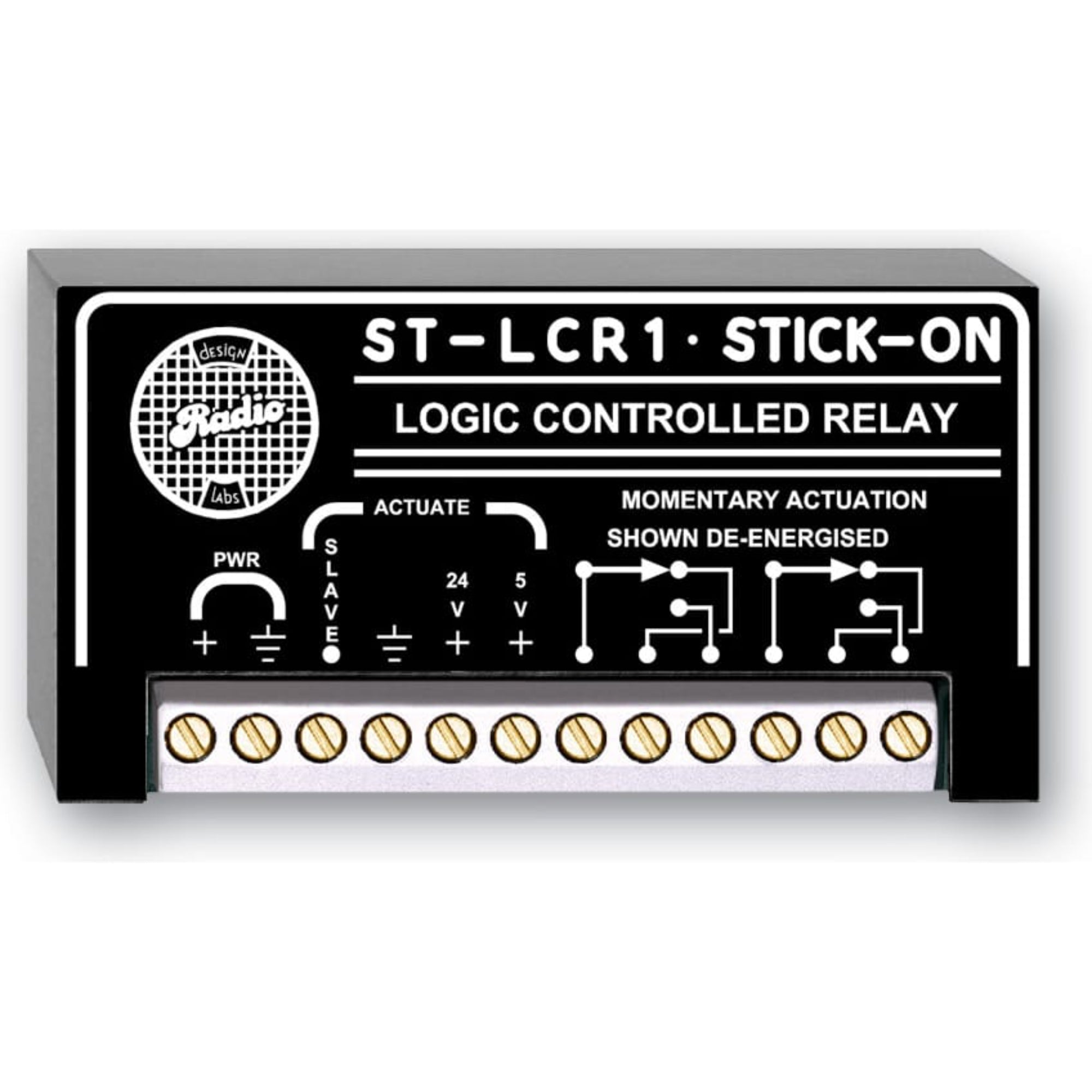

RDL ST-LCR1 Logic Controlled Relay Momentary

Logic Controlled Relay - Momentary

The ST-LCR1 provides double-pole, double-throw dry switching contacts and LED indicator for relay closure. The ST-LCR1 provides momentary operation and is ideally suited where additional switching contacts are needed to be added to nearly any type of control signal.

Features:

• Add Contacts to Any Control Signal
• Activation from Logic Circuits
• DPDT Switching Relay
• Open-Collector Switching
• Control from Switch, Button or Logic Circuits

Specifications:

• Control Inputs:SLAVE terminal used as an input from remote push-button or switch turns on relay when that switch is on. Activation is by connecting this input to Ground. Input from other equipment's open-collector output turns relay on when open-collector is on.
• Note: RDL switching STICK-ONs have open-collector outputs suitable for driving an ST-LCR1.
• 5V+ accepts 3.5 to 12 Vdc to turn on relay. Relay is on only when this control signal is applied.
• 24V+ accepts 12 to 35 Vdc to turn on relay. Relay is on only when this control signal is applied.
• Control Output:SLAVE terminal open-collector @ 25 mA suitable to drive indicators or slave LCRs
• Switching Contacts:Double-pole, double-throw
• Maximum Switching Power: 60 W (220 Vdc, 125 Vac, 2 A)
• Power Requirement:GROUND-REFERENCED, 24 Vdc @ 50 mA *
• * Assumes 20 mA max load at SLAVE output
• Ambient Operating Environment:-10 C to 55 C
