Key Features
- Converts RS-232 - RS-422
- Serial Data Over Long Lines
- Rack-Mountable Convenience
Description

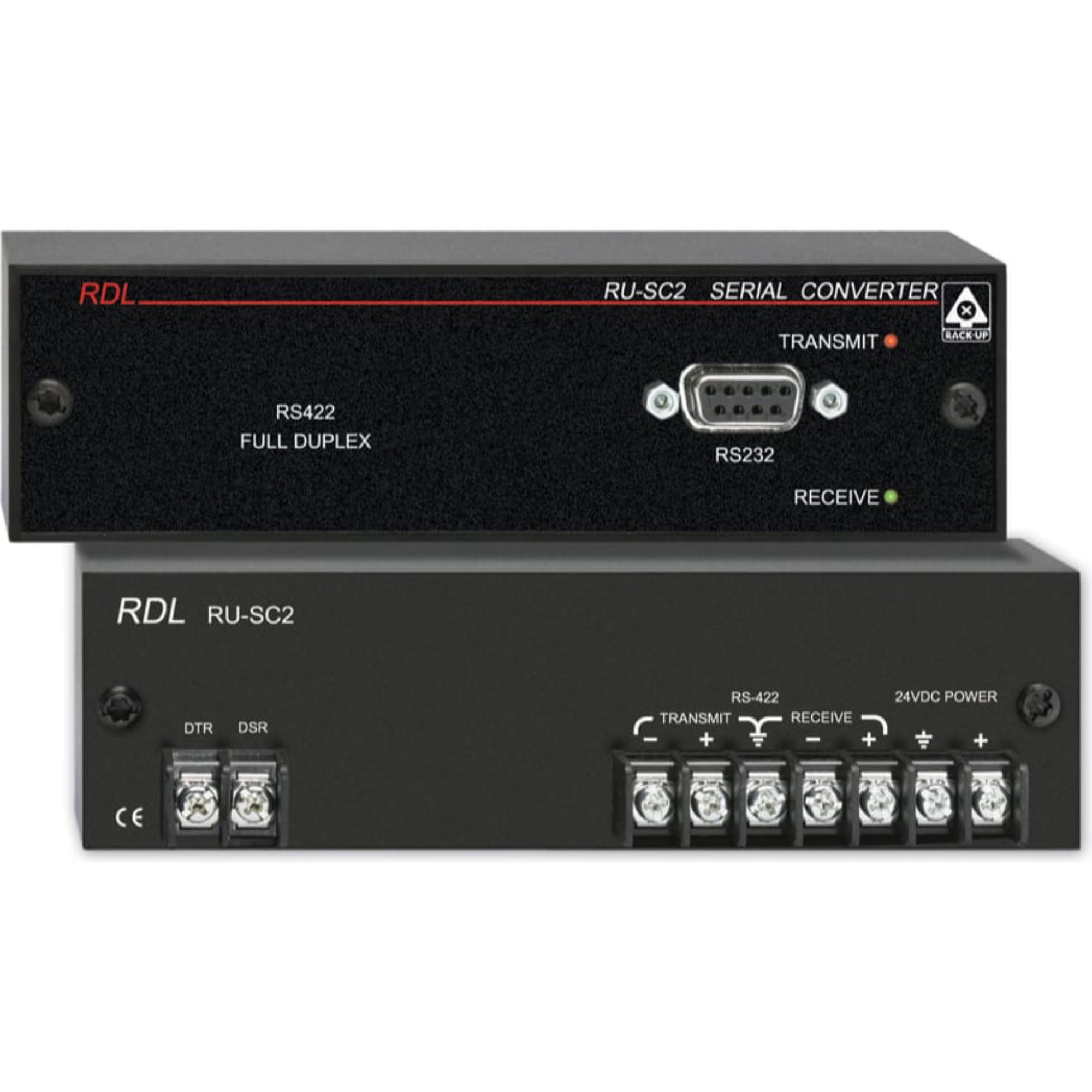

RS-232/422 Serial Converter (Full-Duplex)
The RU-SC2 is the ideal choice in installations when two RS-232 devices requiring full-duplex communication are to be connected at a long distance. Connection to the RS-232 device is made on the front panel. The RS-422 input and output connections and power connections are made on the rear panel through full-size, clearly identified, barrier block terminals. Two RU-SC2s may be connected (using the RS-422 connections) at each end of 2-pair of long, balanced, twisted-pair line to permit feeding data between two RS-232 ports, thereby permitting serial communications over much greater distances than with conventional serial cables.
Features:
- Conversion RS-232 - RS-422
- Serial Data Over Long Lines
- Rack-Mountable Convenience
Specifications:
- Input/Output: 1 each RS-232 (front panel-DB9 female) and RS-422 (rear-panel barrier block)
- Baud Rate: Determined by RS-232 device, up to 115.2 kbps
- Indicators: 2 LED indicators (Transmit and receive)
- Power Requirement: GROUND-REFERENCED, 24 Vdc @ 125 mA
- Ambient Operating Environment: 10 C to 55 C
Details
- Manufacturer: RDL
- MPN: RU-SC2
- Model Number: RU-SC2
- UPC: 813721012784
