RDL RU-MX4LT Professional 4 Channel Line Level Mixer with Transformer

Professional 4 Channel Line Level Mixer with Transformer - Microphone and Line Output

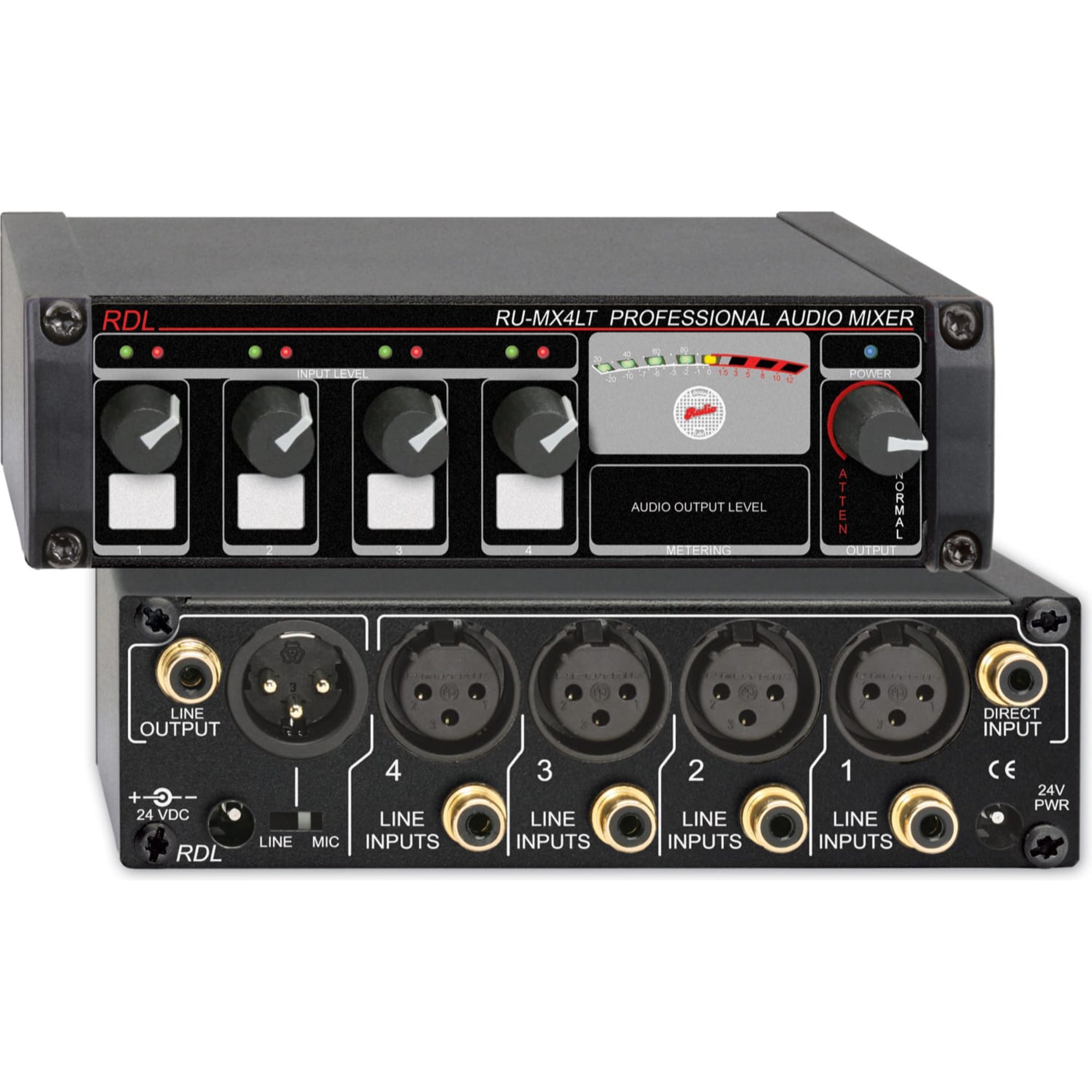

The RU-MX4L is the ideal choice in many applications where a combination of balanced and/or unbalanced line-level signals needs to be mixed. Balanced connections use XLR connectors. Unbalanced signals are coupled through phono jacks. Each of the four RU-MX4L inputs can accept either a balanced XLR line-level input or an unbalanced line-level phono jack input. The unbalanced phono jack LINE OUTPUT from one RU-MX4L may connect to the unbalanced input of other equipment, or may be connected to the DIRECT input of another RU-MX4L or an RU-MX4 to expand mixing capabilities. Up to 3 RU-MX4 type mixers may be rack mounted in a single rack unit using an RDL RU-RA3HD rack adapter. The RU-MX4L provides one balanced output, switchable for mic or line level. Audio levels are adjustable on the front panel. Each input channel is equipped with a front-panel dual-LED VU meter that follows standard VU ballistics. The final mix is displayed on an LED string VU meter featuring a visually comfortable arc motion. A factory installed output isolation transformer is available by ordering the RU-MX4LT.

Features:

• Four Channel Line-Level Audio Mixer
• XLR Balanced, Phono Jack Unbalanced Inputs
• Mic or Line XLR Output, Switchable
• Unbalanced Line Output and Direct Input
• Studio Quality, Low-Noise Performance
• Expansion Bussing Capability
• Additional Line Inputs Bussed to an RU-MX4
• Output Isolation Transformer (RU-MX4LT)

Specifications:

• Balanced Line Inputs(4): 20 kΩ balanced bridging
• Balanced Line Input Level:
• -13 to +22 dBu for +4 dBu output
• Unbalanced Line Inputs (4):
• 2 kΩ unbalanced
• Unbalanced Line Input Level:
• -25 dBV to +20 dBV for +4 dBu output; -10 dBV nominal
• Gain Adjustments (4):Balanced Line: Off to 17 dB gain
• Unbalanced Line: Off to 27 dB gain
• Output Attenuator:0 dB to infinity
• Frequency Response:20 Hz to 30 kHz (+/- 0.25 dB)
• THD+N:< 0.01%
• Residual Noise (below +4dBu output):
• 4 line level sources (unity gain): < -82 dB (wideband)
• Outputs (2):+4 dBu 150 ohm balanced (switchable to MIC level -45 dBu); -10 dBV unbalanced
• Indicators (17):Dual-LED VU meter for each input; POWER LED;
• LED audio mix level meter, 0 dB = +4 dBu
• VU ballistic: -20 dB, -10 dB, -6 dB, -2 dB, 0 dB, +3 dB;
• Peak reading: +8 dB,+12 dB
• Power Requirement: GROUND-REFERENCED, 24 Vdc @ 150 mA,
• Ambient Operating Environment:0 C to 50 C
