RDL RCX-5CM RCX Room Combining System Controller with Mic Mute

RCX Room Combining System Controller with Microphone Muting

The system controller accommodates a maximum of 5 rooms, combined in any adjacent arrangement. Audio inputs from each room are: LINE (only), MIC+LINE (dynamic mic), MIC+LINE (condenser mic). A front-panel level knob with LED metering is provided for each room input. MUSIC and PAGING inputs may feed each room if desired. Two RCX-5Cs may be linked in larger systems where two groups of rooms need to be combined. The standard RCX-5C does not mute mics in a room while listening to music.

The RCX-5CM is an RCX-5C that mutes the mics in a room while listening to background music.

Features:

• Controls audio sources and amplifier inputs for up to 5 rooms
• Music input may be selected from a non-combined room
• Paging input can override normal operation if required
• Simple, straightforward programming and operation
• Programmable to accommodate a wide range of room layouts
• Connects to wall mounted remote input panels
• Mic and/or Line input for each room

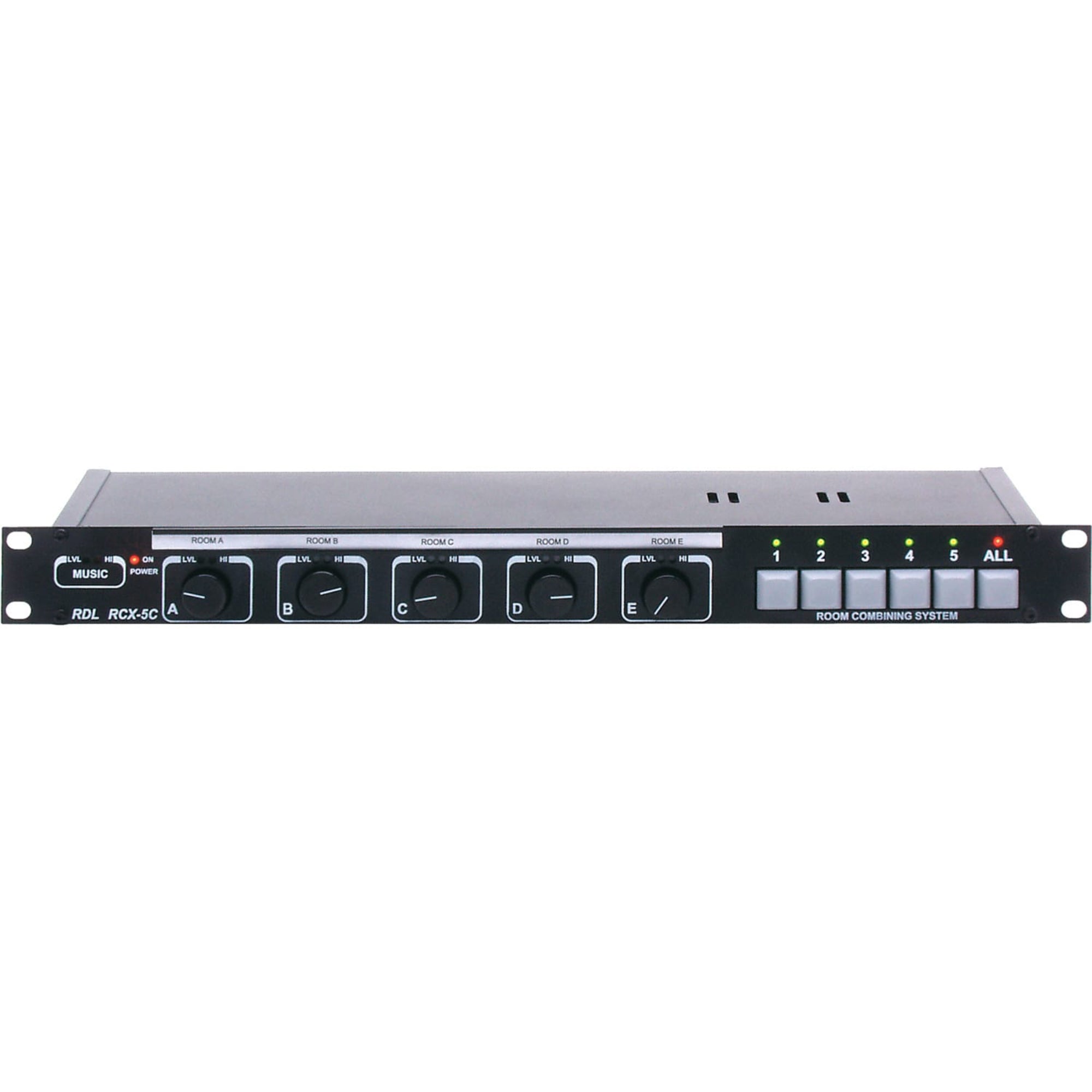

• Front-panel volume adjustment per room
• RDL Dual-LED VU metering for each source
• All electronic switching and gain control with memory
• Two controllers may be linked in larger systems

Specifications:

• Ambient Operating Environment: 0 C to 50 C
