Key Features
- Power up to 3 Modules
- From Single Power Supply
- Distributes 24 Vdc Power
- Front Panel Switch
- Blue LED Indicator
Description

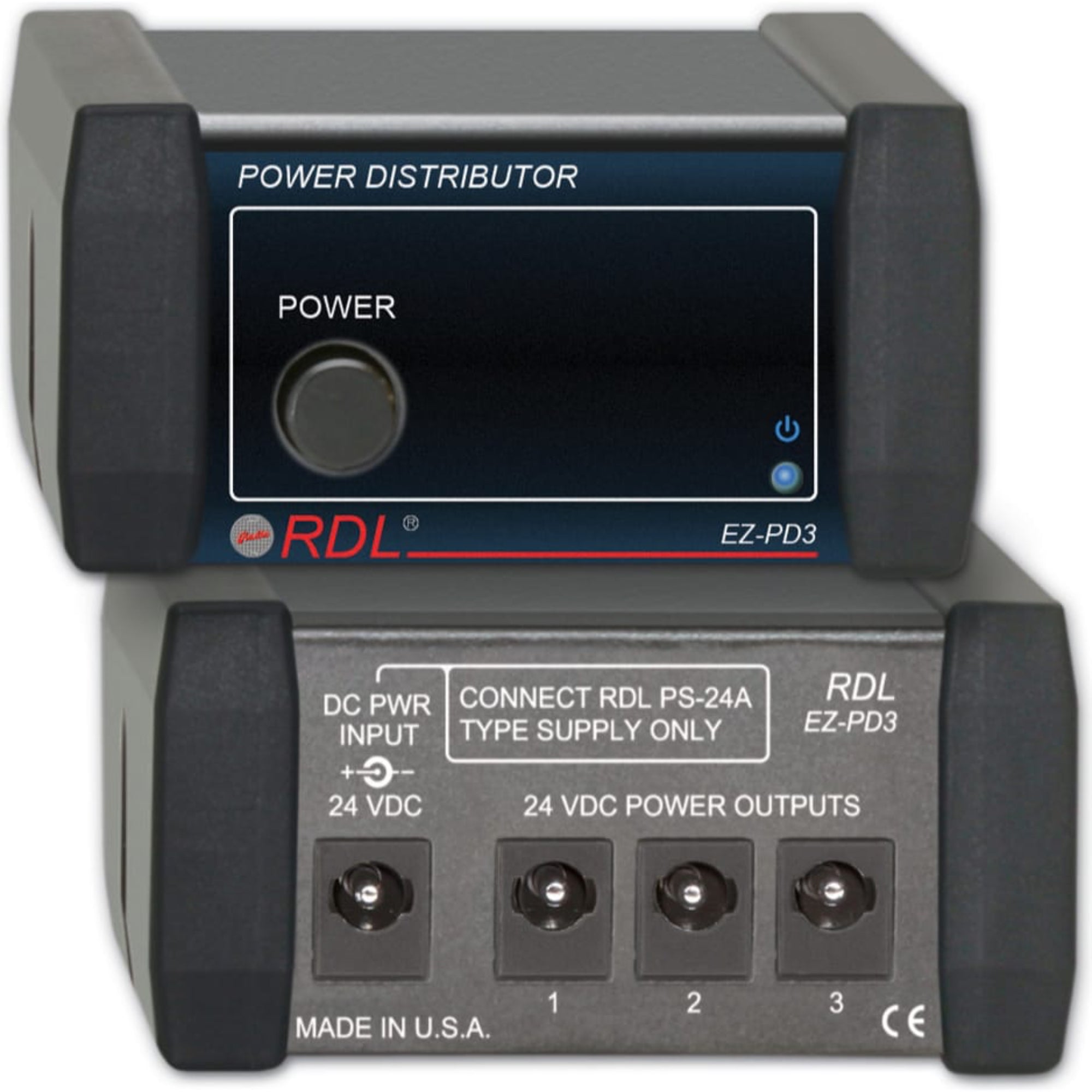

Power Supply Distributor
The EZ-PD3 is the ideal choice where power distribution from a current-limited switching power supply is needed. It is suitable for powering up to three EZ modules from a single power supply. Upon application of power, the EZ-PD3 ramps the voltage up, charging any load capacitance as quickly as possible, then switching full voltage to the load. A front-panel power switch is provided. The front-panel blue LED remains illuminated when the outputs are active.
Features:
- Distribution of 24 Vdc Power
- Soft-Start from Switching Supply
- Outputs may be Activated by a Front-Panel Switch
- Up to 3 Power Distribution Points
- Voltage Presence Indication
- Reverse Voltage Protection
- Energy Efficiency by Powering Multiple Products from a Single Power Supply
Specifications:
- Input/Output Voltage: 24 Vdc @ 600 mA (Intended for use with current limited switching supply)
- Outputs (8) : Total load current must not exceed 600 mA
- Indicator: POWER LED
- Power Requirement: 24 Vdc @ 20 mA plus connected loads
- Ambient Operating Environment: 0 C to 50 C
- Package Dimensions: 3.625 X 4.625 X 2.125 in.; 9.21 X 11.75 X 5.4 cm.
Details
- Manufacturer: RDL
- MPN: EZ-PD3
- Model Number: EZ-PD3
- UPC: 813721010964
