Key Features
- Two Mic Inputs with Phantom Power
- Mix Two Mic & 2 Line Stereo Sources
- XLR, RCA & Stereo Mini-Plug Inputs
- 2-Segment LED VU Meters on Stereo Output
- Gold-Plated RCA Input & Output Jacks
- Made in the USA
- Worldwide Power Supply
Description
Mic and Stereo Line Audio Mixer - 4X1 - Includes Worldwide Power Supply (Specify Plug)

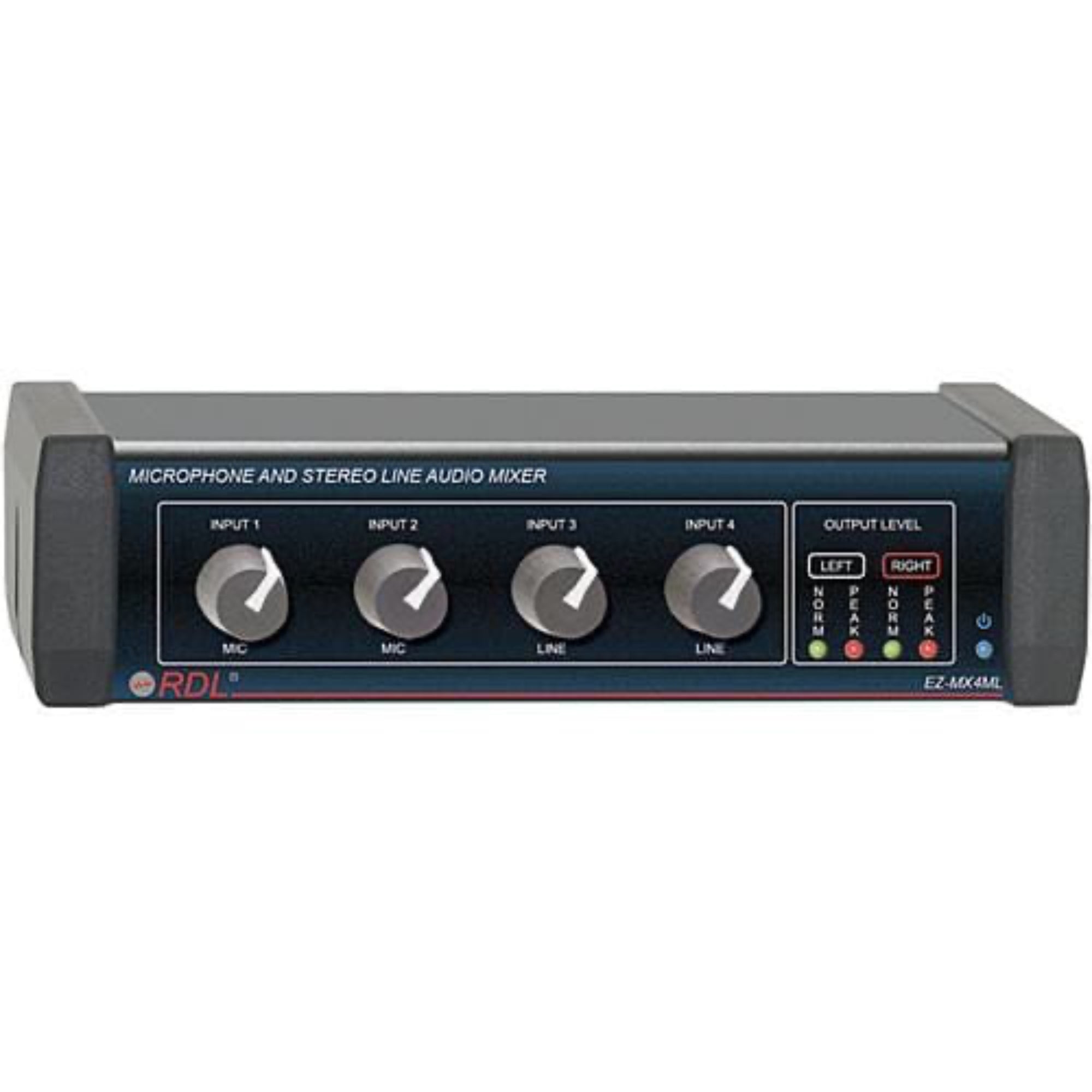

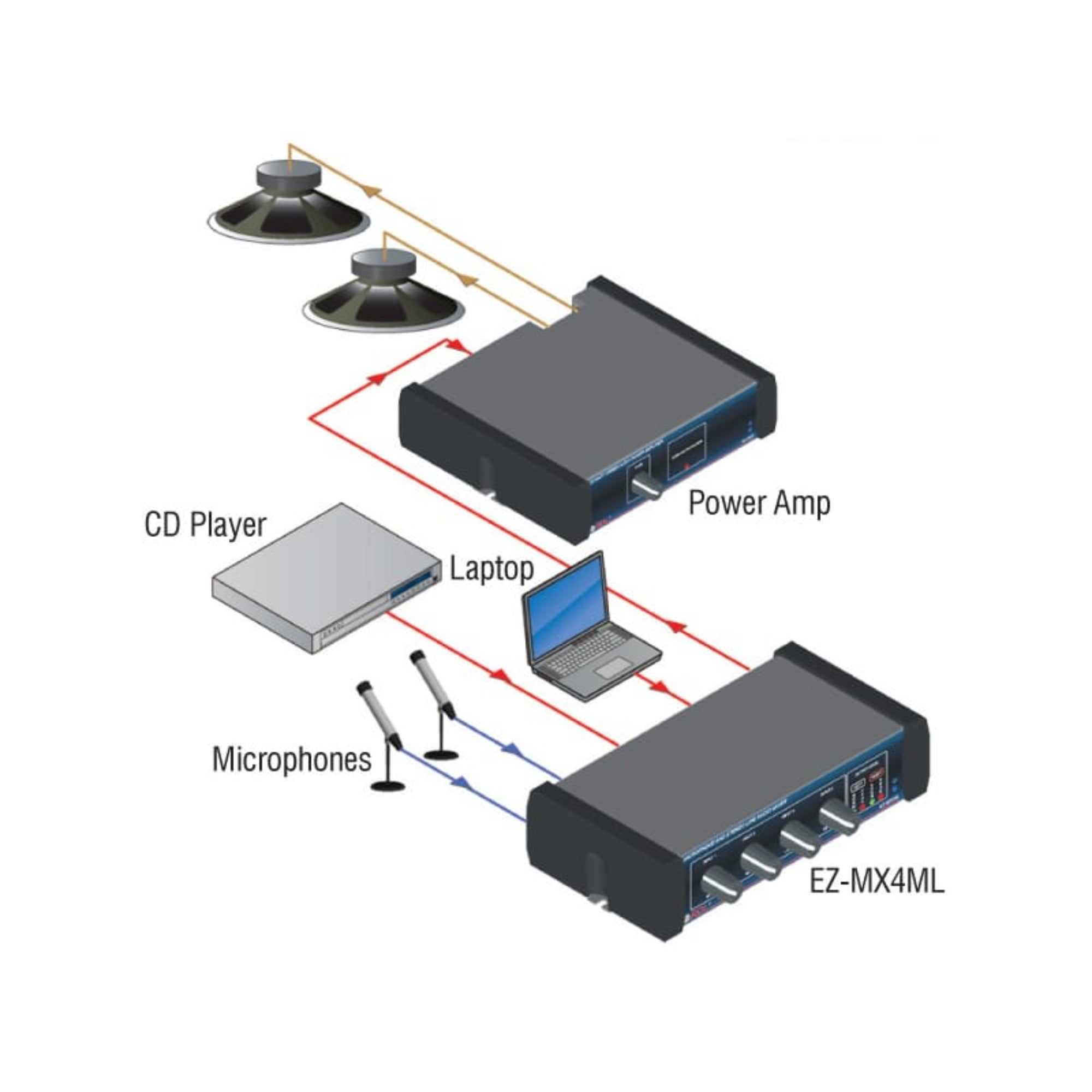

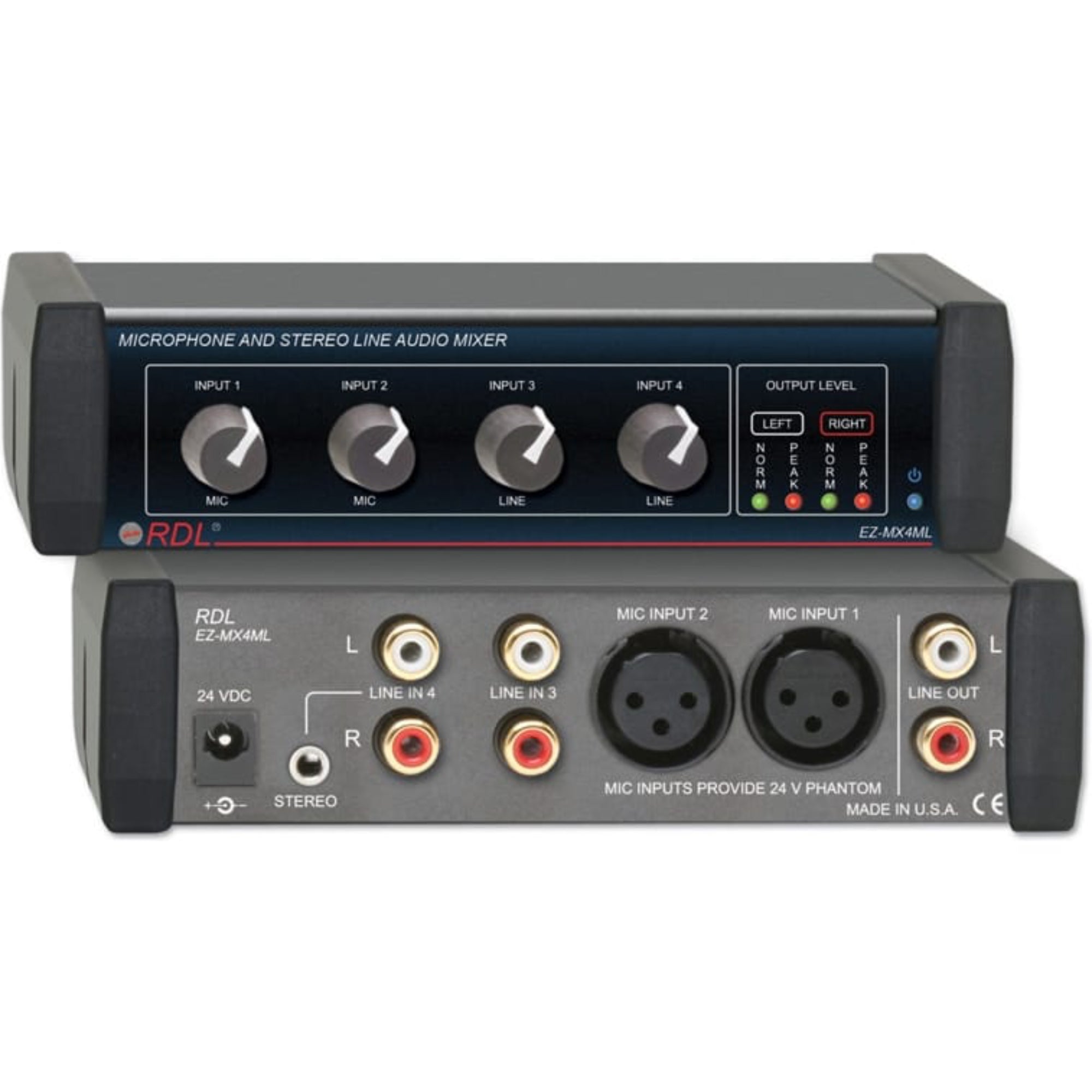

The EZ-MX4ML is a stereo audio mixer with two mic and two line inputs. Microphones connect through balanced XLR jacks that provide phantom voltage. Both line inputs connect through RCA jacks; one also includes a MINI-jack input. Left and right channel LED VU metering facilitates easy level adjustment. The EZ-MX4ML is used in houses of worship, restaurants, clubs, meeting rooms, studios, broadcast and commercial sound systems.
Model numbers:
EZ-MX4ML includes power supply with North American plug
EZ-MX4MLX includes worldwide power supply (specify plug)
Features:

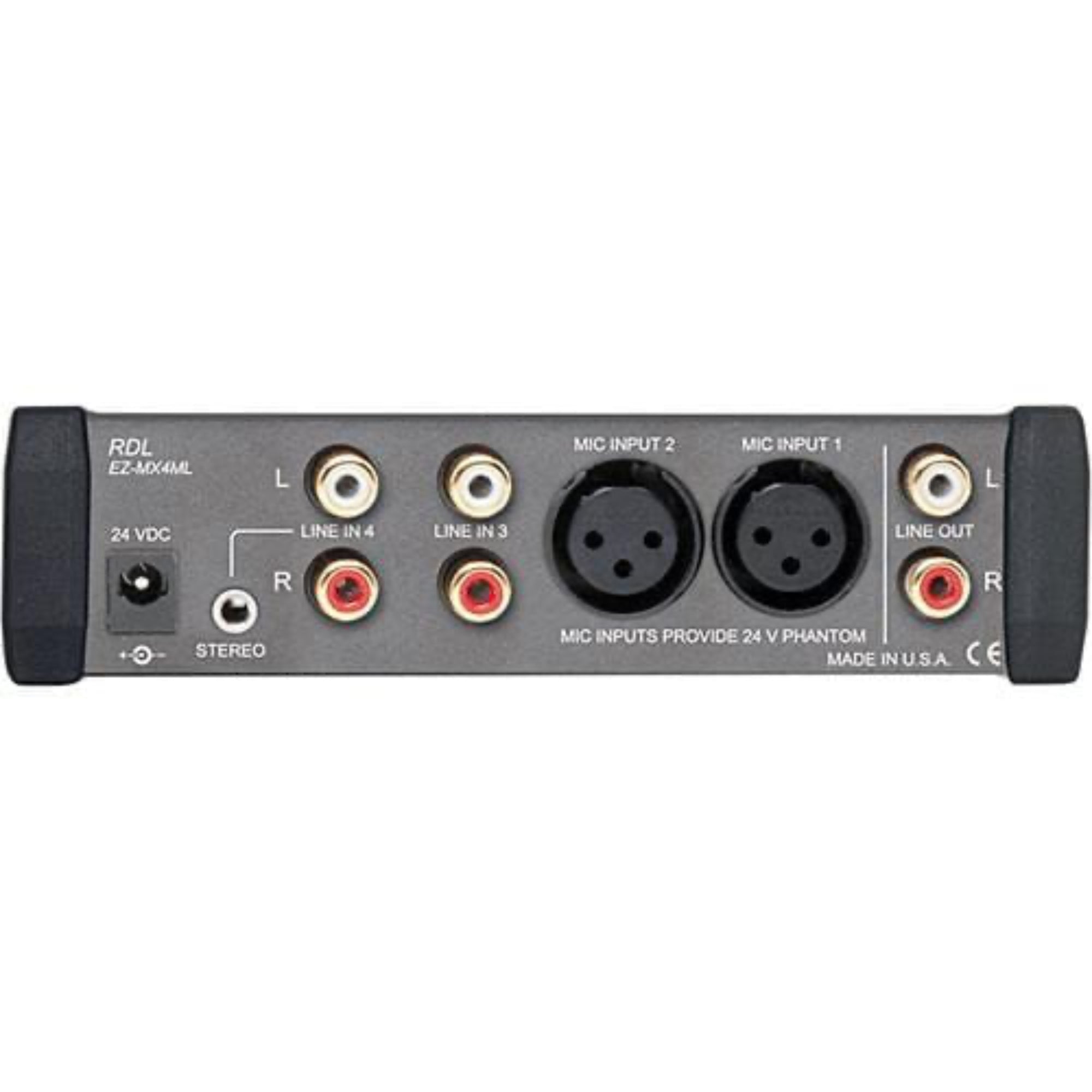

- Four Input Mixer, Two Mic and Two Line Inputs
- Two Balanced Microphone Inputs on XLR
- One Unbalanced Line Input on RCA Jacks
- One Line Input on MINI or RCA Jacks
- Unbalanced Output on RCA Jacks
- Microphone Inputs Provide Phantom Voltage
- Dual-LED VU Meter for Each Channel
- Optimized for Dynamic or Condenser Mics
- Headroom Accomodates High Input Levels
- Mic Headroom Increases at Lower Gain Settings
- Gold Plated RCA Input and Output Jacks
Specifications:
- Mic inputs (2): 1.2 kΩ balanced on XLR jack, mic-level, -11 dBu max.
- Line inputs (3): > 10 kΩ, -10 dBV nominal on RCA jacks, -10 dBV nominal on RCA jacks or Mini Jack, +20 dBV max.
- Level controls (4): Off to 50 dB gain (mic), Off to 12 dB gain (line)
- Output: -10 dBV nominal on RCA jacks or Mini jack (stereo), +16 dBV max.
- Frequency Response: 80 Hz to 40 kHz (+/-1 dB, mic input, -6 dB at 20 Hz with integral high-pass filter), 10 Hz to 20 kHz (+/-0.01 dB, line input)
- THD+N: < 0.1% (20 Hz to 20 kHz, -50 dBu mic input), < 0.05% (20 Hz to 20 kHz, line input)
- Crosstalk: < -72 dB (1 kHz)
- CMRR: > -55 dB (20 to 20 kHz, mic input)
- Metering: Dual-LED VU Meter for Left and Right, calibrated to -10 dBV output
- Phantom: 24 V (IEC 1938: 1996-12)
- Noise: < -65 dB (below -10 dBV output, -50 dBu mic input), < -75 dB (below -10 dBV output, line input)
- 24 Vdc power supply current: 50 mA (idle), 80 mA (max.), 100 mA (max. with phantom)
- Case dimensions: 5.75" (14.6 cm)W x 3" (7.6 cm)D
- Mounting size: 1/3 rack width
