RDL EZ-MX4L Stereo Line-Level Audio Mixer (USA Power Supply)

RDLSKU: RDL EZMX4L
MPN: EZ-MX4L UPC: 813721010117

Price:
Sale price$314.00
Stock:
Out of Stock, But We'll Ship It Fast!

Key Features

  • Mix Four Line-Level Stereo Sources
  • Gold-Plated RCA Input & Output Jacks
  • 1/3 Rack Space Size
  • 2-Segment LED VU Meters on Stereo Output
  • 1/8" Mini Input & Main 1/8" Mini Output
  • Made in the USA
  • North American Power Supply

Description

Stereo Line-Level Audio Mixer - 4X1 - Includes North American Power Supply

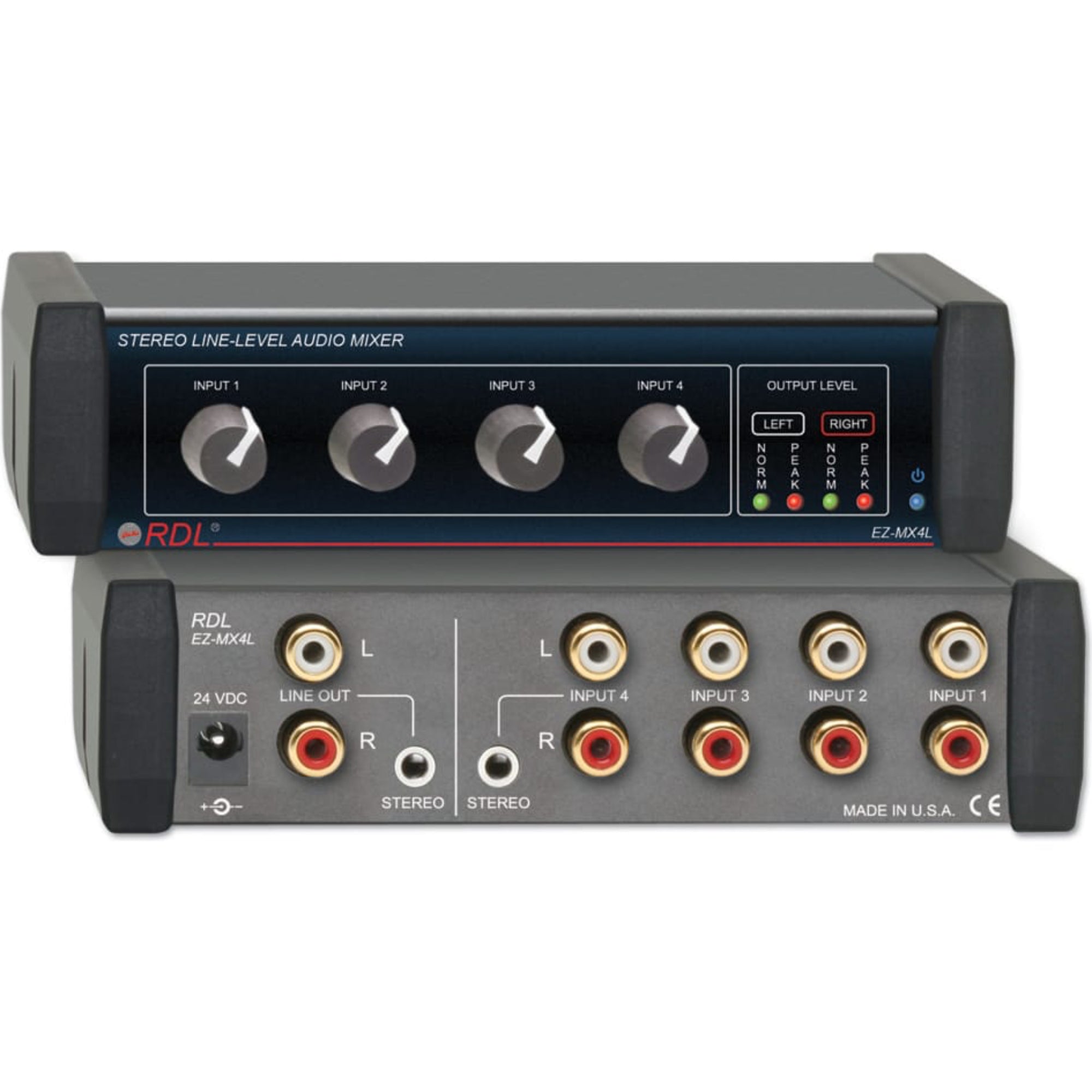

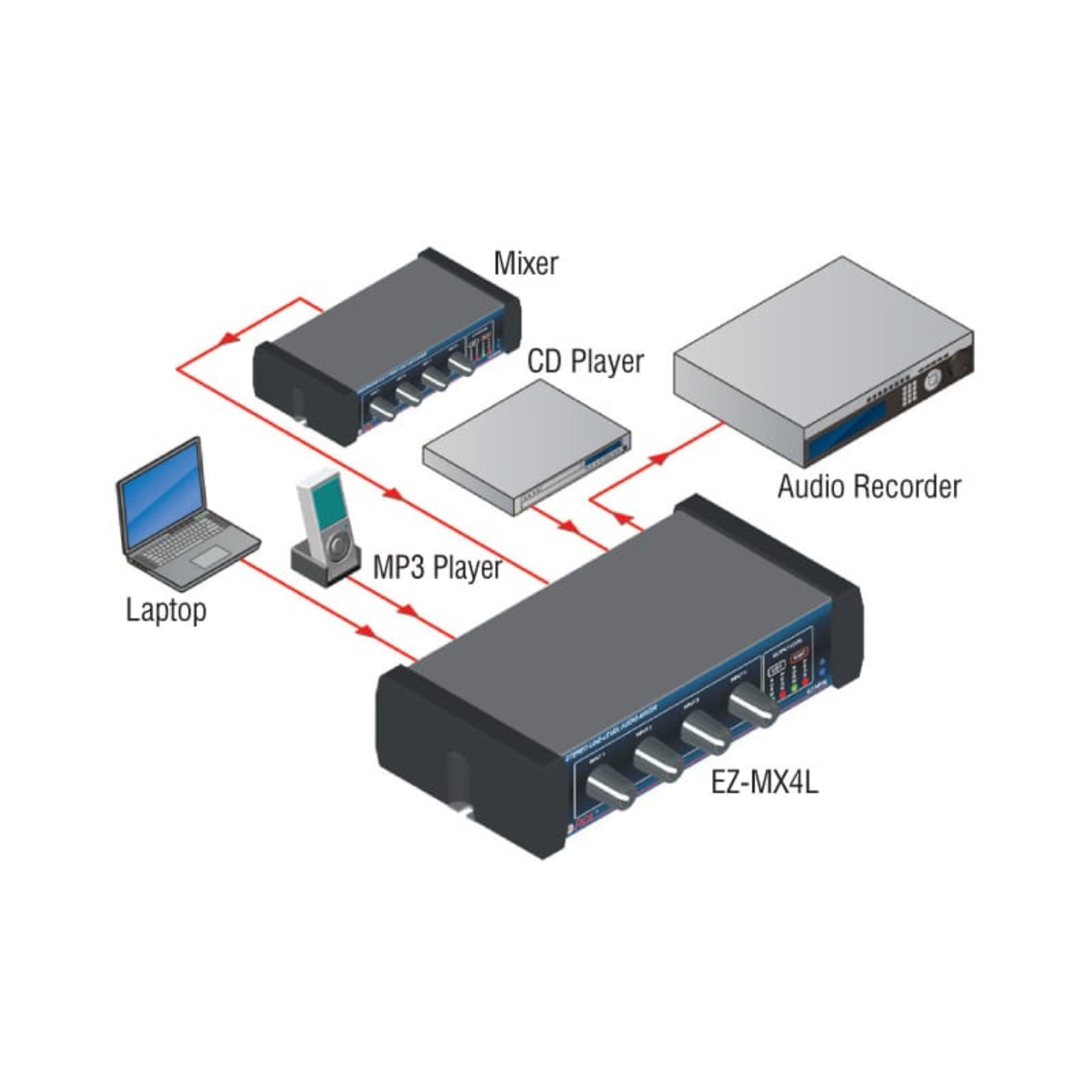

The EZ-MX4L is a stereo audio mixer with four line inputs. All line inputs connect through RCA jacks; one also includes a MINI-jack input. Left and right channel LED VU metering facilitates easy level adjustment. The line output is available on stereo RCA jacks or on a MINI-jack. The EZ-MX4L is used in houses of worship, restaurants, clubs, meeting rooms, studios, home component systems and commercial sound systems.

Model numbers:
EZ-MX4L includes power supply with North American plug
EZ-MX4LX includes worldwide power supply (specify plug)

Features:

  • Four Channel Line-Level Audio Mixer
  • Three Unbalanced Line Inputs on RCA Jacks
  • One Line Input on MINI or RCA Jacks

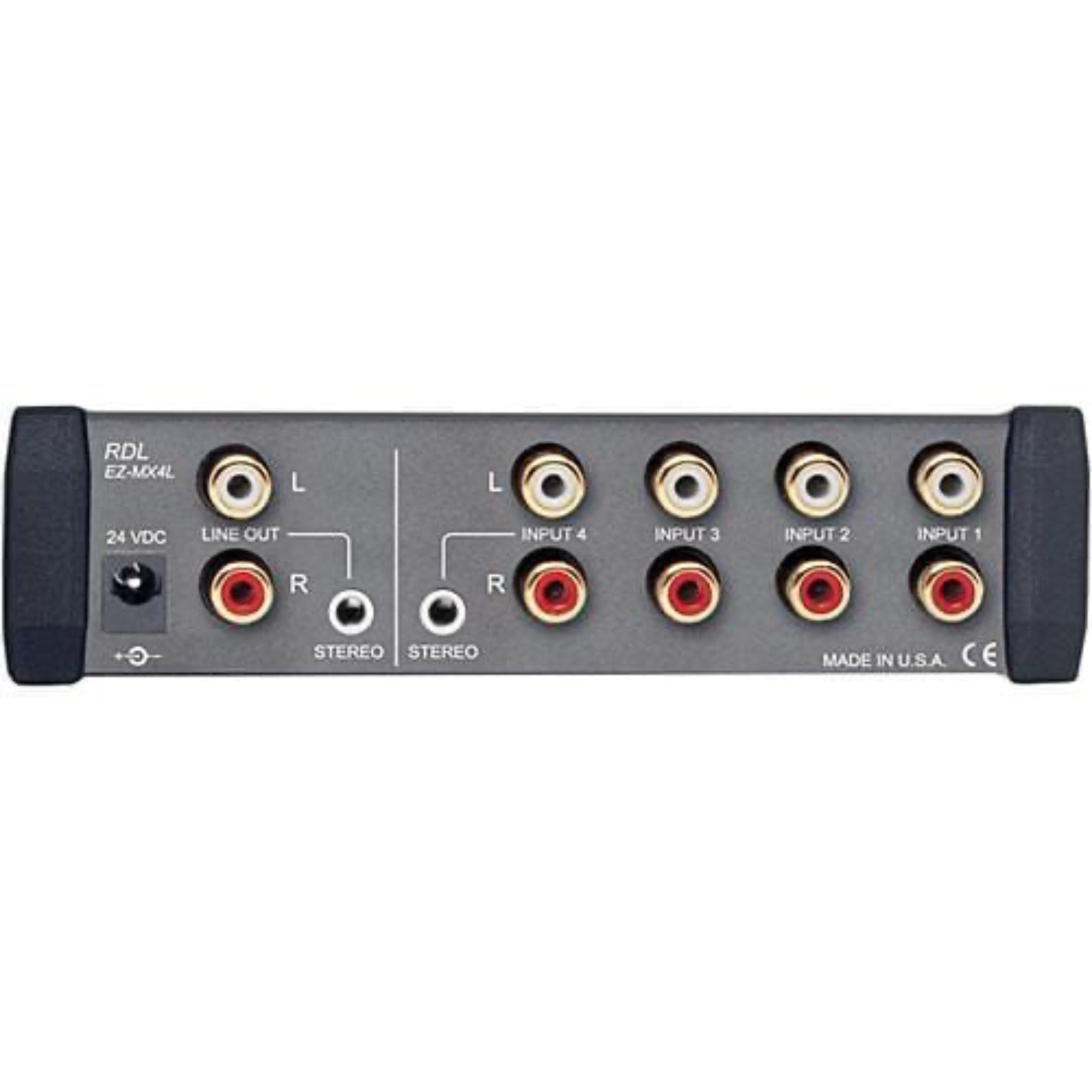

  • Unbalanced Output on MINI or RCA Jacks

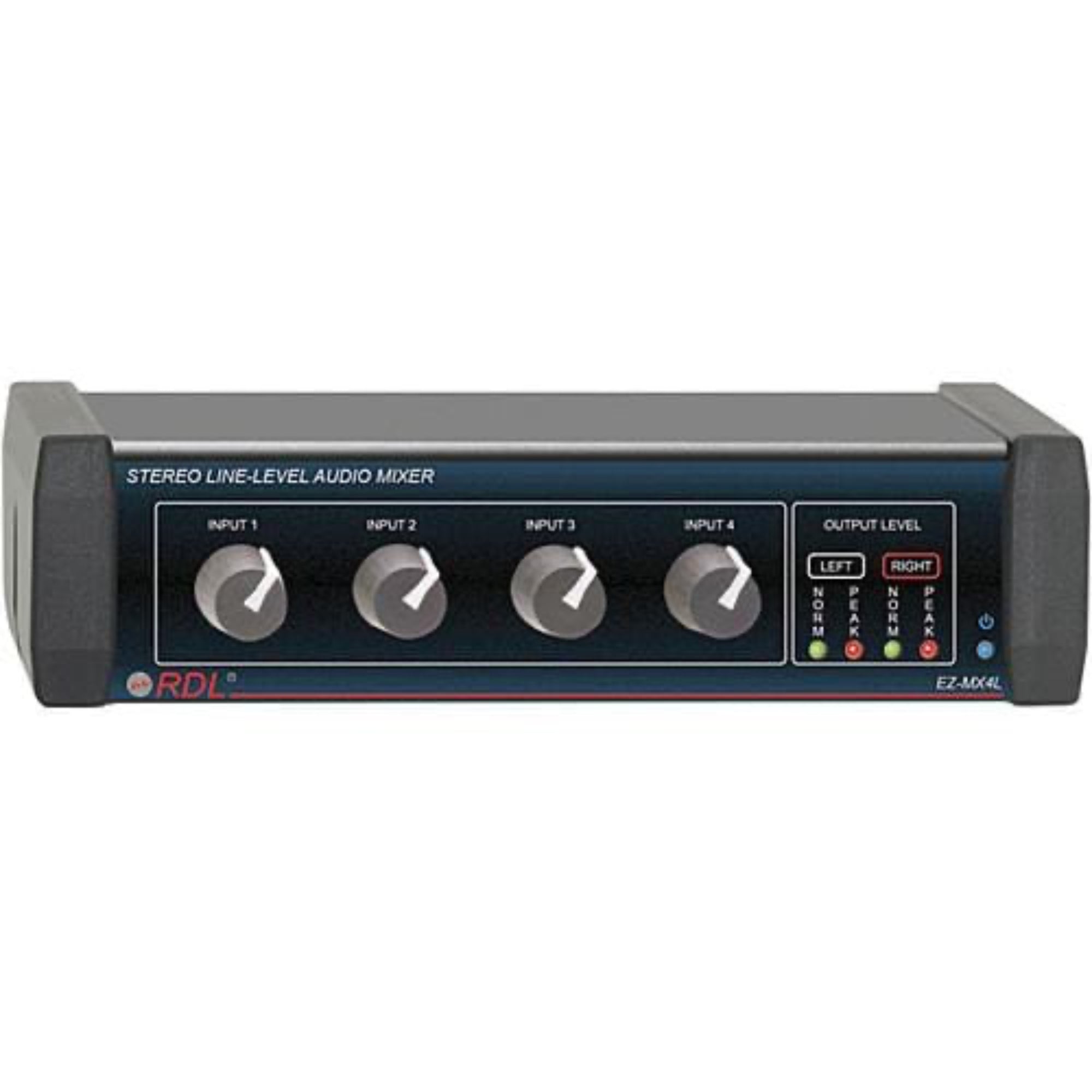

  • Dual-LED VU Meter for Each Channel
  • Headroom Accomodates High Input Level
  • Exceptional Headroom for an Unbalanced Mixer
  • Gold Plated RCA Input and Output Jacks
  • Audio VU Metering Facilitates Adjustment

Specifications:

  • Inputs (5): > 10 kΩ, -10 dBV nominal on RCA jacks (4) or Mini Jack (1), +20 dBV max.
  • Level controls (4): Off to 12 dB gain
  • Outputs (2): -10 dBV nominal on RCA jacks (1) or Mini jack (1, stereo), +16 dBV max.
  • Frequency Response: 10 Hz to 20 kHz (+/-0.01 dB, line)
  • THD+N: < 0.05%
  • Crosstalk: < -72 dB (1 kHz)
  • Metering: Dual-LED VU Meter for Left and Right, calibrated to -10 dBV output
  • Noise: < -85 dB (below -10 dBV output)
  • 24 Vdc power supply current: 30 mA (idle), 60 mA (max.)
  • Case dimensions: 5.75" (14.6 cm)W x 3" (7.6 cm)D
  • Mounting size: 1/3 rack width
Details
  • Manufacturer:  RDL
  • MPN: EZ-MX4L
  • Model Number: EZ-MX4L
  • UPC: 813721010117
