RDL AMS-PB1 Momentary Pushbutton for AMS-UFI Universal Frame

Momentary SPDT Pushbutton - fits all AMS mounts

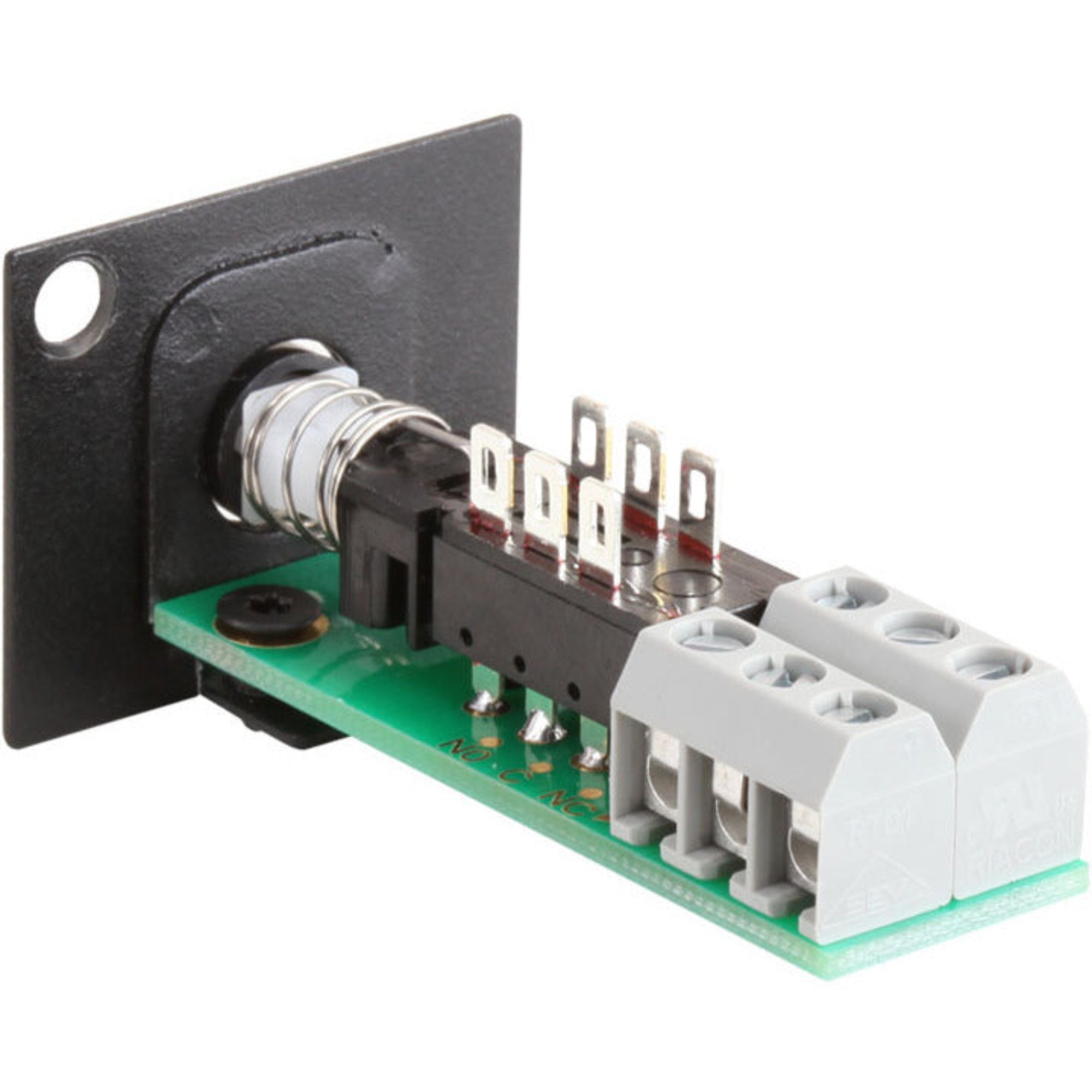

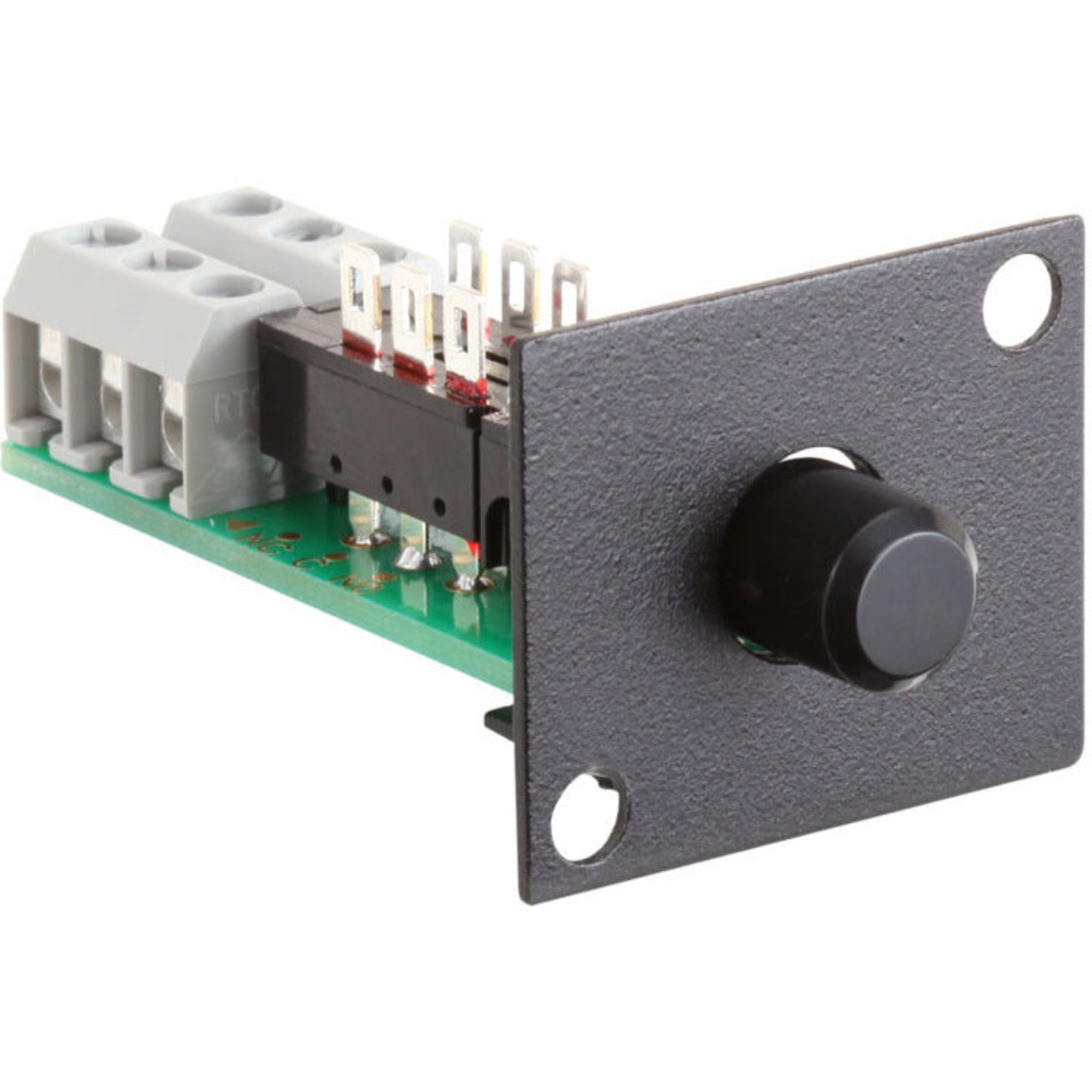

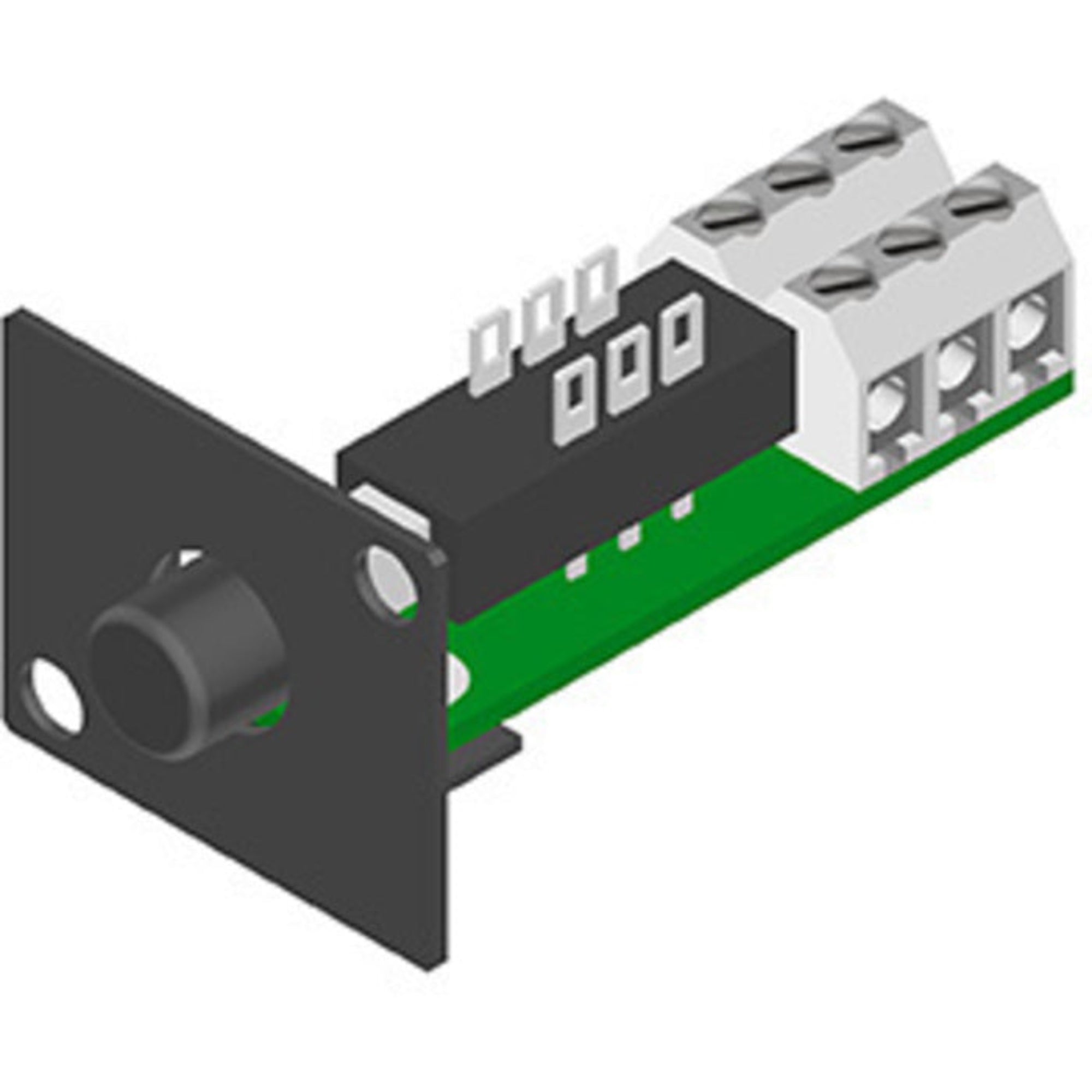

The AMS-PB1 is an accessory with a DPDT momentary pushbutton switch that mounts in AMS mounting frames and in standard D-style cutouts. Two high quality terminal blocks are provided for the connections. The front plate and bracket are constructed of black satin powder coated steel. A black plastic bezel is provided to finish the D-style cutout hole when the accessory is mounted. These accessories are designed to mount behind the front panel of industry products that provide D-style cutouts.

Features:

• Mounts in D-Style Standard Cutouts
• Mounts in all RDL AMS Mounting Frames
• Mounts in RDL Decora-Style Wall Plates
• Availability of a Wide Variety of Associated AMS Accessories
• Bezel Provides Professional Aesthetic Appearance
• Provides Flexibility for Connections and Controls

Specifications:

• WEEE Weight: 0.043 lbs
• Tariff code: 8543.70.9860
• Ambient Operating Environment: -10° C to 60° C
• Package Type: Bag
• Shipping Weight: 0.071 lbs
• Mounting: AMS mounts; D-Style cutouts
• Depth (behind the panel): 2.08 in
• Maximum Switching Power: 15 W (30 Vdc, 0.5 A)
