RDL AMS-BNC BNC Jack Assembly for AMS-UFI Universal Frame

BNC Jack Assy - Fits all AMS mounts

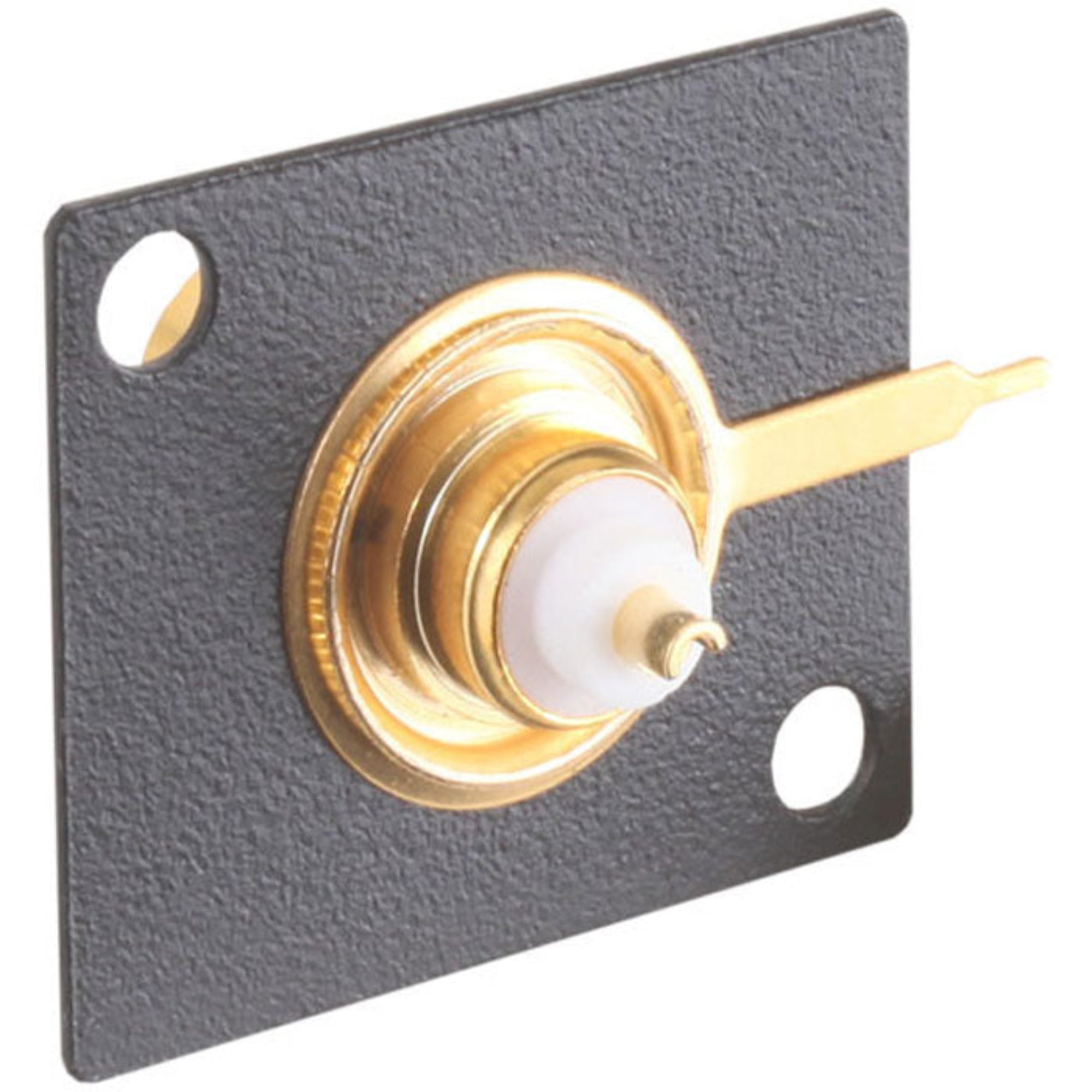

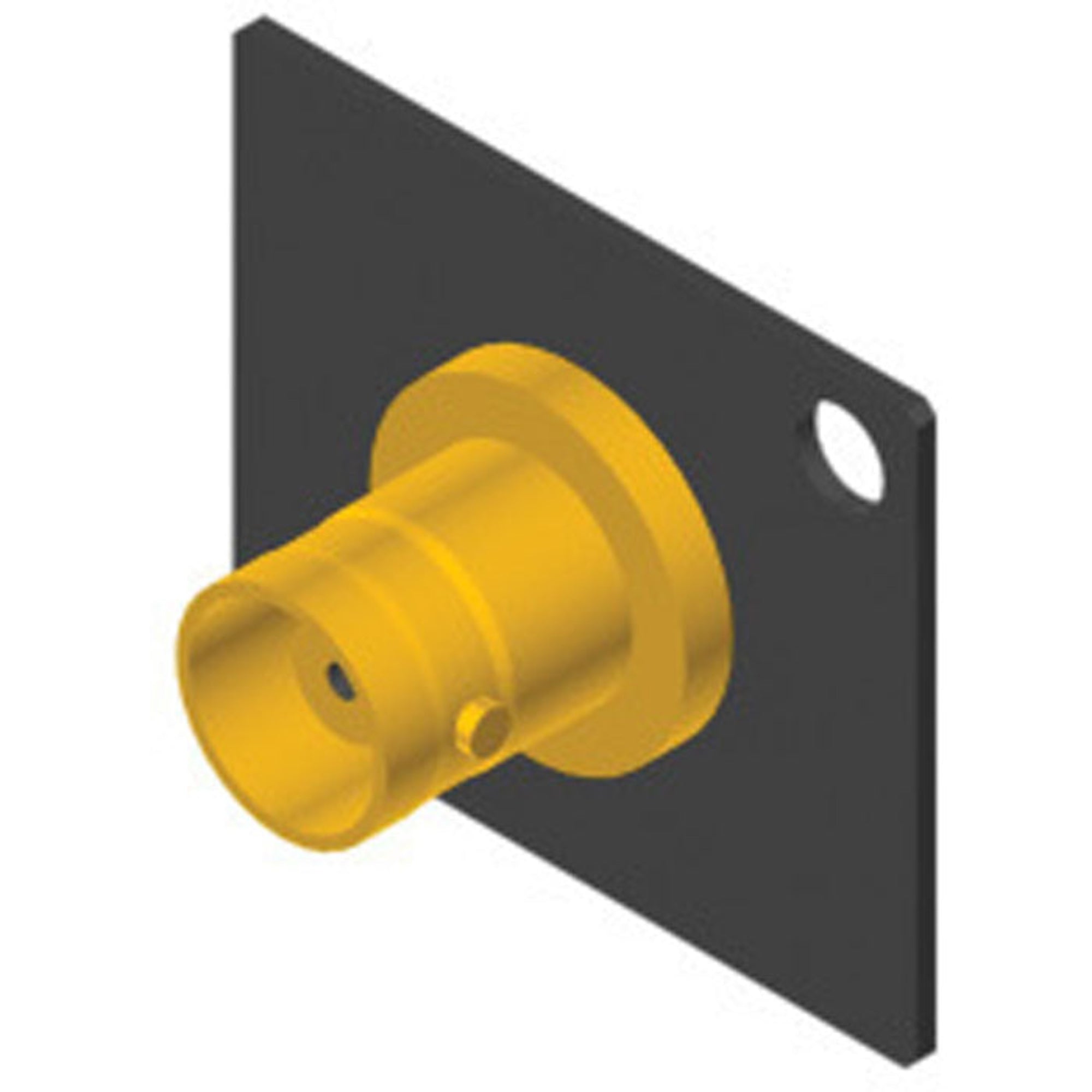

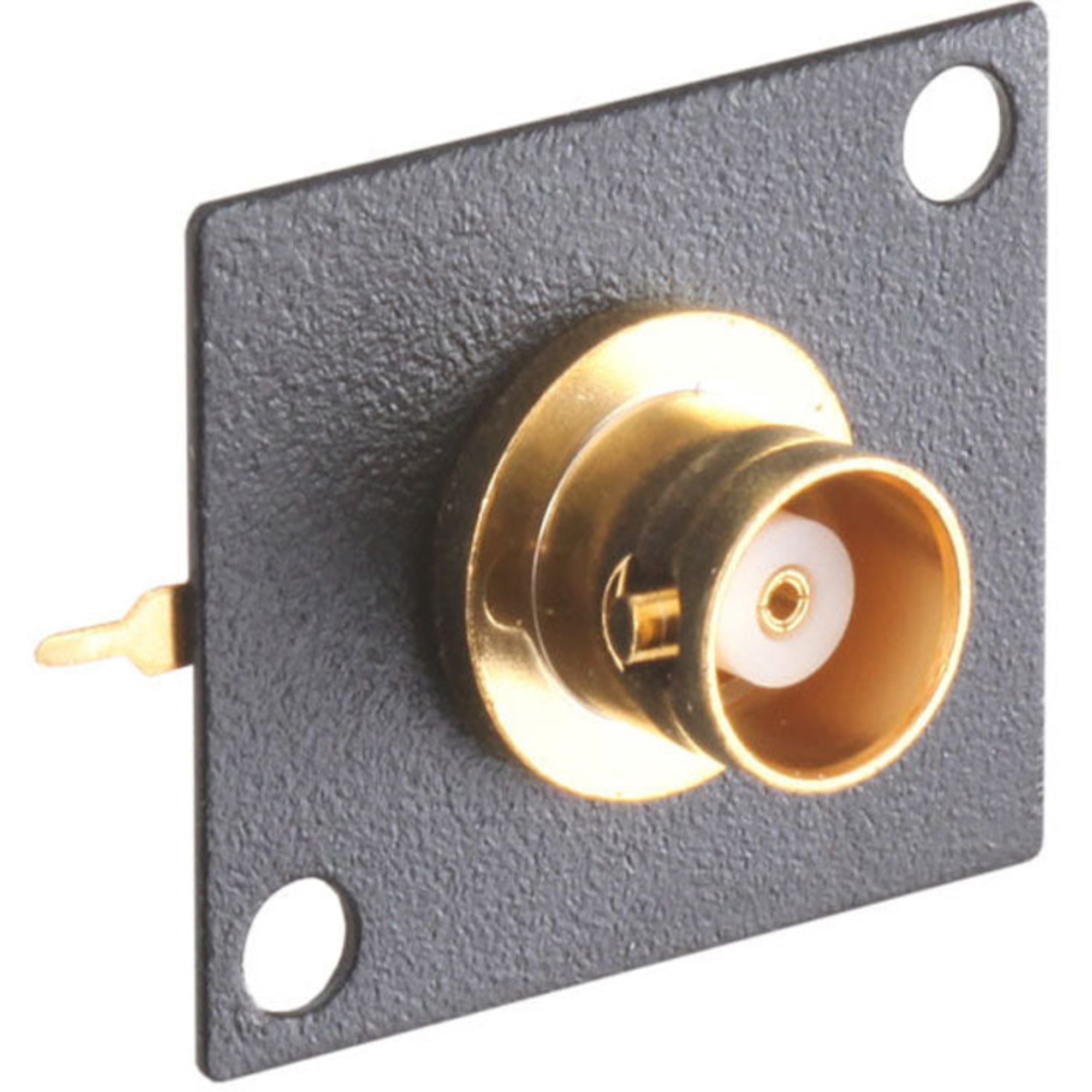

The AMS-BNC is an accessory that mounts in AMS mounting frames and in standard D-style cutouts. It features a high quality gold-plated BNC jack with solder terminals. The front plate is constructed of black satin powder coated steel. A black plastic bezel is provided to finish the D-style cutout hole when the accessory is mounted. These accessories are designed to mount behind the front panel of industry products that provide D-style cutouts.

Features:

• Mounts in D-Style Standard Cutouts

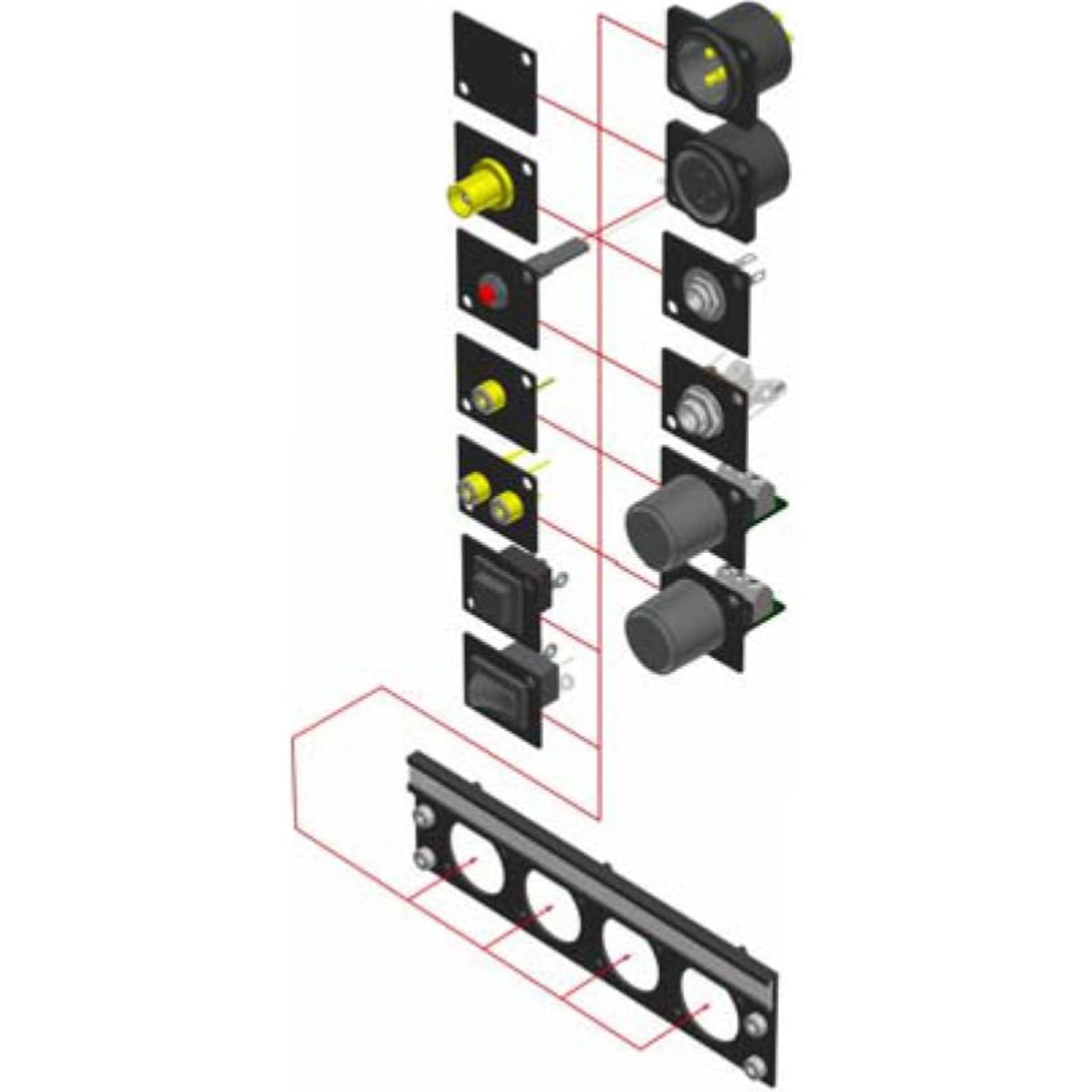

• Mounts in all RDL AMS Mounting Frames
• Mounts in RDL Decora-Style Wall Plates
• Availability of a Wide Variety of Associated AMS Accessories
• Bezel Provides Professional Aesthetic Appearance
• Provides Flexibility for Connections and Controls

Specifications:

• Mounting: AMS mounts; D-Style cutouts
• Depth (behind the panel): 0.50 in
• Ambient Operating Environment: -20° C to 70° C
• Package Type: Bag
• WEEE Weight: 0.04 lbs
• Shipping Weight: 0.06 lbs
• Tariff code: 8536.69.4030
