RDL AMS-10KA Audio Taper Knob Assembly for AMS-UFI Universal Frame

10K Audio Taper Pot & Knob Assembly - Fits all AMS mounts

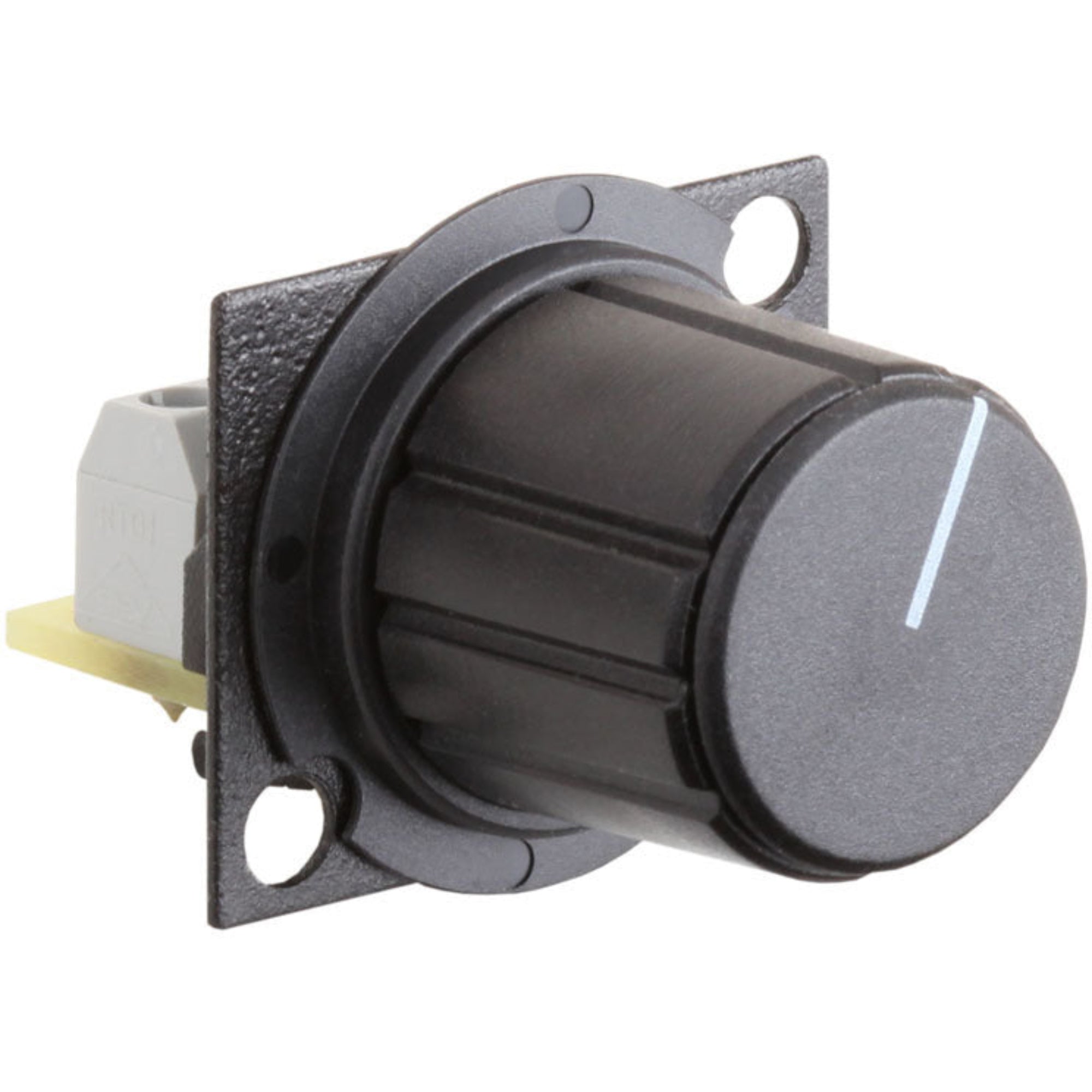

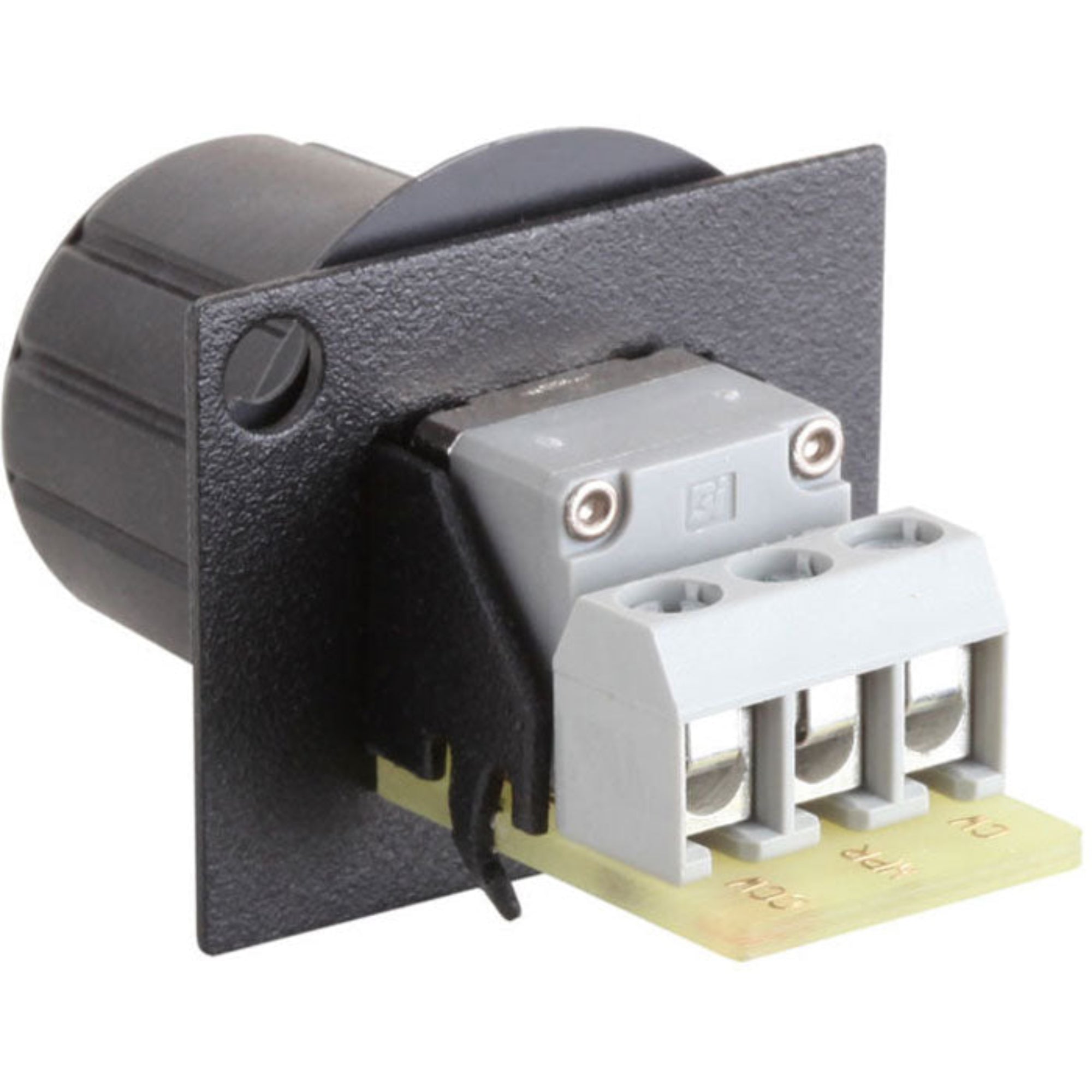

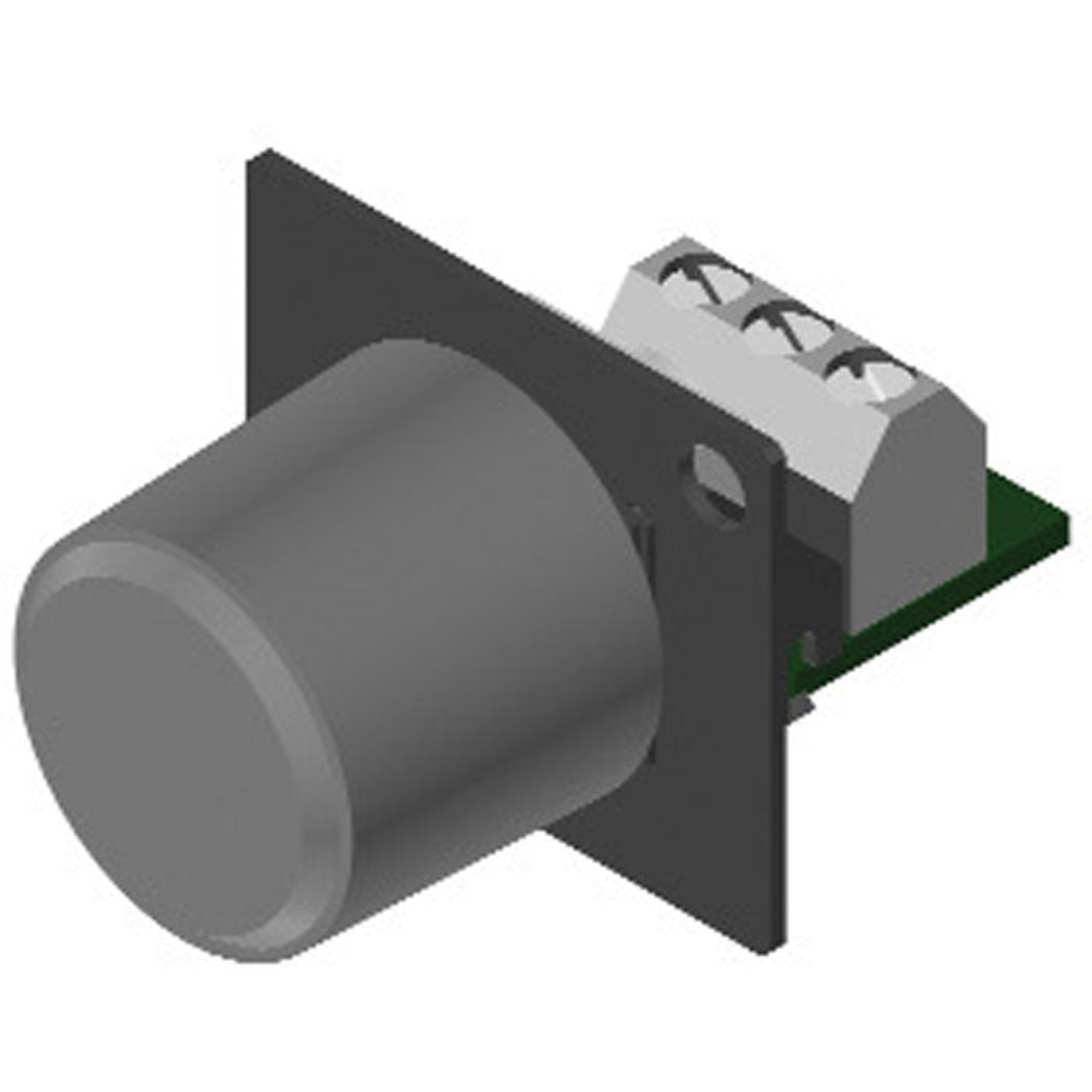

The AMS-10KA is an accessory equipped with a single-turn knob for a user to adjust the audio level. It is designed for the adjustable attenuation of an unbalanced audio signal. The AMS-10KA contains a long-life 10 kΩ audio taper potentiometer for adjusting the audio level. A high quality terminal block is provided for external connections. The AMS-10KA mounts in AMS mounting frames and in standard D-style cutouts. The front plate and bracket are constructed of black satin powder coated steel. A molded black plastic bezel is provided to finish the D-style cutout hole when the accessory is mounted. These accessories are designed to mount behind the front panel of industry products that provide D-style cutouts.

Features:

• Mounts in D-Style Standard Cutouts

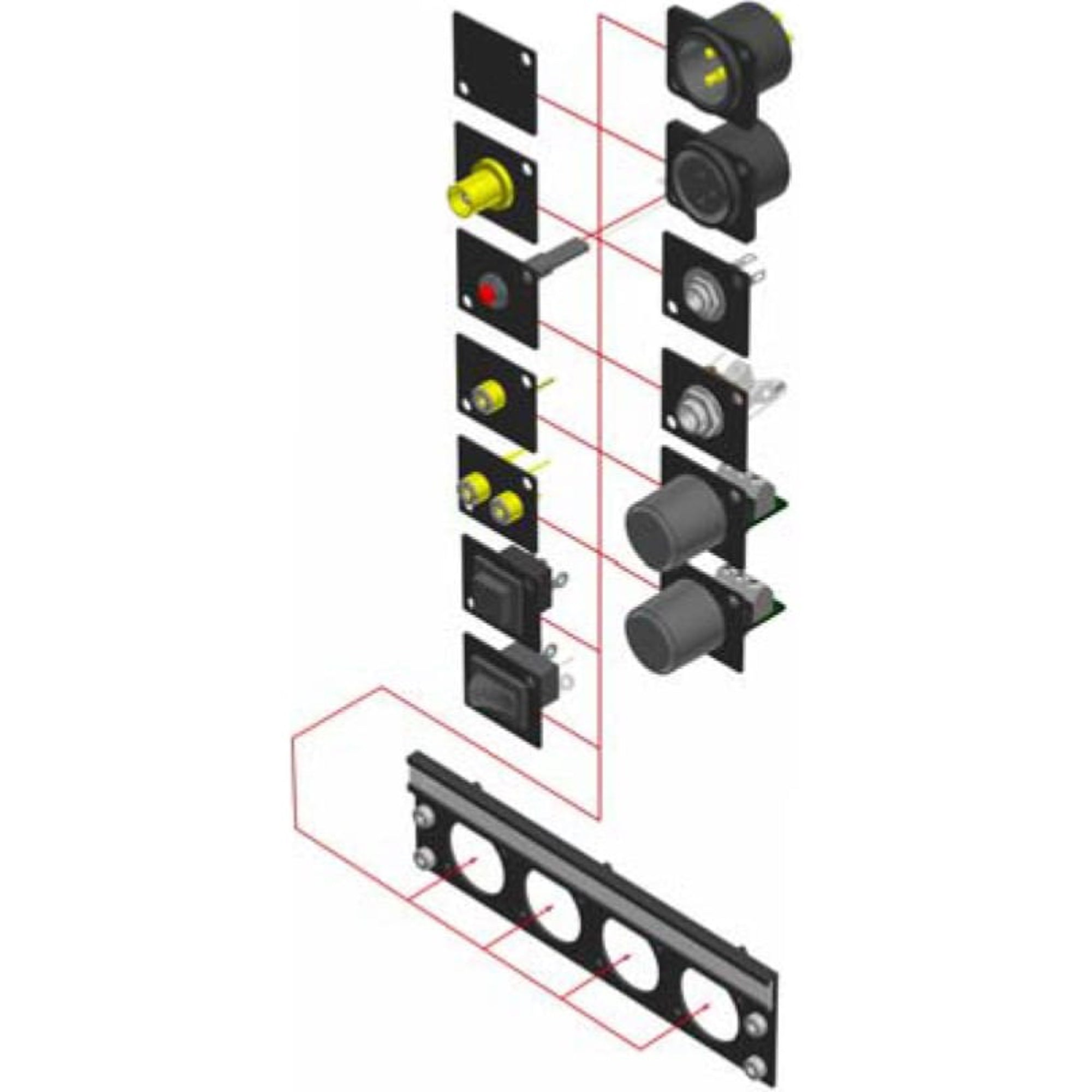

• Mounts in all RDL AMS Mounting Frames
• Mounts in RDL Decora-Style Wall Plates
• Availability of a Wide Variety of Associated AMS Accessories
• Bezel Provides Professional Aesthetic Appearance
• Provides Flexibility for Connections and Controls

Specifications:

• Ambient Operating Environment: 0° C to 70° C
• WEEE Weight: 0.0644 lbs
• Mounting: AMS mounts; D-Style cutouts
• Depth (behind the panel): 1.00 in
• Package Type: Bag
• Shipping Weight: 0.081 lbs
• Tariff code: 8543.70.9860
