Key Features
- 10K Linear Taper Pot & Knob
- For AMS Mounting System
Description

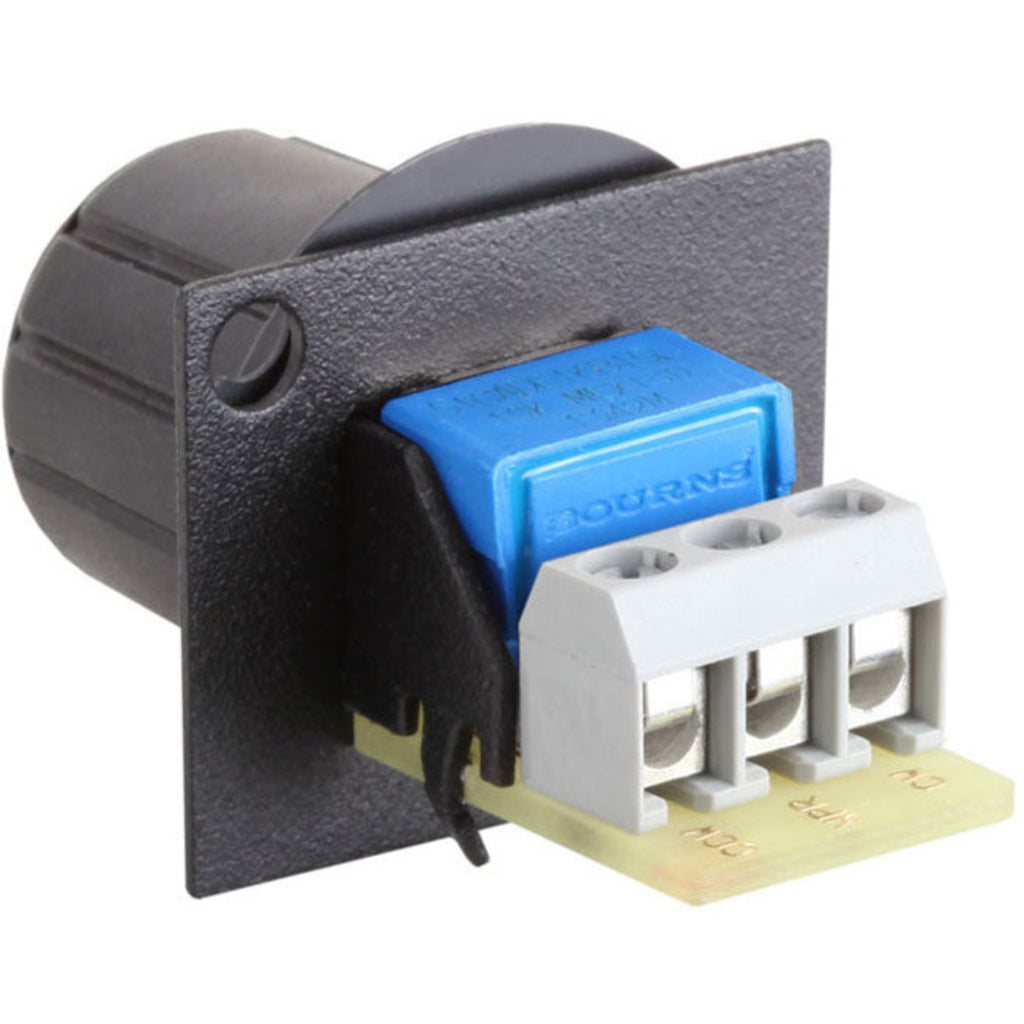

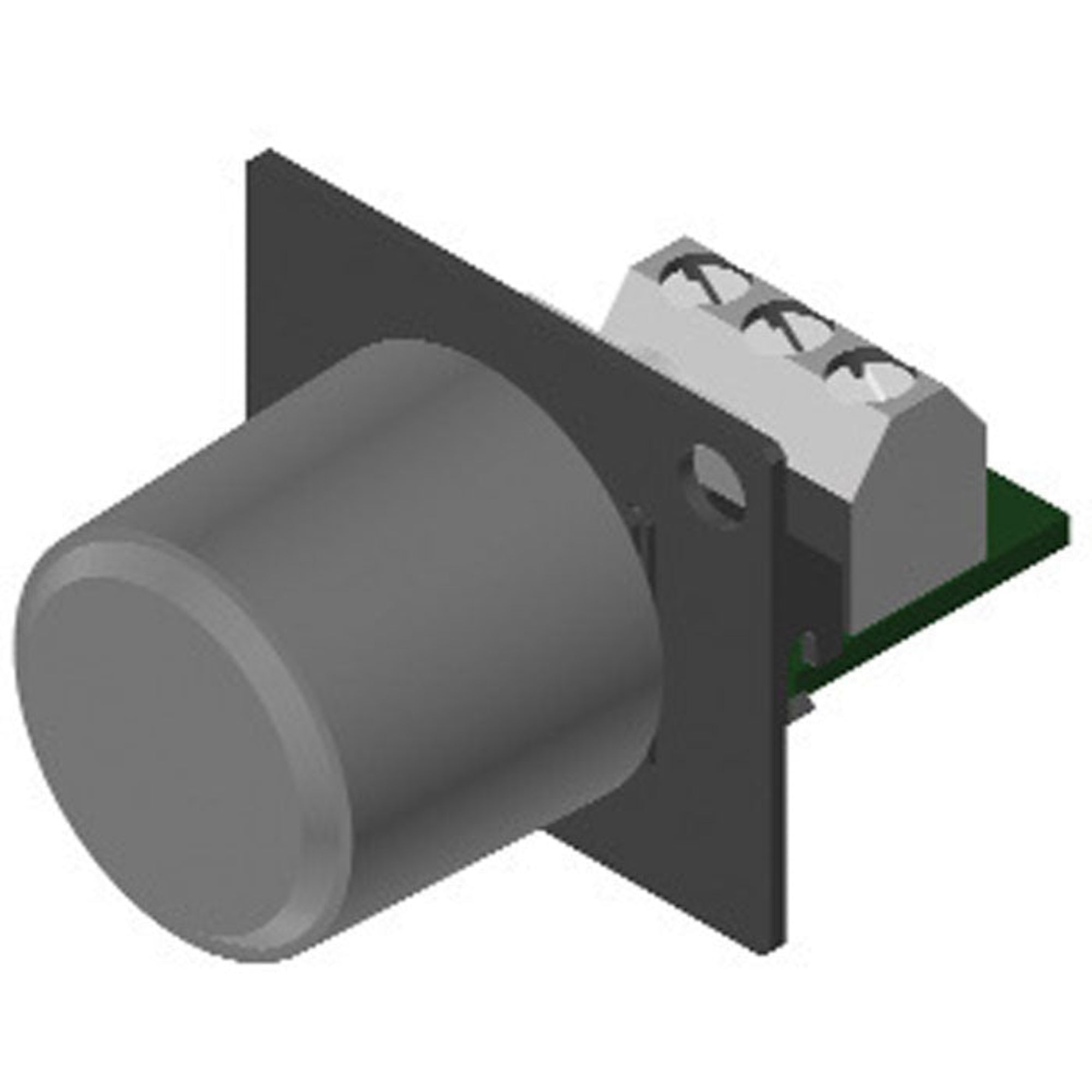

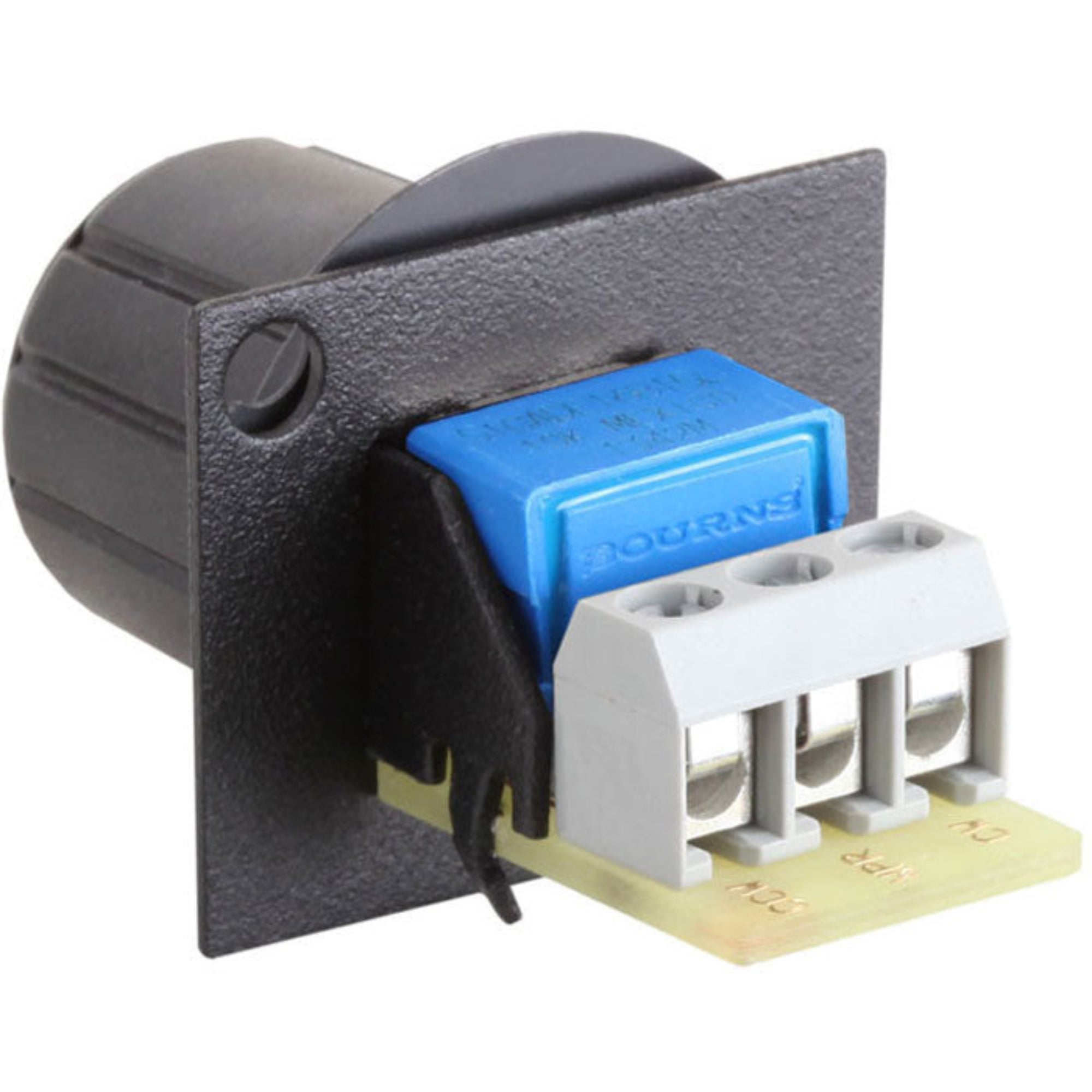

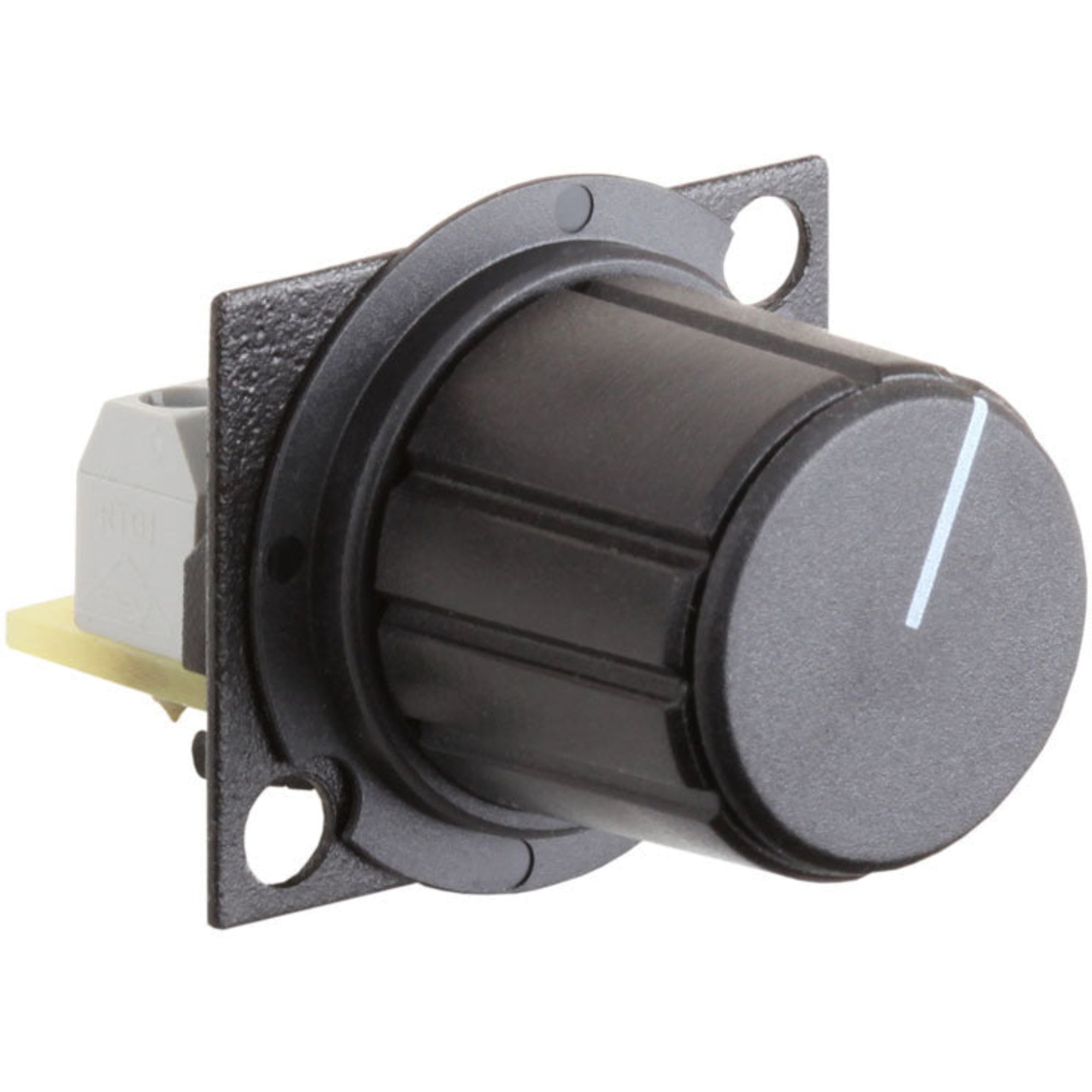

10K Linear Taper Pot & Knob Assembly - Fits all AMS mounts
The AMS-10K is a user remote control that provides linear adjustment of VCA control voltage for setting audio level. It is designed to directly interface with the 0 to 10 V 3-wire control input of the VCA. A single shielded pair is normally used. The AMS-10K contains a long-life 10 kΩ potentiometer for adjusting the control voltage. A high quality terminal block is provided for external connections. The AMS-10K mounts in AMS mounting frames and in standard D-style cutouts. The front plate and bracket are constructed of black satin powder coated steel. A black plastic bezel is provided to finish the D-style cutout hole when the accessory is mounted. These accessories are designed to mount behind the front panel of industry products that provide D-style cutouts.
Features:
- Mounts in D-Style Standard Cutouts
- Mounts in all RDL AMS Mounting Frames
- Mounts in RDL Decora-Style Wall Plates
- Availability of a Wide Variety of Associated AMS Accessories
- Bezel Provides Professional Aesthetic Appearance
- Provides Flexibility for Connections and Controls
Specifications:
- Tariff code: 8543.70.9860
- Ambient Operating Environment: 0° C to 70° C
- Package Type: Bag
- WEEE Weight: 0.0627 lbs
- Shipping Weight: 0.08 lbs
- Mounting: AMS mounts; D-Style cutouts
- Depth (behind the panel): 1.00 in
- Manufacturer: RDL
- MPN: AMS-10K
- Model Number: AMS-10K
- UPC: 813721012982
