Key Features
- 400 Ohm Ear Speaker
- 200 Ohm Dynamic Microphone
- 4-Pin XLR Connection
- Comfortable Ear Cushions
- Adjustable Flexible Headband
- Noise-Canceling Microphone
Description

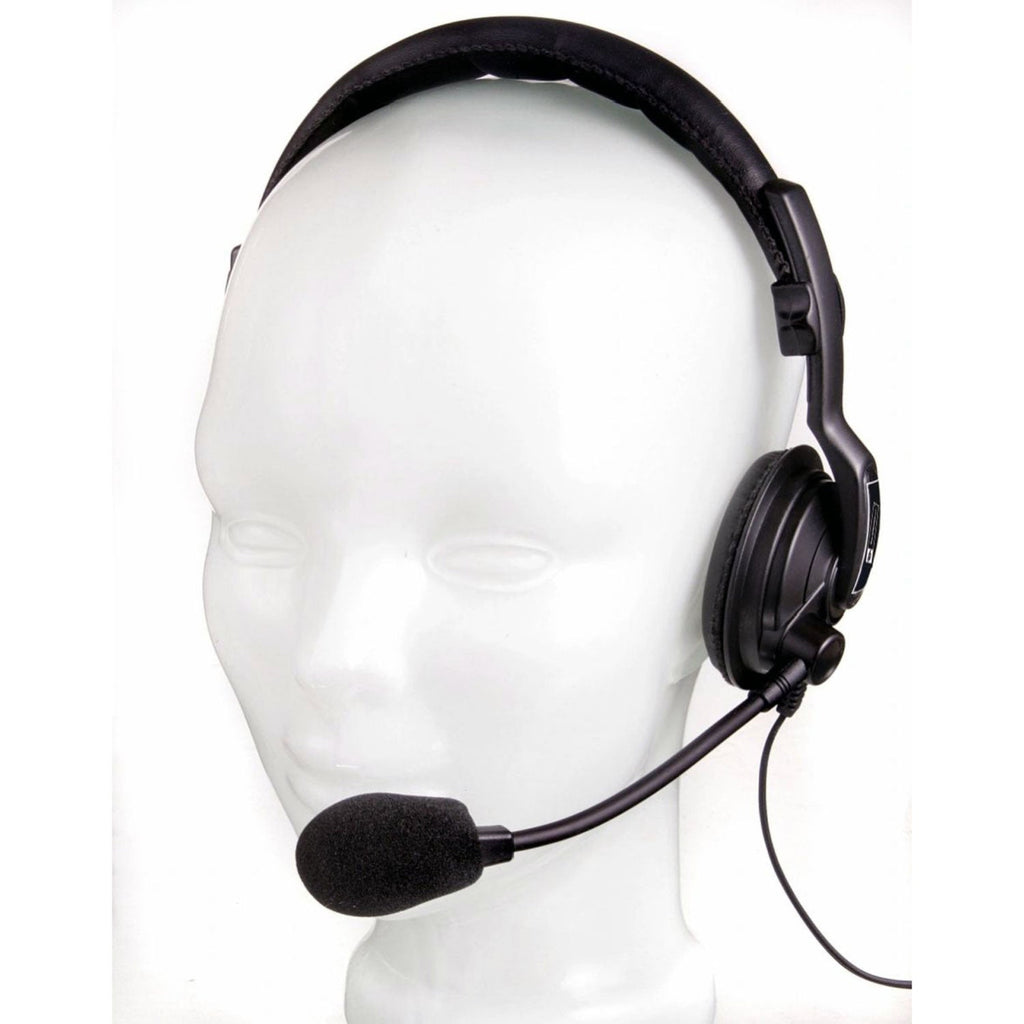

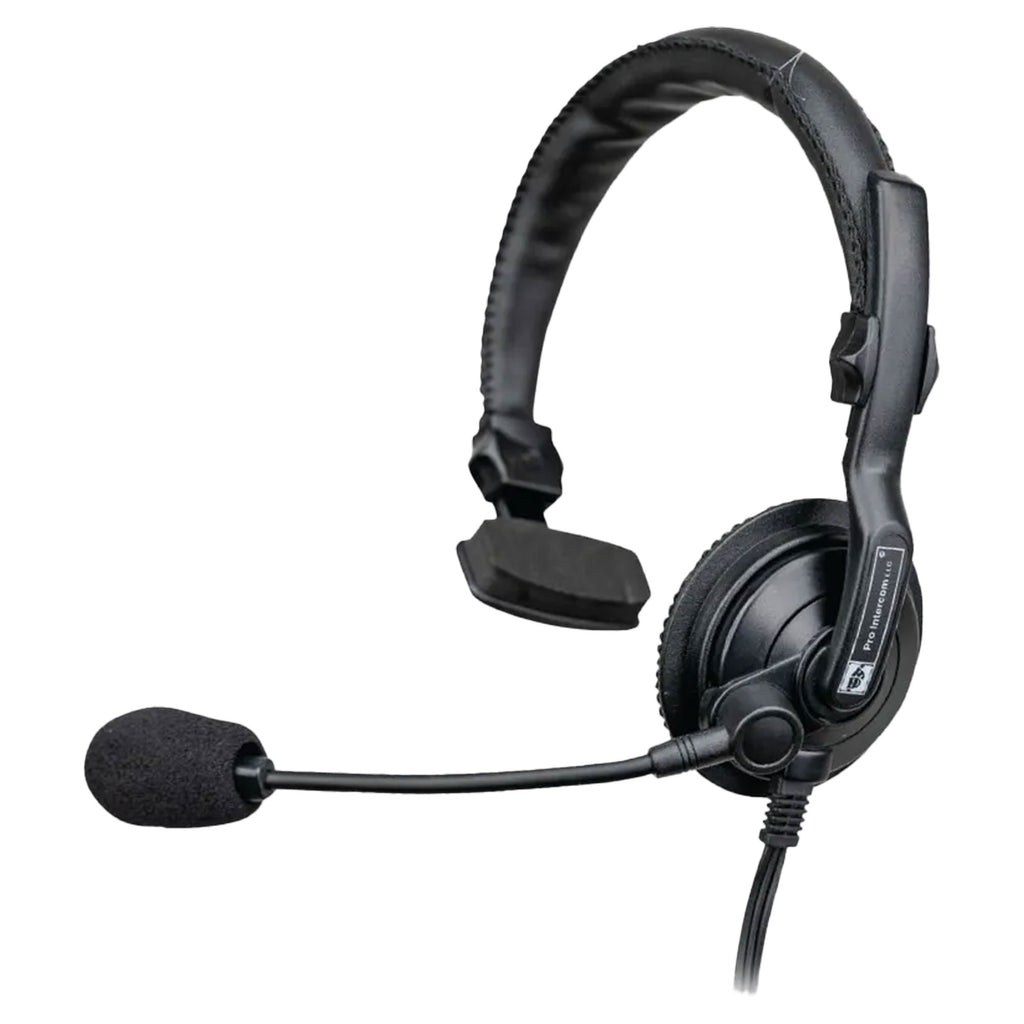

Single Muff Lightweight Communications Headset with Dynamic Mic
All lightweight headsets are more fragile than their full-sized counterparts, but the SMH710 is definitely not disposable. It is repairable and the muff is replaceable. The audio quality permits wearing it for long periods without the 'ear fatigue' that occurs when the audio is of poor quality. And the other people on the system will similarly not be annoyed, as the microphone on the SMH710 sounds as good as that on the SMH310. At 3.88oz (110g) the SMH710 challenges all comers for weight, performance and price. The SMH710 has a flexible boom which can be swung up into the vertical position and is fitted with a 4-pin female XLR connector and a foam 'pop' filter on the microphone.
The SMH710 may only be worn on the left ear.
Performance: The SMH710 is a lightweight version of our long-time product, the SMH310. The construction, though smaller, is very similar. At 3.88 oz. (0.11kg) it is among the lightest headsets suitable for intercom that is available, and far more comfortable than the most commonly available lightweights. Because it has a dynamic microphone it is suitable for all intercom stations, old and new. The microphone arm is a flexible gooseneck and has a swivel mount, permitting a wide range of positioning. The headset comes with a foam microphone pop filter The SMH710 is for left side use only. The ear cushions, being smaller, sit on the ear rather than around it. They can be cleaned and can be easily and inexpensively replaced. The headband is adjustable and padded. On the earspeaker side the adjustment involves clicking the fitting up and down. For larger sizes the pad on the far side can be adjusted by removing a small screw and resetting the pad position.
Durability: The SMH710 has a minimal number of moving parts. Each of the pivot points has been strengthened. The flexible gooseneck bends rather than breaks. The muff peels off the ear cup for almost instant cleaning or replacement. Our always-generous repair policy applies to these modestly priced headsets as well.
Value: This headsets represent an outstanding value, costing considerably less than any other major brand of intercom-suitable lightweight communications headset. When long working-life expectations and repair-ability are factored in, the value is even further enhanced.
Compatibility: The SMH710 is compatible with Clear-Com as well as other, lesser-known, headset communications systems. The standard 4-pin female XLR-type connector is included, but we will gladly fit the appropriate plug for any other system at a reasonable cost.
Specifications:
- Ear speaker impedance: 400ohm +/- 15% (40mm)
- Rated power input: 300 mW
- Max. power input: 100 mW
- Frequency response: 20~20kHz
- T.H.D. @ S.O.P: <3%
- S.P.L: 106dB +/- 4dB
- Microphone: Dynamic, 0.825 in (21mm) 200ohm
- Mic. Boom: 0.177 in (4.5mm) diameter gooseneck tube
- Cord: Straight, 6.56 ft. (2m)
- Headband adjust: ABS click-type
- Net weight: 3.88oz (0.11kg)
