Key Features
- 5-Pole Mini XLR Male Chassis Connector
- Nickel Housing
- Gold-Plated Contacts
- Rear-Mountable Design
- Shielded System for High EMI Protection
- Water-Resistant Connector
- Full Box of 100 Connectors
Description

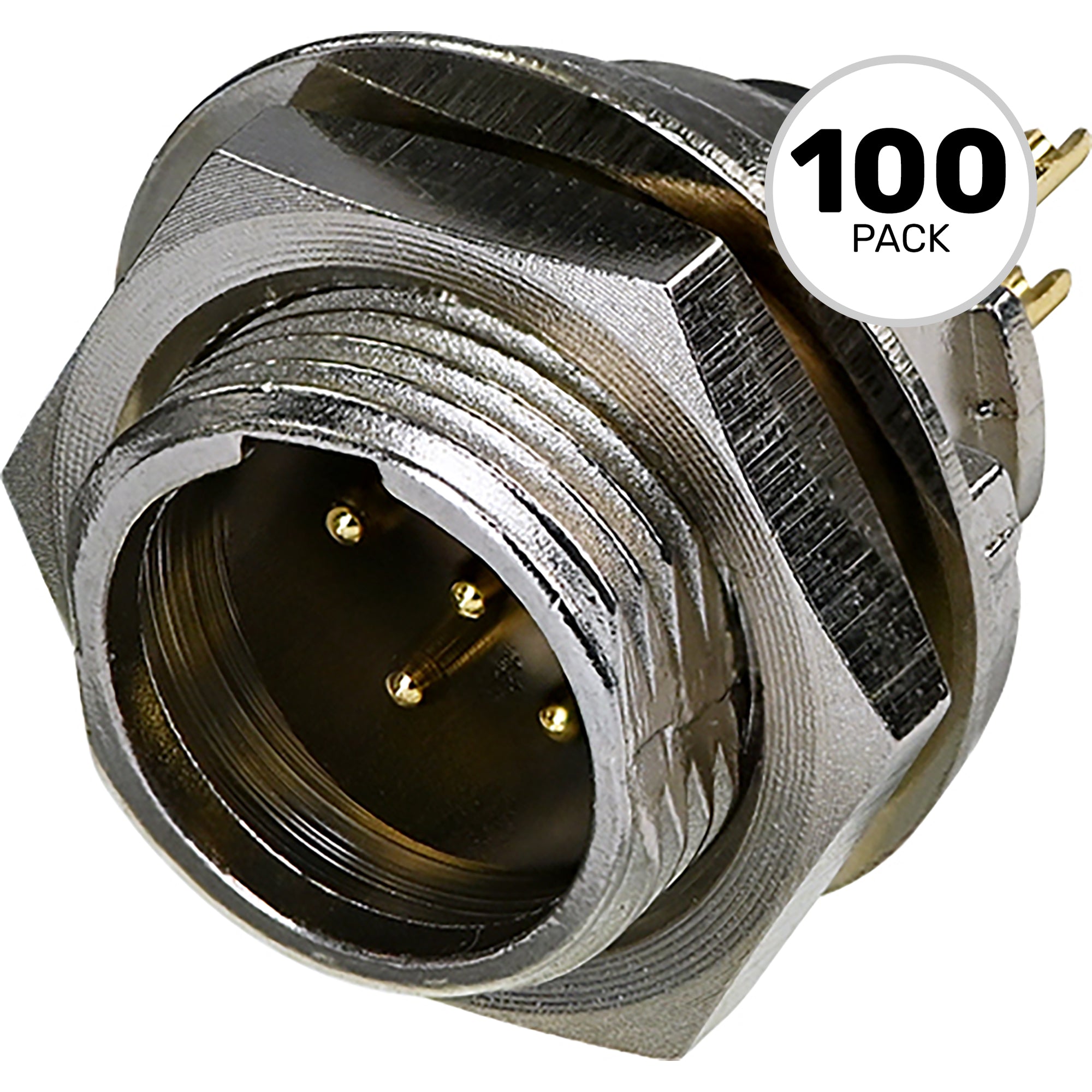

Rear-Mountable 5-Pole TINY XLR Male Chassis Connector, Nickel Housing, Gold Plated Contacts, Max. Panel Thickness: 3mm - Full Box of 100 Connectors

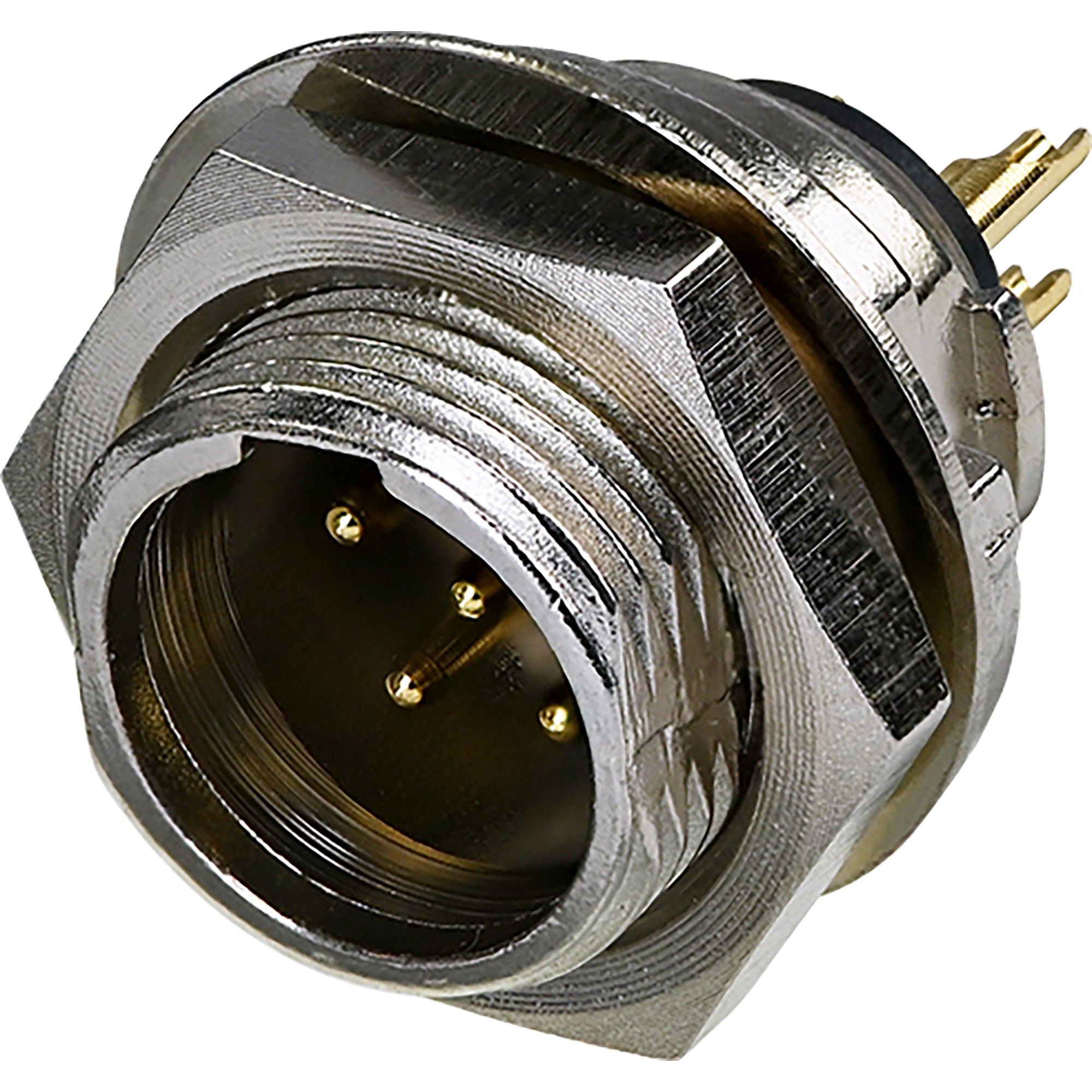

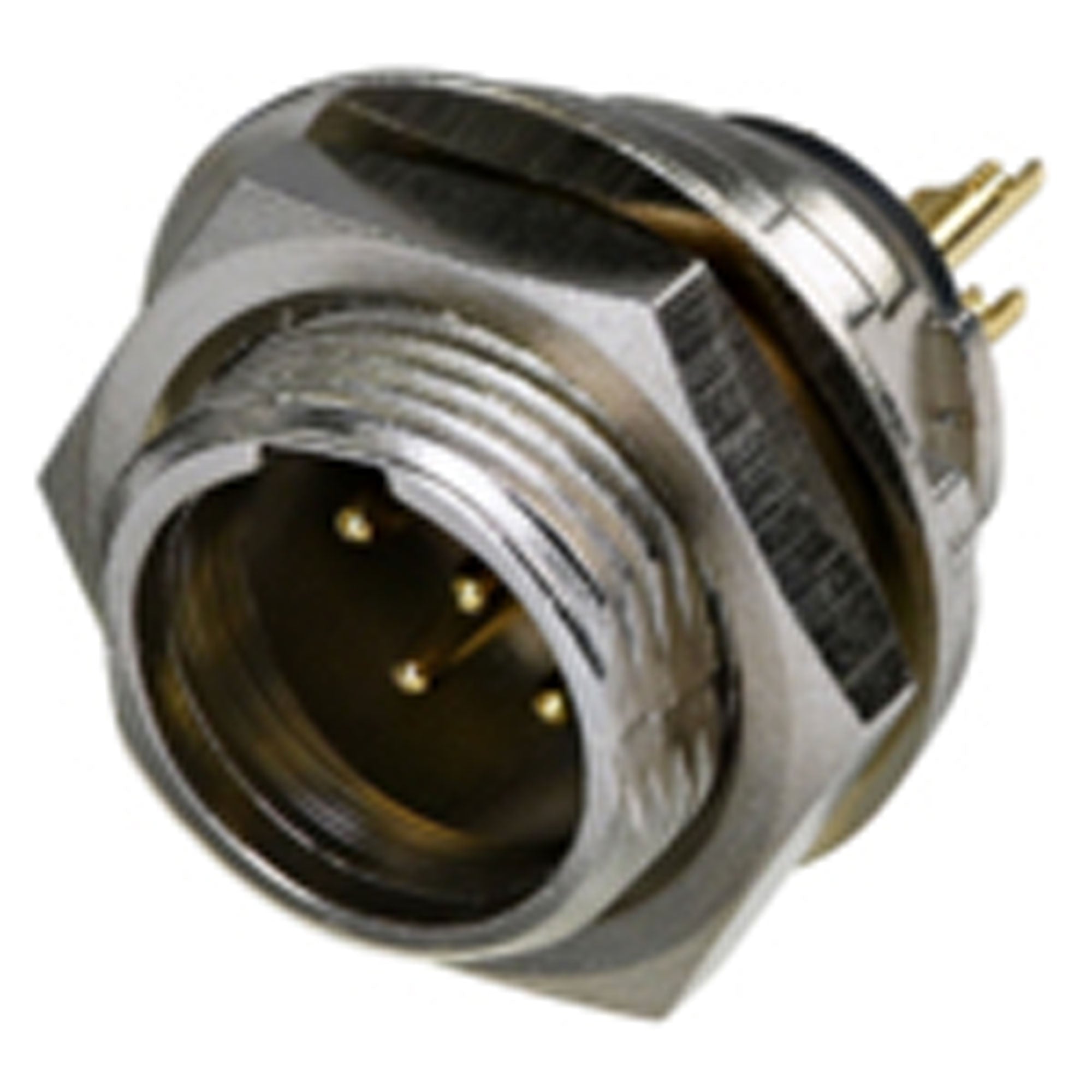

The Rean RT5MPR TINY XLR from Neutrik is a chassis connector with a 5-pole mini XLR male connection point. With its rear-mountable design, the chassis connector provides a water-resistant connection when mating with the RTFC-B-W. The system is shielded for noise immunity and EMI protection, while the housing is constructed of nickel. Its contacts are gold-plated.
Features:
- Rear mountable design
- Shielded system - high noise immunity and EMI protection
- Watertight chassis connector, even in unmated condition
Specifications:
- Product:
- Title: RT5MPR
- Connection Type: XLR
- Electrical:
- Contact Resistance: ≤10 mΩ
- Insulation Resistance: >1 GΩ
- Dielectric Strength: >500 V rms
- Rated current per contact: ＜5 A
- Mechanical:
- Lifetime: >1000 Mating Cycles
- Wiresize: 0.22 mm²
- Wiresize: 24 AWG
- Material:
- Housing: Zinc
- Nut: Brass
- Washer: Steel
- Plastic Body: PA66+30%GF
- Pin: Brass
- Housing: Nickel Plating
- Nut: Nickel Plating
- Washer: Nickel Plating
- Pin: Gold Plating
Details
- Manufacturer: Neutrik
- MPN: RT5MPR
- Model Number: RT5MPR
